Symptom: SEAT SQUIB CIRCUIT OPEN: Testing

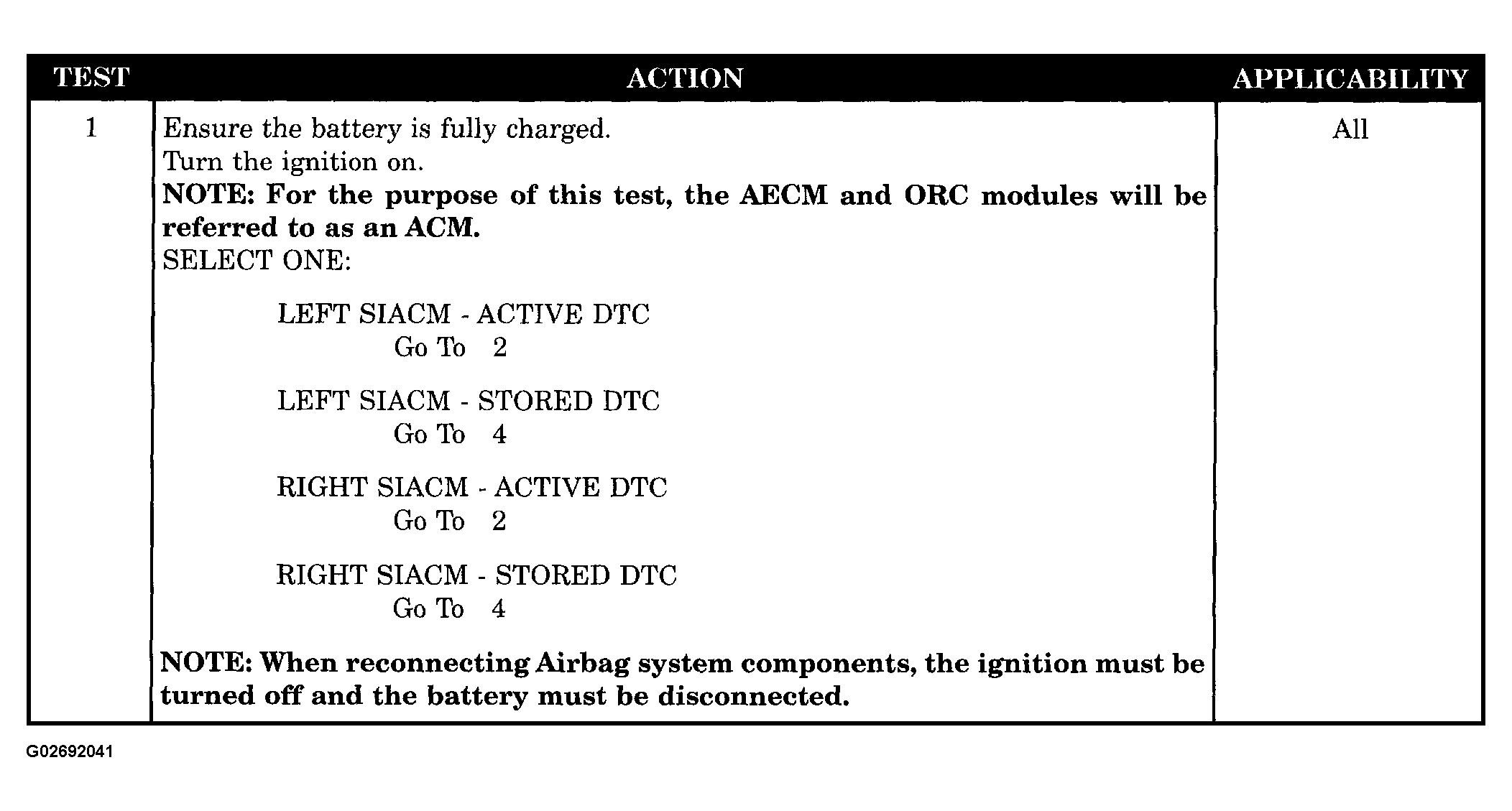

Fig 1: Testing Seat Squib Circuit Open (1 Of 3)
G02692041Courtesy of DAIMLERCHRYSLER CORP.

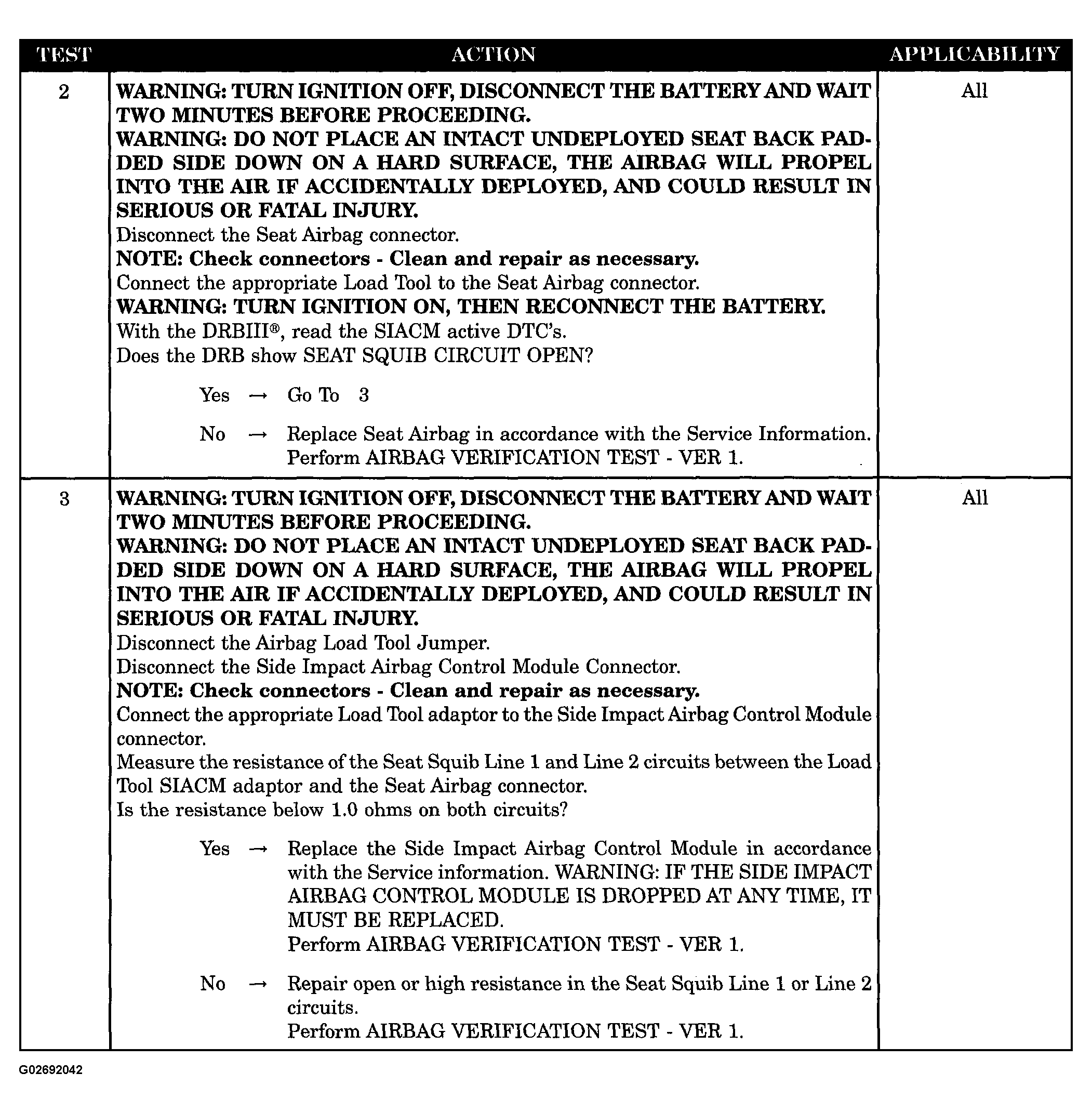

Fig 2: Testing Seat Squib Circuit Open (2 Of 3)
G02692042Courtesy of DAIMLERCHRYSLER CORP.

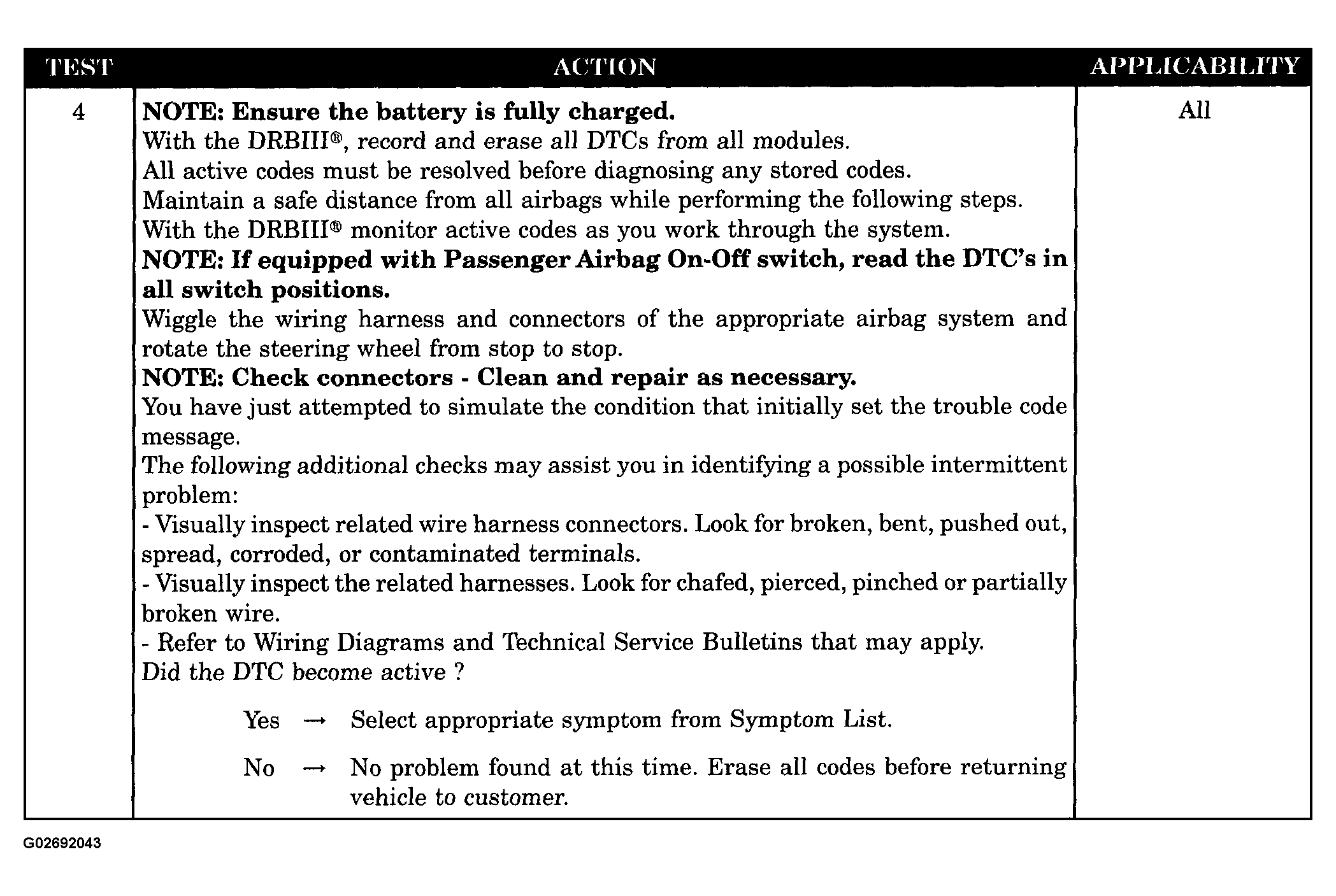

Fig 3: Testing Seat Squib Circuit Open (3 Of 3)
G02692043Courtesy of DAIMLERCHRYSLER CORP.
