Symptom: PASSENGER SQUIB 1 SHORT TO GROUND: Testing

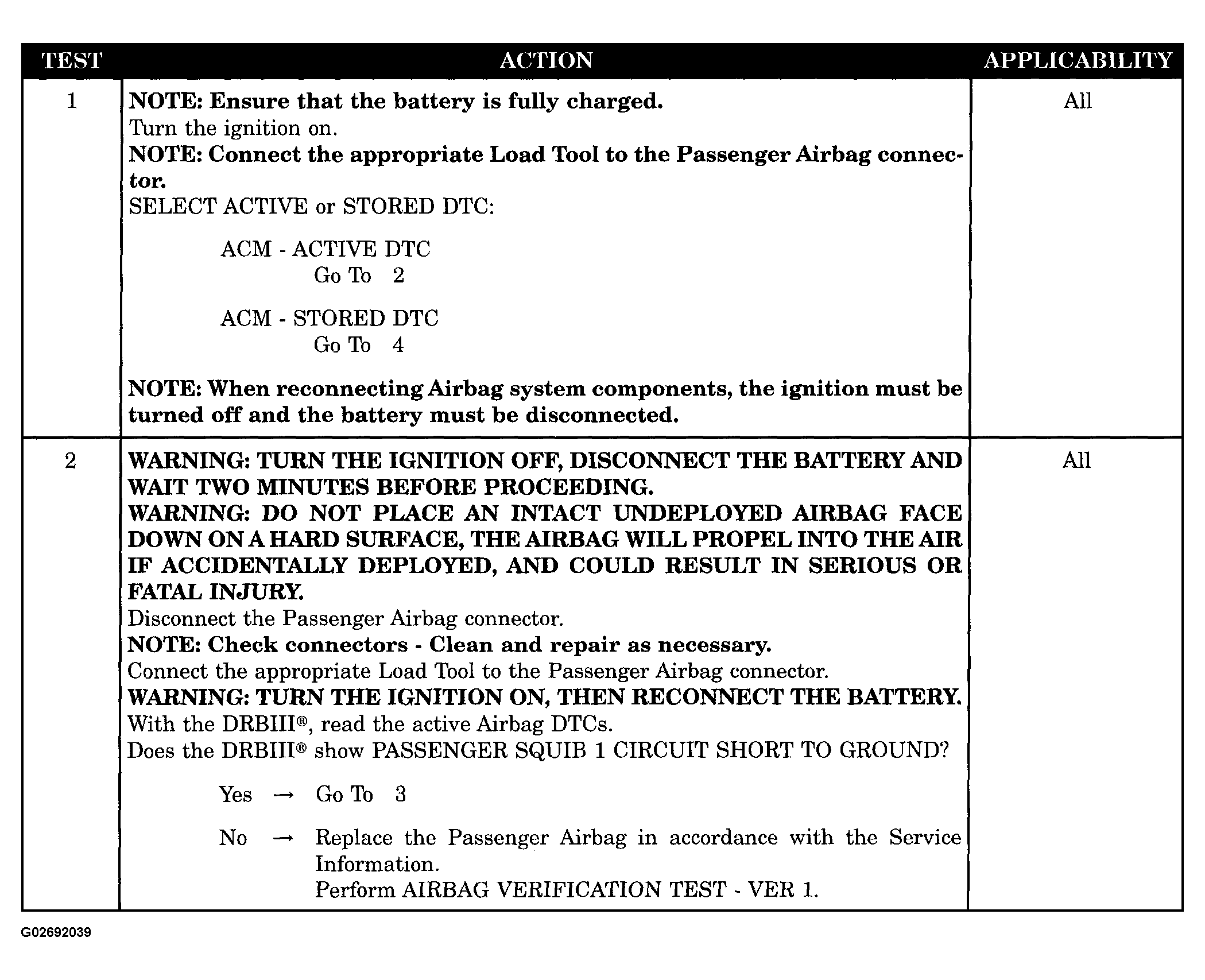

Fig 1: Testing Passenger Squib 1 Short To Ground (1 Of 2)
G02692039Courtesy of DAIMLERCHRYSLER CORP.

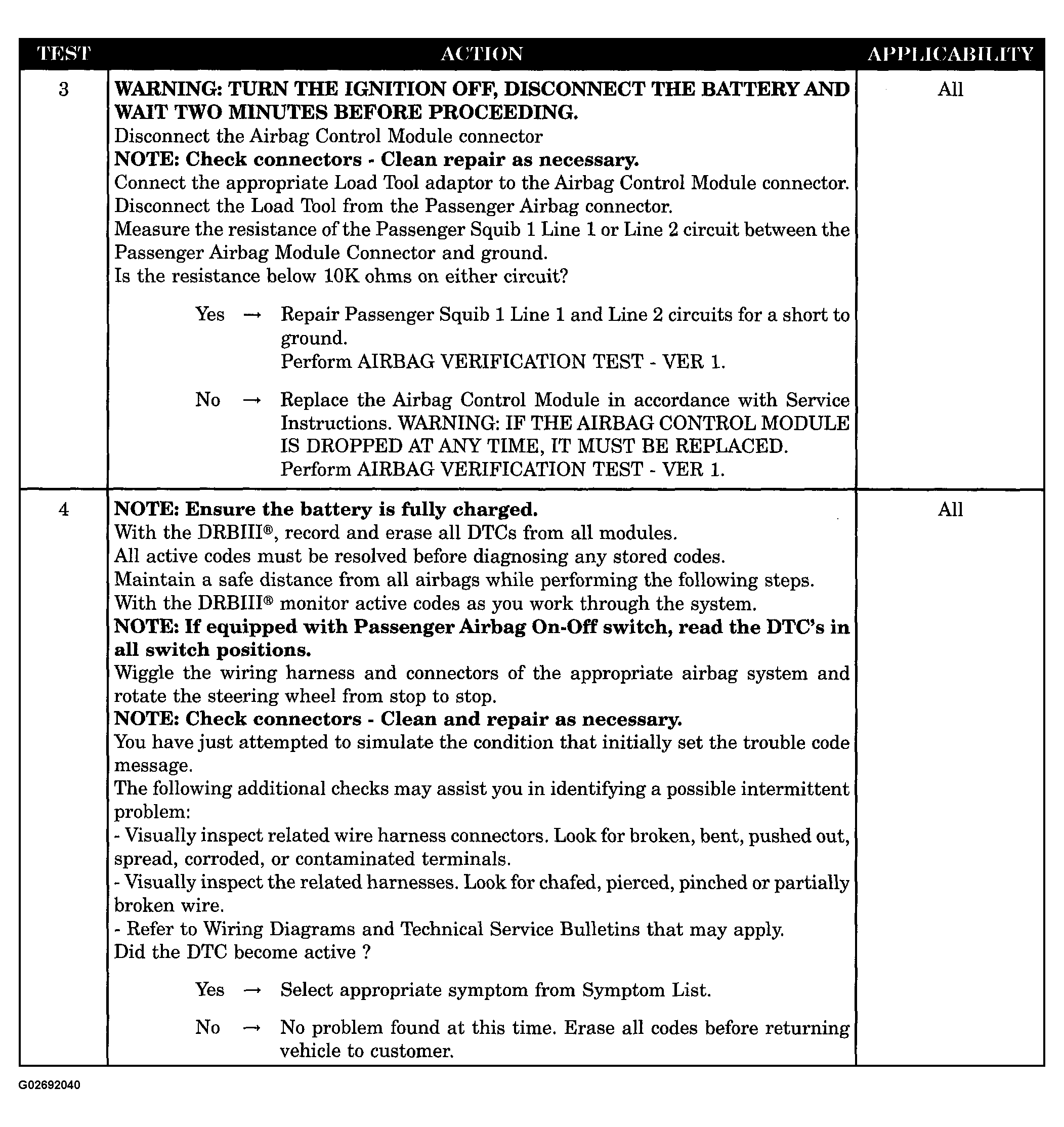

Fig 2: Testing Passenger Squib 1 Short To Ground (2 Of 2)
G02692040Courtesy of DAIMLERCHRYSLER CORP.
