Symptom: PASSENGER SQUIB 1 SHORT TO BATTERY: Testing

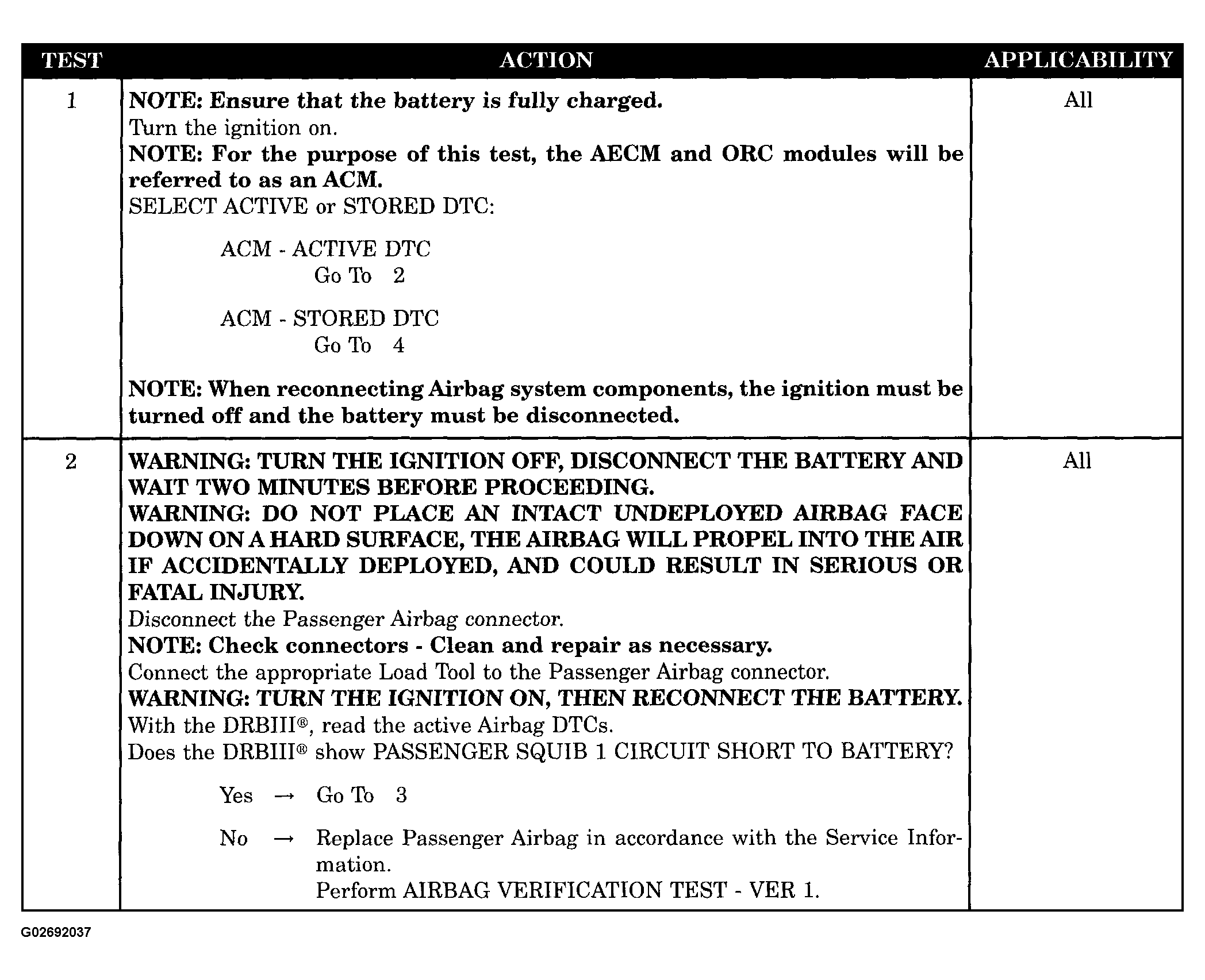

Fig 1: Testing Passenger Squib 1 Short To Battery (1 Of 2)
G02692037Courtesy of DAIMLERCHRYSLER CORP.

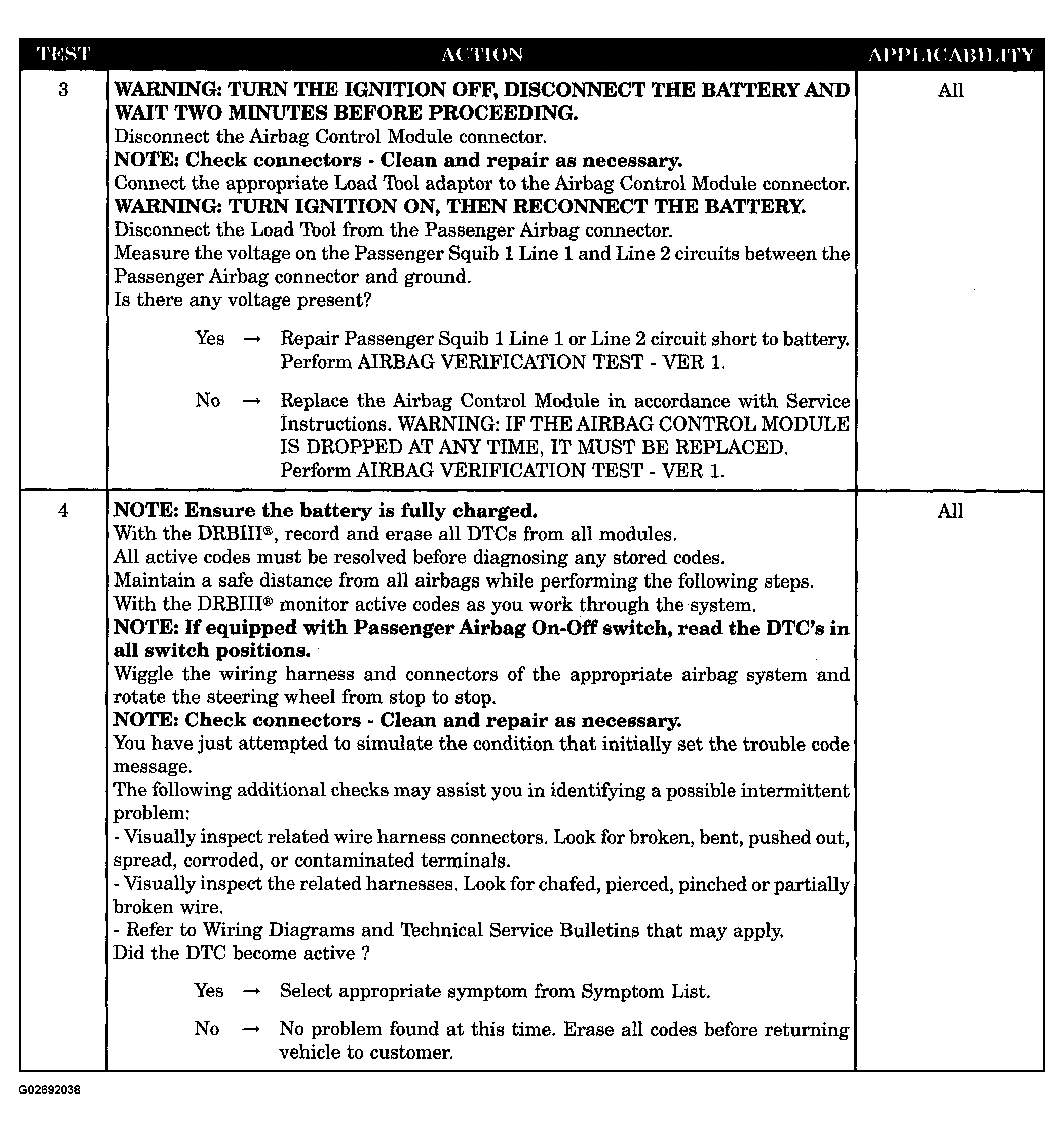

Fig 2: Testing Passenger Squib 1 Short To Battery (2 Of 2)
G02692038Courtesy of DAIMLERCHRYSLER CORP.
