Symptom: PASSENGER SQUIB 1 CIRCUIT OPEN: Testing

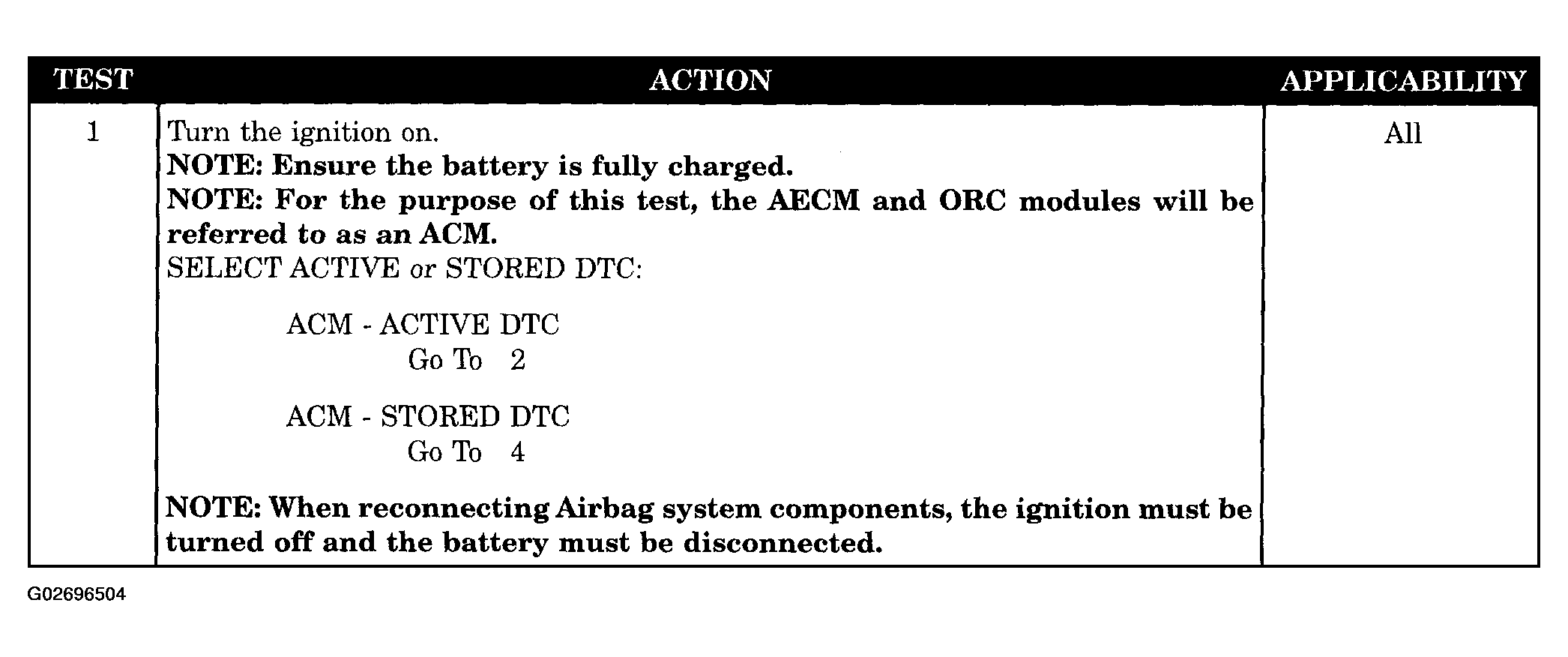

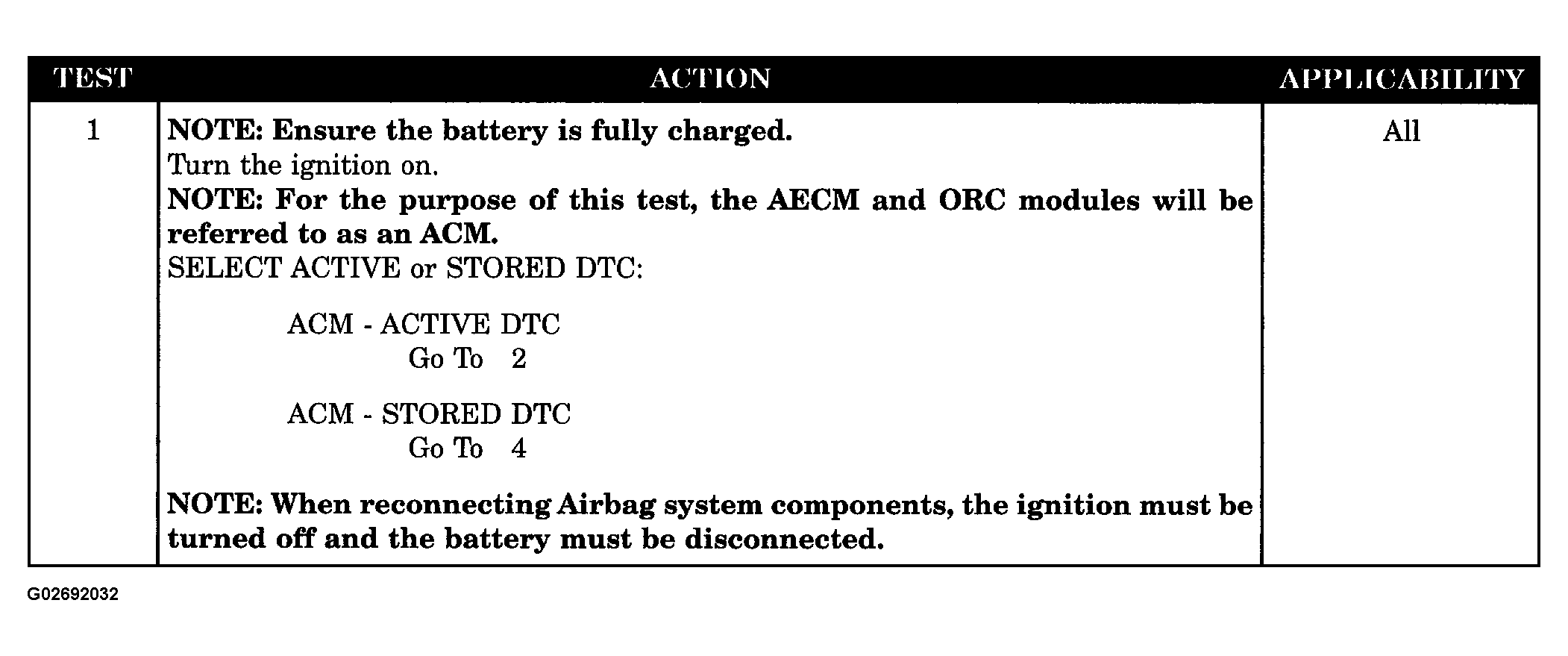

Fig 1: Testing Passenger Squib 1 Circuit Open (1 Of 3)

Courtesy of DAIMLERCHRYSLER CORP.

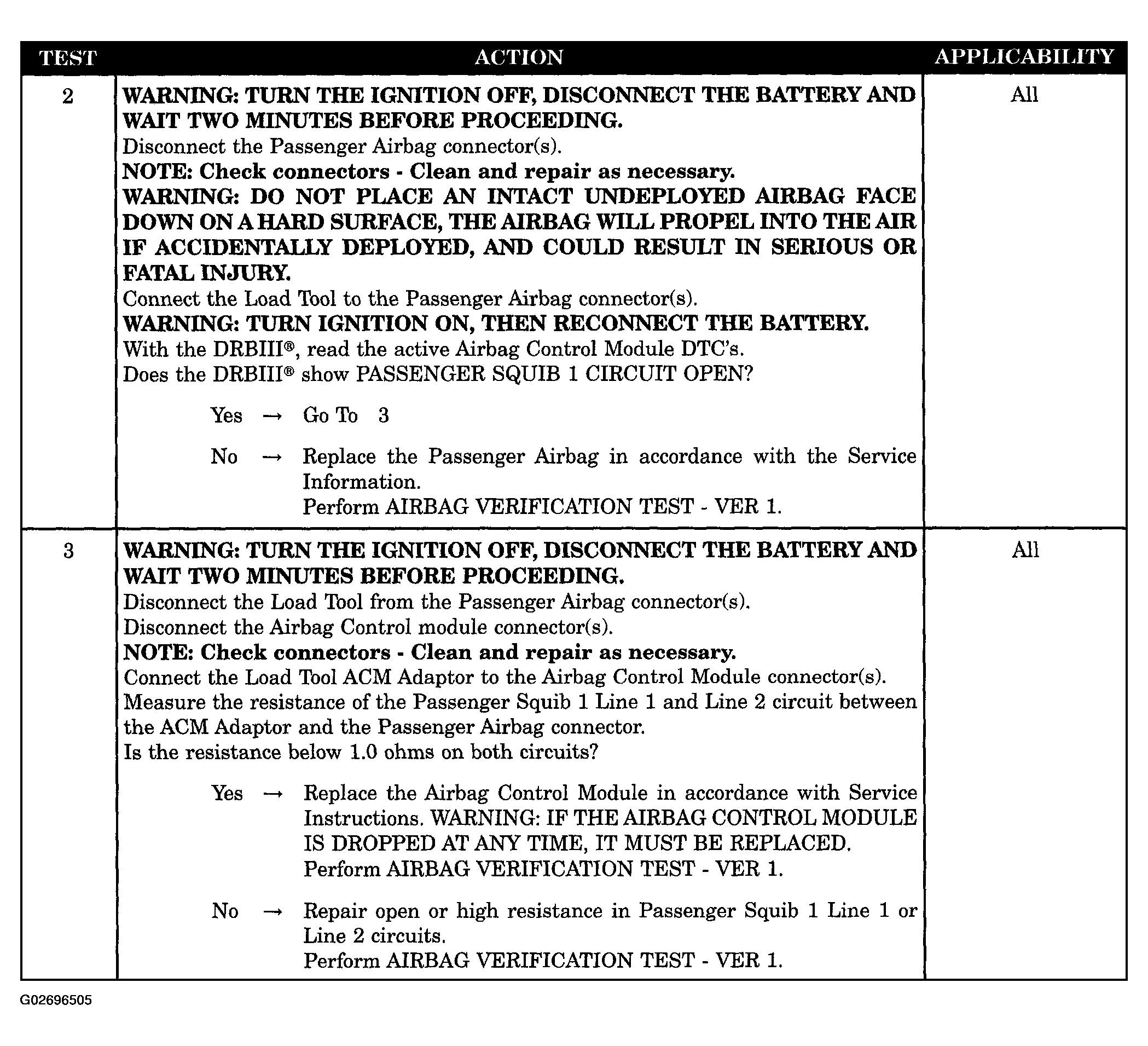

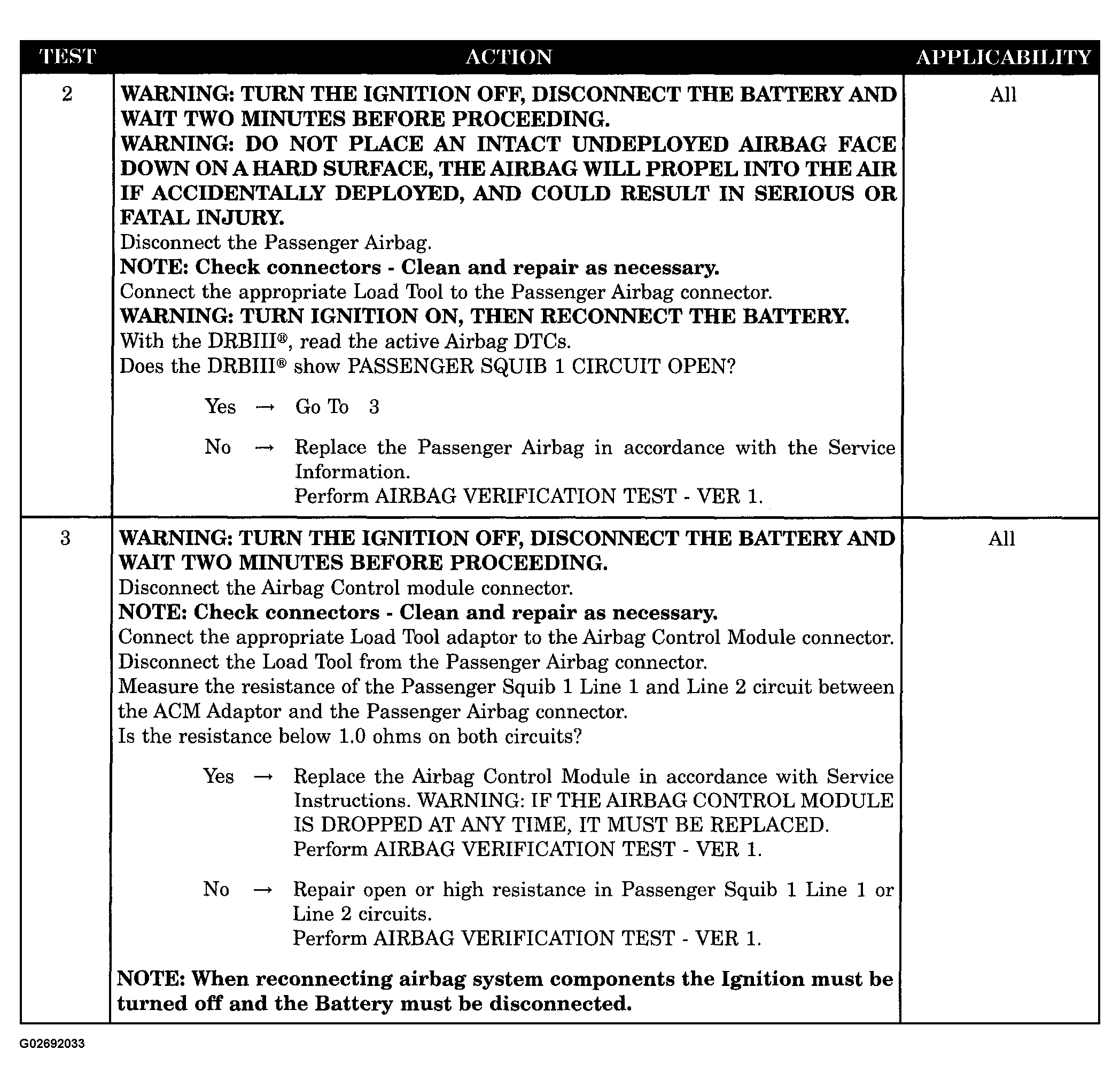

Fig 2: Testing Passenger Squib 1 Circuit Open (2 Of 3)

Courtesy of DAIMLERCHRYSLER CORP.

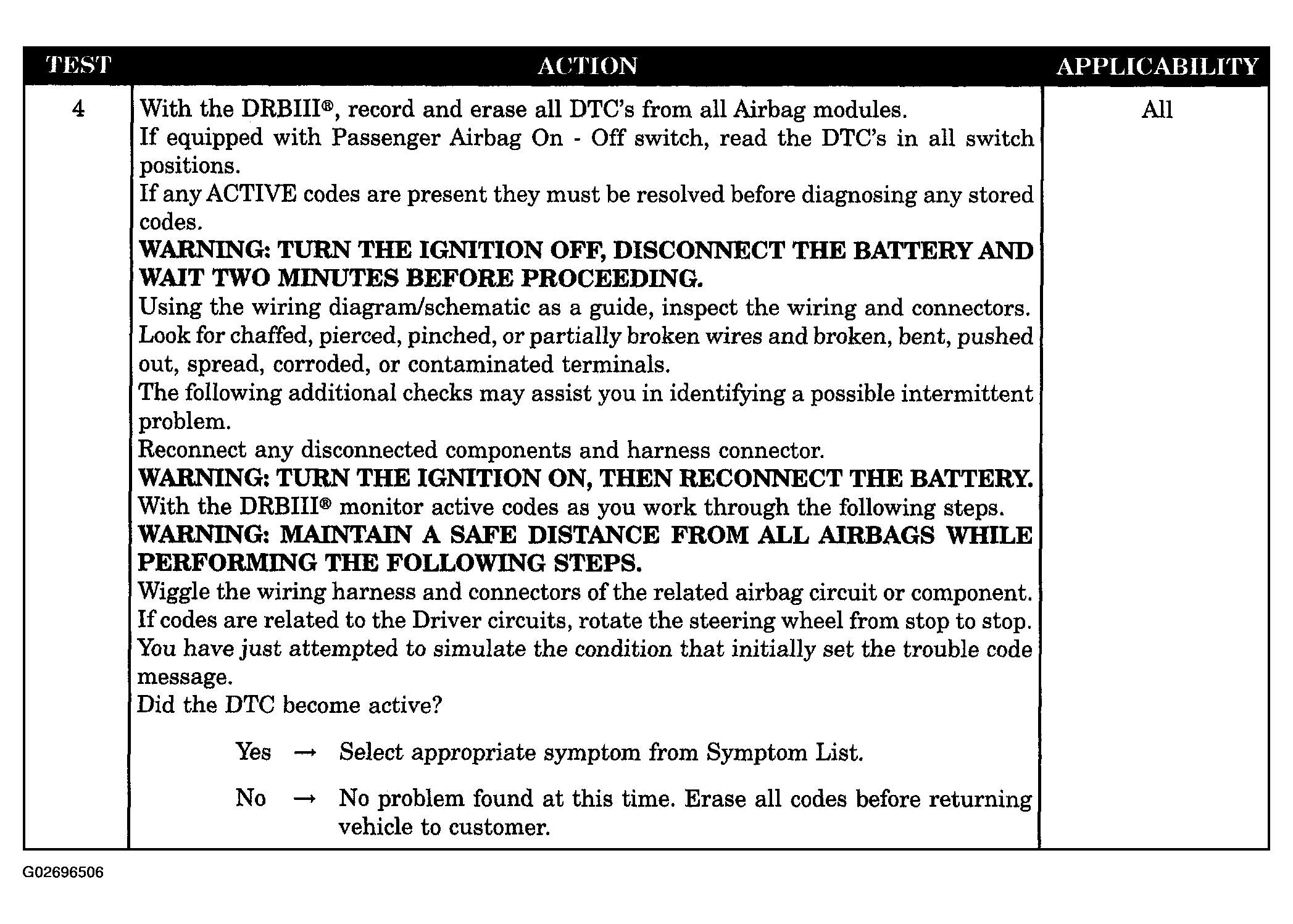

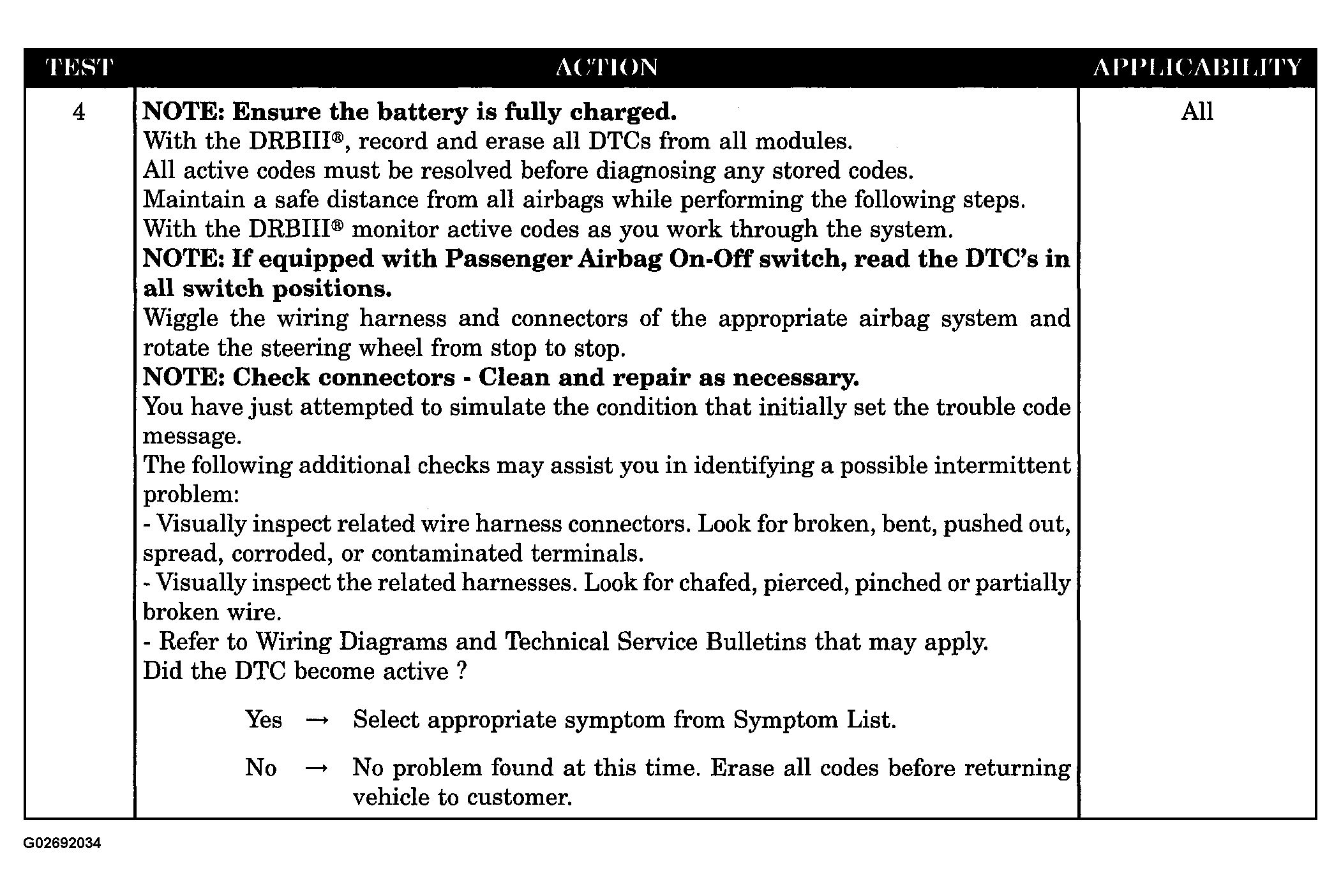

Fig 3: Testing Passenger Squib 1 Circuit Open (3 Of 3)

Courtesy of DAIMLERCHRYSLER CORP.
