Symptom: NO LEFT SIACM MESSAGE: Testing

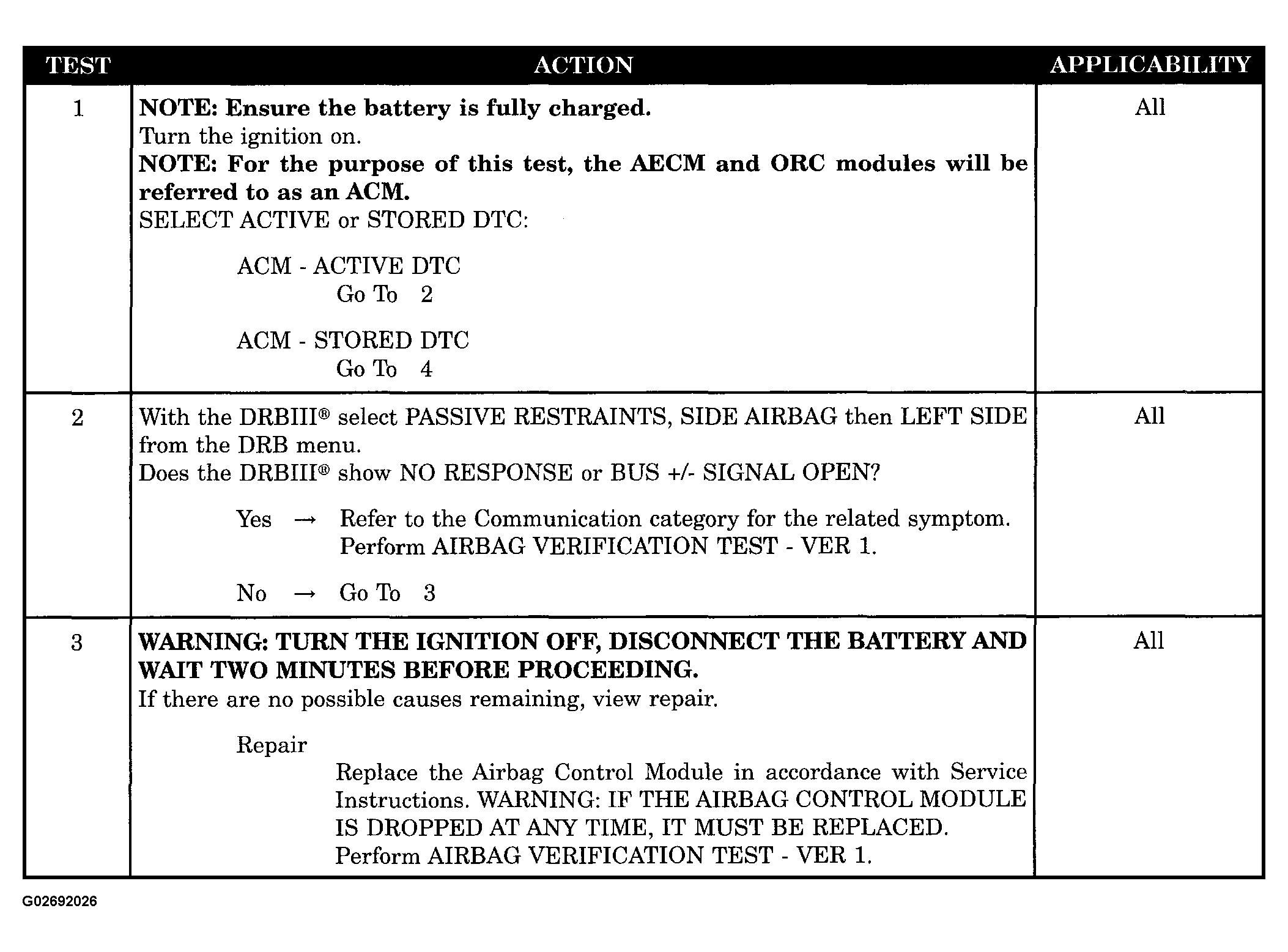

Fig 1: Testing No Left SIACM Message (1 Of 2)

G02692026

Courtesy of DAIMLERCHRYSLER CORP.

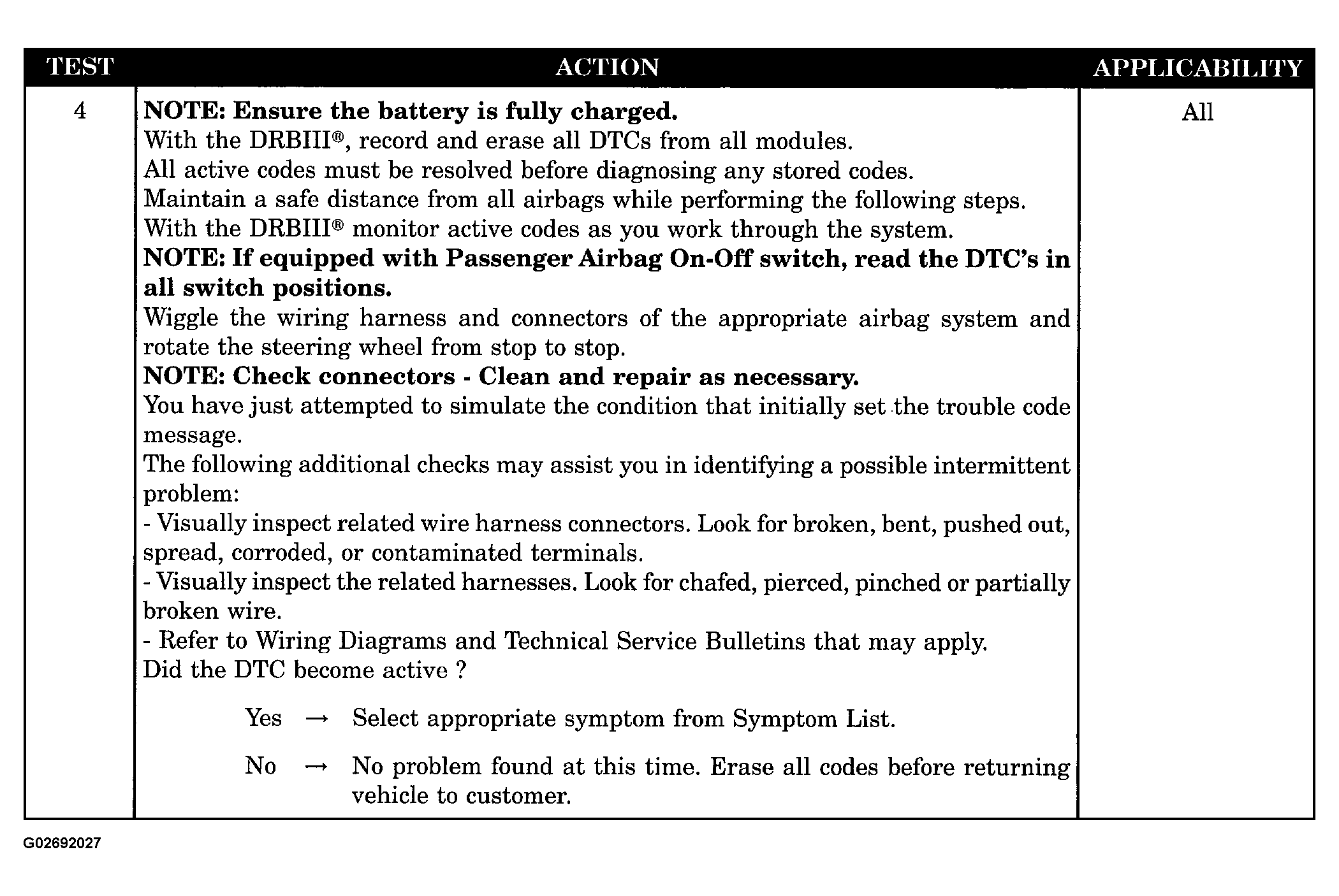

Fig 2: Testing No Left SIACM Message (2 Of 2)

G02692027

Courtesy of DAIMLERCHRYSLER CORP.
