Symptom: NO CLUSTER MESSAGE: Testing

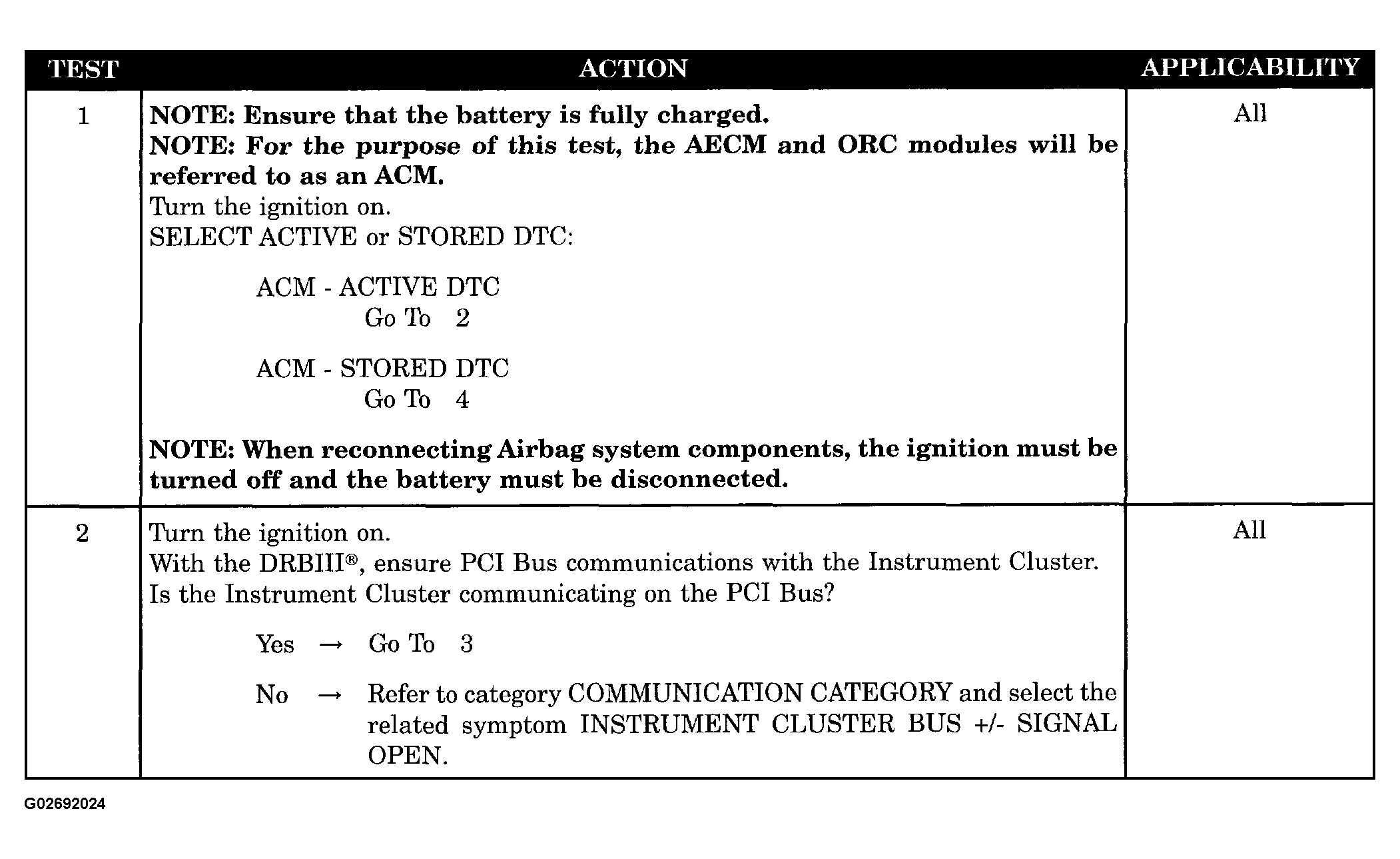

Fig 1: Testing No Cluster Message (1 Of 2)

G02692024

Courtesy of DAIMLERCHRYSLER CORP.

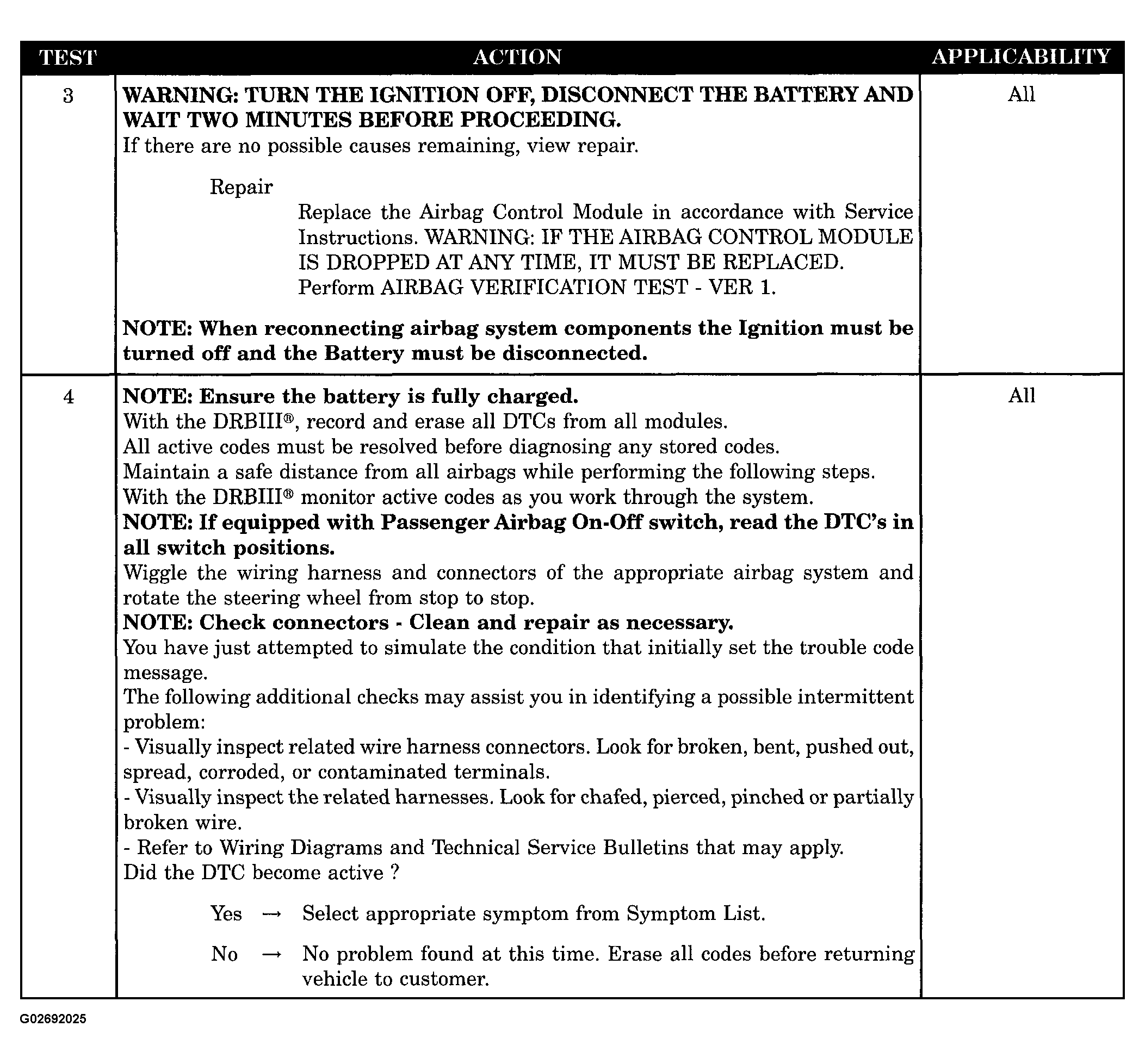

Fig 2: Testing No Cluster Message (2 Of 2)

G02692025

Courtesy of DAIMLERCHRYSLER CORP.
