Symptom: LOSS OF IGNITION RUN ONLY: Testing

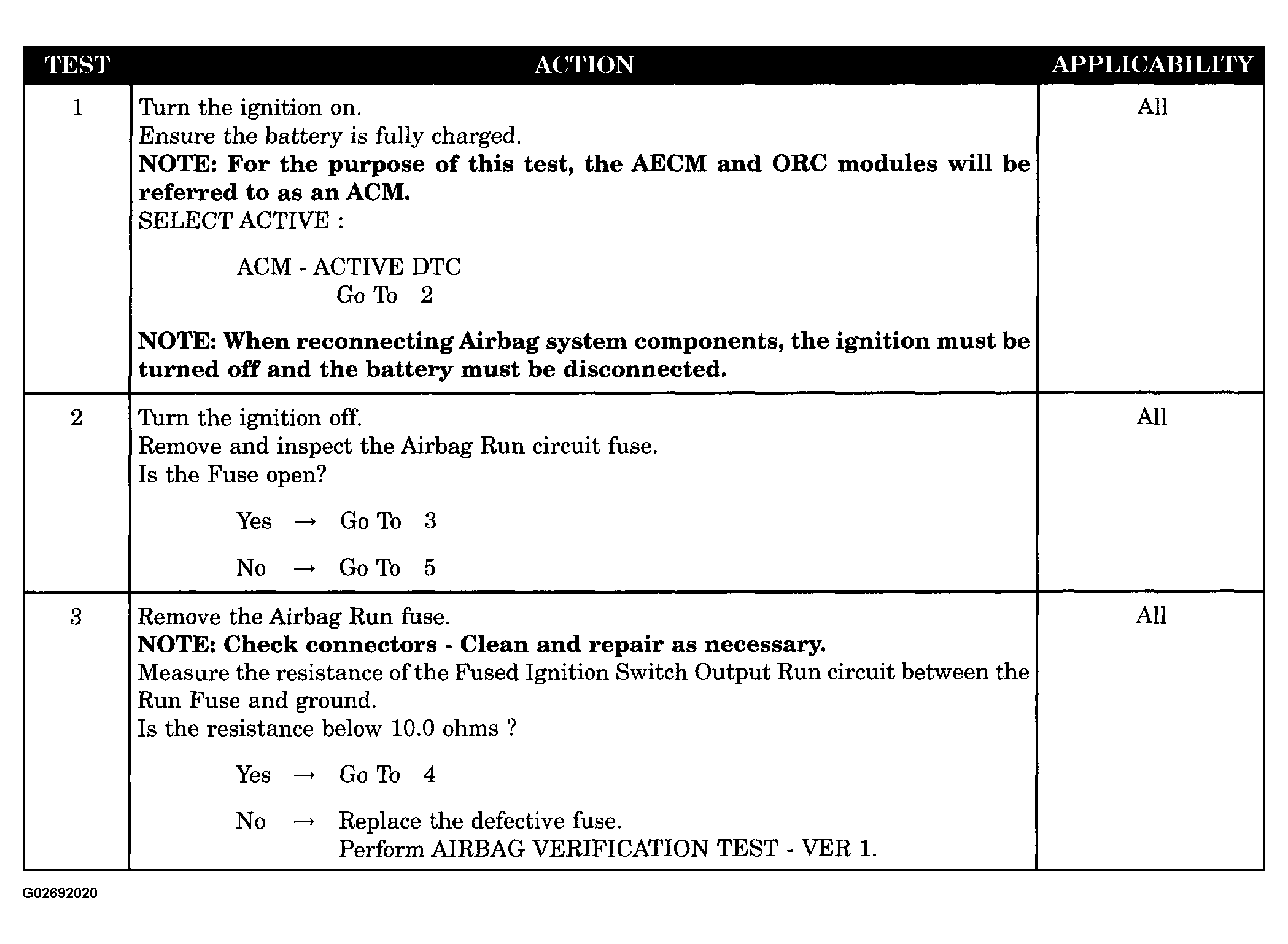

Fig 1: Testing Loss Of Ignition Run Only (1 Of 2)
G02692020Courtesy of DAIMLERCHRYSLER CORP.

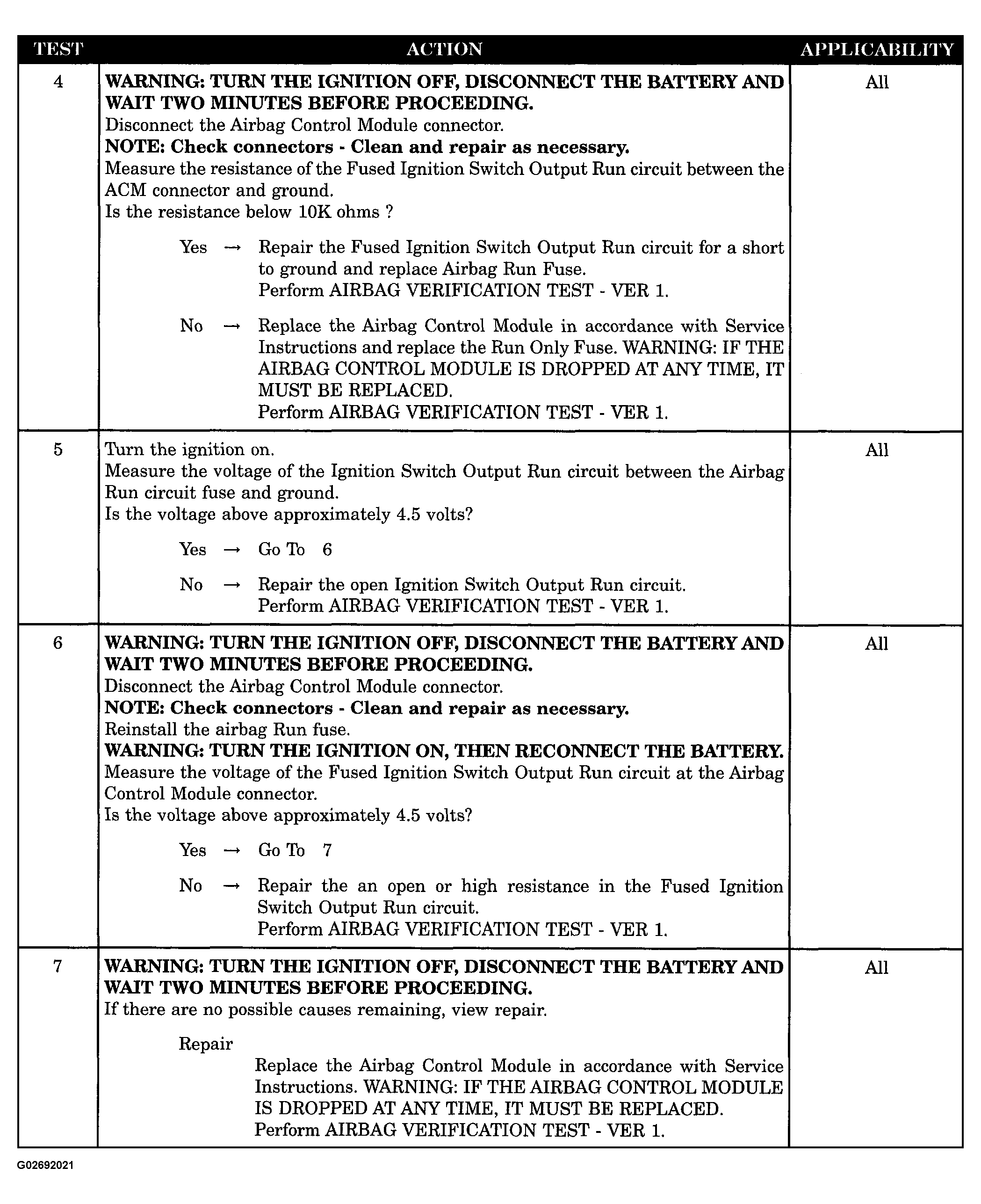

Fig 2: Testing Loss Of Ignition Run Only (2 Of 2)
G02692021Courtesy of DAIMLERCHRYSLER CORP.
