Symptom: INTERROGATE RIGHT SIACM: TESTNIG

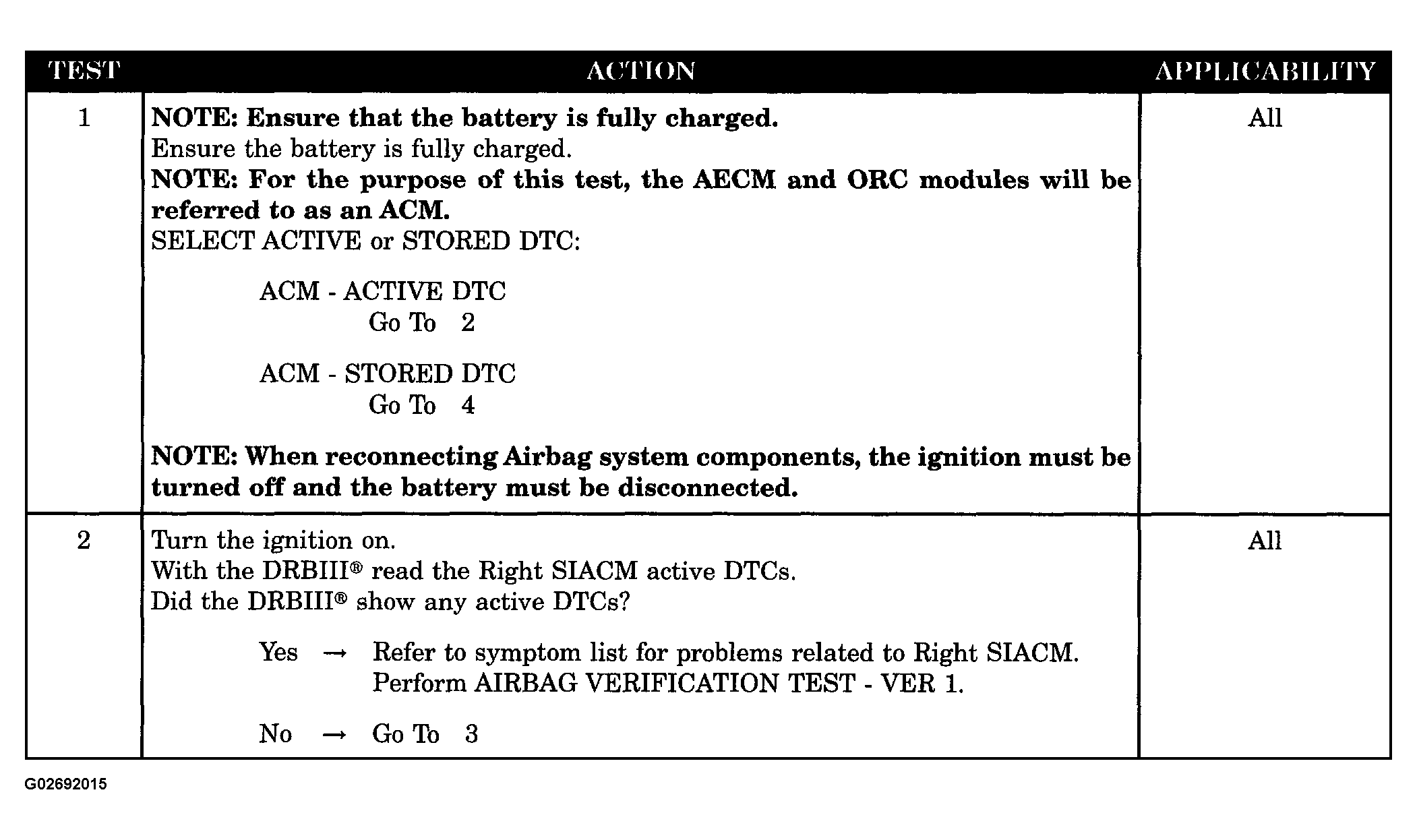

Fig 1: Testing Interrogate Right SIACM (1 Of 2)
G02692015Courtesy of DAIMLERCHRYSLER CORP.

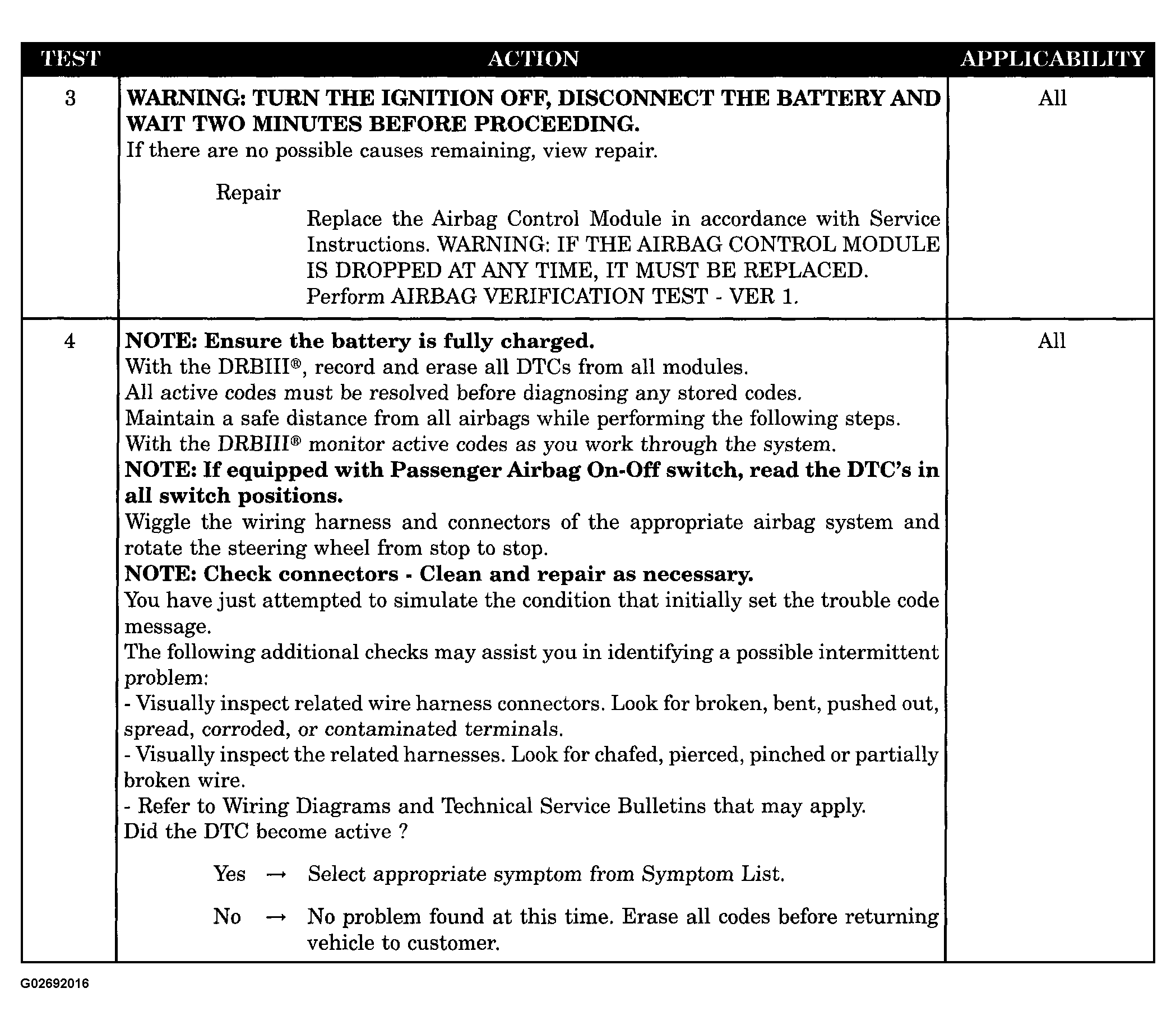

Fig 2: Testing Interrogate Right SIACM (2 Of 2)
G02692016Courtesy of DAIMLERCHRYSLER CORP.
