Symptom: INTERROGATE LEFT SIACM: Testing

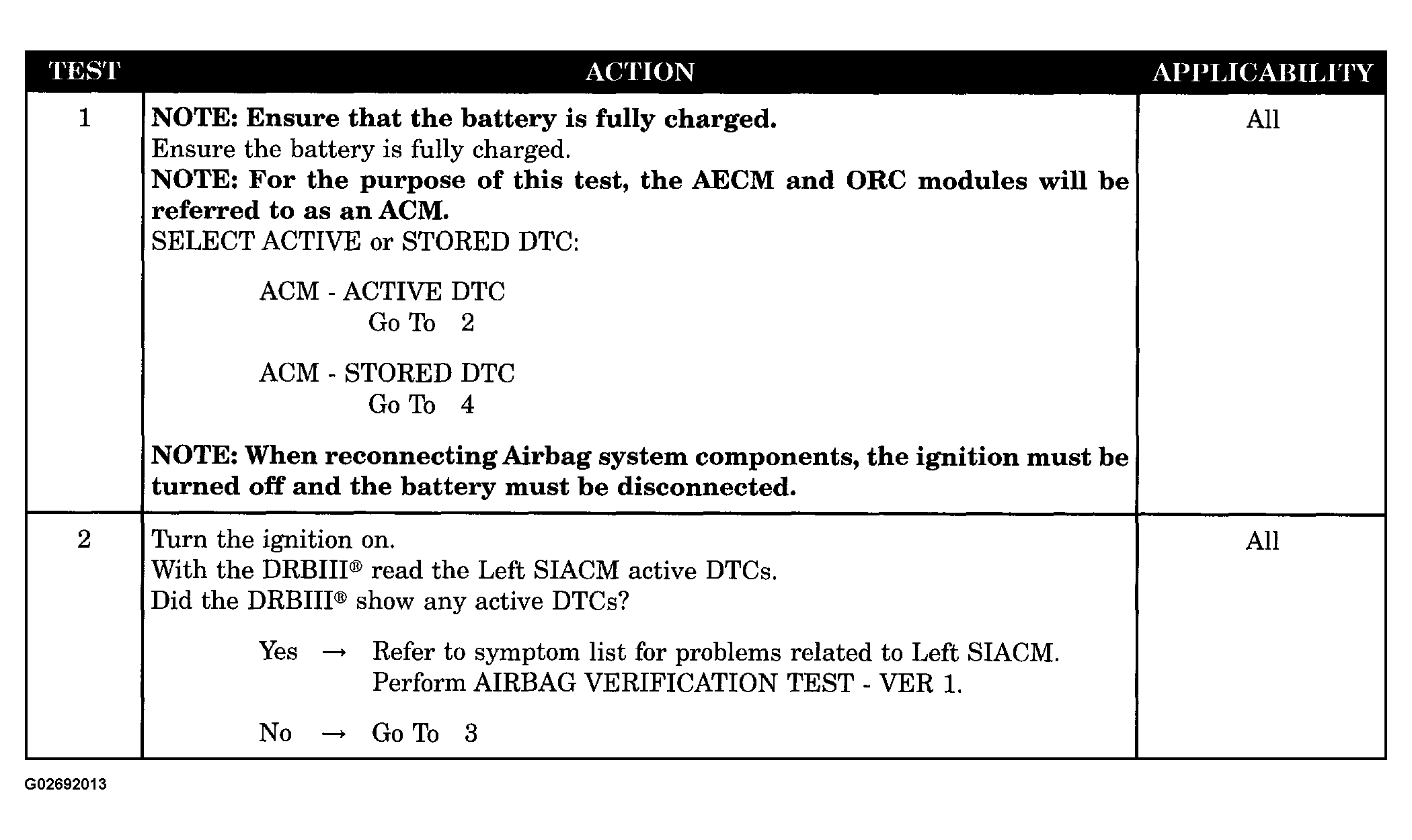

Fig 1: Testing Interrogate Left SIACM (1 Of 2)

G02692013

Courtesy of DAIMLERCHRYSLER CORP.

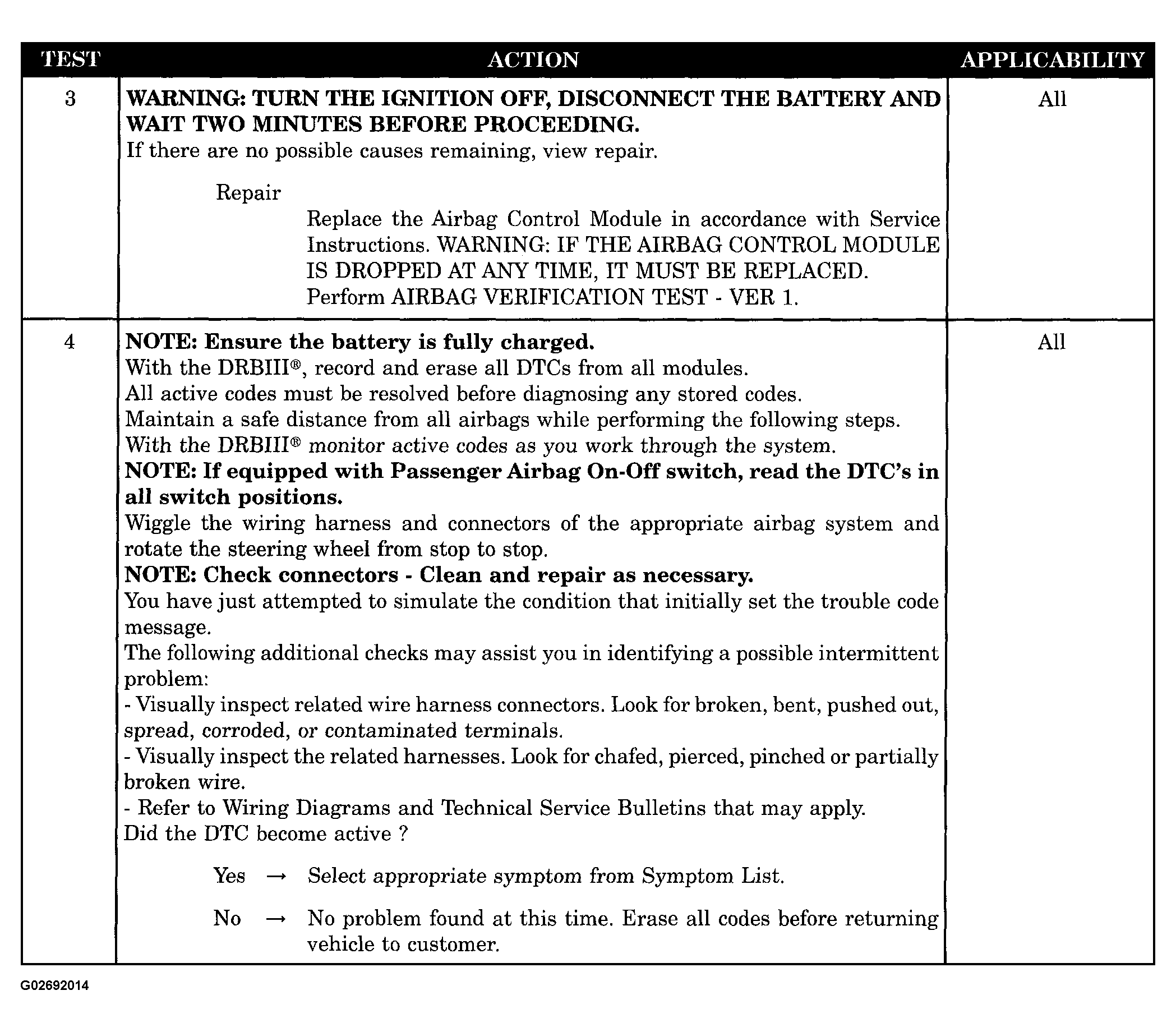

Fig 2: Testing Interrogate Left SIACM (2 Of 2)

G02692014

Courtesy of DAIMLERCHRYSLER CORP.
