Symptom: DRIVER SQUIB 1 SHORT TO BATTERY: Testing

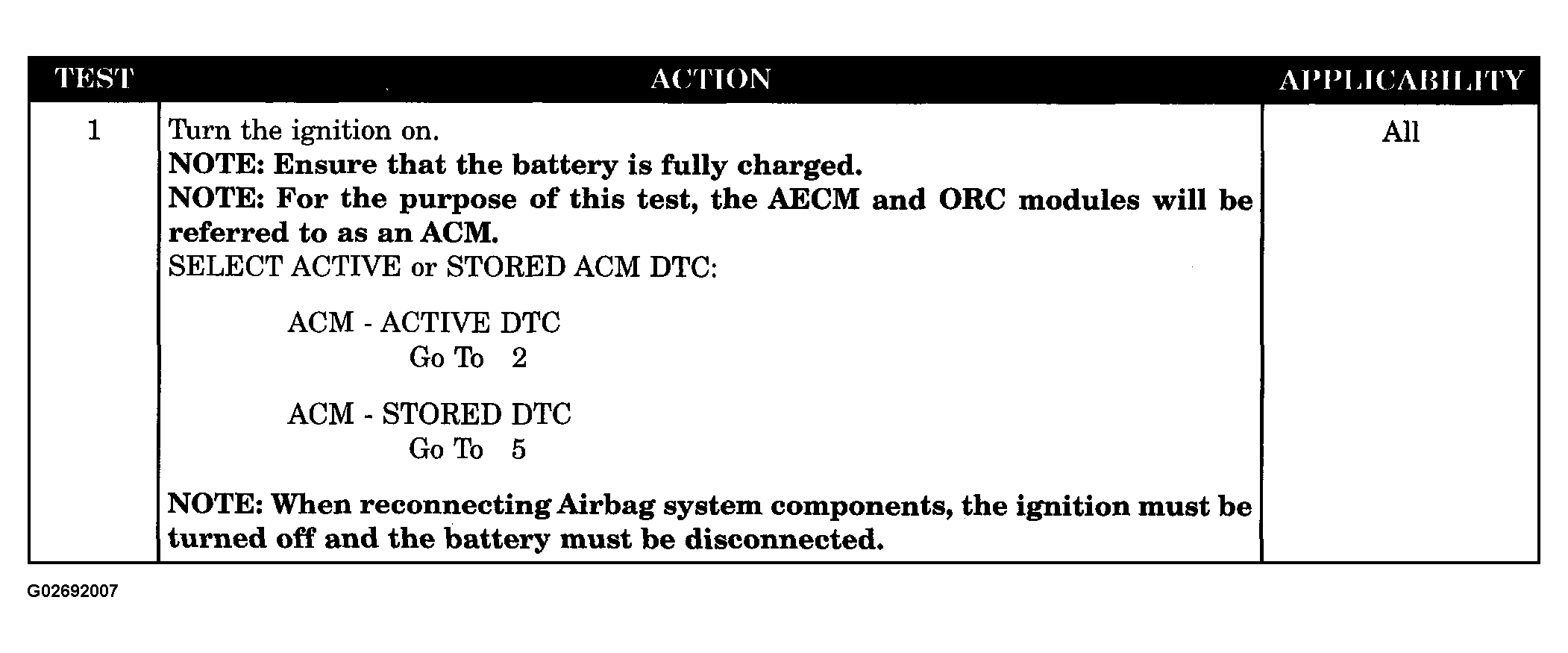

Fig 1: Testing Driver Squib 1 Short To Battery (1 Of 3)
G02692007Courtesy of DAIMLERCHRYSLER CORP.

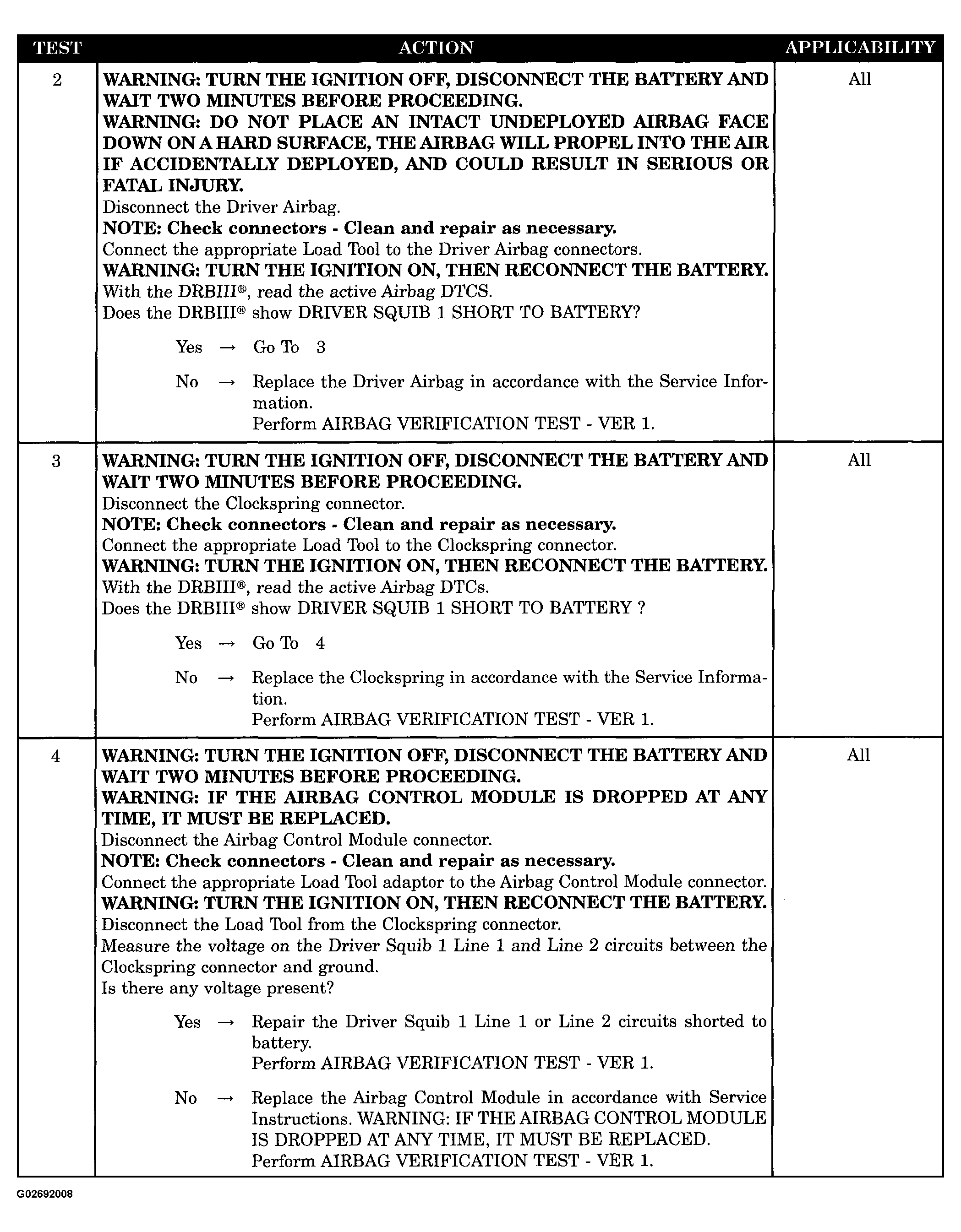

Fig 2: Testing Driver Squib 1 Short To Battery (2 Of 3)
G02692008Courtesy of DAIMLERCHRYSLER CORP.

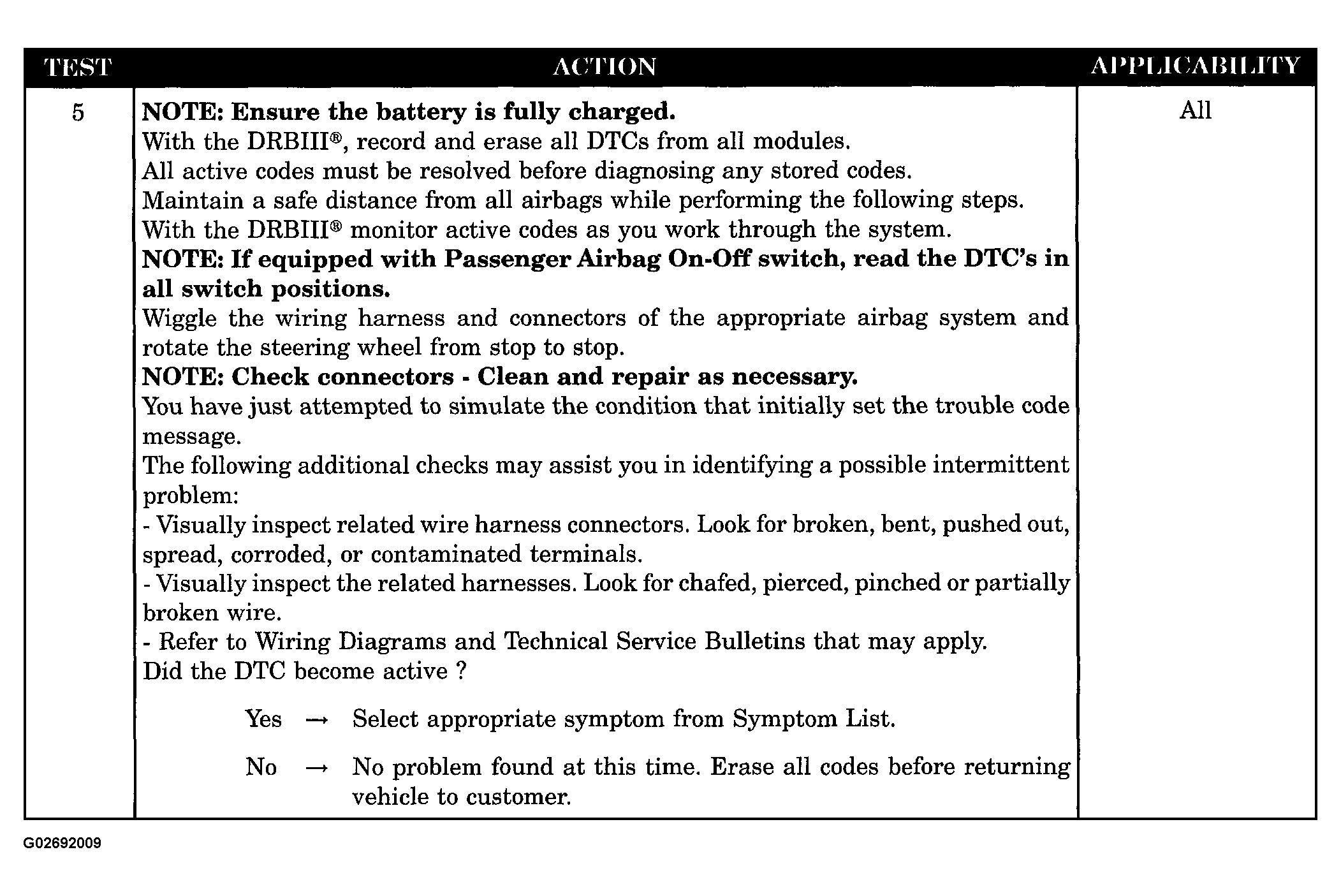

Fig 3: Testing Driver Squib 1 Short To Battery (3 Of 3)
G02692009Courtesy of DAIMLERCHRYSLER CORP.
