Symptom: DRIVER SQUIB 1 CIRCUIT SHORT: Testing

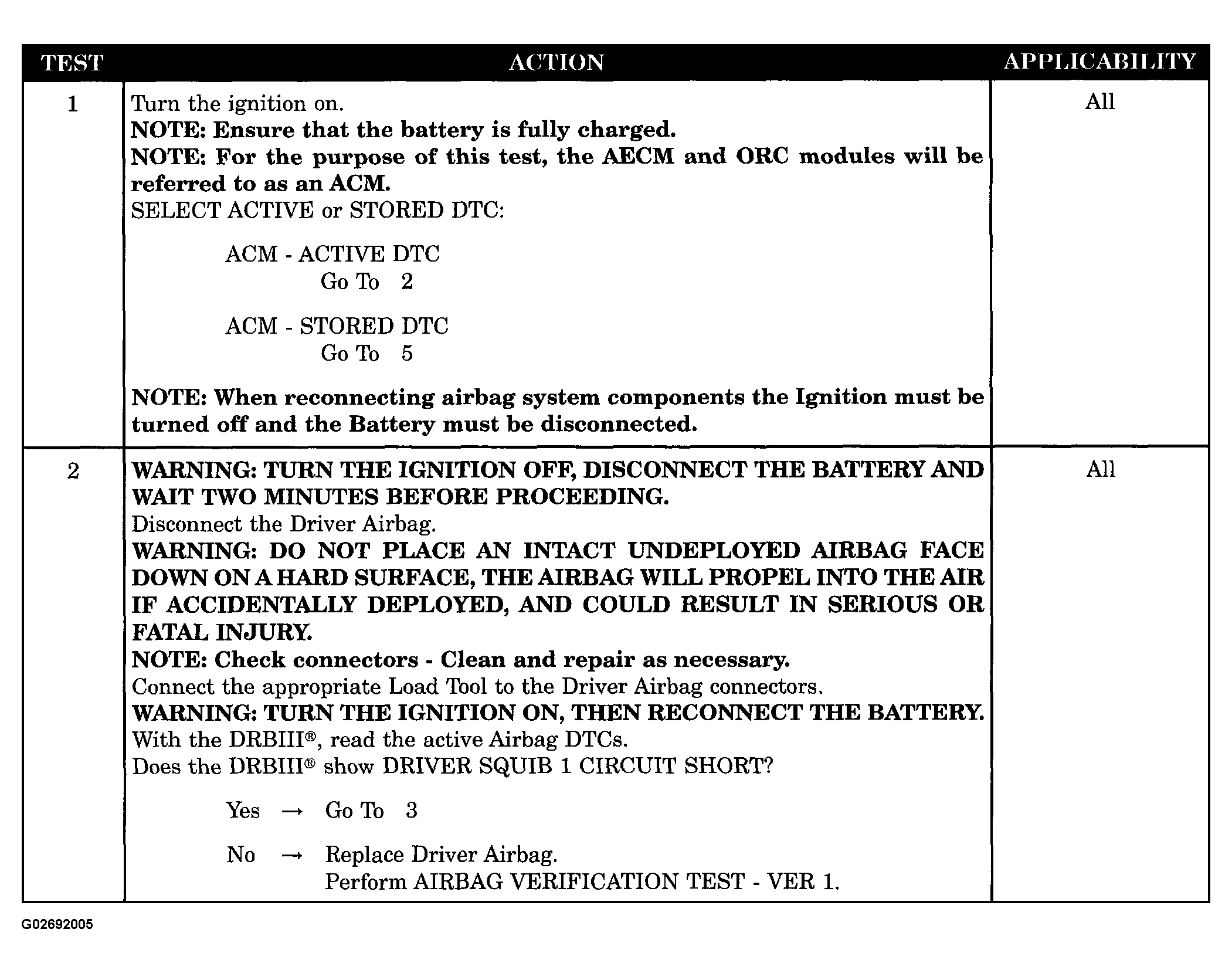

Fig 1: Testing Driver Squib 1 Circuit Short (1 Of 2)

Courtesy of DAIMLERCHRYSLER CORP.

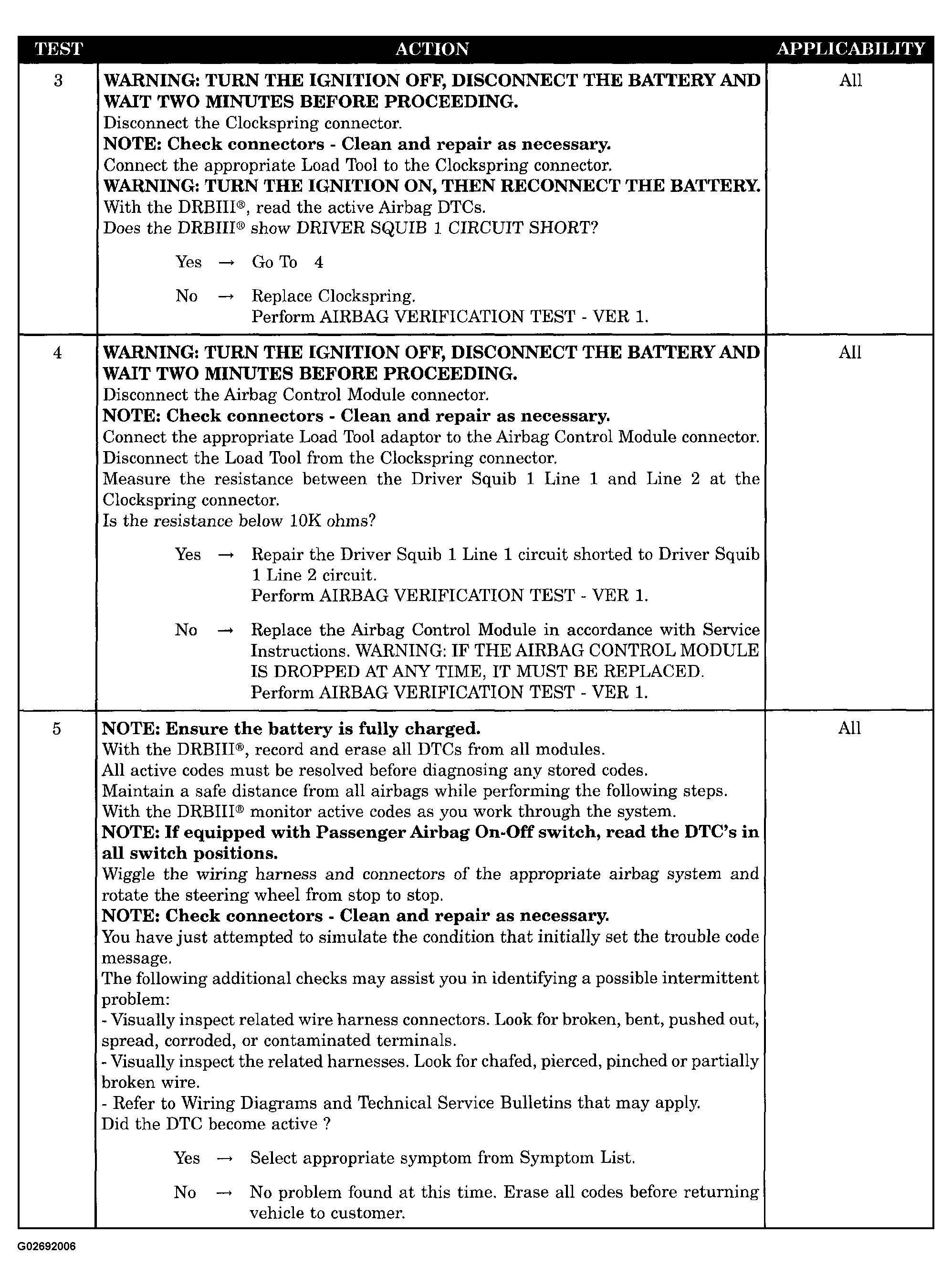

Fig 2: Testing Driver Squib 1 Circuit Short (2 Of 2)

Courtesy of DAIMLERCHRYSLER CORP.
