Symptom: CONFIGURATION ERROR: Testing

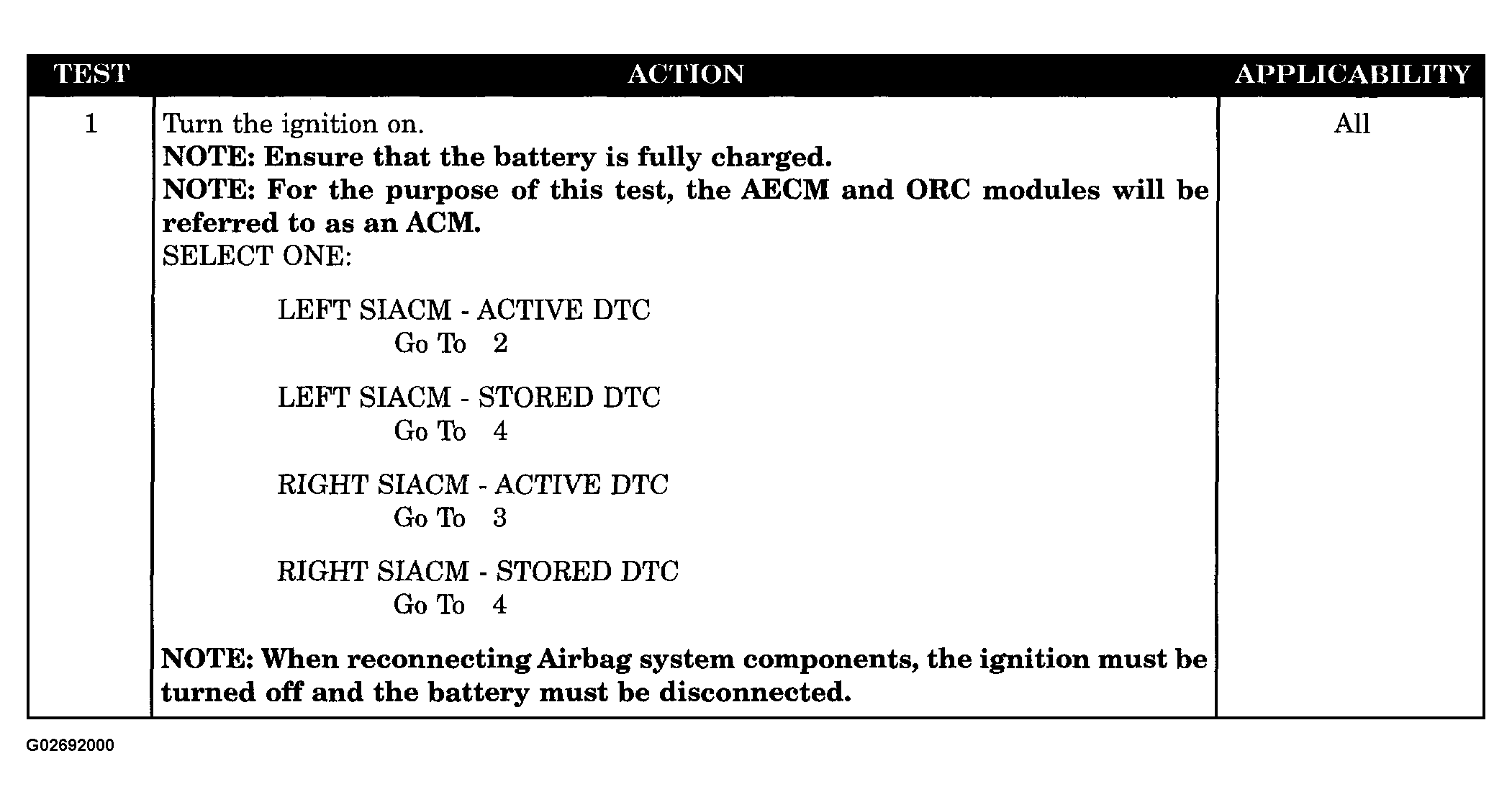

Fig 1: Testing Configuration Error (1 Of 2)

G02692000

Courtesy of DAIMLERCHRYSLER CORP.

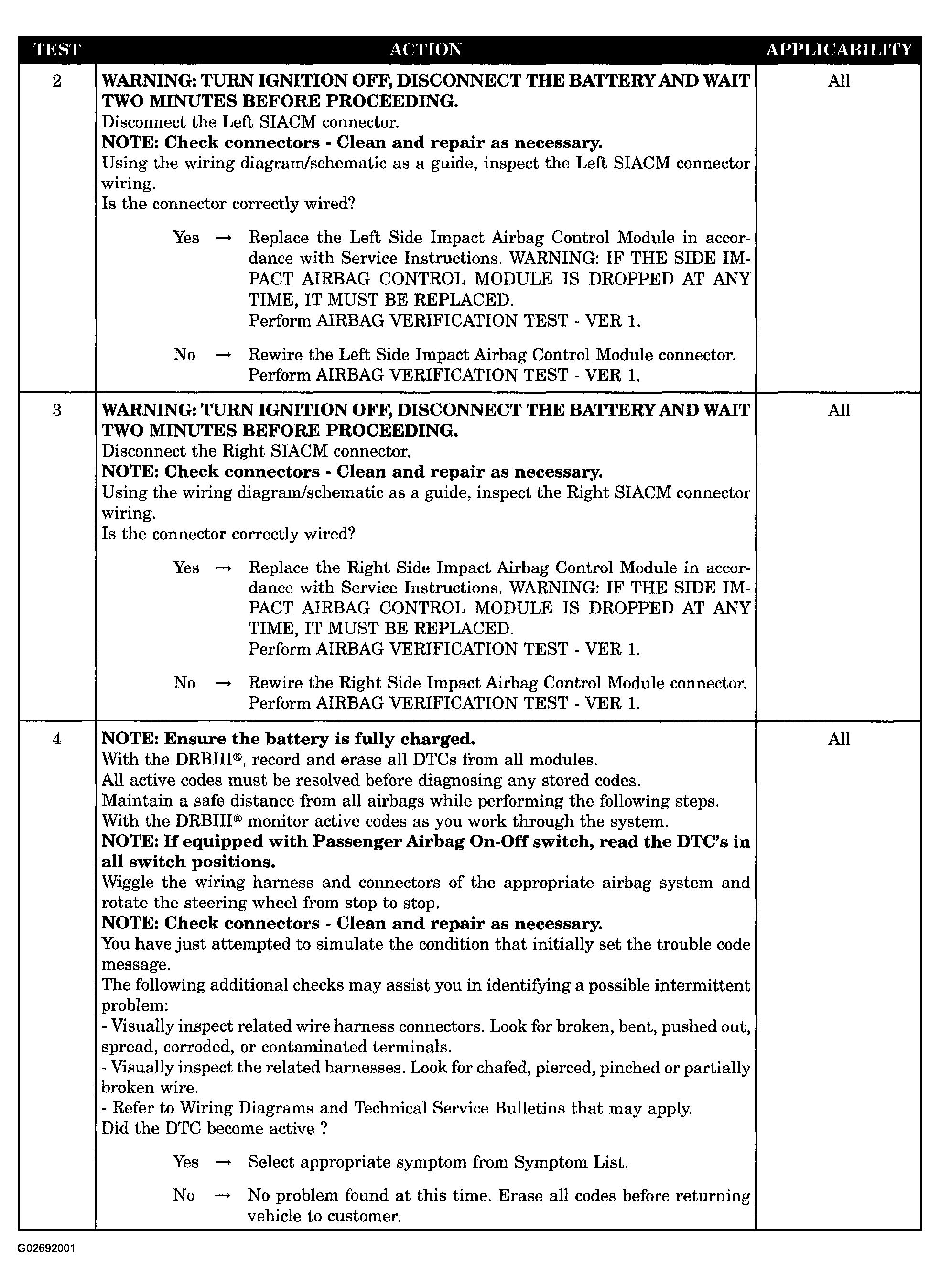

Fig 2: Testing Configuration Error (2 Of 2)

G02692001

Courtesy of DAIMLERCHRYSLER CORP.
