Symptom: CLUSTER MESSAGE MISMATCH: Testing

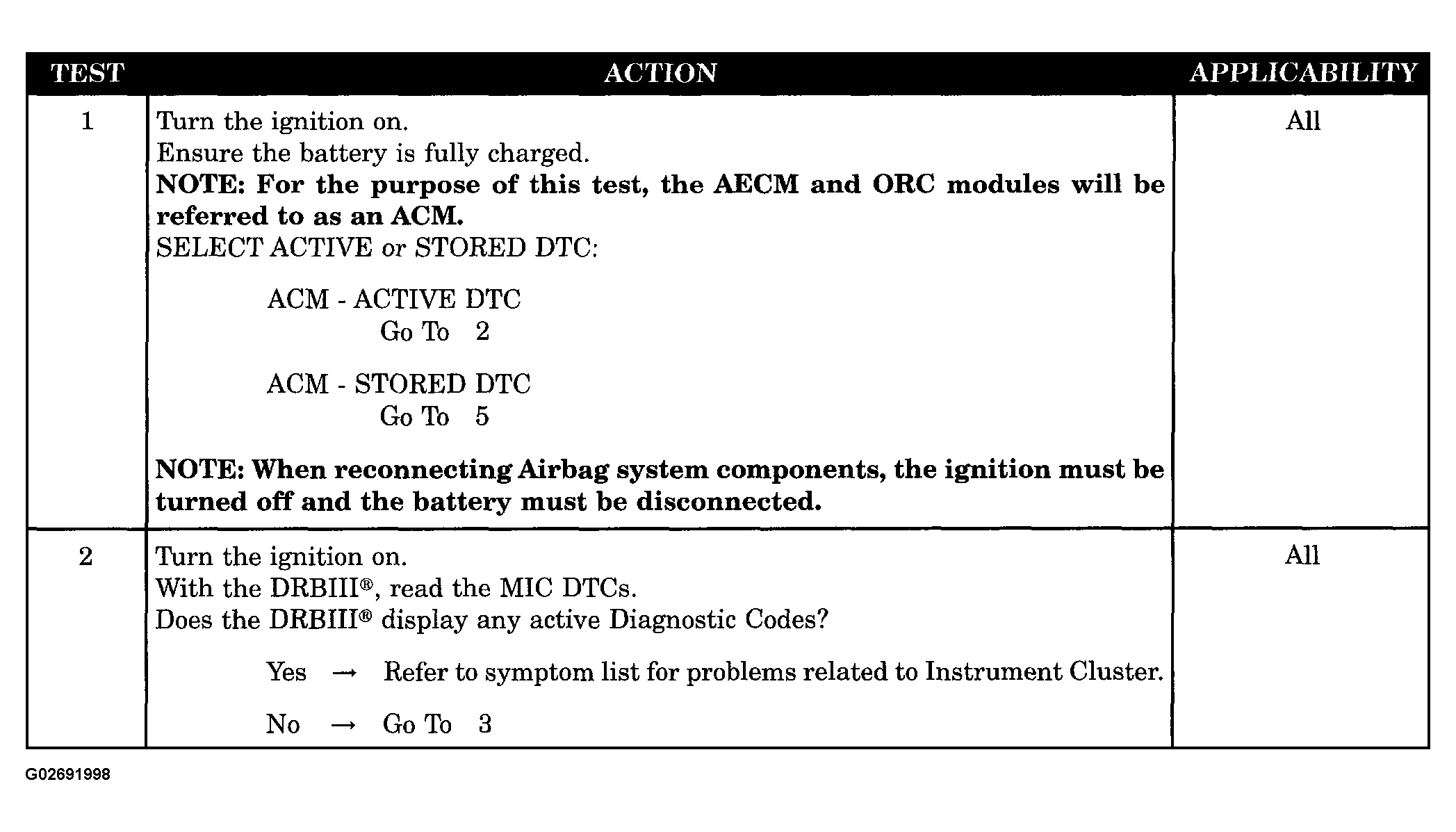

Fig 1: Testing Cluster Message Mismatch (1 Of 2)
G02691998Courtesy of DAIMLERCHRYSLER CORP.

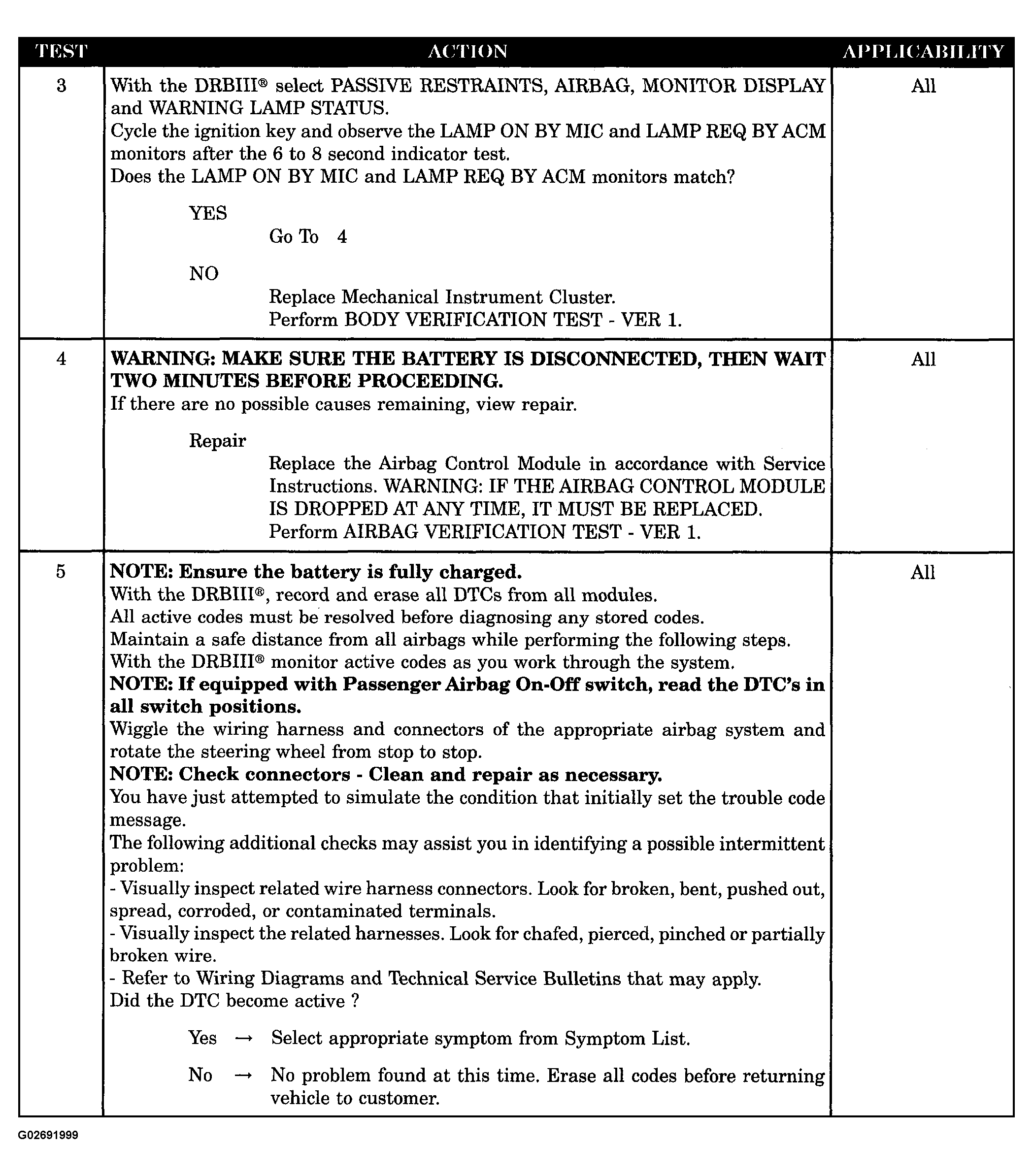

Fig 2: Testing Cluster Message Mismatch (2 Of 2)
G02691999Courtesy of DAIMLERCHRYSLER CORP.
