Home >> Dodge and Ram >> 2003 >> SX R/T >> Repair and Diagnosis >> Accessories & Equipment >> Gauges & Instrument Panels >> Body Diagnostic Procedures >> Diagnostic Information And Procedures >> Airbag - Symptoms >> Symptom: *AIRBAG INDICATOR ON WITHOUT ACM TROUBLE CODES >> Testing

Symptom: *AIRBAG INDICATOR ON WITHOUT ACM TROUBLE CODES: Testing

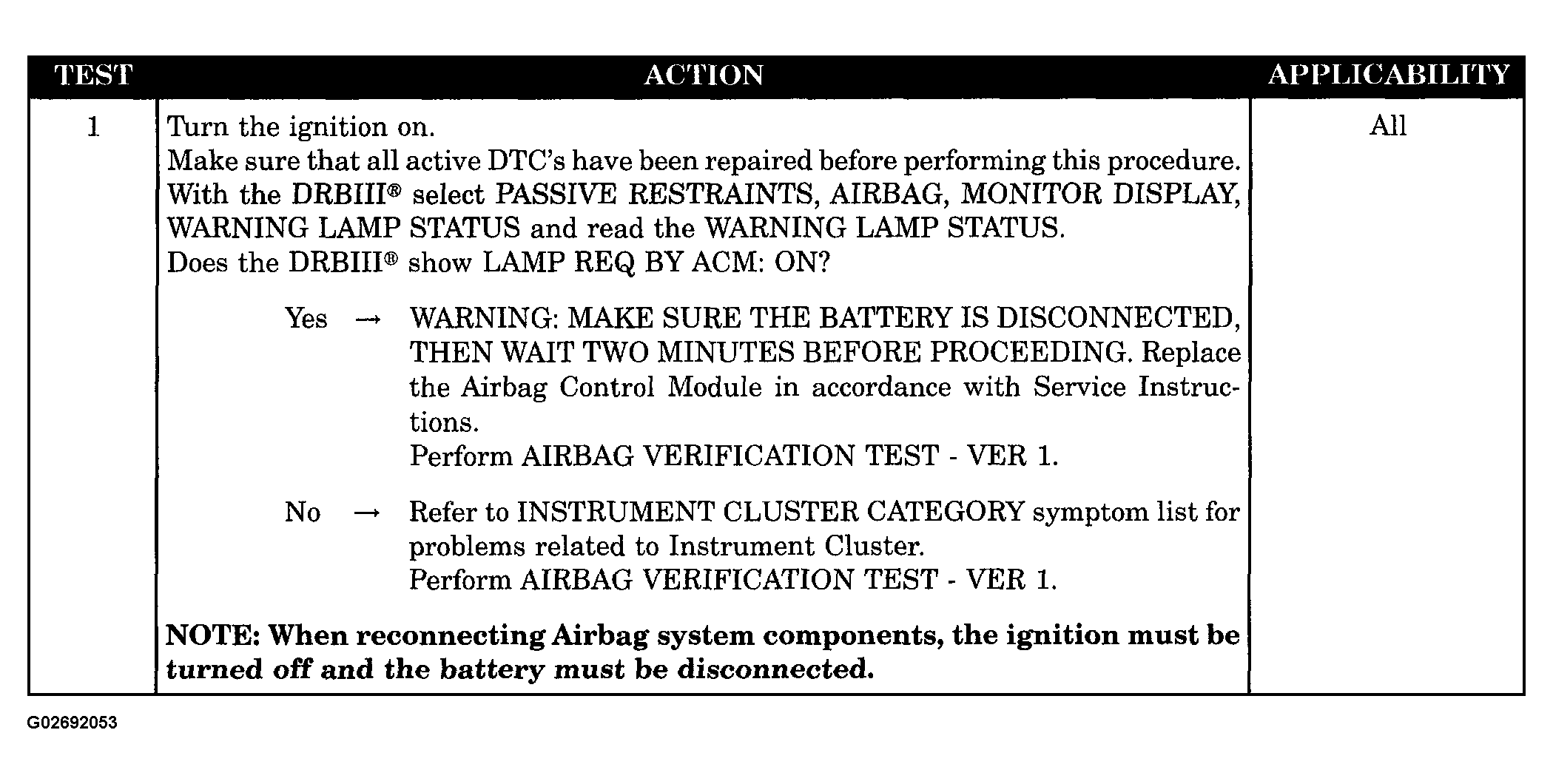

Fig 1: Testing Airbag Indicator On Without ACM Trouble Codes

G02692053

Courtesy of DAIMLERCHRYSLER CORP.
