Connector PINOUTS

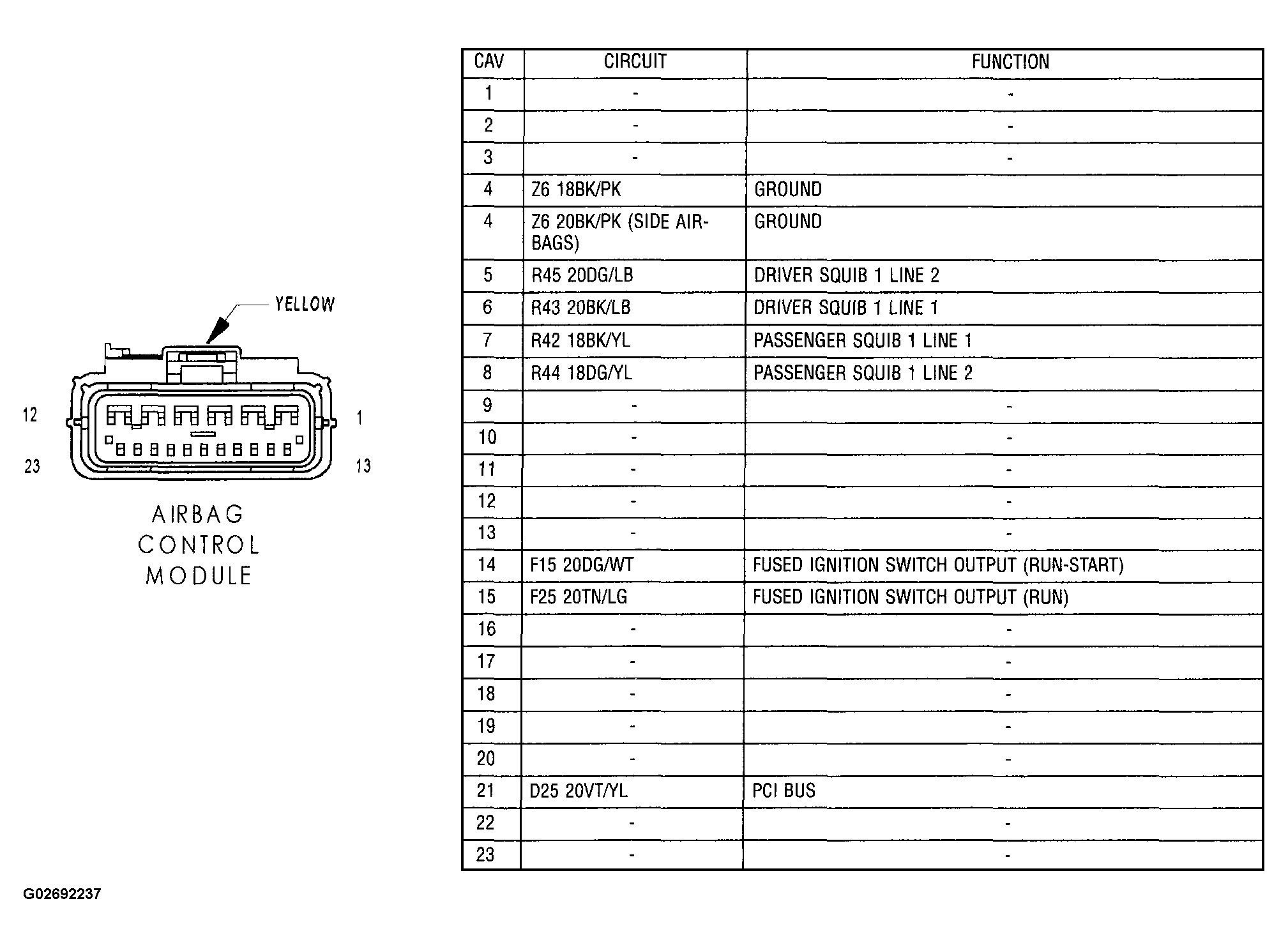

Fig 1: Identifying Airbag Control Module Connector Pinouts
G02692237Courtesy of DAIMLERCHRYSLER CORP.

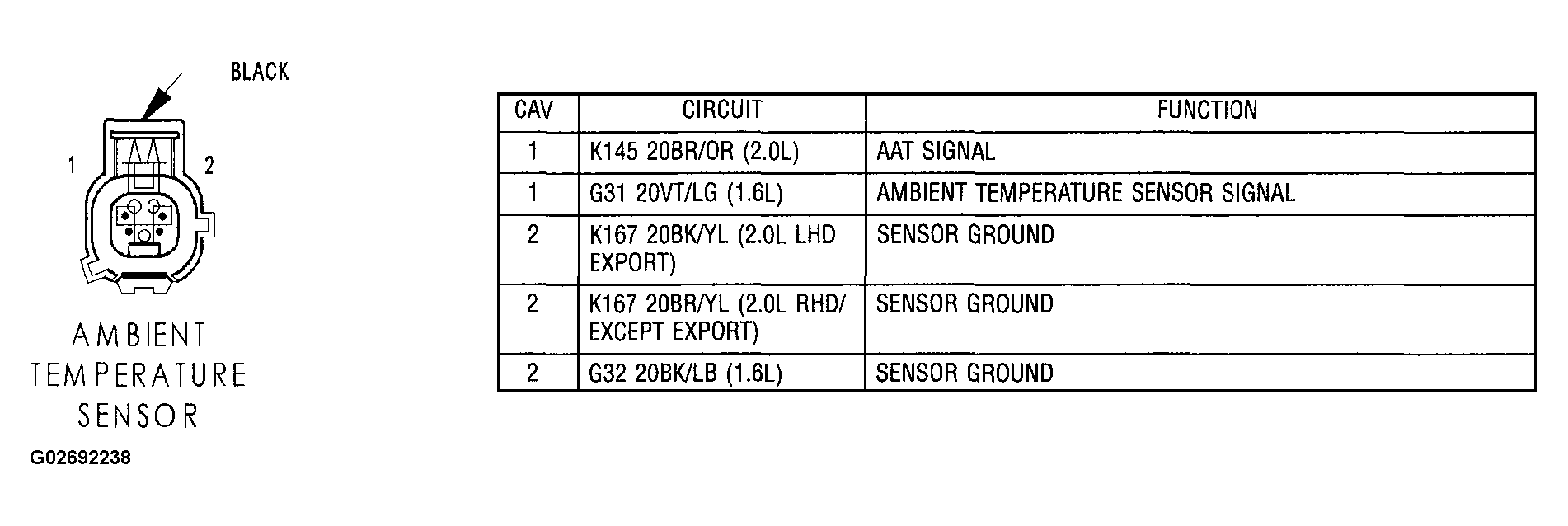

Fig 2: Identifying Ambient Temperature Sensor Connector Pinouts
G02692238Courtesy of DAIMLERCHRYSLER CORP.
Fig 3: Identifying Brake Fluid Level Switch Connector Pinouts
G02692239Courtesy of DAIMLERCHRYSLER CORP.
Fig 4: Identifying C208 Connector Pinouts (1 Of 2)
G02692240Courtesy of DAIMLERCHRYSLER CORP.
Fig 5: Identifying C208 Connector Pinouts (2 Of 2)
G02692241Courtesy of DAIMLERCHRYSLER CORP.
Fig 6: Identifying C209 Connector Pinouts (1 Of 2)
G02692242Courtesy of DAIMLERCHRYSLER CORP.
Fig 7: Identifying C209 Connector Pinouts (2 Of 2)
G02692243Courtesy of DAIMLERCHRYSLER CORP.

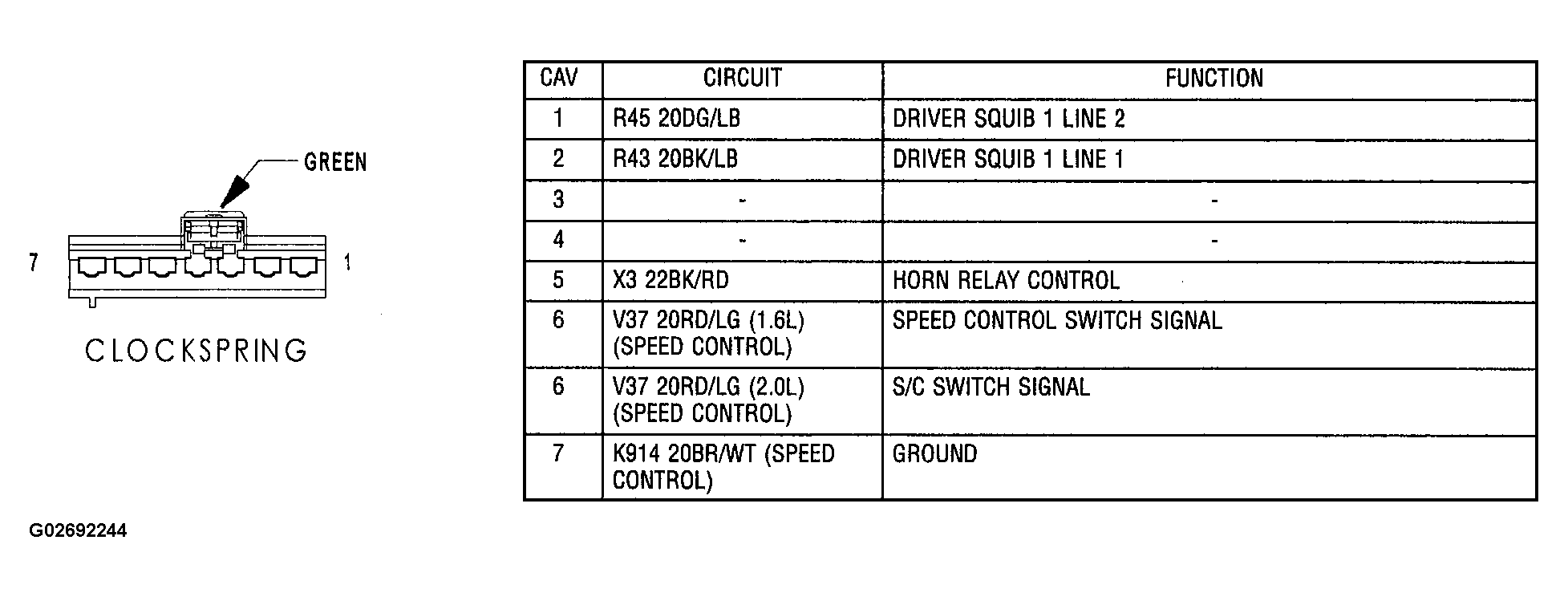

Fig 8: Identifying Clockspring Connector Pinouts
G02692244Courtesy of DAIMLERCHRYSLER CORP.

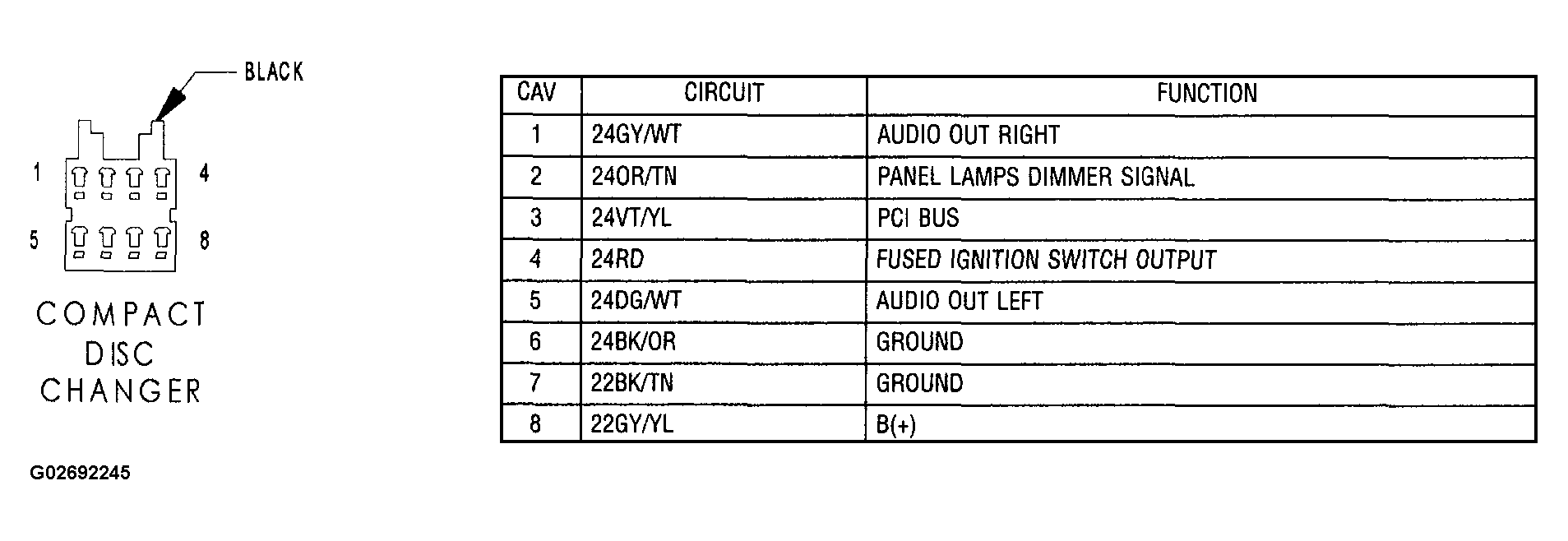

Fig 9: Identifying Compact Disc Changer Connector Pinouts
G02692245Courtesy of DAIMLERCHRYSLER CORP.

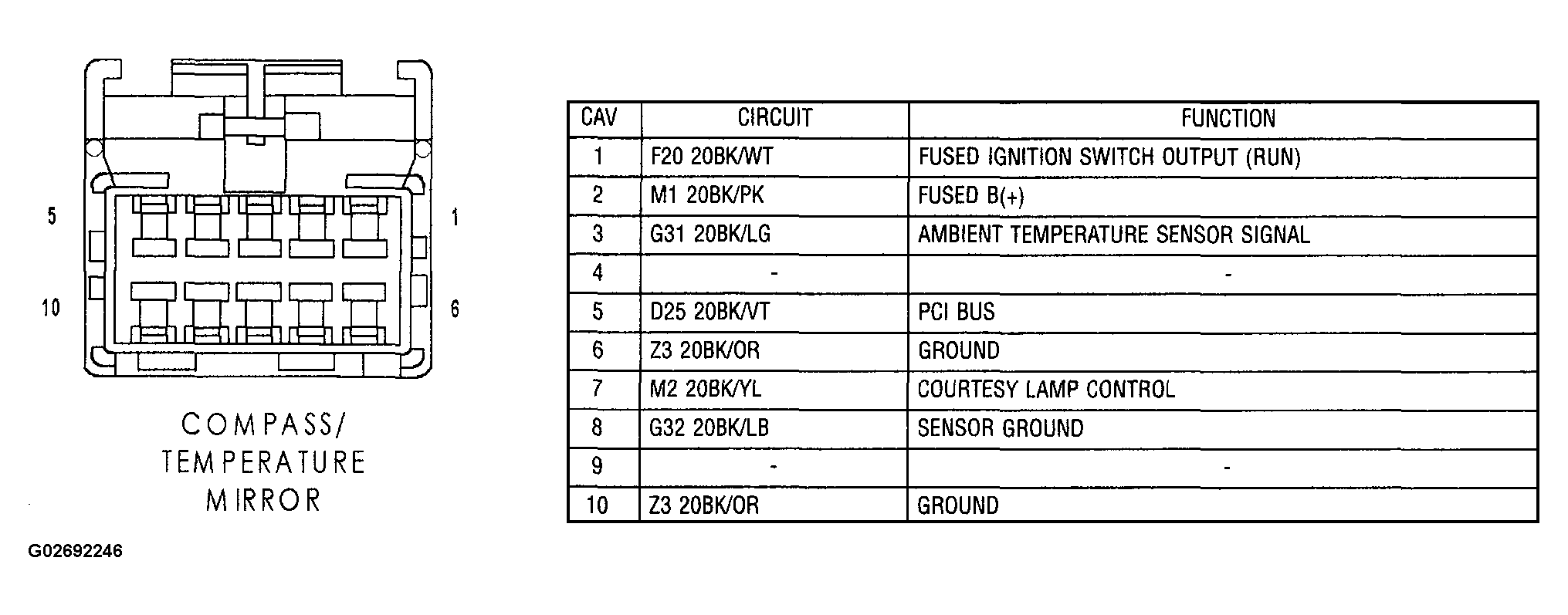

Fig 10: Identifying Compass/Temperature Mirror Connector Pinouts
G02692246Courtesy of DAIMLERCHRYSLER CORP.

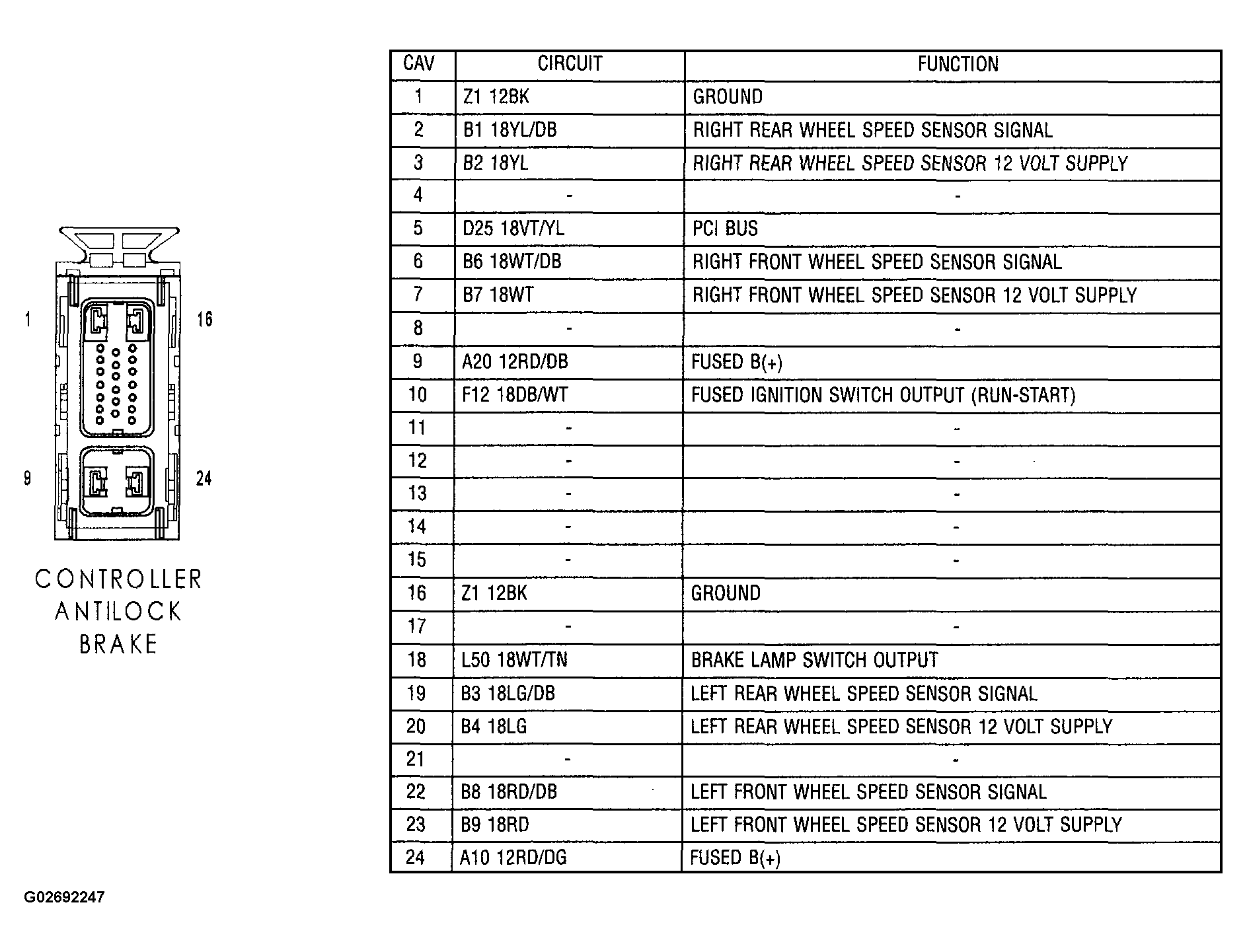

Fig 11: Identifying Controller Antilock Brake Connector Pinouts
G02692247Courtesy of DAIMLERCHRYSLER CORP.

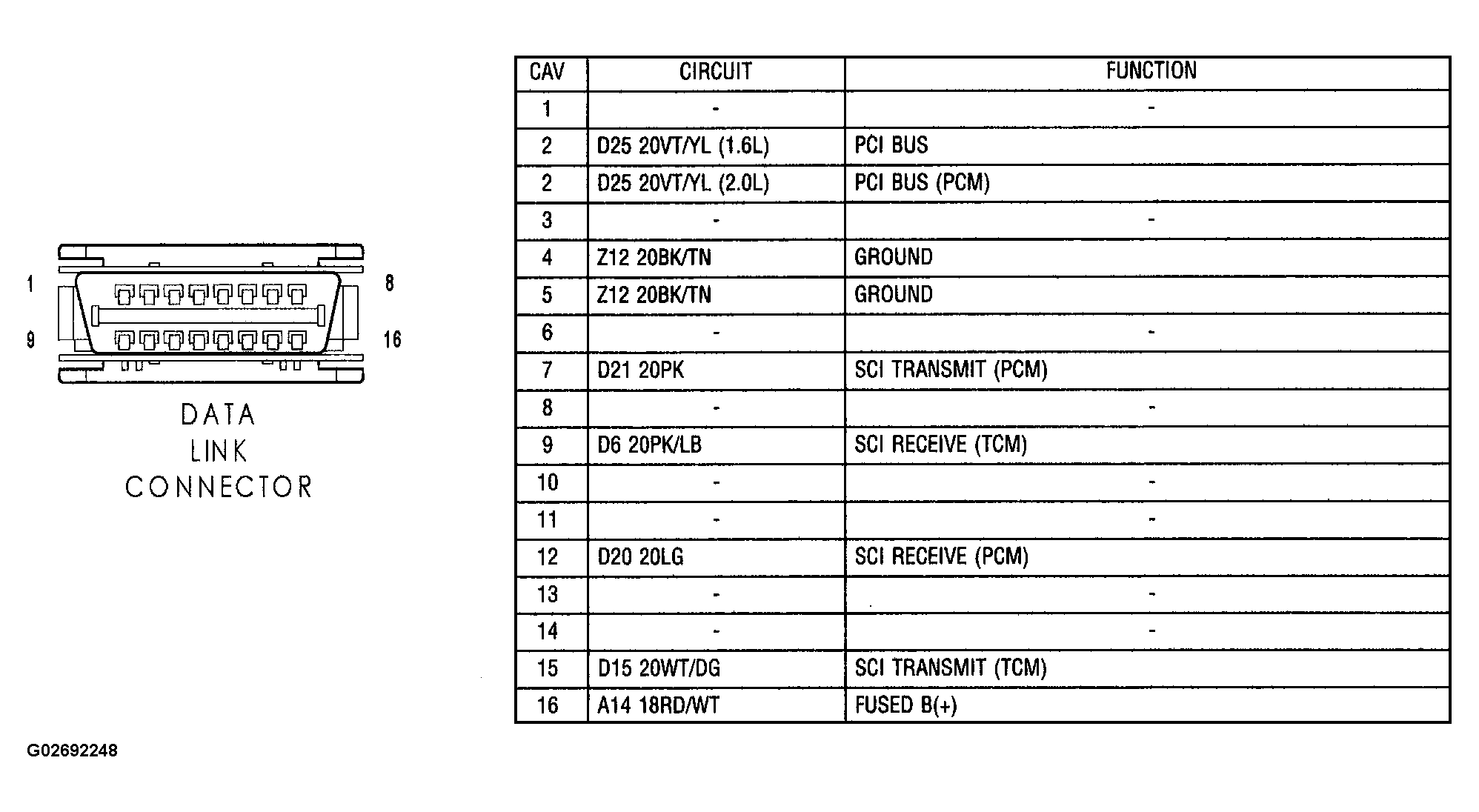

Fig 12: Identifying Data Link Connector Pinouts
G02692248Courtesy of DAIMLERCHRYSLER CORP.
Fig 13: Identifying Decklid Release Switch (Power Release) Connector Pinouts
G02692249Courtesy of DAIMLERCHRYSLER CORP.

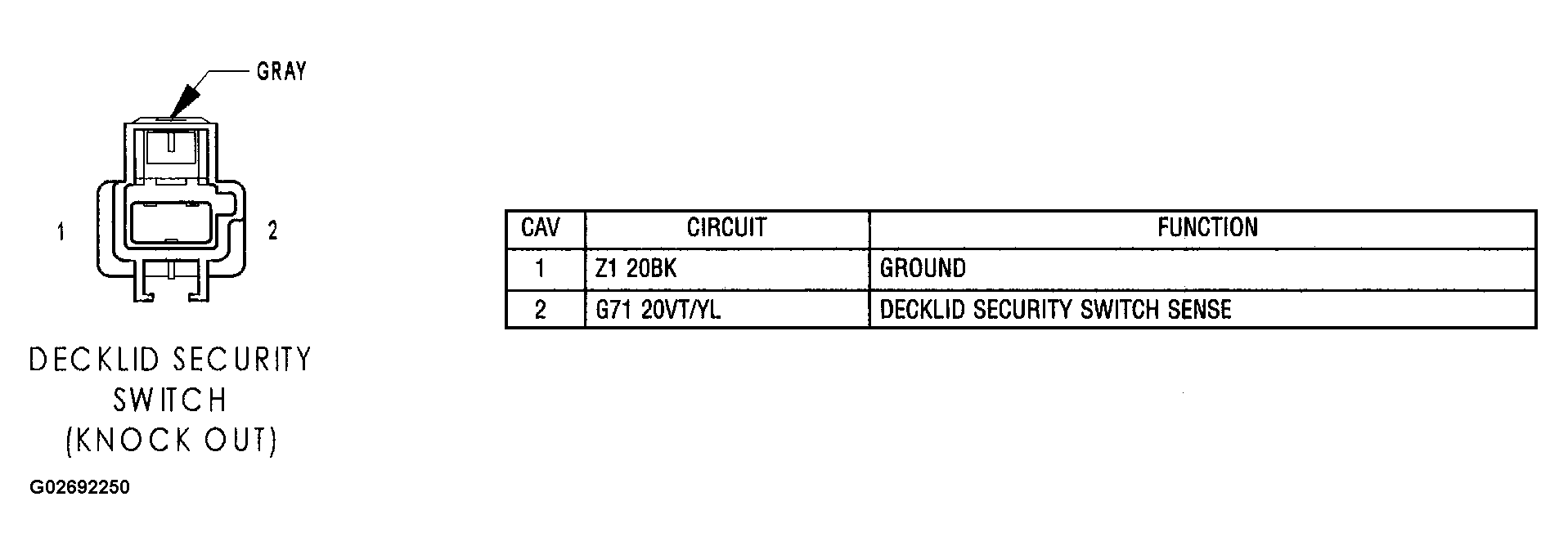

Fig 14: Identifying Decklid Security Switch (Knock Out) Connector Pinouts
G02692250Courtesy of DAIMLERCHRYSLER CORP.
Fig 15: Identifying Decklid Solenoid Connector Pinouts
G02692251Courtesy of DAIMLERCHRYSLER CORP.

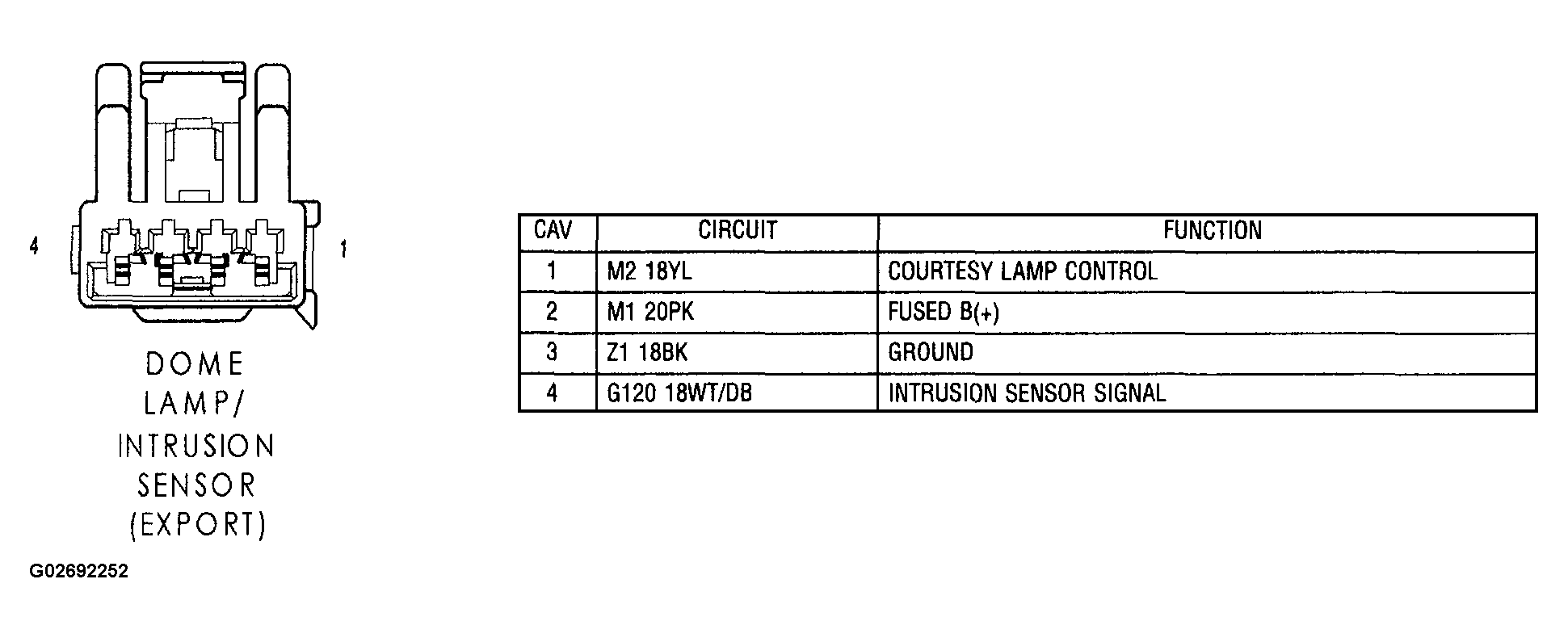

Fig 16: Identifying Dome Lamp/Intrusion Sensor (Export) Connector Pinouts
G02692252Courtesy of DAIMLERCHRYSLER CORP.
Fig 17: Identifying Driver Airbag Connector Pinouts
G02692253Courtesy of DAIMLERCHRYSLER CORP.
Fig 18: Identifying Driver Door Ajar Switch Connector Pinouts
G02692254Courtesy of DAIMLERCHRYSLER CORP.

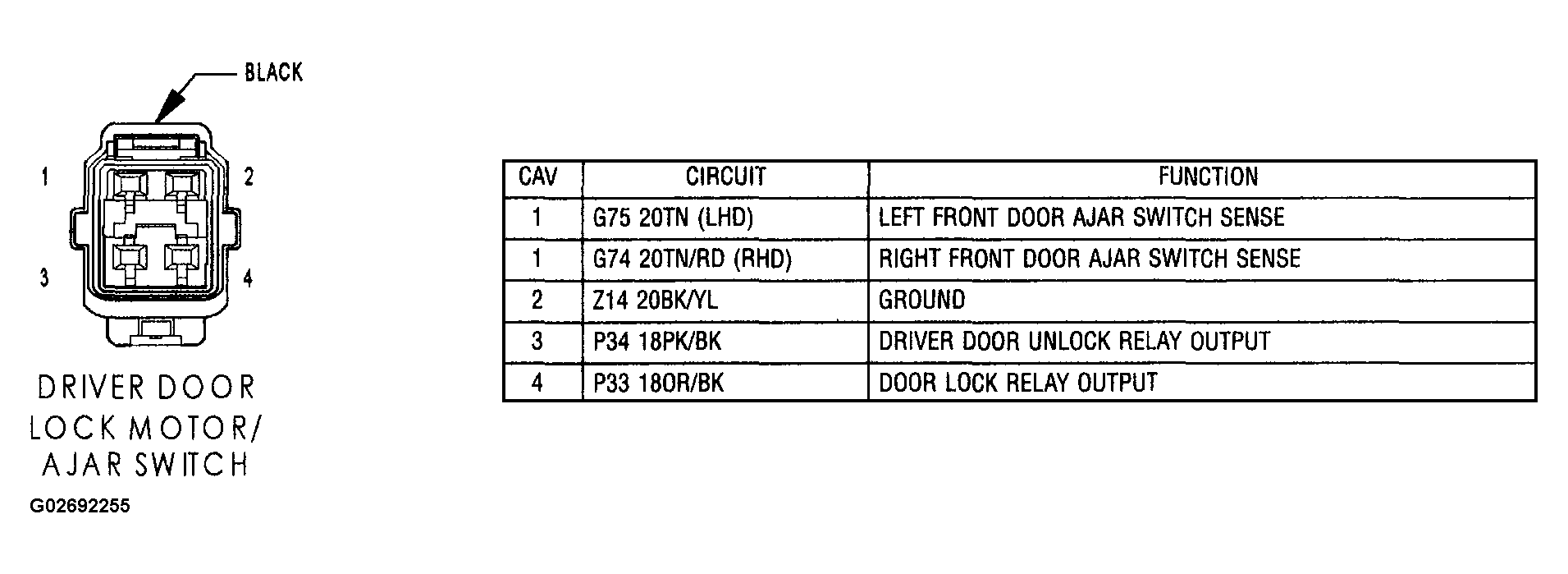

Fig 19: Identifying Driver Door Lock Motor/Ajar Switch Connector Pinouts
G02692255Courtesy of DAIMLERCHRYSLER CORP.

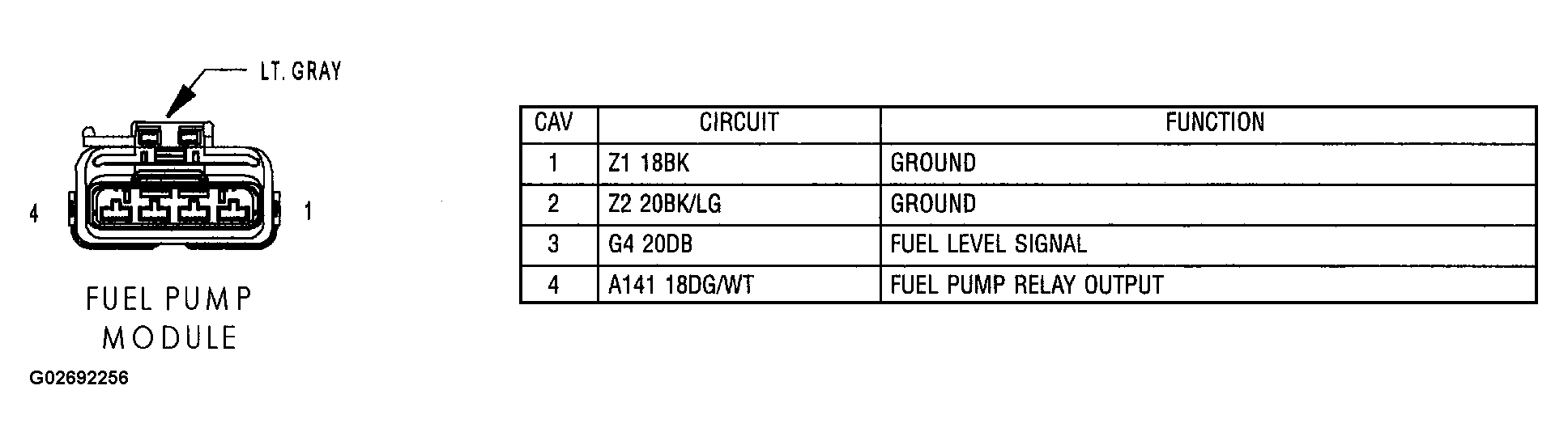

Fig 20: Identifying Fuel Pump Module Connector Pinouts
G02692256Courtesy of DAIMLERCHRYSLER CORP.
Fig 21: Identifying Hood Ajar Switch (Export) Connector Pinouts
G02692257Courtesy of DAIMLERCHRYSLER CORP.

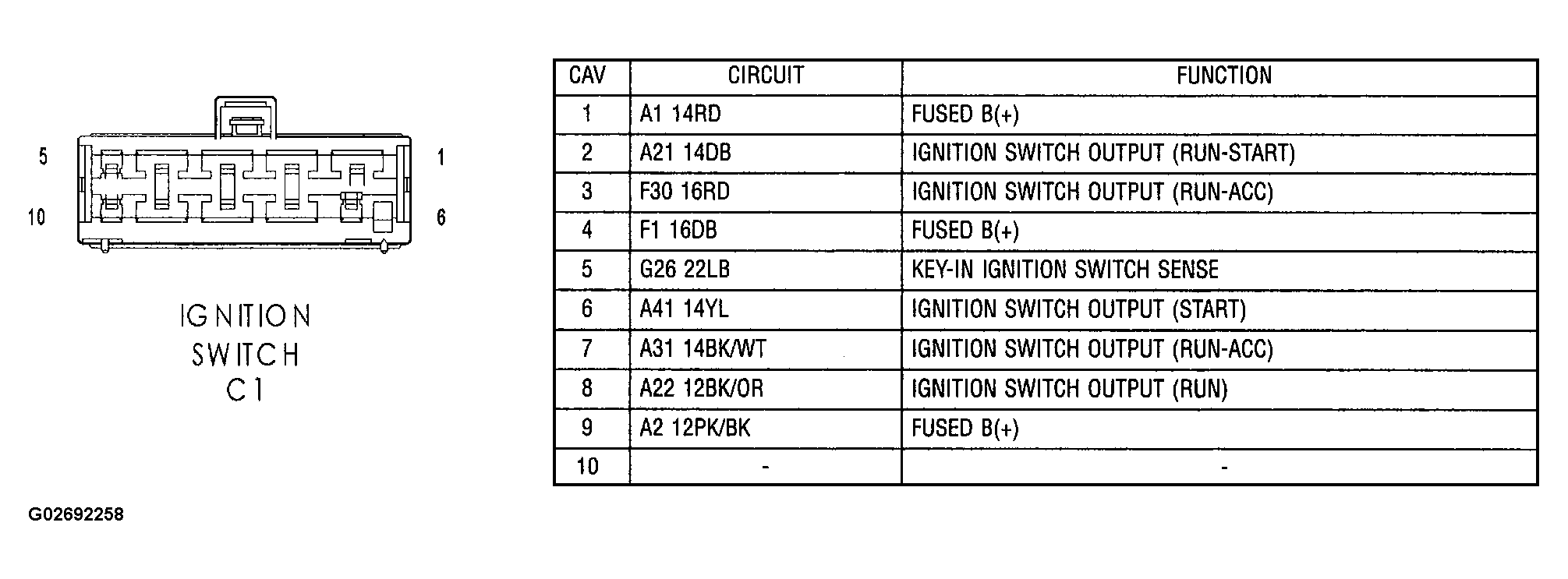

Fig 22: Identifying Ignition Switch C1 Connector Pinouts
G02692258Courtesy of DAIMLERCHRYSLER CORP.
Fig 23: Identifying Ignition Switch C2 Connector Pinouts
G02692259Courtesy of DAIMLERCHRYSLER CORP.

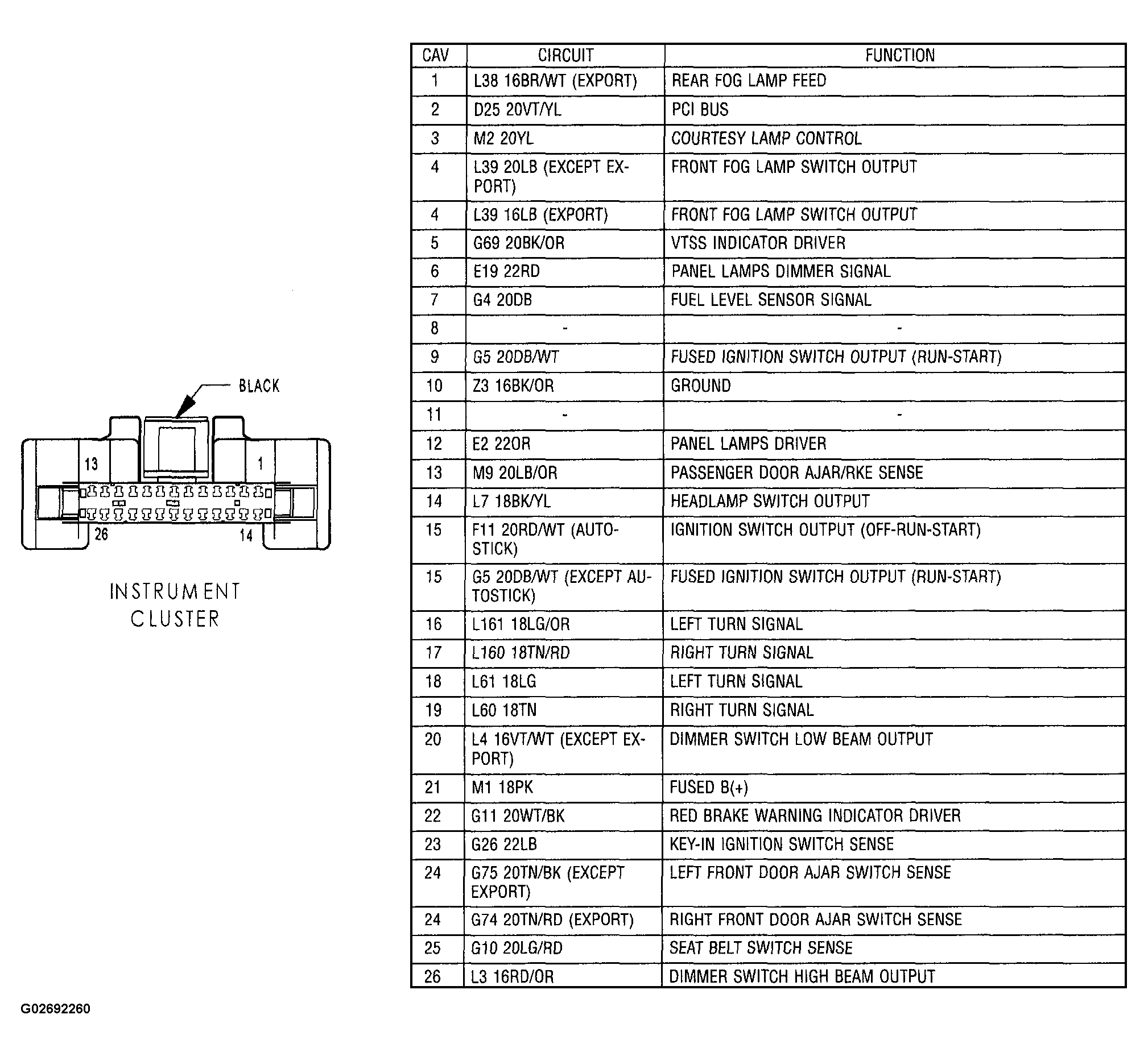

Fig 24: Identifying Instrument Cluster Connector Pinouts
G02692260Courtesy of DAIMLERCHRYSLER CORP.
Fig 25: Identifying Left Cylinder Lock Switch (Premium) Connector Pinouts
G02692261Courtesy of DAIMLERCHRYSLER CORP.

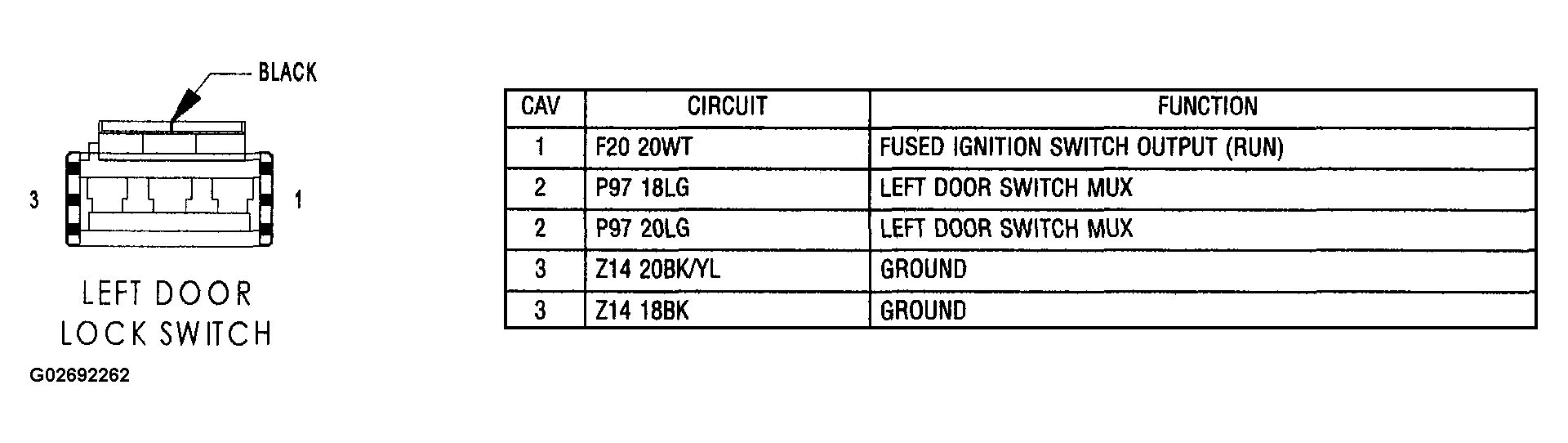

Fig 26: Identifying Left Door Lock Switch Connector Pinouts
G02692262Courtesy of DAIMLERCHRYSLER CORP.
Fig 27: Identifying Left Front Door Speaker Connector Pinouts
G02692263Courtesy of DAIMLERCHRYSLER CORP.
Fig 28: Identifying Left Instrument Panel Speaker Connector Pinouts
G02692264Courtesy of DAIMLERCHRYSLER CORP.

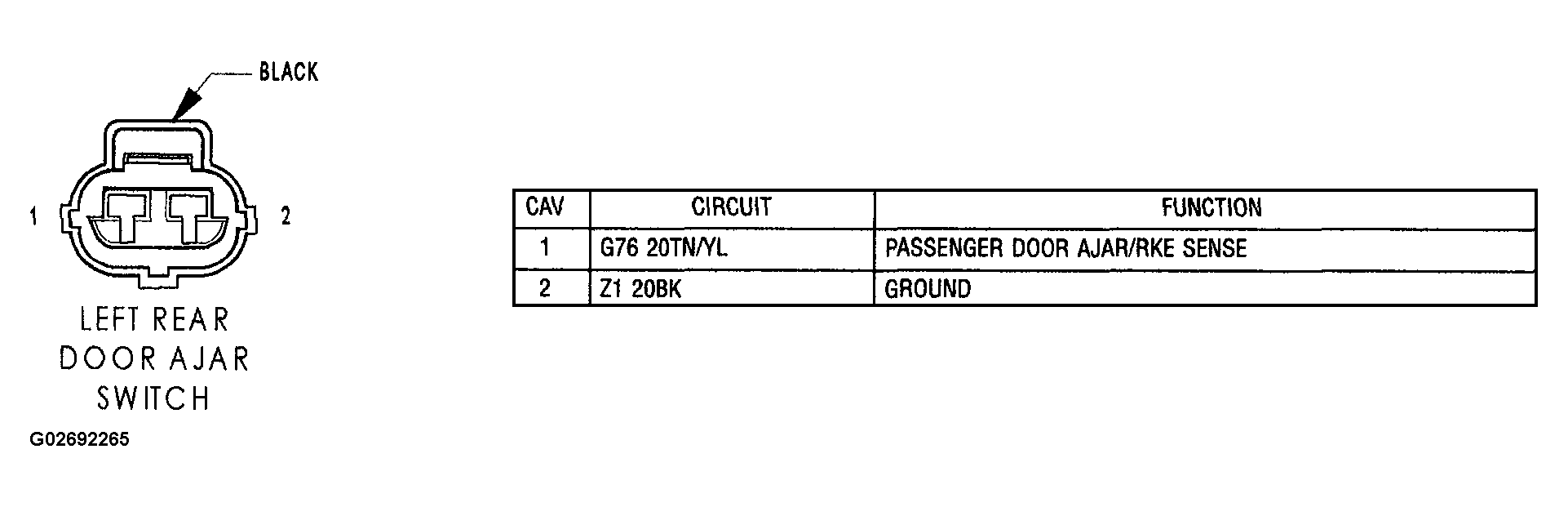

Fig 29: Identifying Left Rear Door Ajar Switch Connector Pinouts
G02692265Courtesy of DAIMLERCHRYSLER CORP.

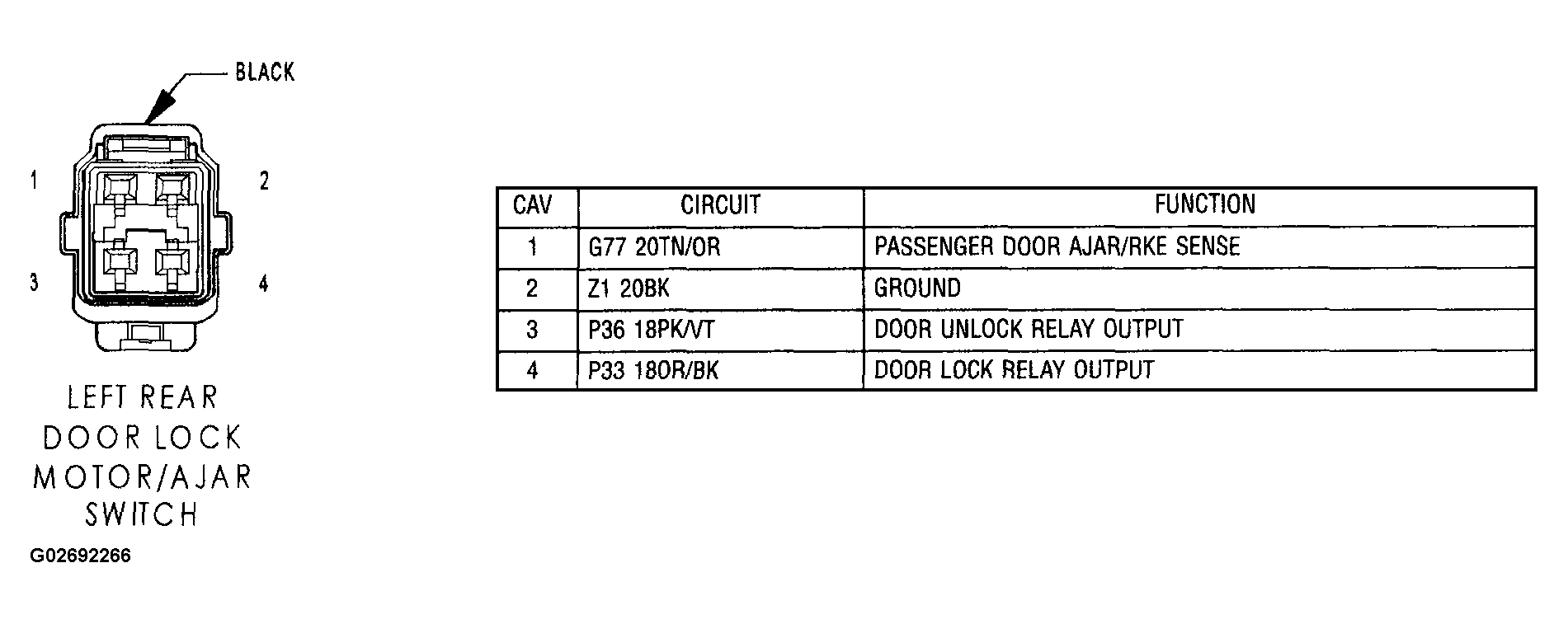

Fig 30: Identifying Left Rear Door Lock Motor/Ajar Switch Connector Pinouts
G02692266Courtesy of DAIMLERCHRYSLER CORP.
Fig 31: Identifying Left Rear Speaker Connector Pinouts
G02692267Courtesy of DAIMLERCHRYSLER CORP.
Fig 32: Identifying Left Seat Airbag Connector Pinouts
G02692268Courtesy of DAIMLERCHRYSLER CORP.

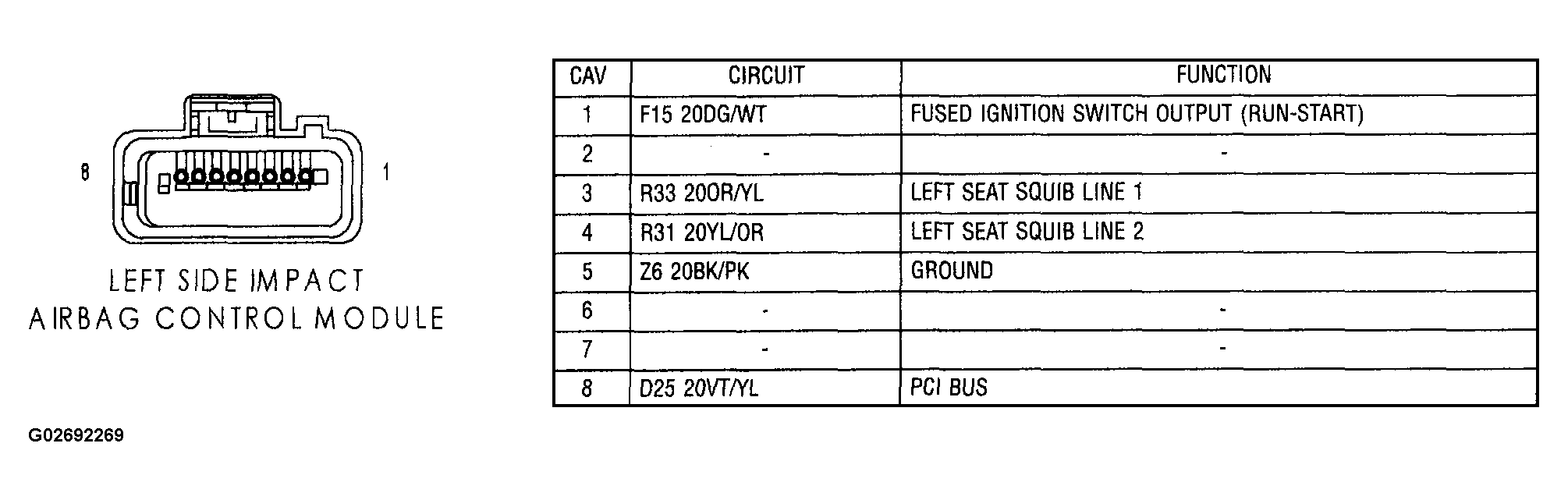

Fig 33: Identifying Left Side Impact Airbag Control Module Connector Pinouts
G02692269Courtesy of DAIMLERCHRYSLER CORP.

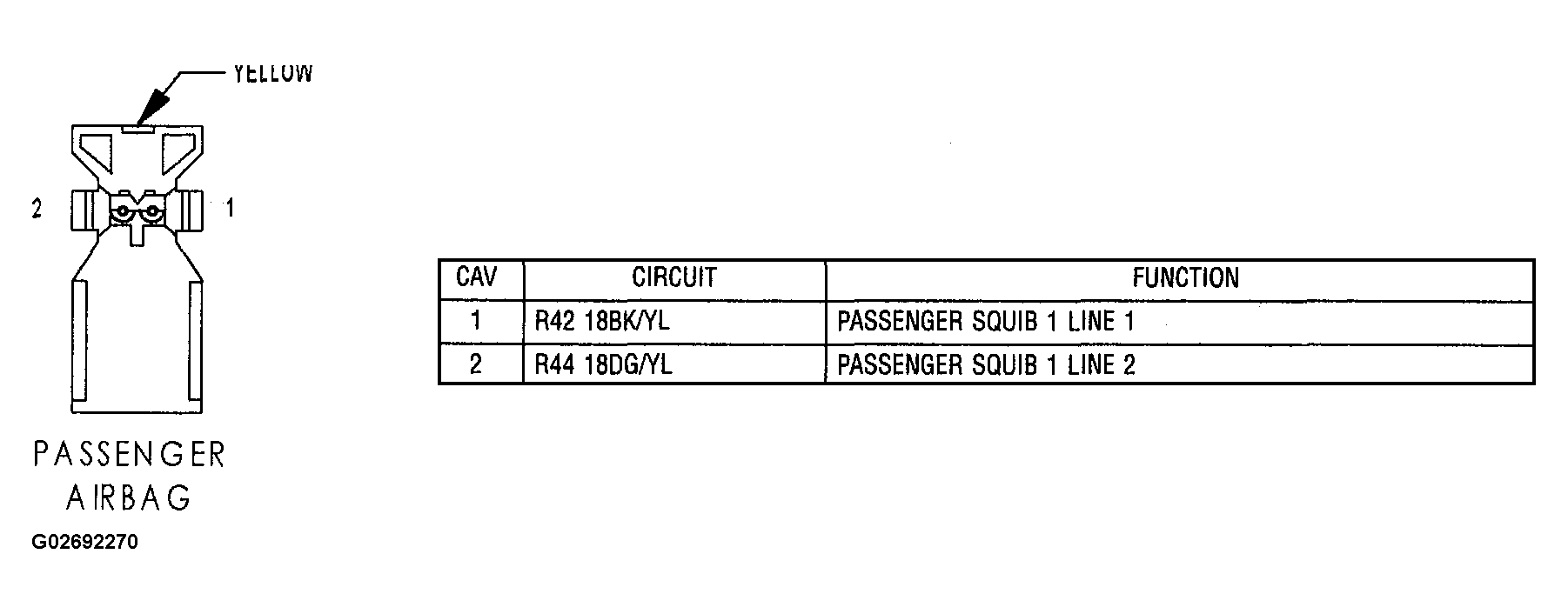

Fig 34: Identifying Passenger Airbag Connector Pinouts
G02692270Courtesy of DAIMLERCHRYSLER CORP.
Fig 35: Identifying Passenger Door Ajar Switch Connector Pinouts
G02692271Courtesy of DAIMLERCHRYSLER CORP.

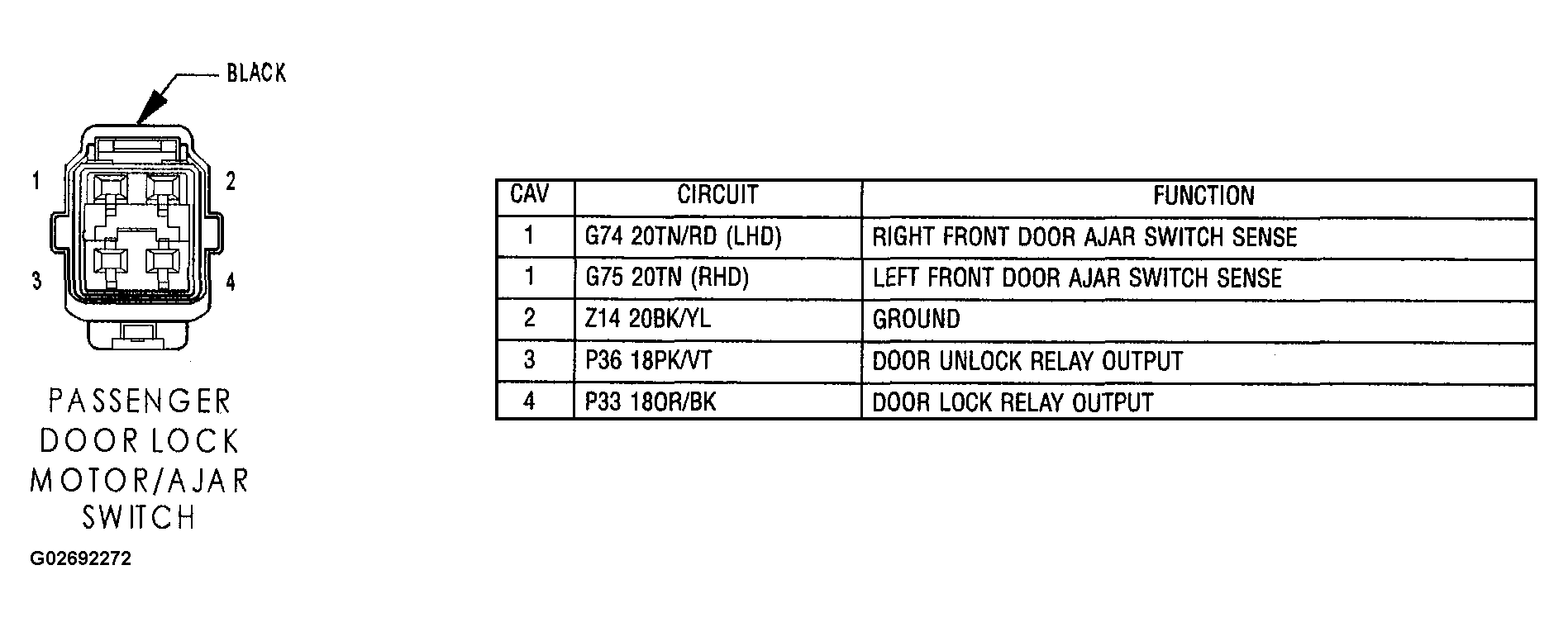

Fig 36: Identifying Passenger Door Lock Motor/Ajar Switch Connector Pinouts
G02692272Courtesy of DAIMLERCHRYSLER CORP.

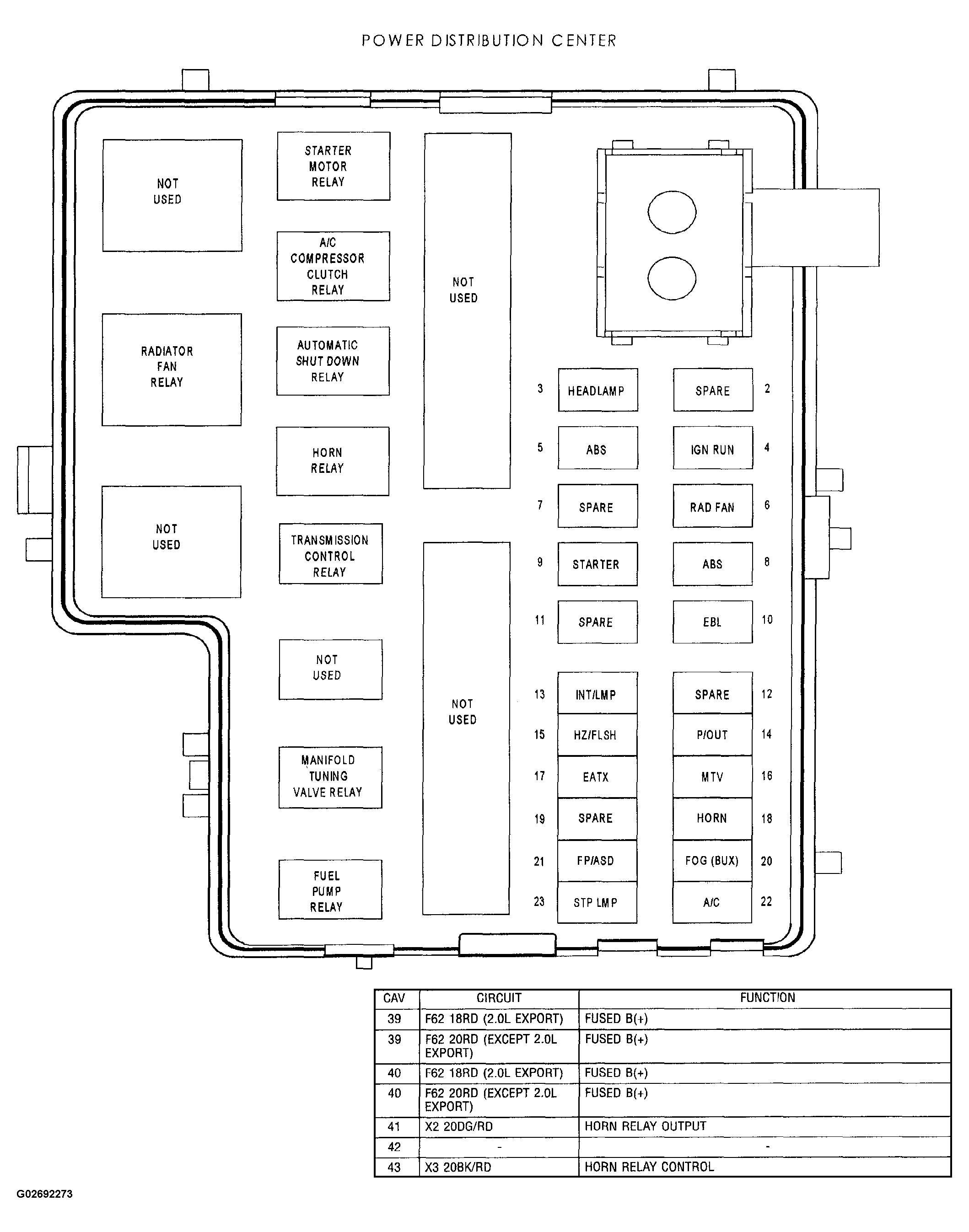

Fig 37: Identifying Horn Relay (Power Distribution Center) Connector Pinouts
G02692273Courtesy of DAIMLERCHRYSLER CORP.

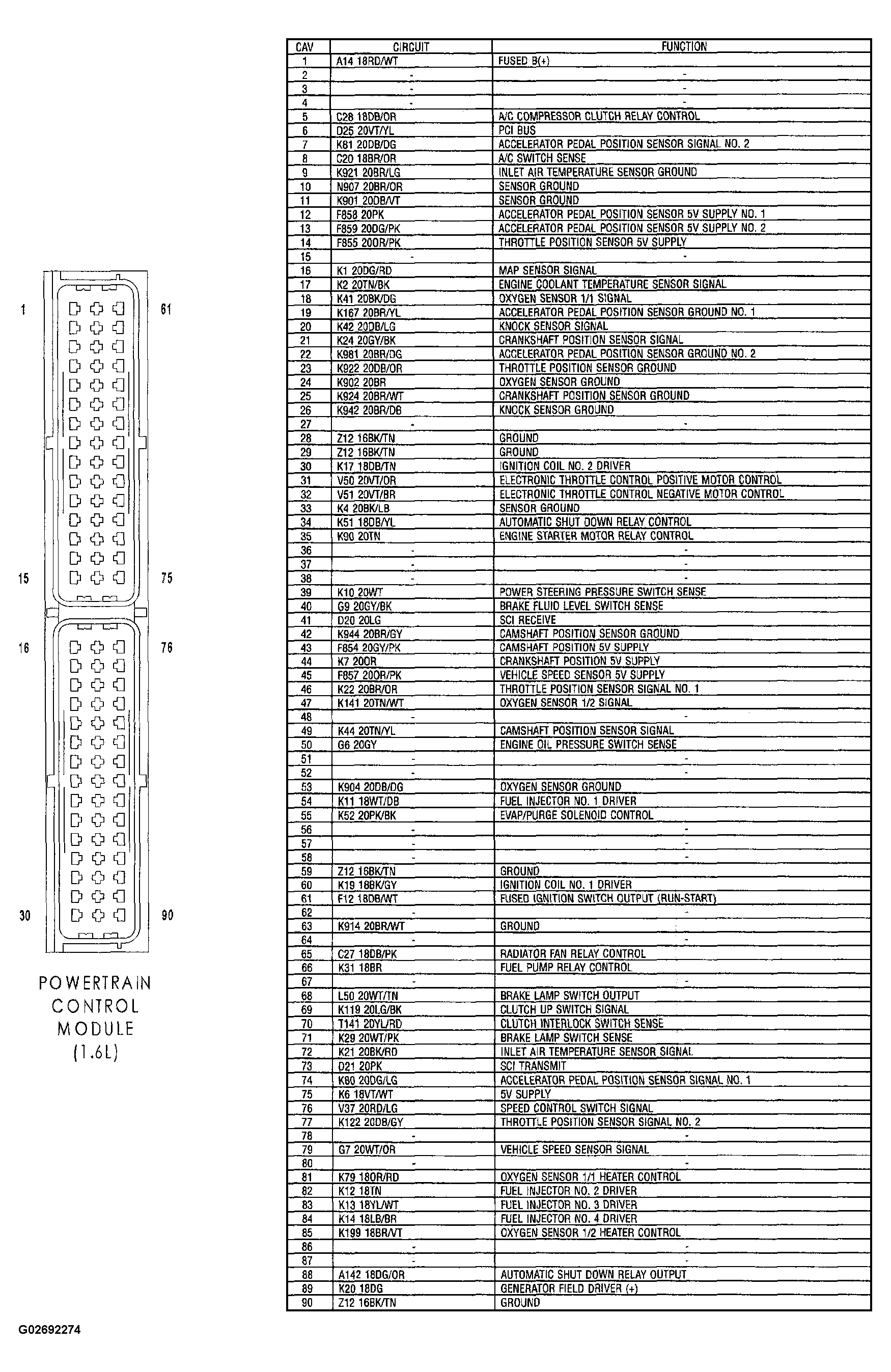

Fig 38: Identifying Powertrain Control Module (1.6L) Connector Pinouts
G02692274Courtesy of DAIMLERCHRYSLER CORP.

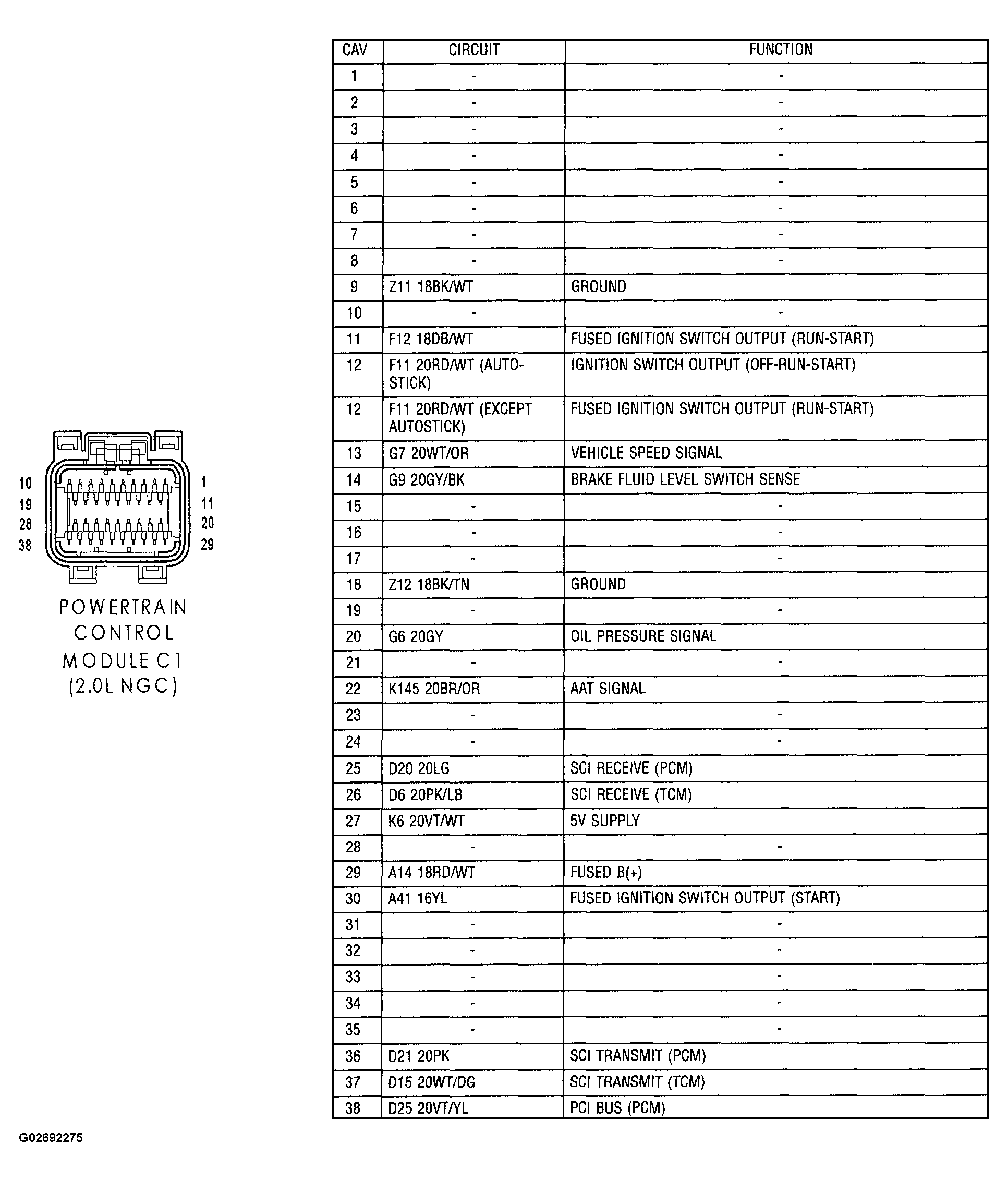

Fig 39: Identifying Powertrain Control Module C1 (2.0L NGC) Connector Pinouts
G02692275Courtesy of DAIMLERCHRYSLER CORP.

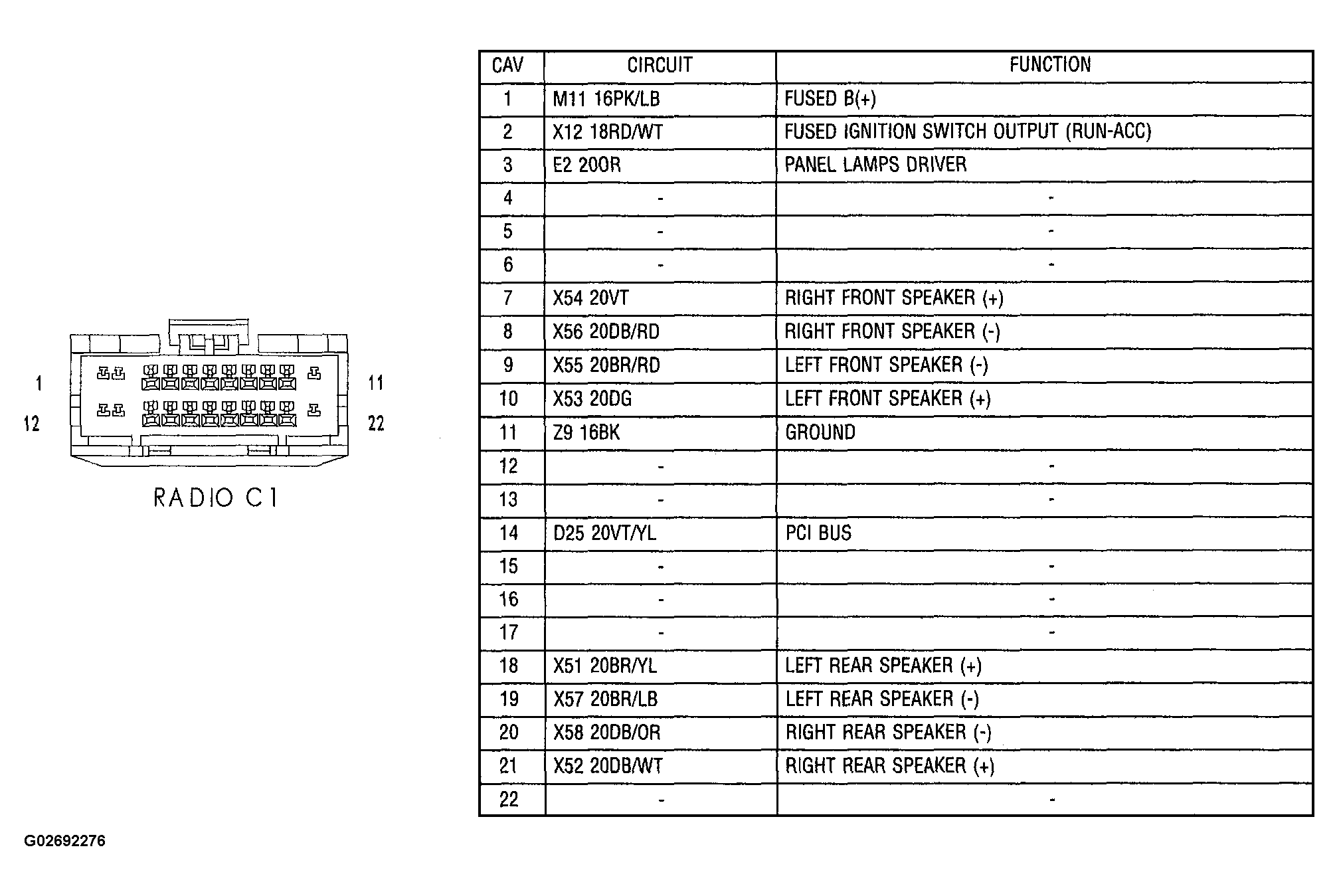

Fig 40: Identifying Radio C1 Connector Pinouts
G02692276Courtesy of DAIMLERCHRYSLER CORP.

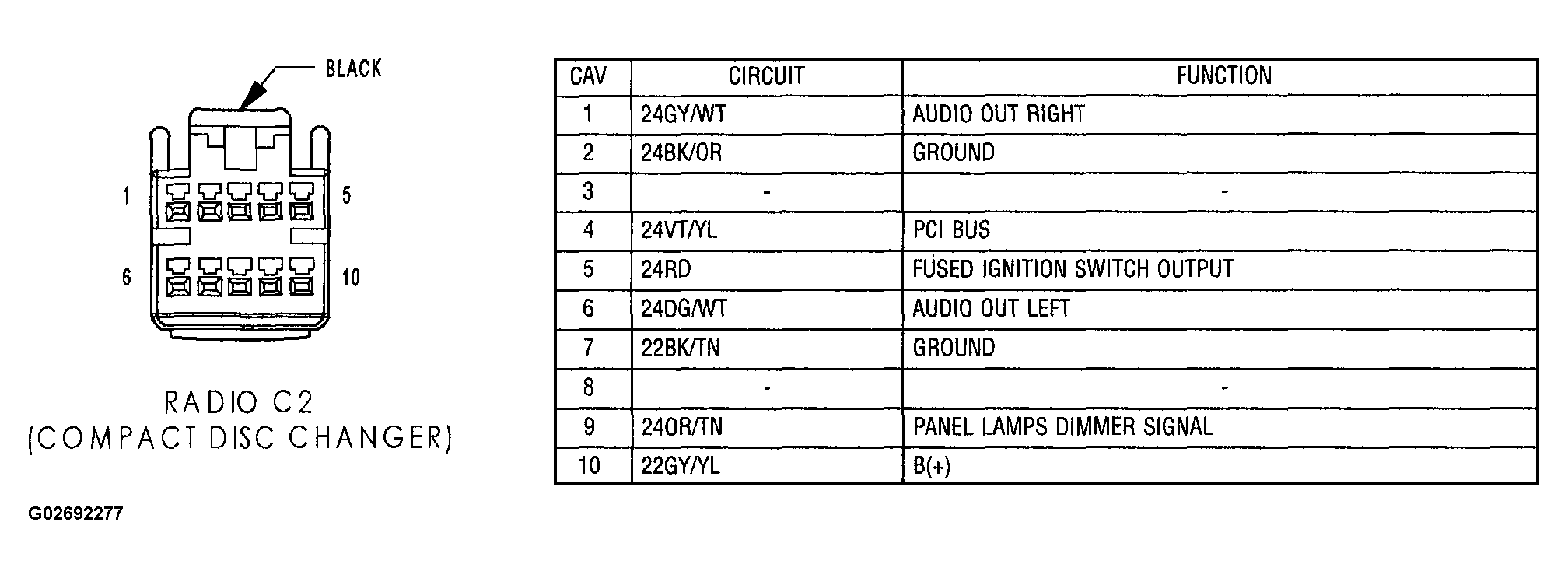

Fig 41: Identifying Radio C2 (Compact Disc Changer) Connector Pinouts
G02692277Courtesy of DAIMLERCHRYSLER CORP.

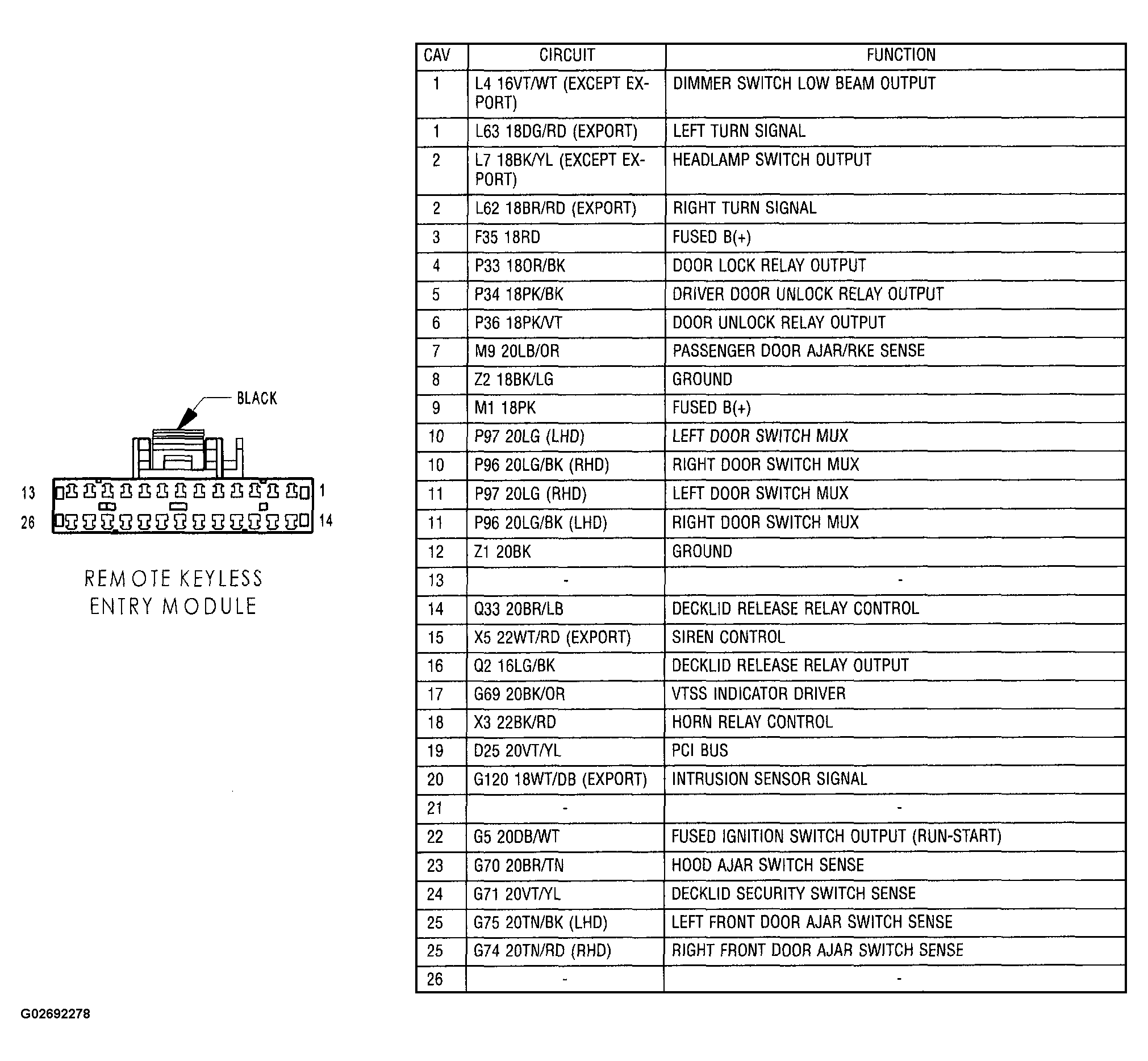

Fig 42: Identifying Remote Keyless Entry Module Connector Pinouts
G02692278Courtesy of DAIMLERCHRYSLER CORP.
Fig 43: Identifying Right Cylinder Lock Switch (Export) Connector Pinouts
G02692279Courtesy of DAIMLERCHRYSLER CORP.

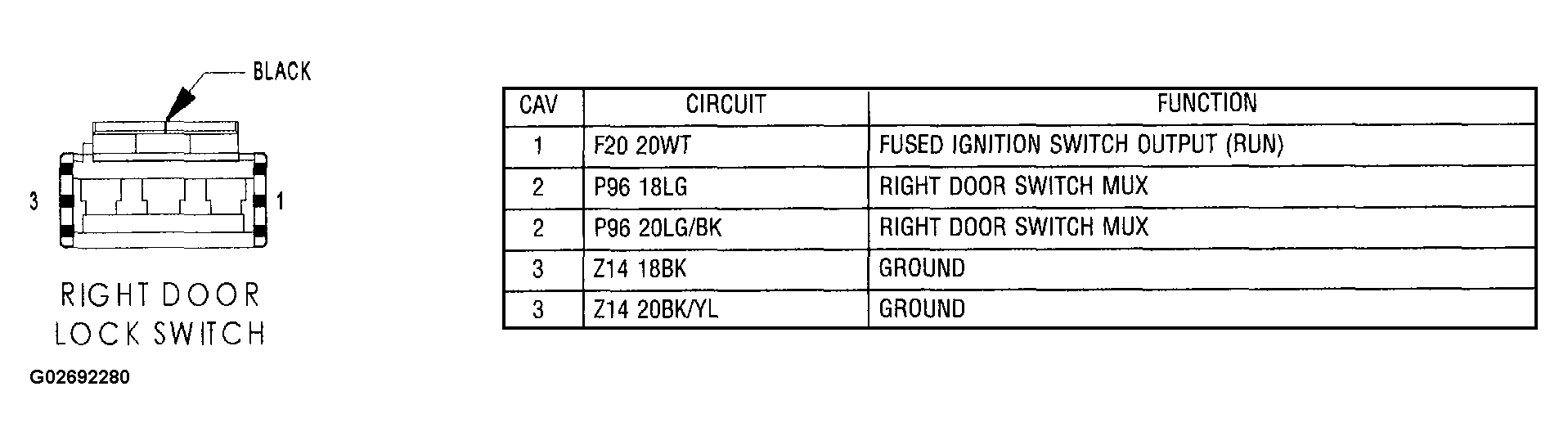

Fig 44: Identifying Right Door Lock Switch Connector Pinouts
G02692280Courtesy of DAIMLERCHRYSLER CORP.
Fig 45: Identifying Right Front Door Speaker Connector Pinouts
G02692281Courtesy of DAIMLERCHRYSLER CORP.
Fig 46: Identifying Right Instrument Panel Speaker Connector Pinouts
G02692282Courtesy of DAIMLERCHRYSLER CORP.

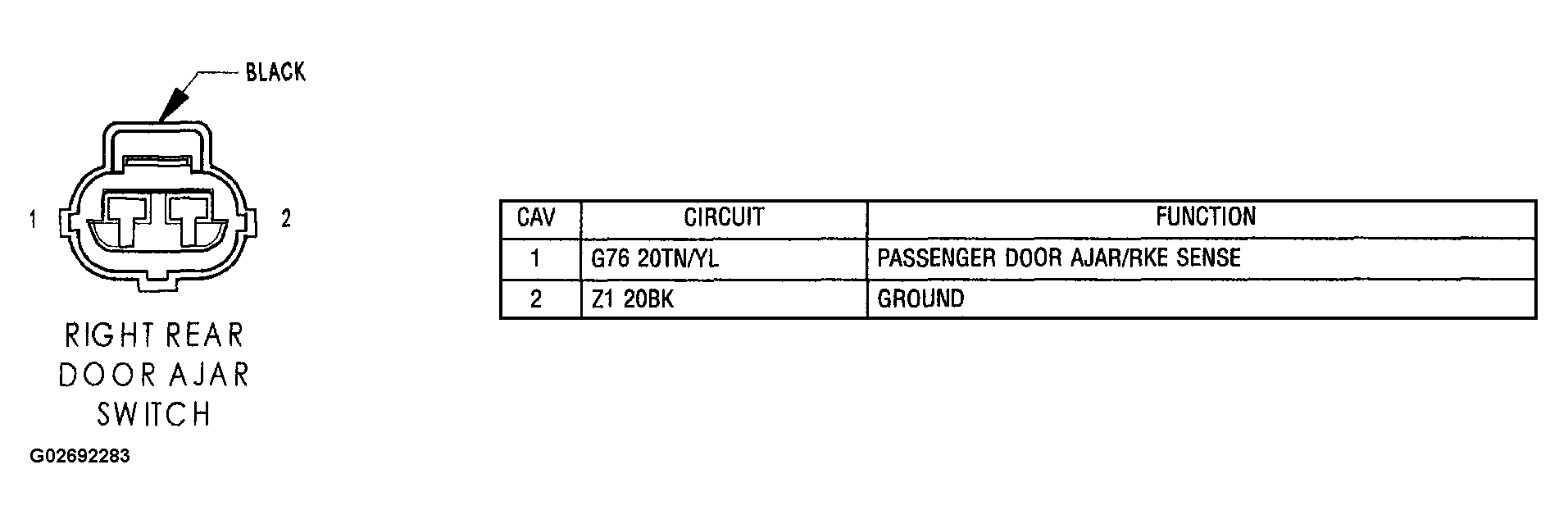

Fig 47: Identifying Right Rear Door Ajar Switch Connector Pinouts
G02692283Courtesy of DAIMLERCHRYSLER CORP.

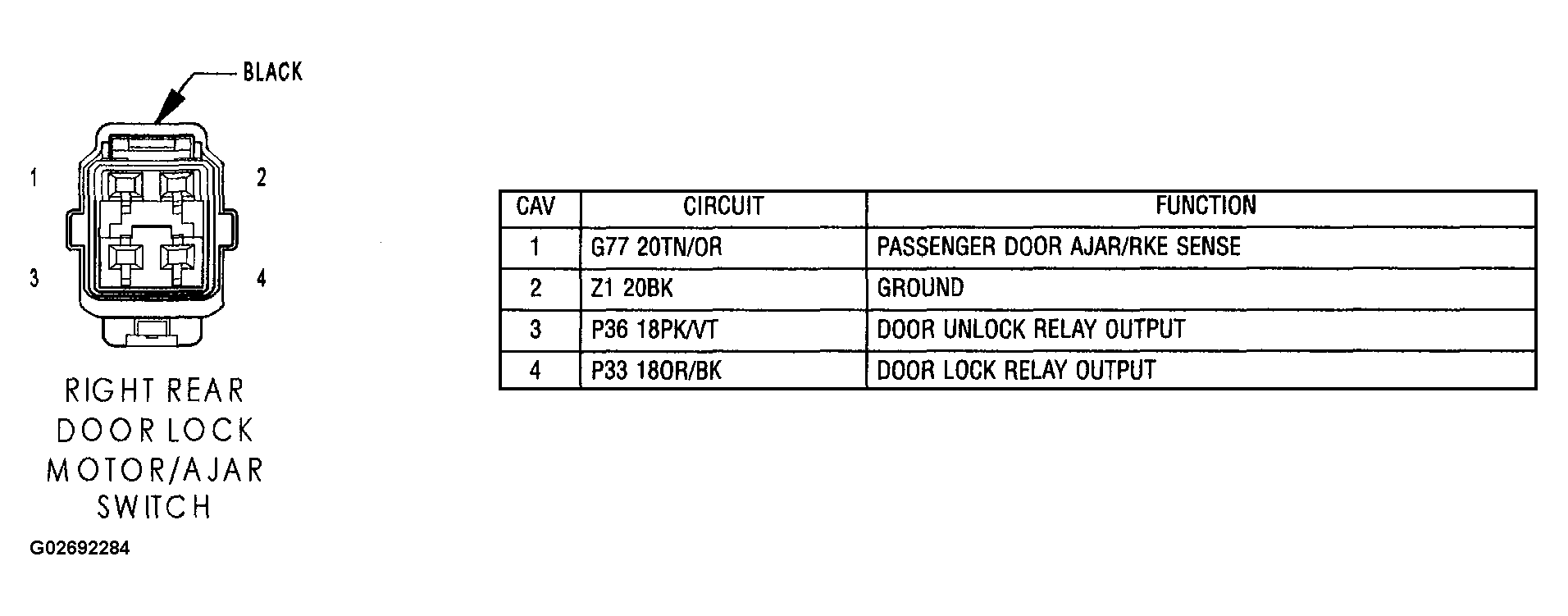

Fig 48: Identifying Right Rear Door Lock Motor/Ajar Switch Connector Pinouts
G02692284Courtesy of DAIMLERCHRYSLER CORP.
Fig 49: Identifying Right Rear Speaker Connector Pinouts
G02692285Courtesy of DAIMLERCHRYSLER CORP.
Fig 50: Identifying Right Seat Airbag Connector Pinouts
G02692286Courtesy of DAIMLERCHRYSLER CORP.

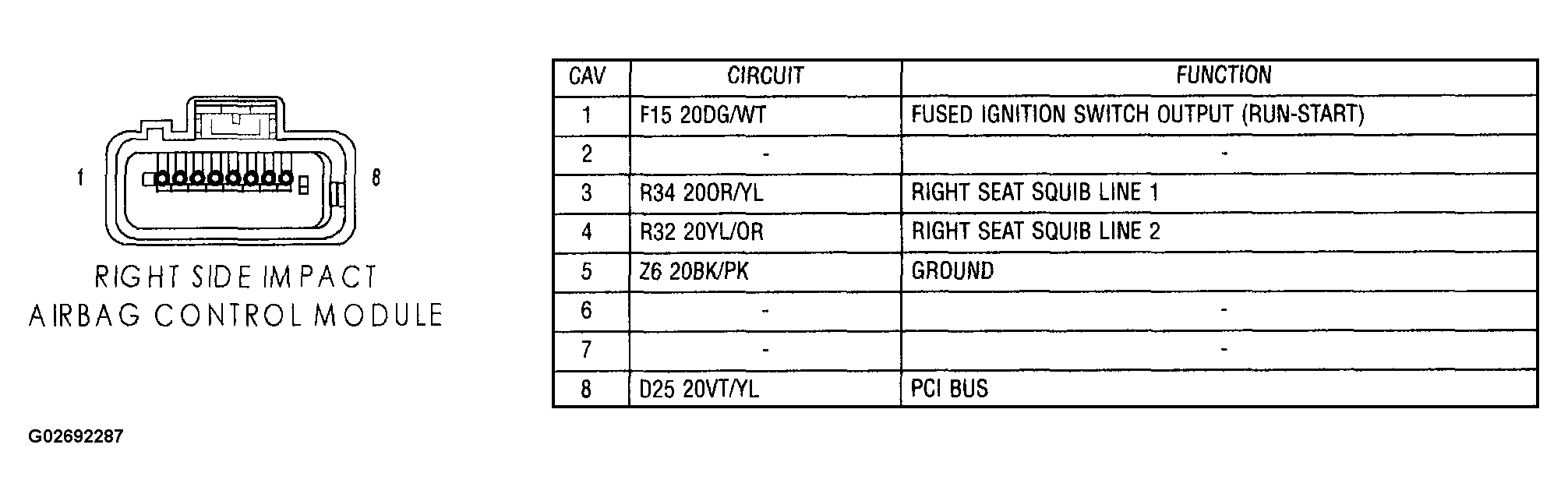

Fig 51: Identifying Right Side Impact Airbag Control Module Connector Pinouts
G02692287Courtesy of DAIMLERCHRYSLER CORP.
Fig 52: Identifying Seat Belt Switch Connector Pinouts
G02692288Courtesy of DAIMLERCHRYSLER CORP.

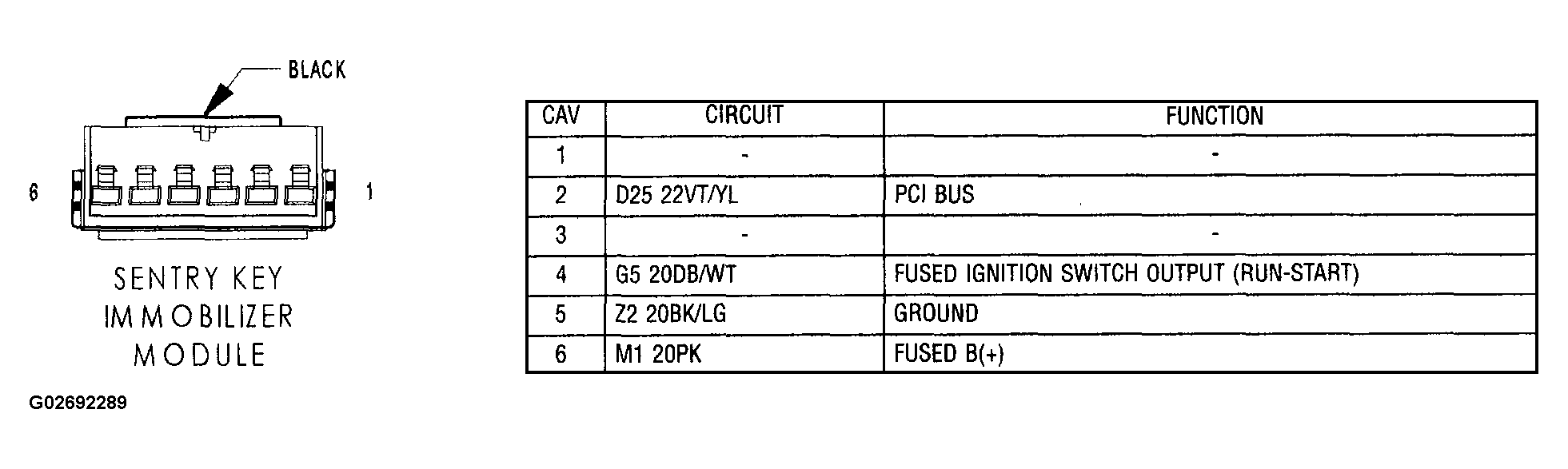

Fig 53: Identifying Sentry Key Immobilizer Module Connector Pinouts
G02692289Courtesy of DAIMLERCHRYSLER CORP.

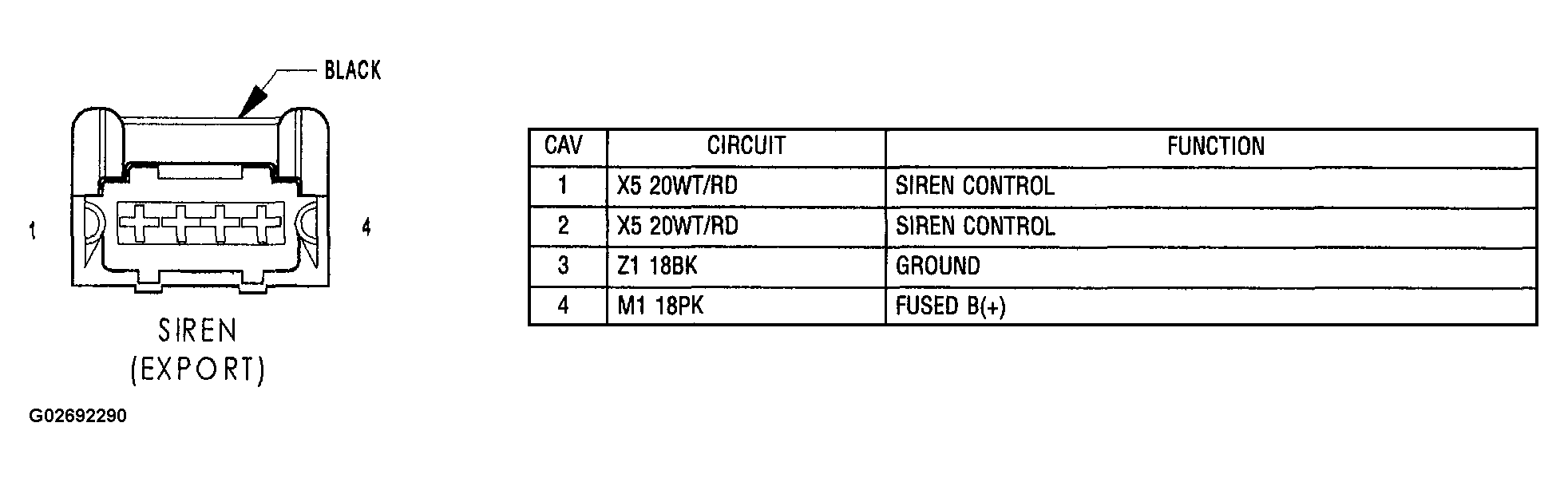

Fig 54: Identifying Siren (Export) Connector Pinouts
G02692290Courtesy of DAIMLERCHRYSLER CORP.
