8.1 Airbag System
8.1 Airbag System

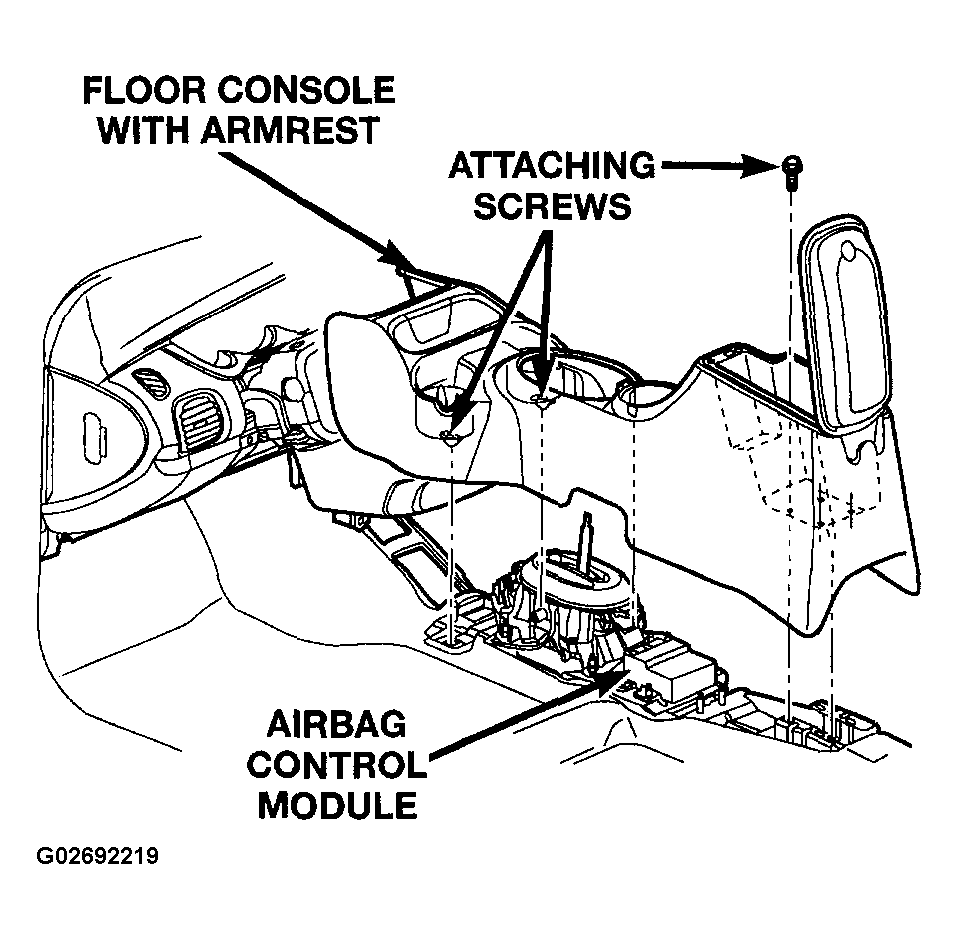

Fig 1: Identifying Location Of Airbag Control Module (ACM)
Courtesy of DAIMLERCHRYSLER CORP.

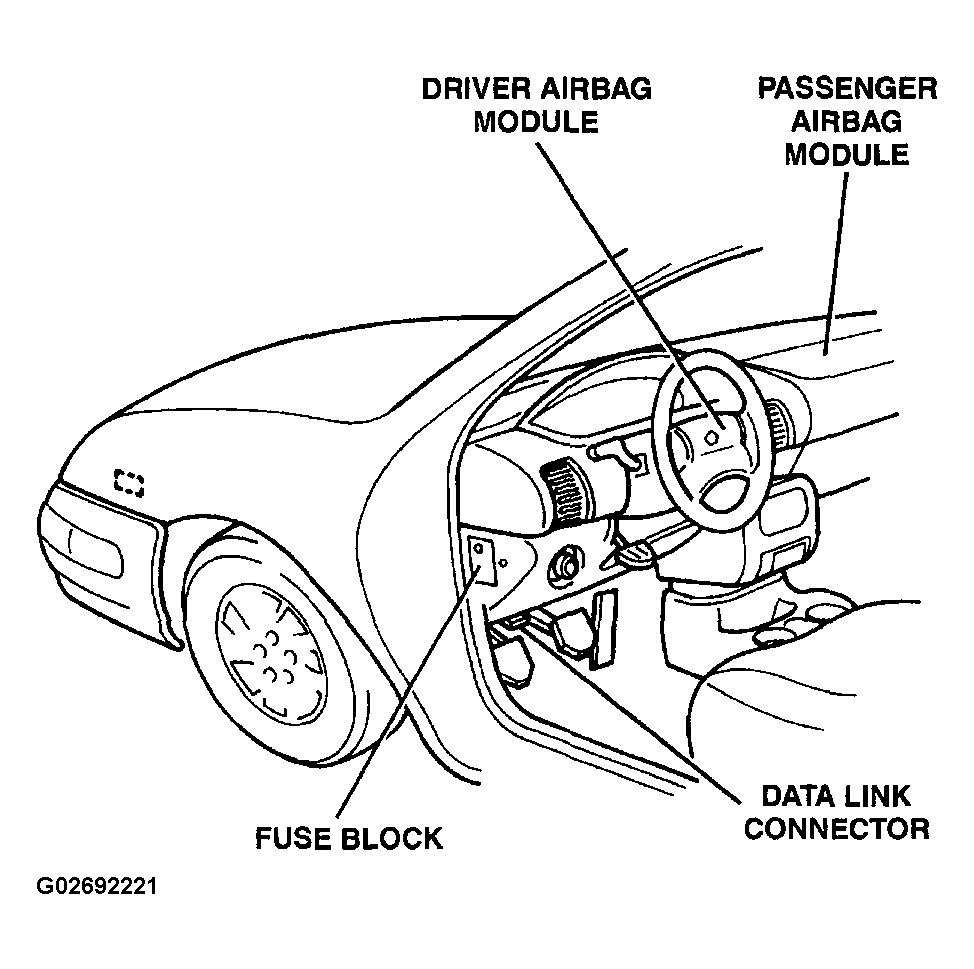

Fig 2: Identifying Location Of Airbag Module (Driver)
Courtesy of DAIMLERCHRYSLER CORP.
Fig 3: Identifying Location Of Airbag Module (Passenger)
Courtesy of DAIMLERCHRYSLER CORP.

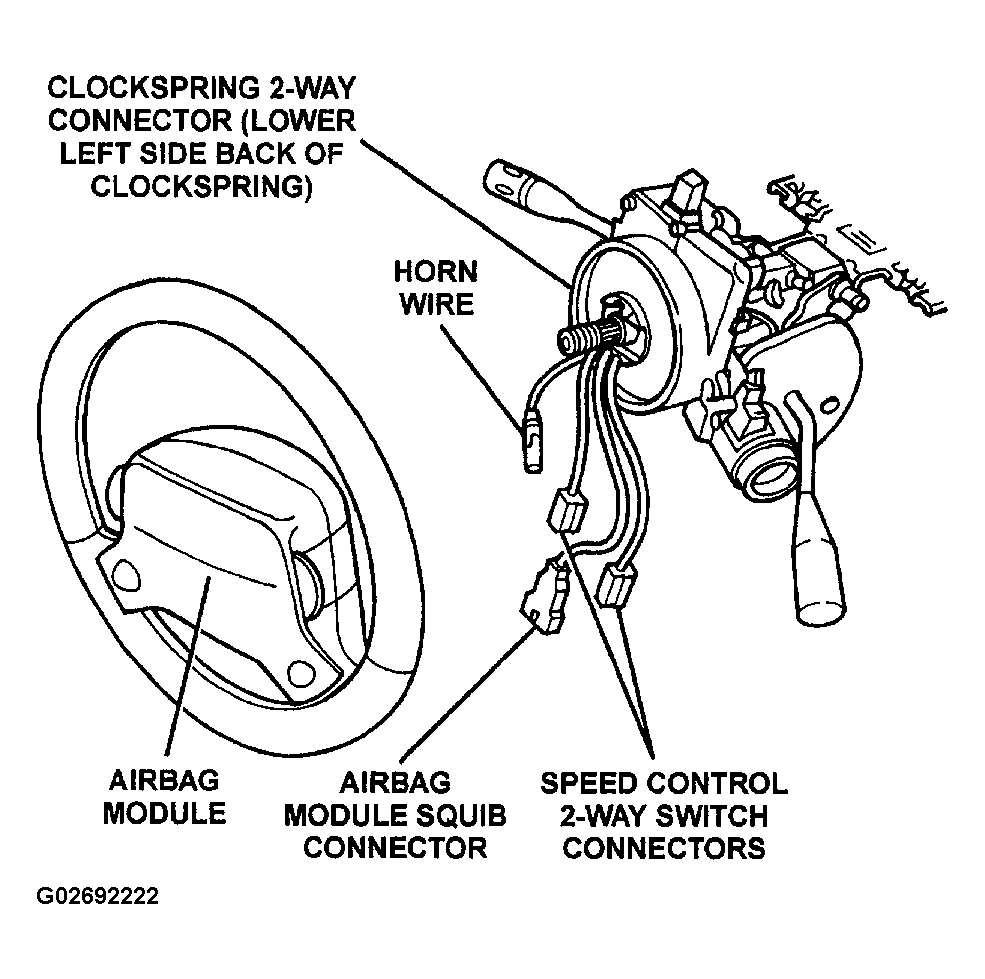

Fig 4: Identifying Location Of Clockspring
Courtesy of DAIMLERCHRYSLER CORP.

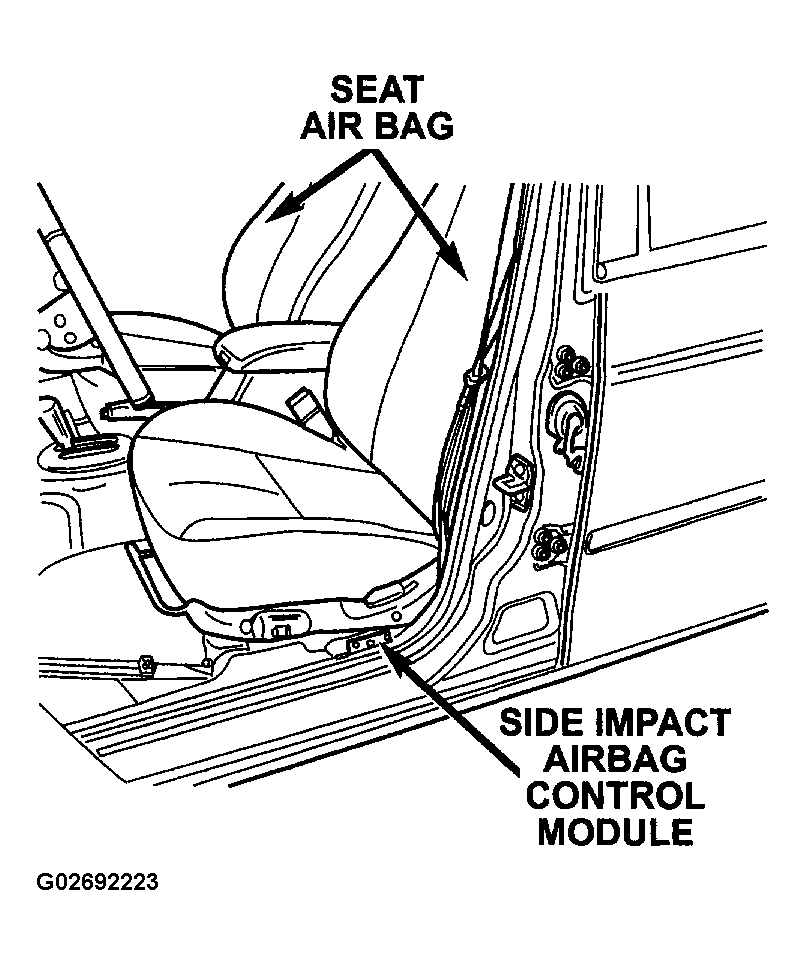

Fig 5: Identifying Location Of Side Impact Airbag Control Module (SIACM)
Courtesy of DAIMLERCHRYSLER CORP.
Courtesy of DAIMLERCHRYSLER CORP.
Courtesy of DAIMLERCHRYSLER CORP.
Courtesy of DAIMLERCHRYSLER CORP.
Courtesy of DAIMLERCHRYSLER CORP.
Courtesy of DAIMLERCHRYSLER CORP.
