Home >> Dodge and Ram >> 2003 >> SX R/T >> Repair and Diagnosis >> Accessories & Equipment >> Exterior Lights >> Lamps/Lighting - Exterior >> Tail Lamp >> Removal

Tail Lamp: Removal

  1. Disconnect and isolate the battery negative cable.
  2. Move trunk lining as necessary from rear closure panel to gain access to back of tail lamp.
  3. Remove bulb socket from tail lamp through openings in rear closure panel (Fig 1).

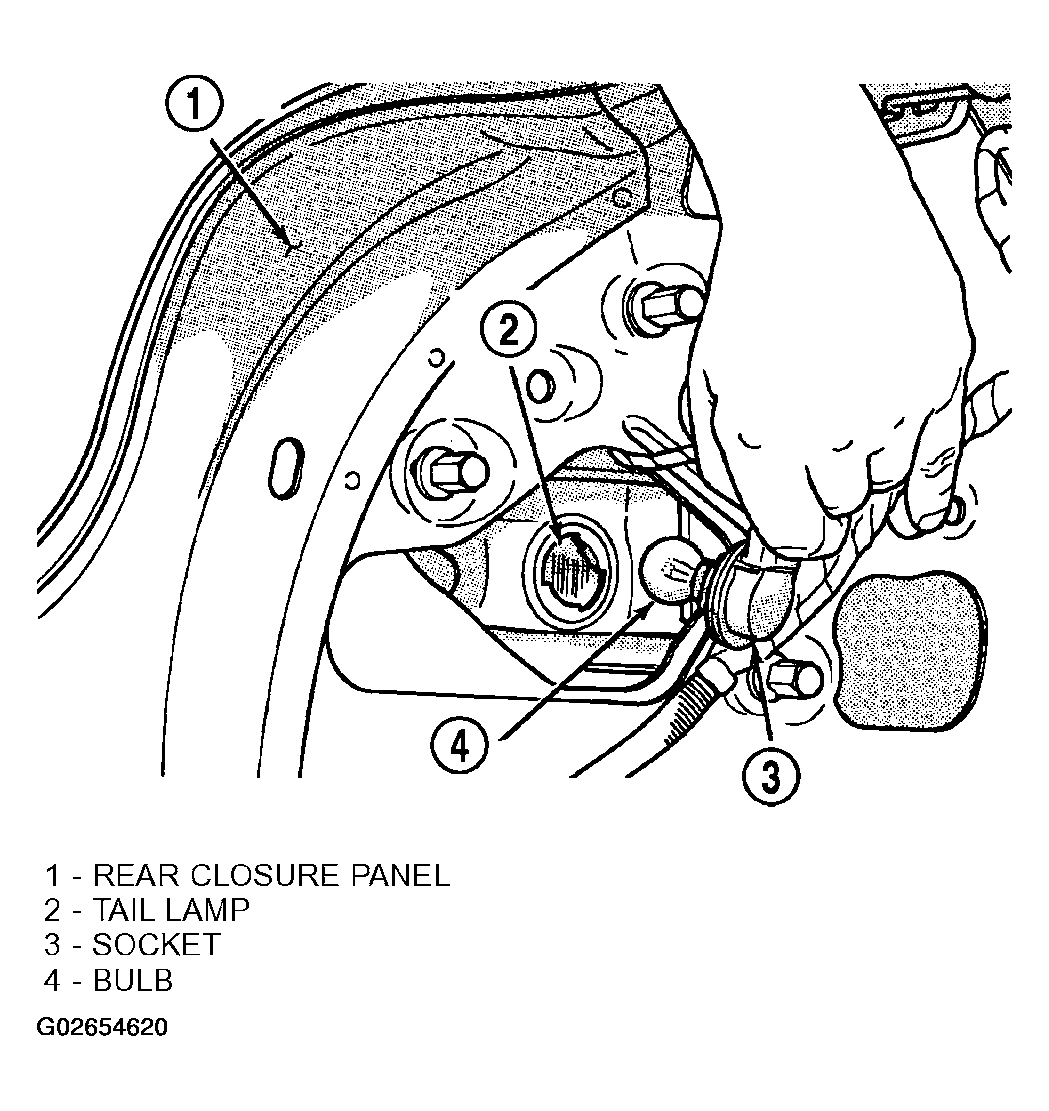

    Fig 1: Removing Tail And Stop Lamp Bulb
    G02654620Courtesy of DAIMLERCHRYSLER CORP.
  4. Pull bulb from socket.
