Fog Lamp Bulb

  1. Remove the fog lamp unit from the rear bumper fascia (Refer to FOG LAMP - REMOVAL ).
  2. Rotate the bulb, push in and turn the bulb counterclockwise (Fig 1).

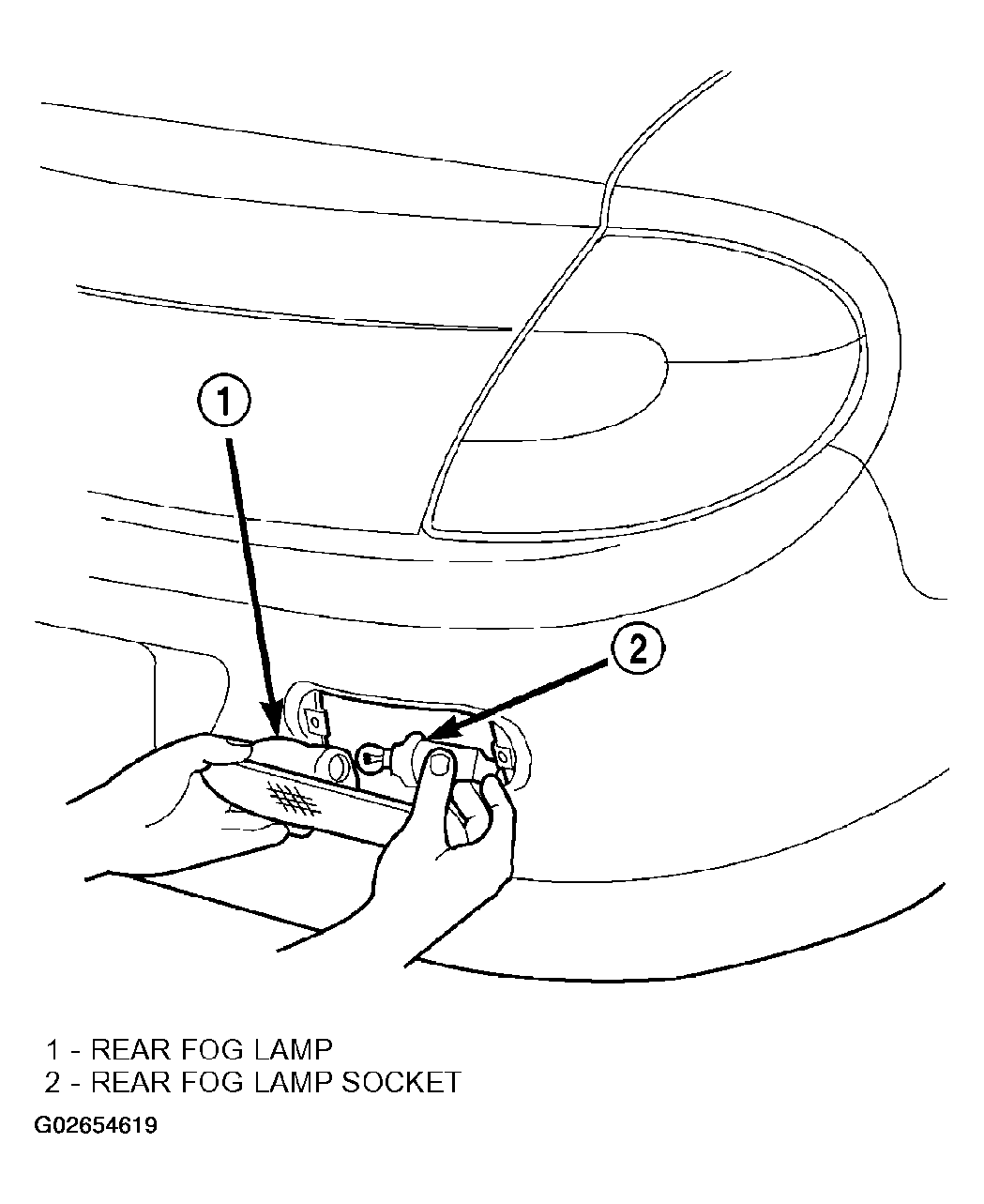

    Fig 1: Removing Rear Fog Lamp Socket
    G02654619Courtesy of DAIMLERCHRYSLER CORP.
