Multi-Function Switch Continuity Test

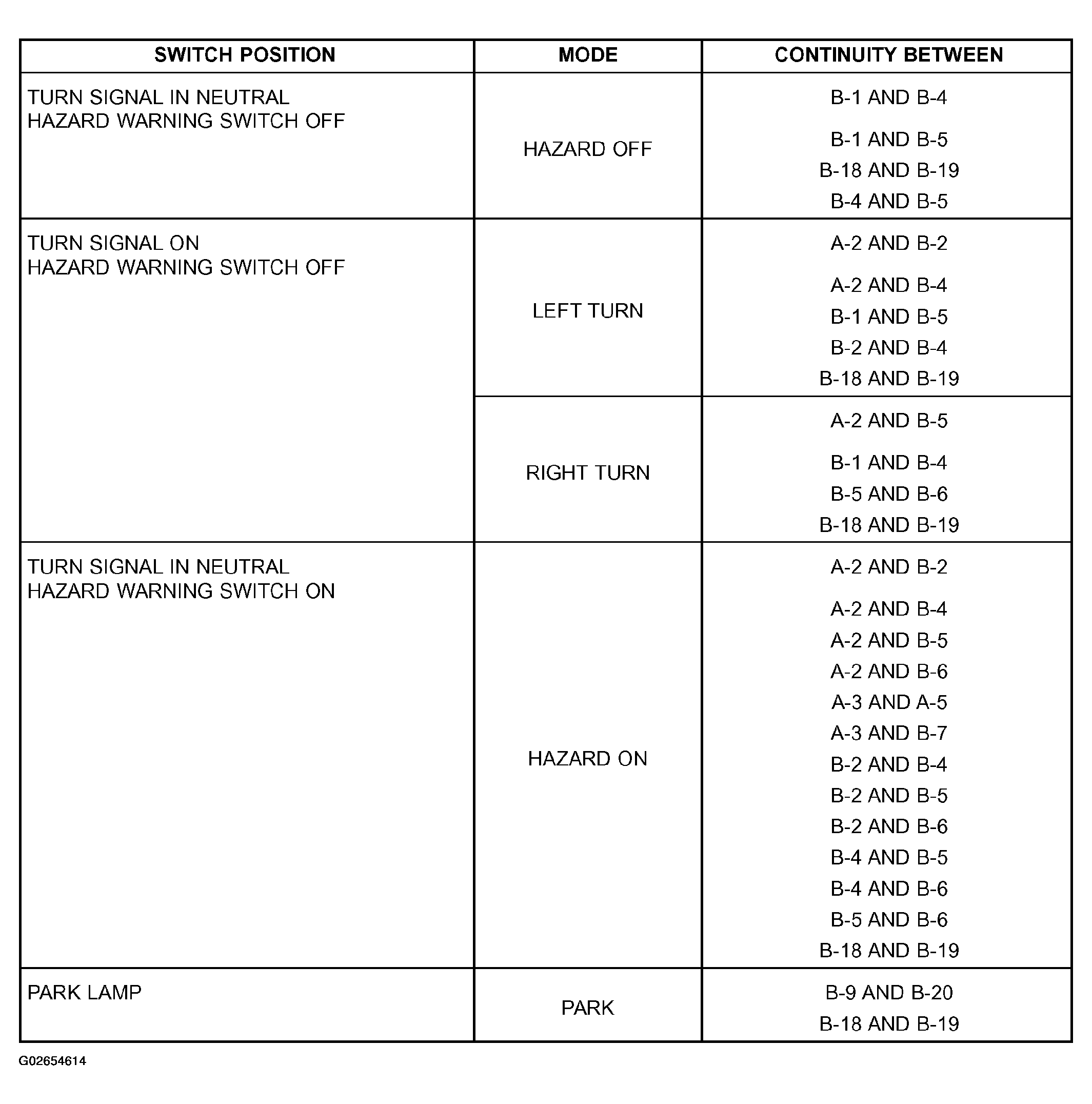

Fig 1: Multi-Function Switch Continuity Test Table (1 Of 2)
G02654614Courtesy of DAIMLERCHRYSLER CORP.

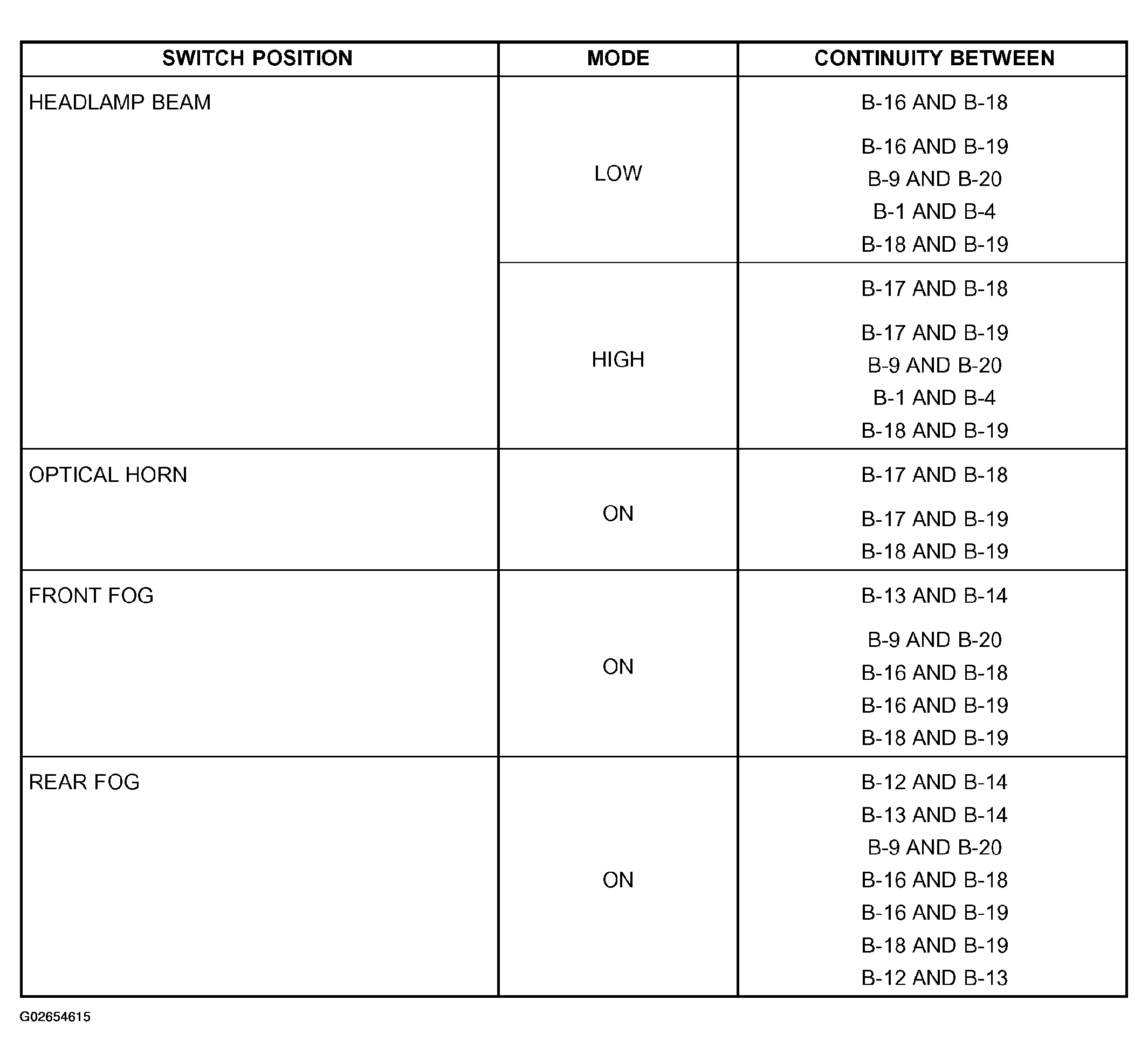

Fig 2: Multi-Function Switch Continuity Test Table (2 Of 2)
G02654615Courtesy of DAIMLERCHRYSLER CORP.
