Turn Signal And Hazard Warning Flasher Diagnosis

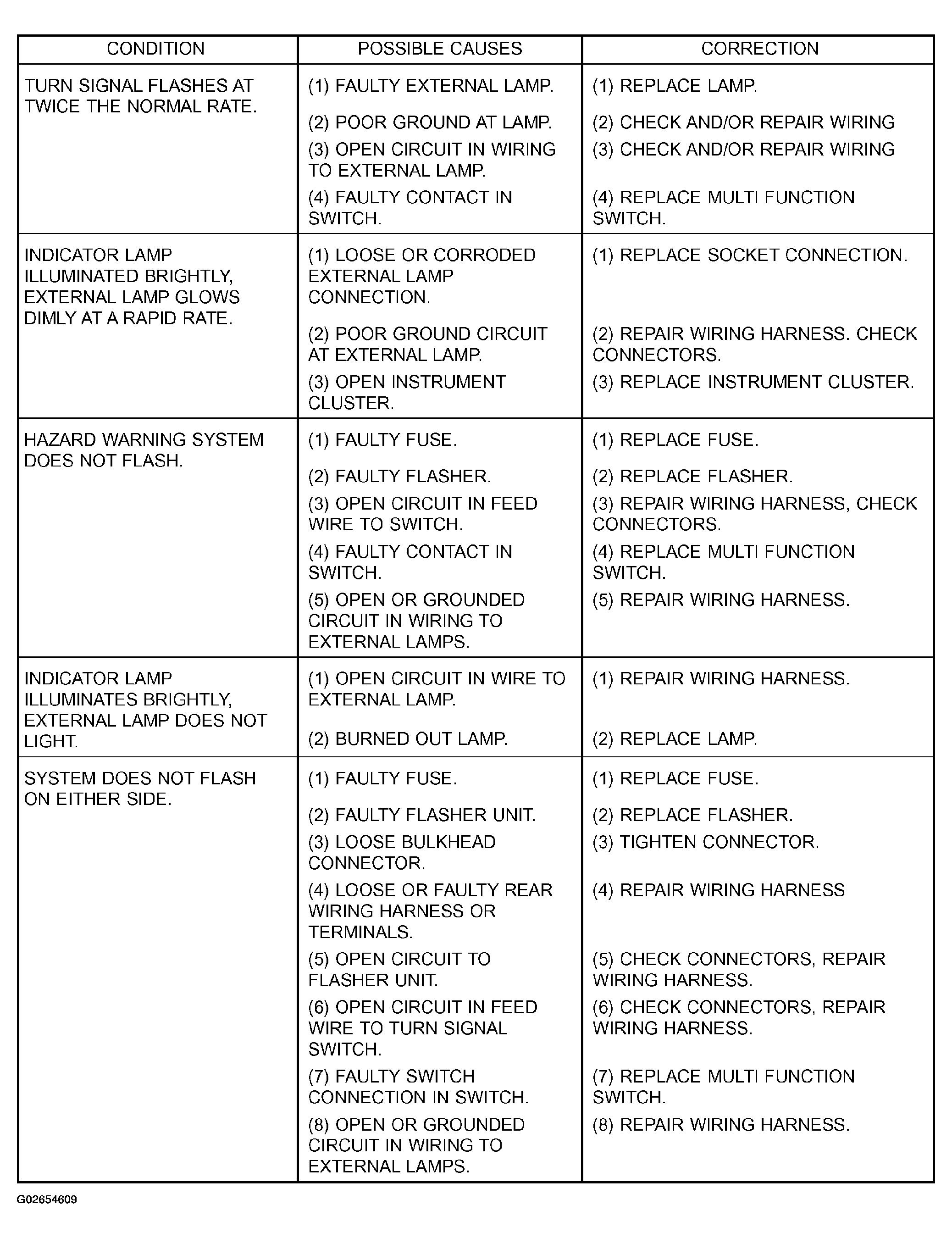

Fig 1: Turn Signal And Hazard Warning Flasher Diagnosis Table (1 of 2)

Courtesy of DAIMLERCHRYSLER CORP.

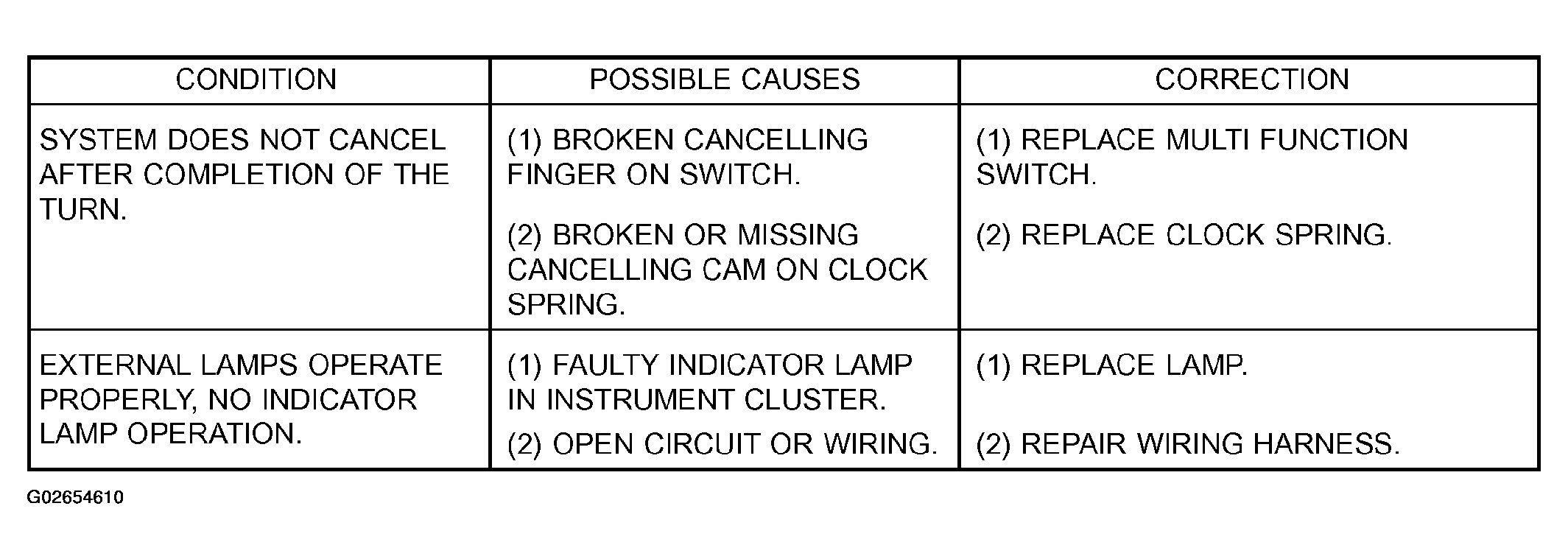

Fig 2: Turn Signal And Hazard Warning Flasher Diagnosis Table (2 of 2)

Courtesy of DAIMLERCHRYSLER CORP.
