Headlamp Diagnosis

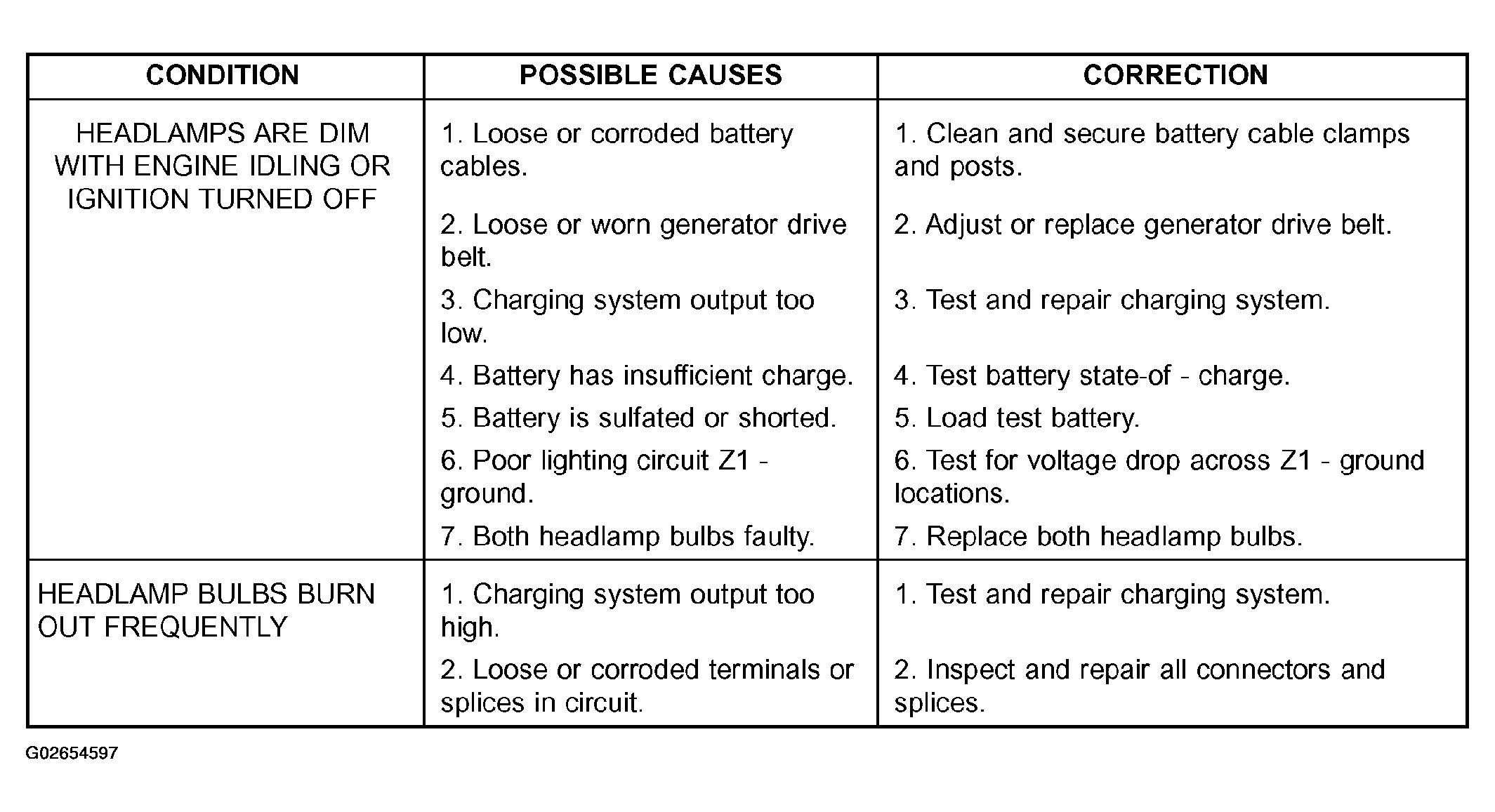

Fig 1: Headlamp Diagnosis Table (1 Of 2)

G02654597

Courtesy of DAIMLERCHRYSLER CORP.

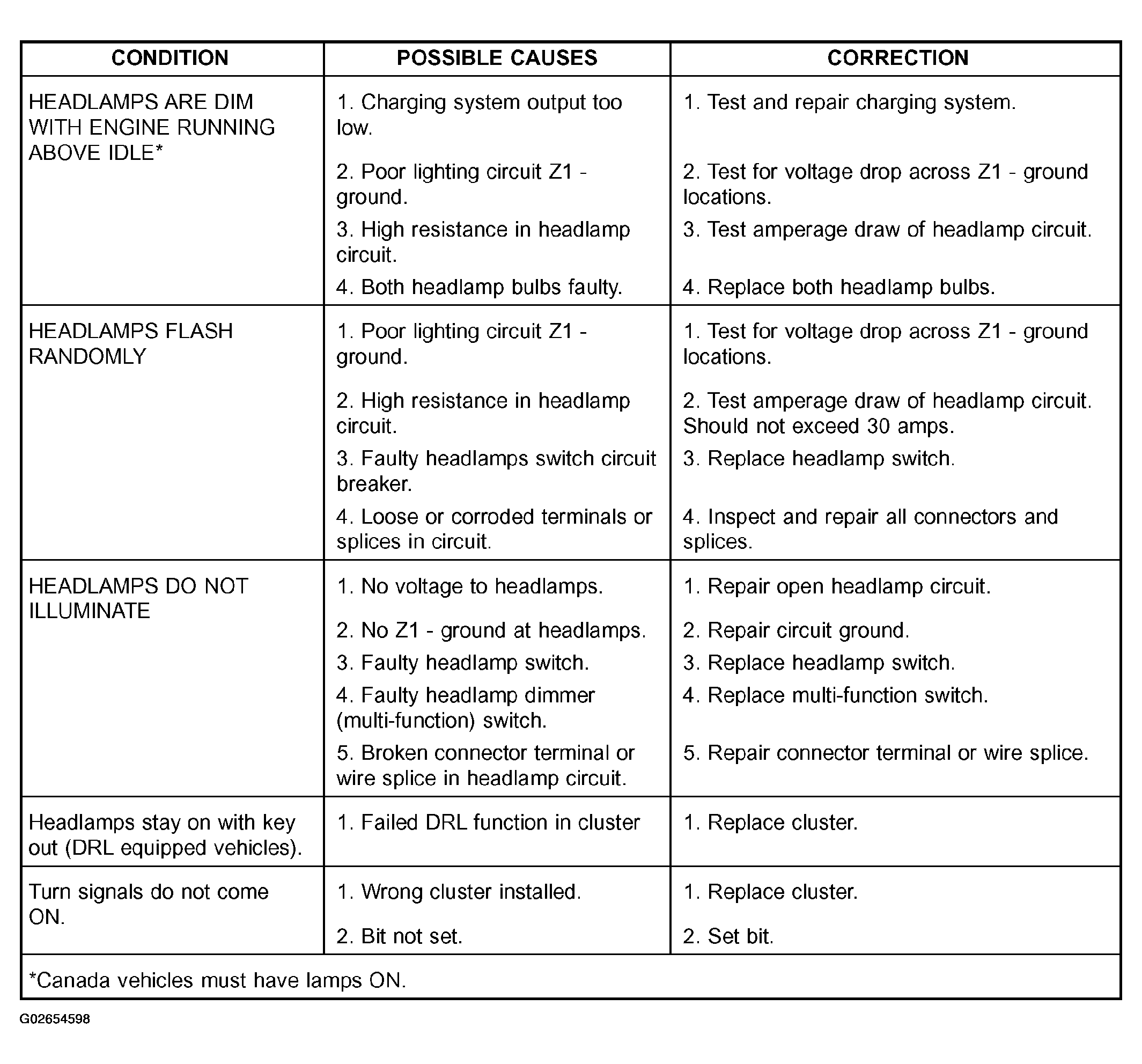

Fig 2: Headlamp Diagnosis Table (2 Of 2)

G02654598

Courtesy of DAIMLERCHRYSLER CORP.
