Headlamp Leveling Switch - Export: Removal

  1. Rotate the A/C outlet registers to the full down position. Grip each outlet at its outboard end and gently over-rotate to release from its pivot point. Swing outlet straight out and remove by hand.
  2. Remove the (4) HVAC control knobs by pulling straight off the switch shaft.
  3. Remove the (2) screws from the center instrument bezel.
  4. Remove the center instrument bezel. Pull it straight out to unsnap the (4) retaining clips.
  5. Remove the (2) screws from the accessory switch bank.
  6. Pull the accessory switch bank out and disconnect the electrical connector from the headlamp leveling switch.
  7. Gently pry the headlamp leveling switch out of its mounting clips (Fig 1).

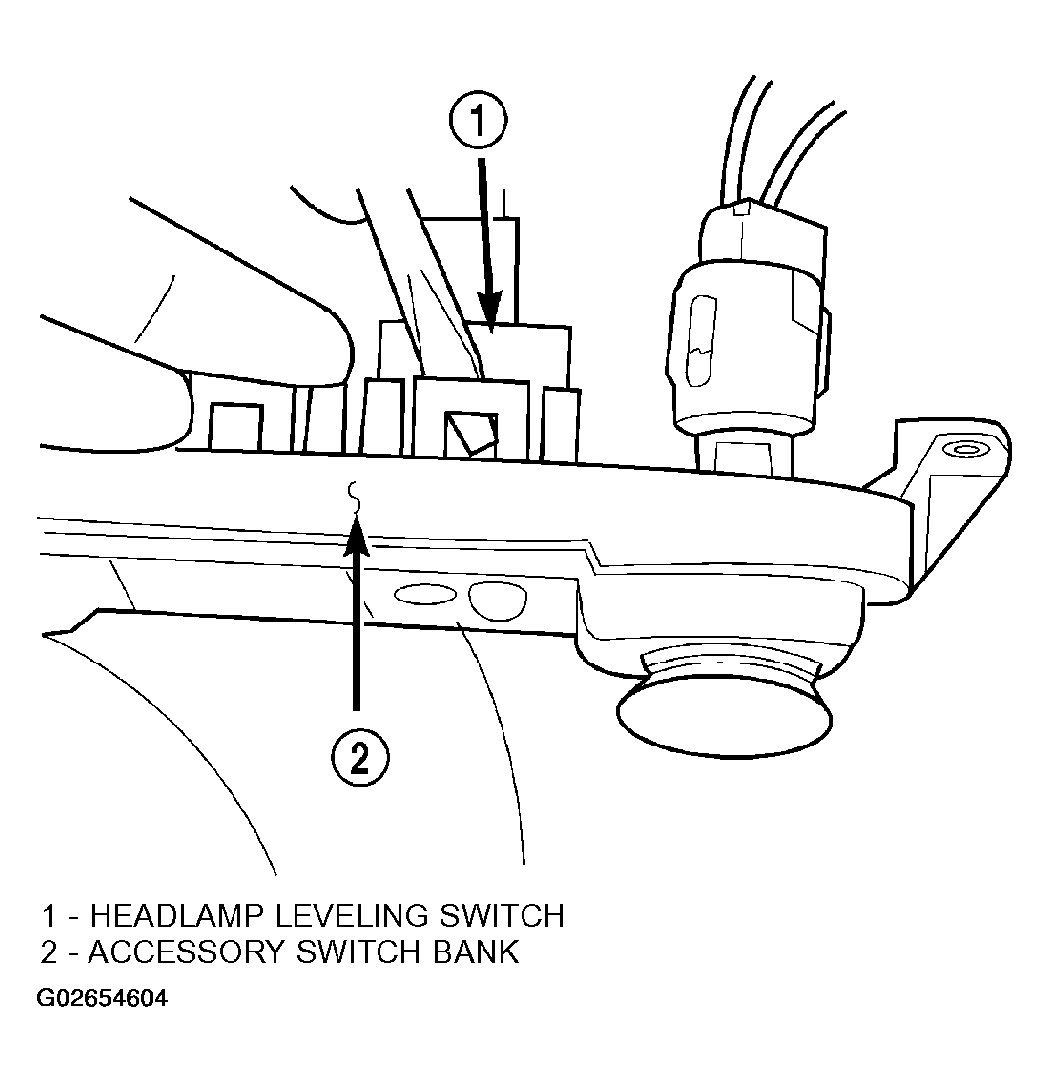

    Fig 1: Removing Leveling Switch
    G02654604Courtesy of DAIMLERCHRYSLER CORP.
