Headlamp Leveling Switch - Export: Description

The Headlamp Leveling Switch is located on the center instrument panel area in the accessory switch bezel (Fig 1), and is the primary controller of the headlamp leveling system. The leveling switch has four settings 0-3, 0 being the lowest, and 3 being the highest headlamp beam vertical setting.

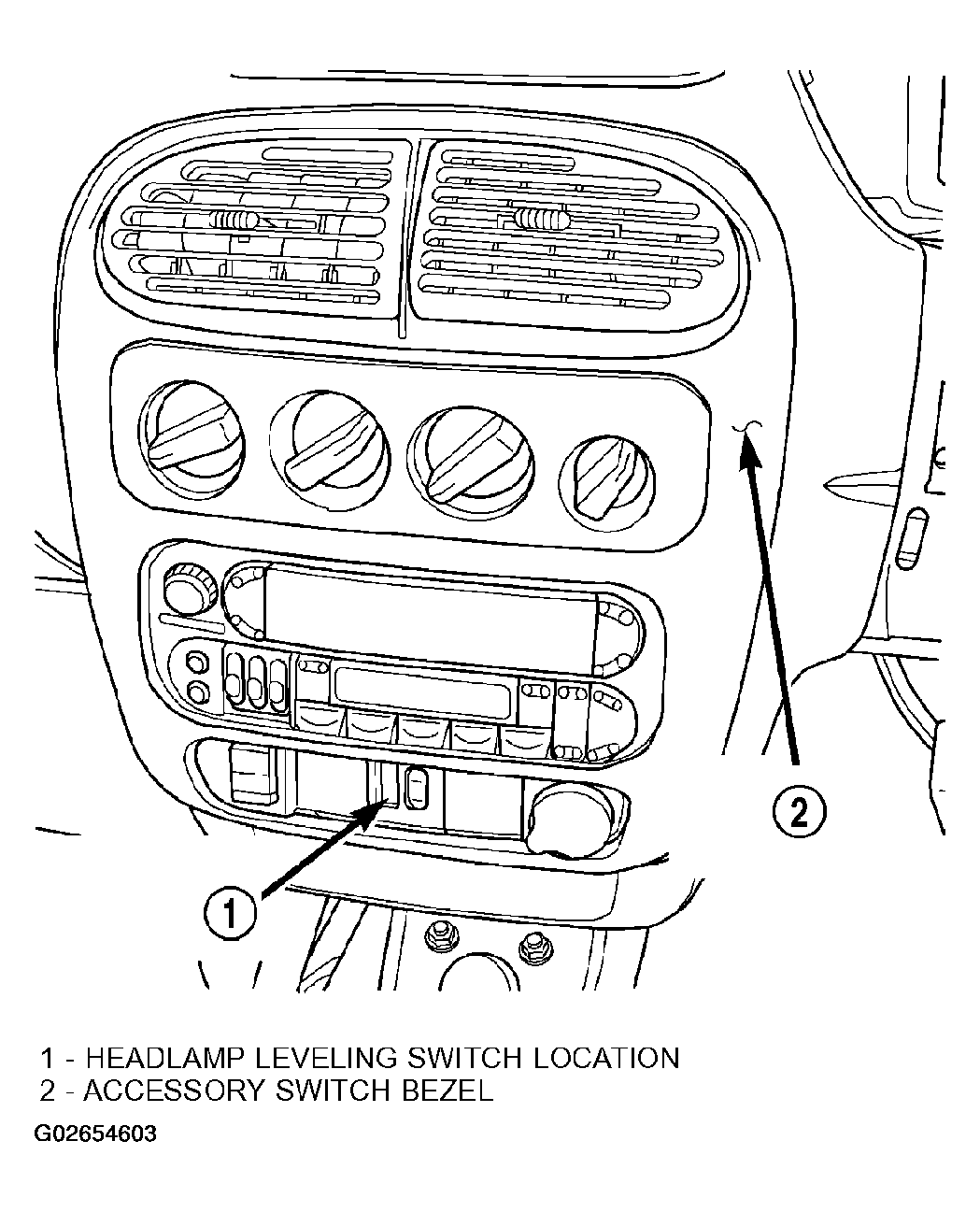

Fig 1: Identifying Headlamp Leveling Switch Location
G02654603Courtesy of DAIMLERCHRYSLER CORP.
