Fog Lamp Diagnosis

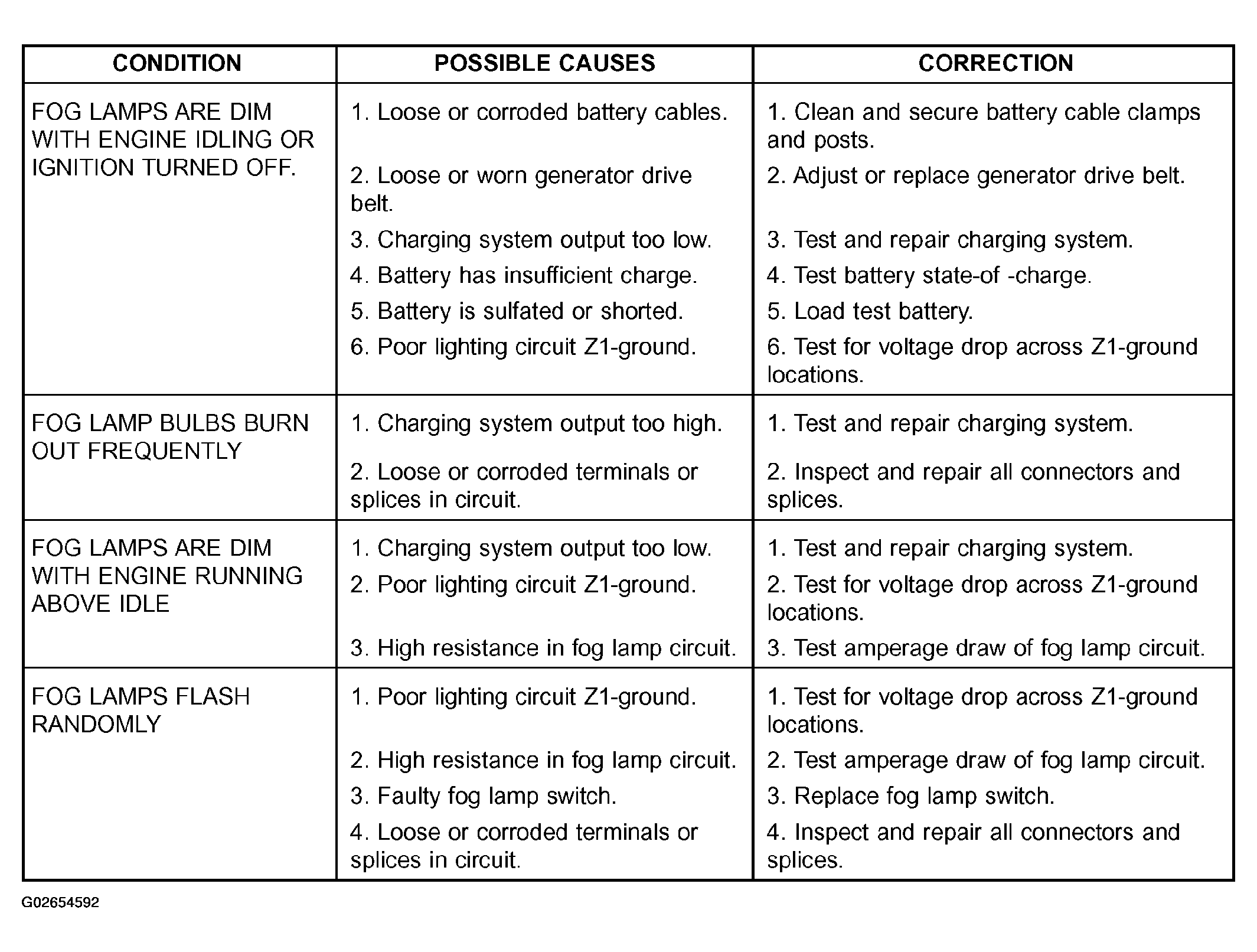

Fig 1: Fog Lamp Diagnosis Table (1 Of 2)

G02654592

Courtesy of DAIMLERCHRYSLER CORP.

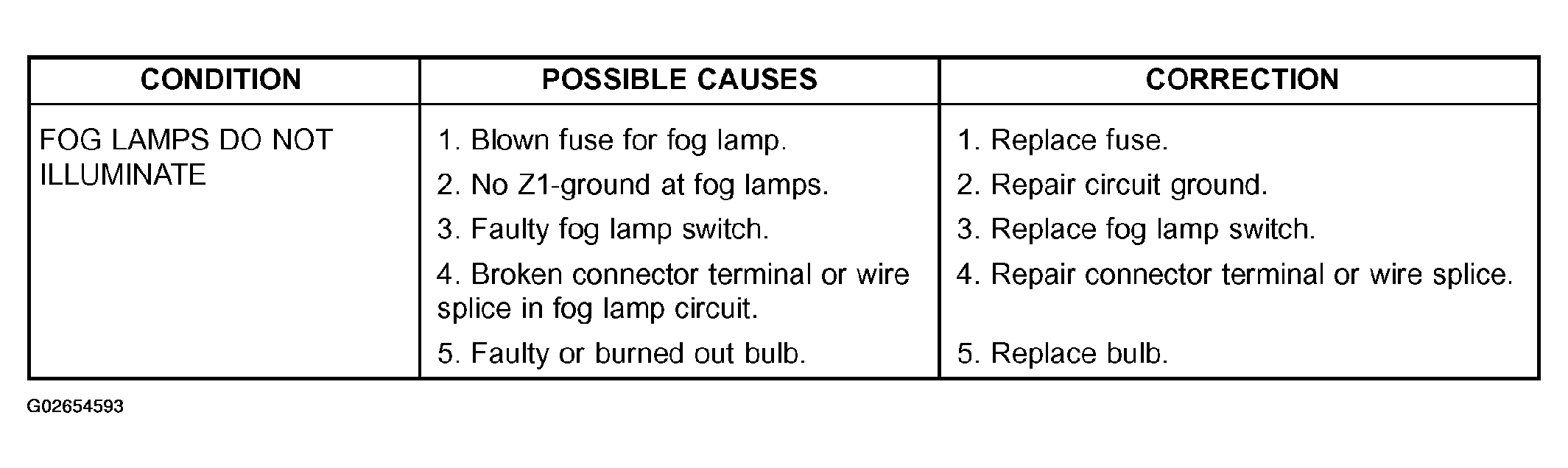

Fig 2: Fog Lamp Diagnosis Table (2 Of 2)

G02654593

Courtesy of DAIMLERCHRYSLER CORP.
