Fog Lamp Alignment - CANADA/Export/RHD

To adjust fog lamp alignment, rotate the alignment screw located on the bottom of the fog lamp from under the fascia to achieve the specified pattern position. (Fig 1).

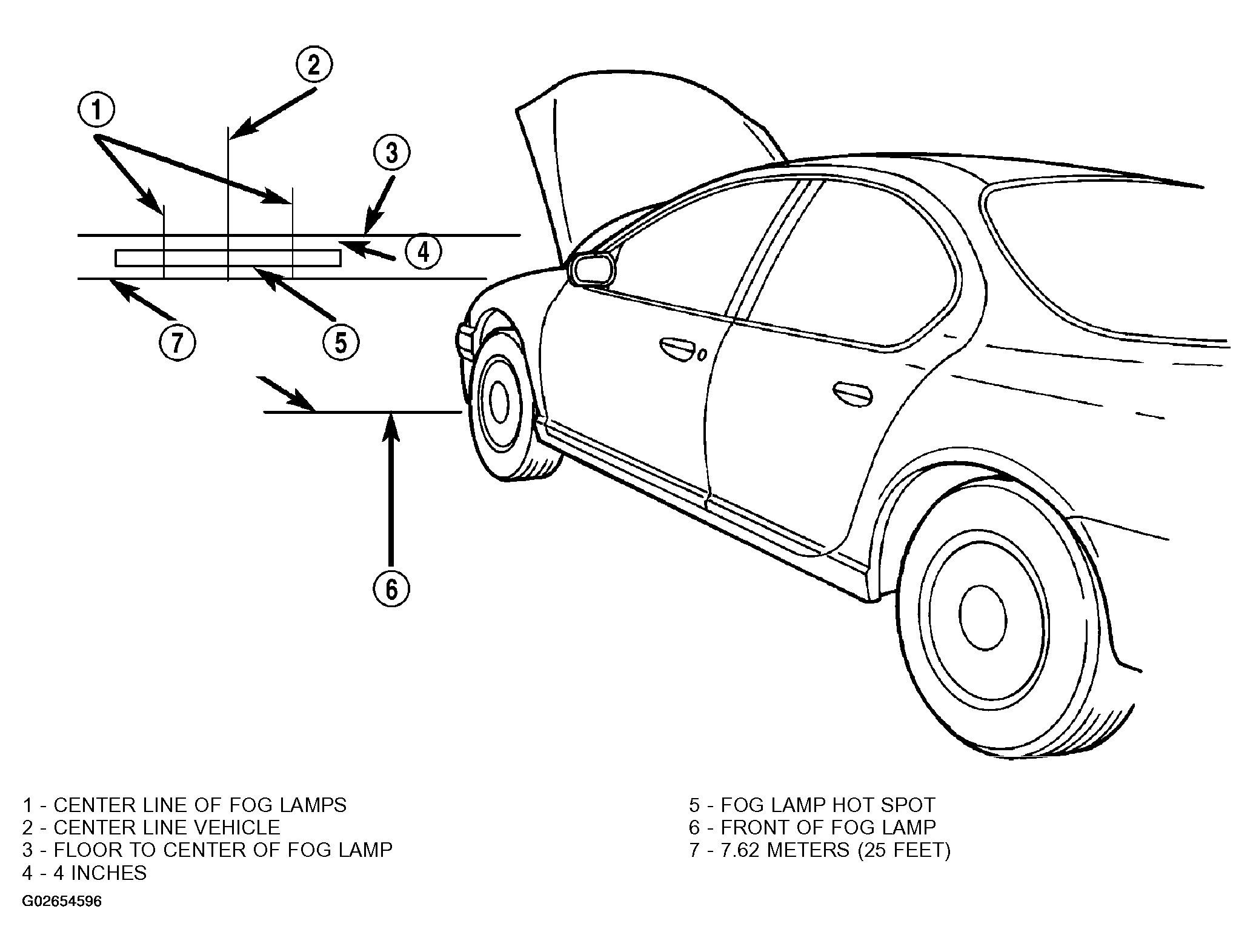

Fig 1: Identifying Lamp Alignment Screen Dimension

Courtesy of DAIMLERCHRYSLER CORP.
