Combination Flasher: Removal

The flasher is mounted to the back side of the multi-function switch (Fig 1).

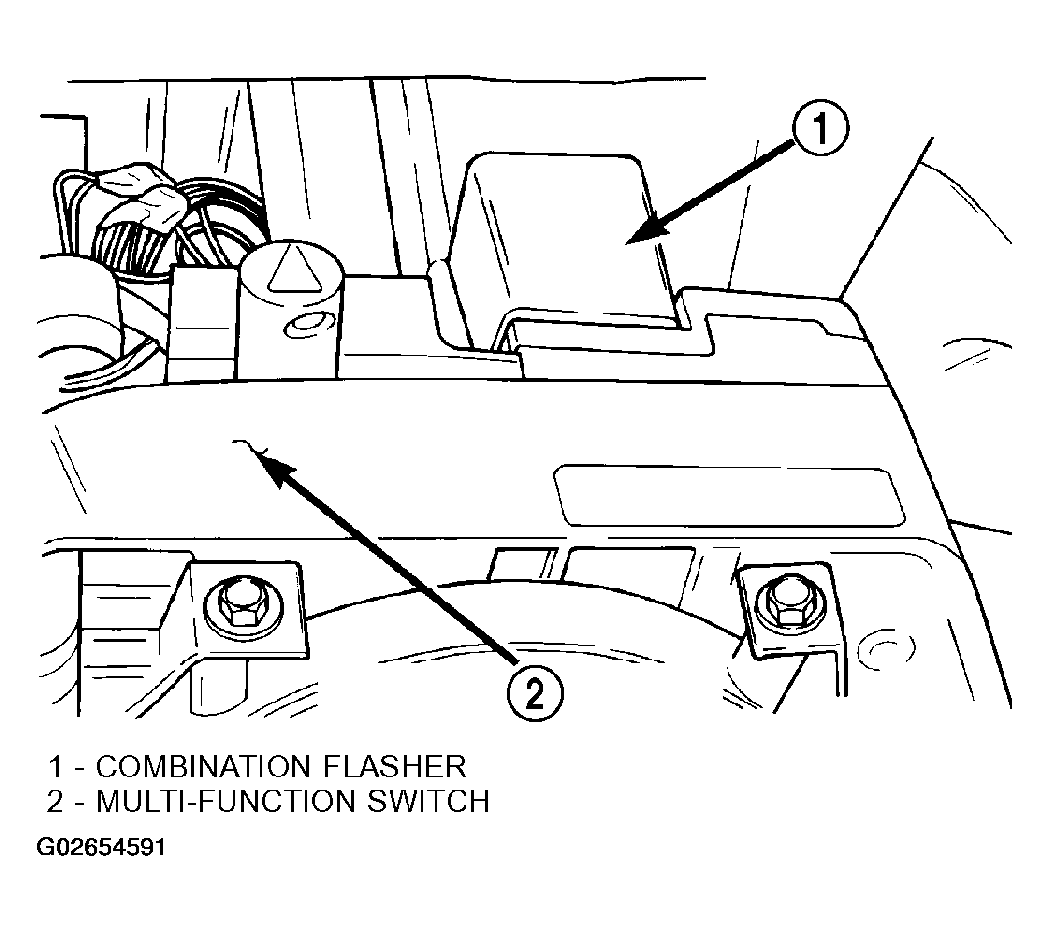

Fig 1: Identifying Combination Flasher Location

Courtesy of DAIMLERCHRYSLER CORP.

1. To gain access the upper steering column shroud must be removed. Refer to COLUMN article.
2. The flasher can be removed by pulling it toward the instrument cluster (forward).

   The flasher is serviced separately from the multifunction switch.
