Blower Motor Noise Or Vibration

WARNING: This page is about a different car, the 2004 Dodge Dakota. However, it is still accessible from the selected car via links, so may be relevant.

Refer to the Blower Motor Noise Or Vibration Chart for basic checks of the blower motor when a vibration or noise is present ( Fig 1 ).

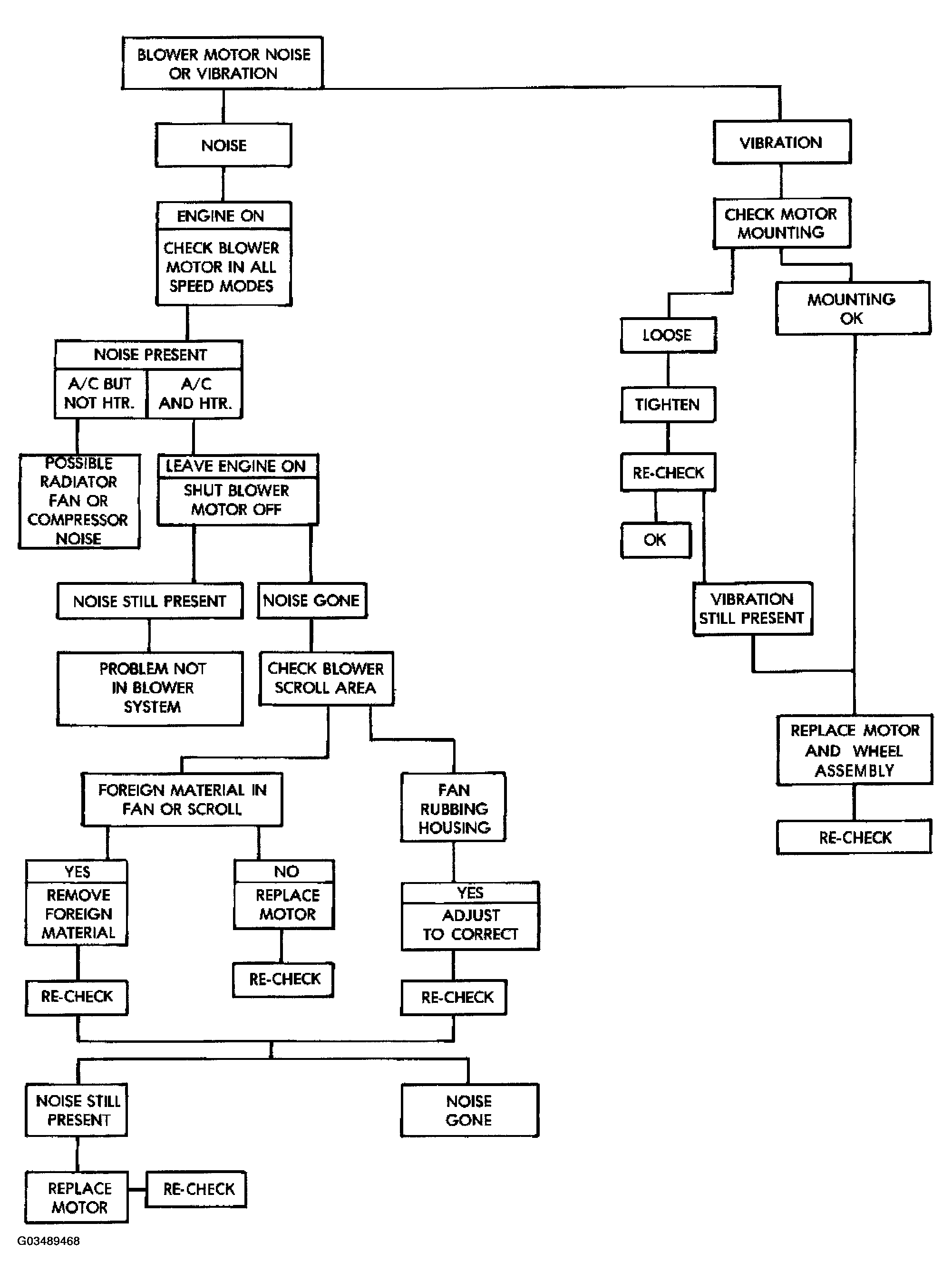

Fig 1: Blower Motor Noise Or Vibration Chart
G03489468Courtesy of DAIMLERCHRYSLER CORP.
