Blower Motor Electrical Diagnosis

WARNING: This page is about a different car, the 2004 Dodge Dakota. However, it is still accessible from the selected car via links, so may be relevant.

Refer to the Blower Motor Electrical Diagnosis Chart for basic checks of the blower motor circuit ( Fig 1 ).

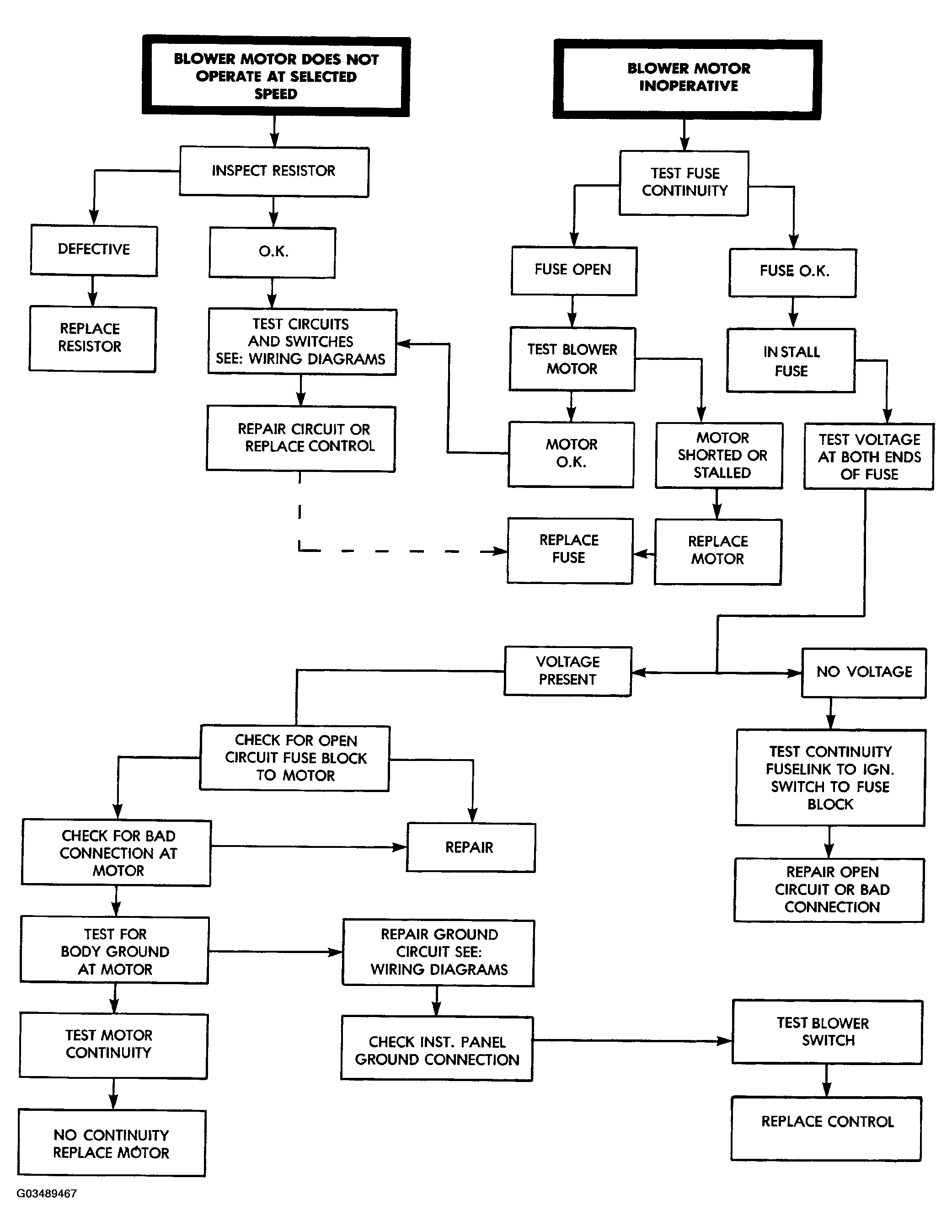

Fig 1: Blower Motor Electrical Diagnosis Chart
G03489467Courtesy of DAIMLERCHRYSLER CORP.
