A/C Compressor Clutch Relay: Removal

WARNING: This page is about a different car, the 2004 Dodge Dakota. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect and isolate the negative battery cable.
  2. Remove the cover from the power distribution center (PDC) ( Fig 1 ).
  3. Refer to the fuse and relay layout label on the PDC cover for compressor clutch relay identification and location.
  4. Remove the A/C compressor clutch relay from the PDC.

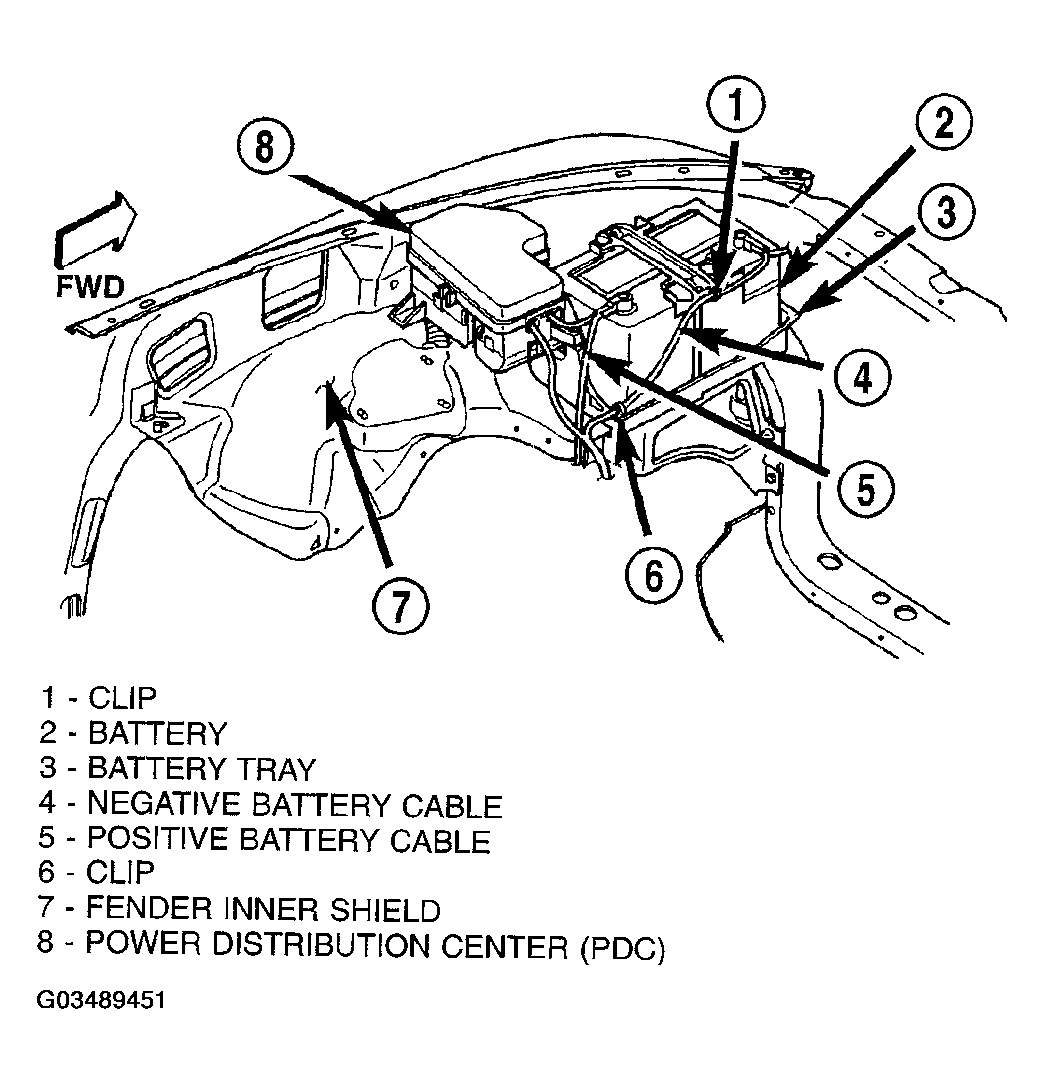

    Fig 1: Locating PDC Components
    G03489451Courtesy of DAIMLERCHRYSLER CORP.
  5. Refer to the label on the PDC for compressor clutch relay identification and location.
  6. Unplug the compressor clutch relay from the PDC.
