Description - Tire Inflation Pressures

WARNING: This page is about a different car, the 2004 Dodge Dakota. However, it is still accessible from the selected car via links, so may be relevant.

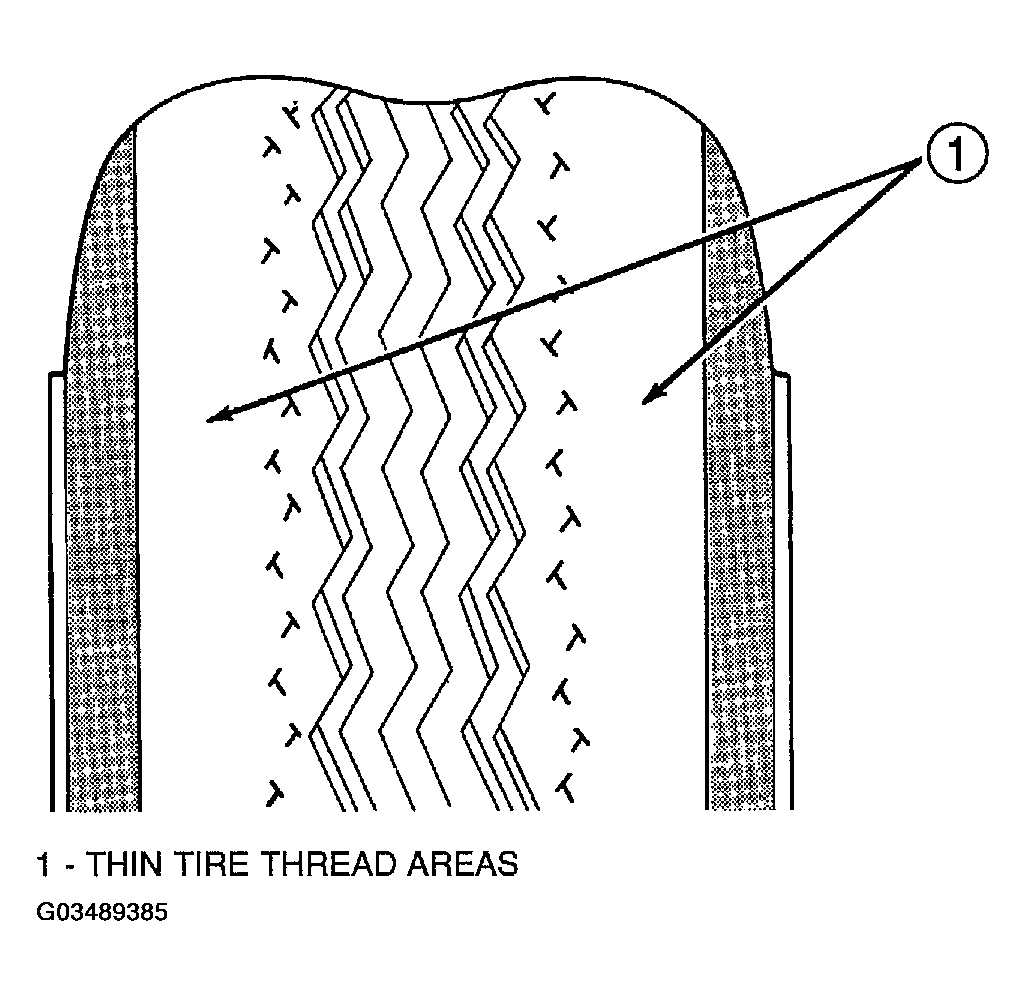

Under inflation will cause rapid shoulder wear, tire flexing, and possible tire failure ( Fig 1 ).

Fig 1: Identifying Under Inflation Wear

Courtesy of DAIMLERCHRYSLER CORP.

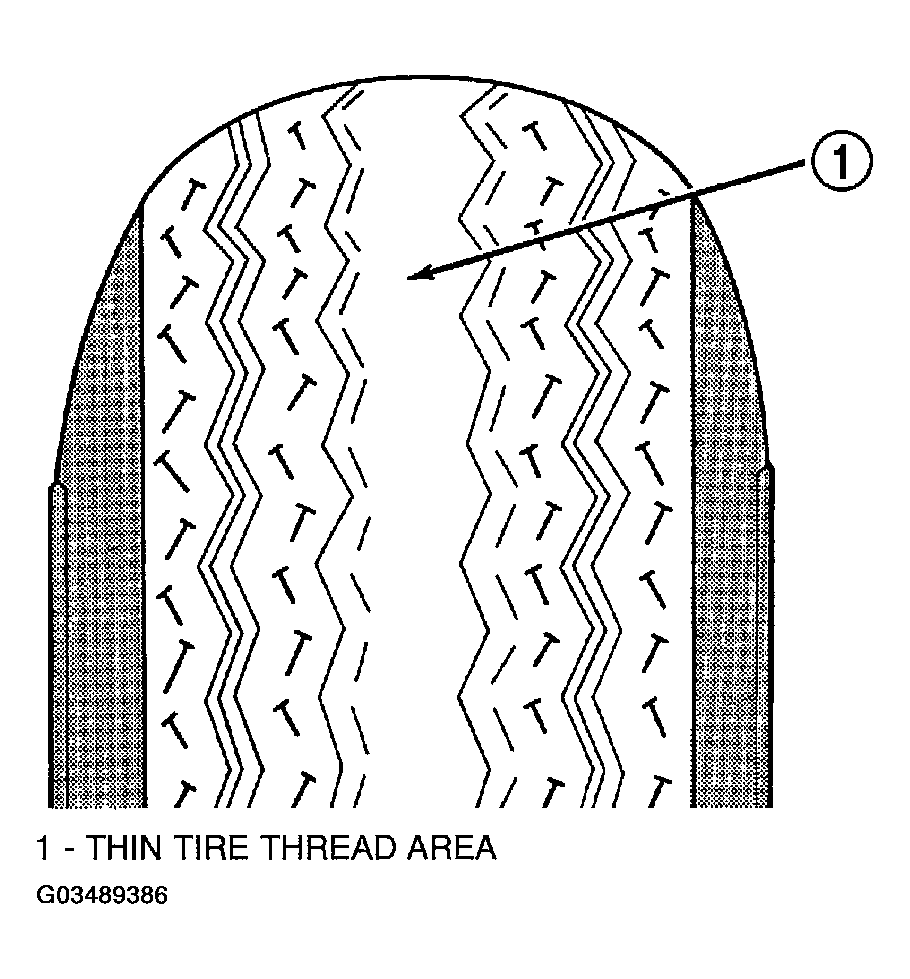

Over inflation will cause rapid center wear and loss of the tire's ability to cushion shocks ( Fig 2 ).

Fig 2: Identifying Over Inflation Wear

Courtesy of DAIMLERCHRYSLER CORP.

Improper inflation can cause:

Uneven wear patterns
Reduced tread life
Reduced fuel economy
Unsatisfactory ride
Vehicle drift

For proper tire pressure specification refer to the Owners Manual .

WARNING: OVER OR UNDER INFLATED TIRES CAN AFFECT VEHICLE HANDLING AND TREAD WEAR. THIS MAY CAUSE THE TIRE TO FAIL SUDDENLY, RESULTING IN LOSS OF VEHICLE CONTROL.
