Method 2 (Relocate Tire On Wheel)
WARNING: This page is about a different car, the 2004 Dodge Dakota. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Rotating the tire on wheel is particularly effective when there is runout in both tire and wheel.
- Remove tire from wheel and mount wheel on service dynamic balance machine.

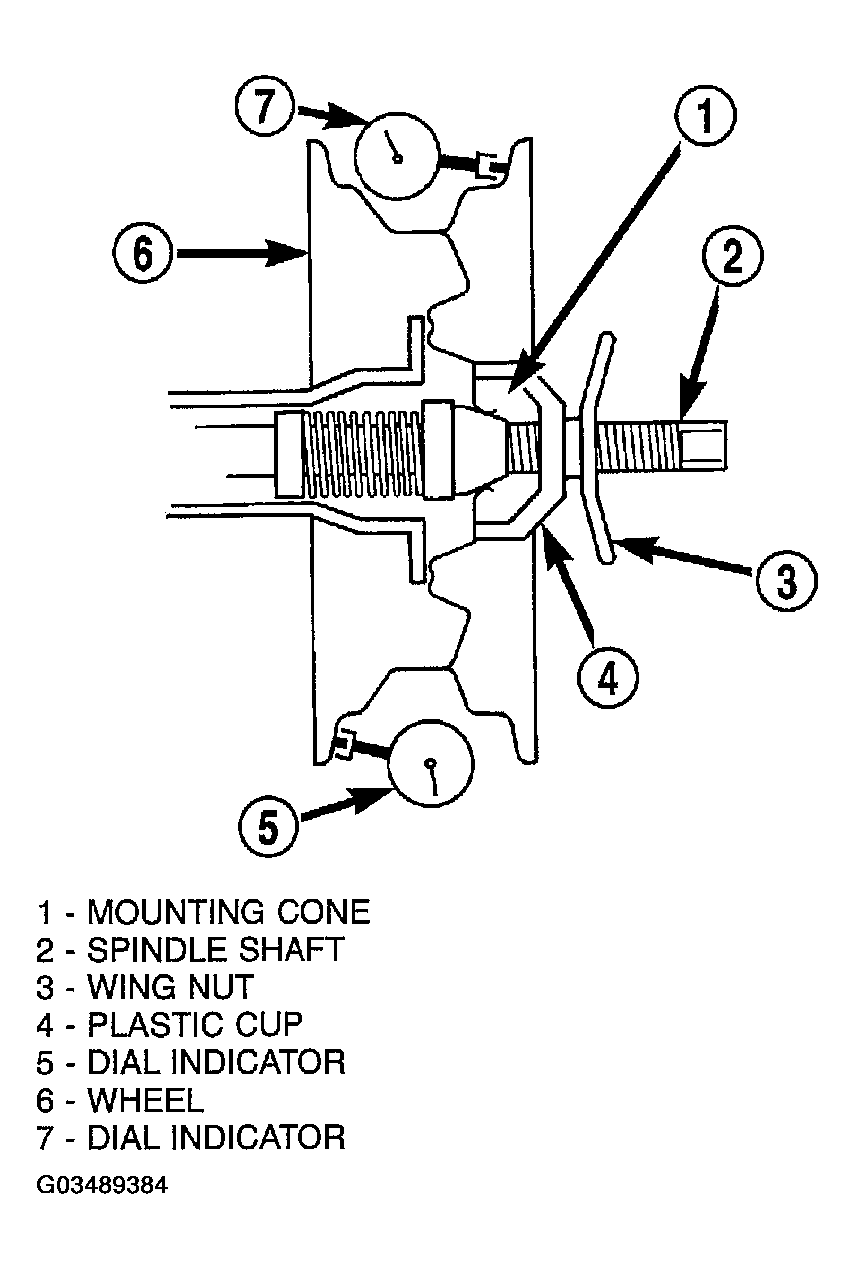

- Check wheel radial runout ( Fig 1

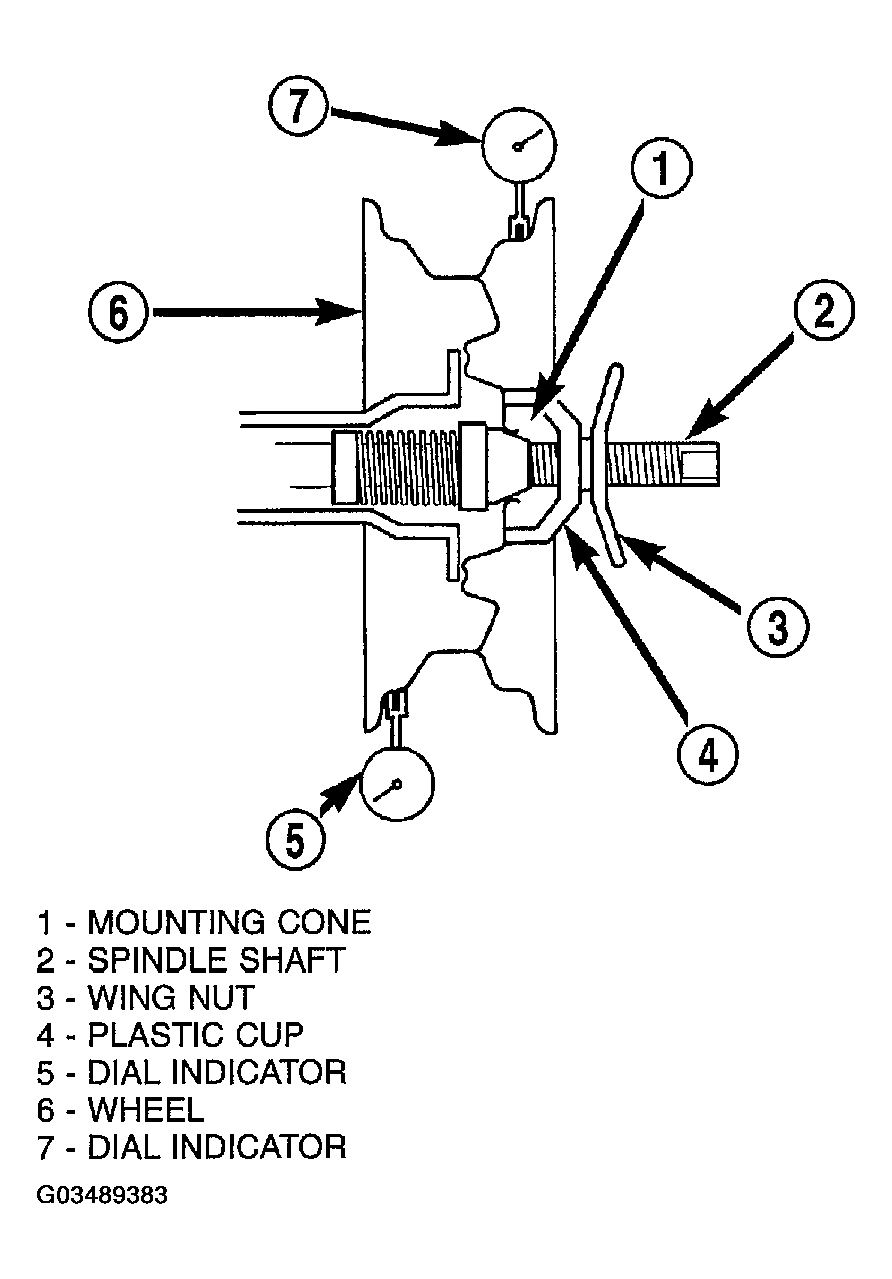

) and lateral runout ( Fig 2
).
- STEEL WHEELS: Radial runout 0.031 in., Lateral runout 0.031 in. (maximum)
- ALUMINUM WHEELS: Radial runout 0.02 in., Lateral runout 0.025 in. (maximum)
- If point of greatest wheel lateral runout is near original chalk mark, remount tire 180 degrees. Recheck runout, Refer to match mounting procedure .
