Valve Body: Installation

WARNING: This page is about a different car, the 2004 Dodge Dakota. However, it is still accessible from the selected car via links, so may be relevant.

Install valve body into position and start bolts. Torque valve body to transmission case bolts ( Fig 1) to 12 N.m (105 in. lbs.) torque.

Fig 1: Installing Install Valve Body Bolts
Courtesy of DAIMLERCHRYSLER CORP.
Install transmission oil filter ( Fig 2).

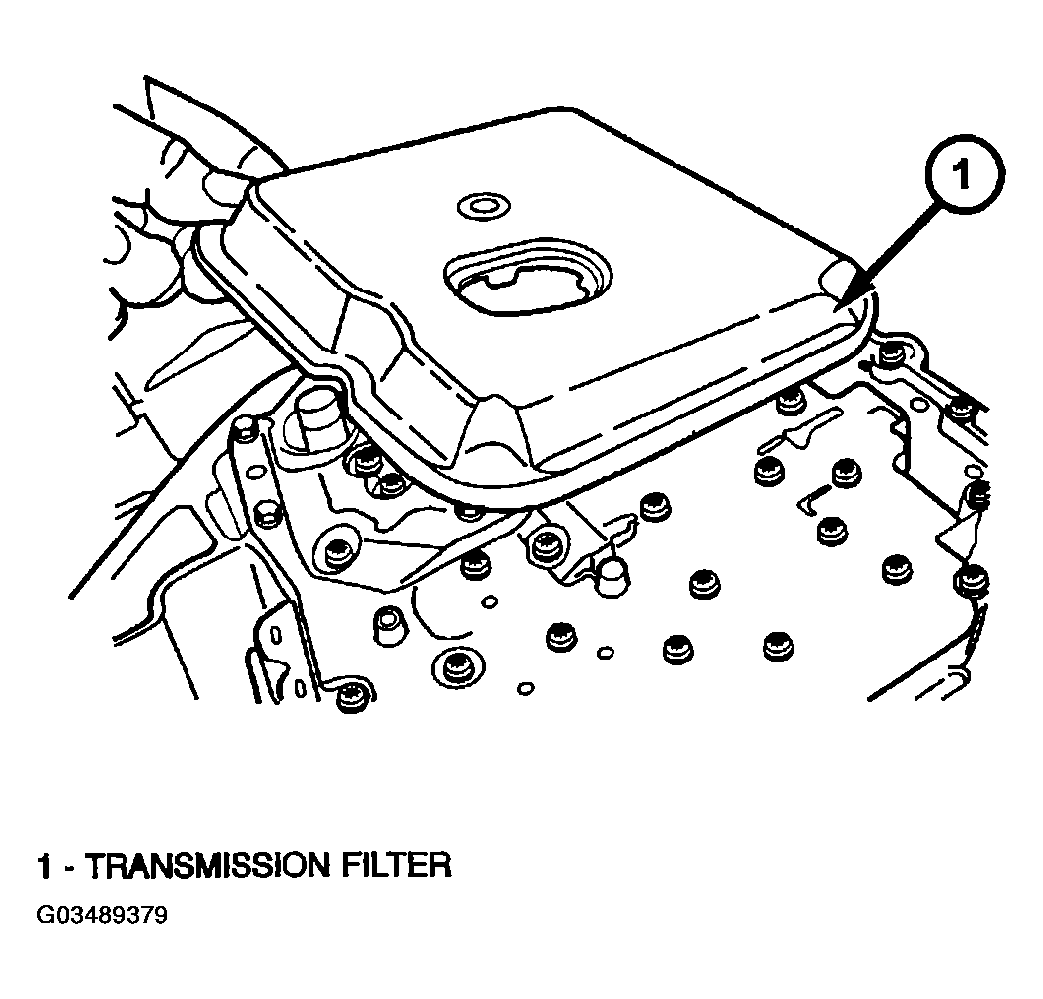

Fig 2: Installing Transmission Filter
Courtesy of DAIMLERCHRYSLER CORP.

NOTE: Before installing the oil pan bolt in the bolt hole located between the torque converter clutch on and U/D clutch pressure tap circuits ( Fig 3), it will be necessary to replenish the sealing patch on the bolt using Mopar® Lock & Seal Adhesive.

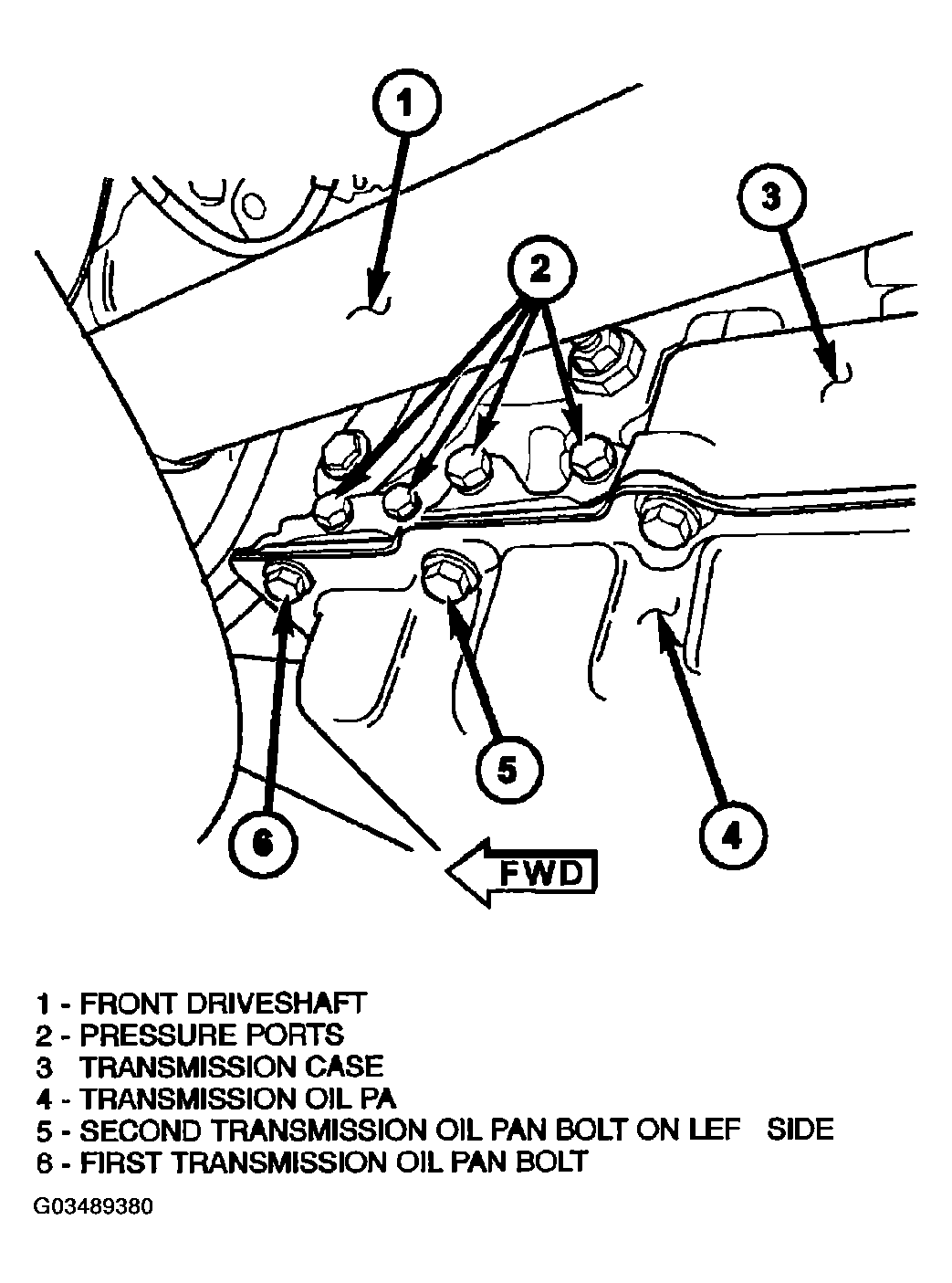

Fig 3: Identifying Pan Fastener Location
Courtesy of DAIMLERCHRYSLER CORP.
Make sure oil pan and case rail are clean and dry. Install an 1/8" bead of RTV to the transmission oil pan and install to case. Tighten bolts ( Fig 4) to 20 N.m (14.5 ft. lbs.).
Lower vehicle and connect the TRS connector.
Connect solenoid/pressure switch assembly connector.
Lower vehicle.
Fill transmission with ATF+4, Automatic Transmission Fluid. Verify proper fluid level. (Refer to STANDARD PROCEDURE )

Fig 4: Installing Transmission Oil Pan Bolts
Courtesy of DAIMLERCHRYSLER CORP.

NOTE: If the valve body has been reconditioned or replaced, it is necessary to perform the Quick Learn Procedure. Refer to STANDARD PROCEDURE--DRIVE LEARN .
