Valve Body: Disassembly

WARNING: This page is about a different car, the 2004 Dodge Dakota. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: If the valve body is being reconditioned or replaced, it is necessary to perform the Quick Learn Procedure using the DRBIII® Scan Tool (Refer to STANDARD PROCEDURE--DRIVE LEARN )

Remove manual shaft seal.
Remove manual shaft screw ( Fig 1).

Fig 1: Removing Manual Shaft Retaining Screw
Courtesy of DAIMLERCHRYSLER CORP.
Remove Transmission Range Sensor (TRS) and manual shaft ( Fig 2).

Fig 2: Removing Transmission Range Sensor
Courtesy of DAIMLERCHRYSLER CORP.
Remove Solenoid/Pressure Switch Assembly from valve body ( Fig 3).

Fig 3: >Removing Solenoid/Pressure Switch Assembly
Courtesy of DAIMLERCHRYSLER CORP.

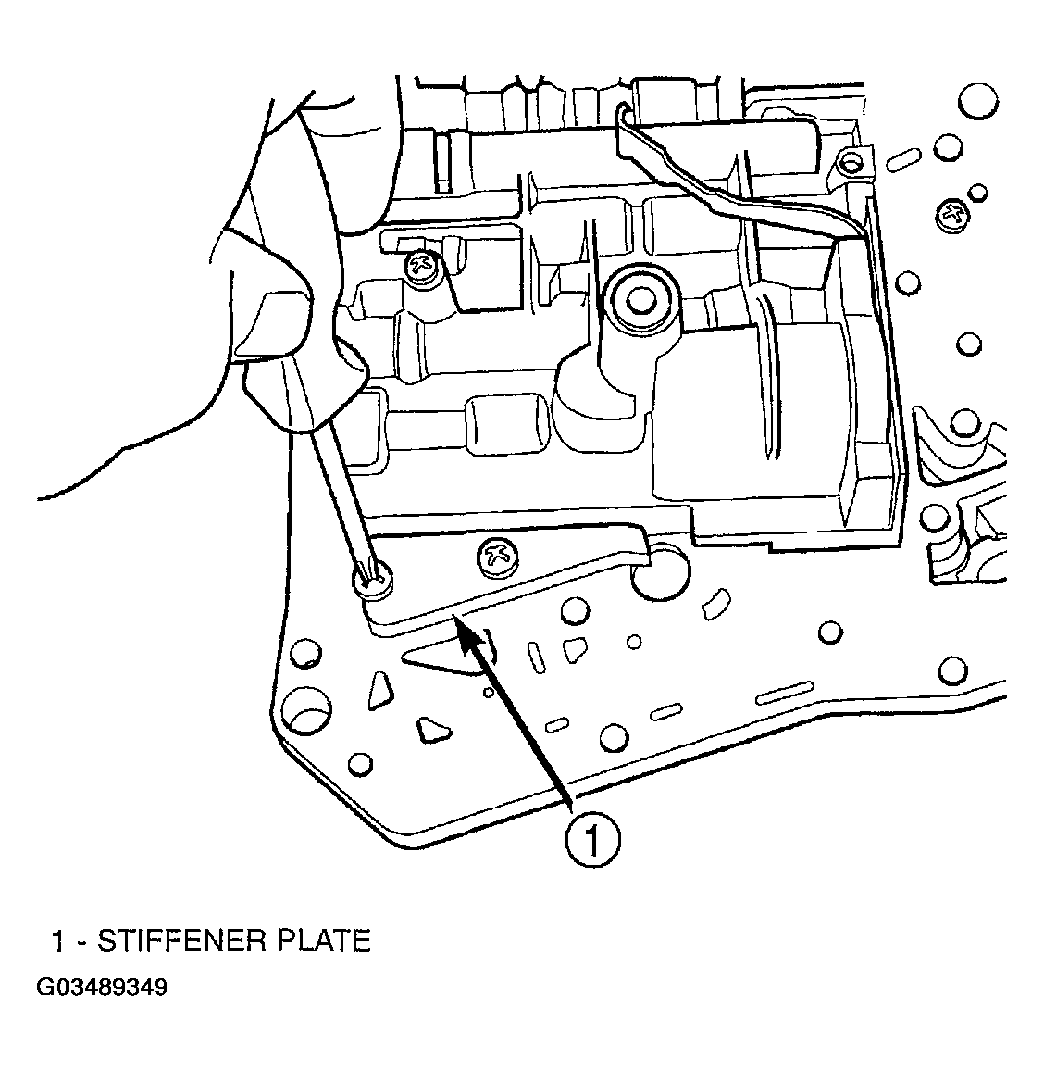

Remove valve body stiffener plate ( Fig 4).

Fig 4: Removing Valve Body Stiffener Plate
Courtesy of DAIMLERCHRYSLER CORP.

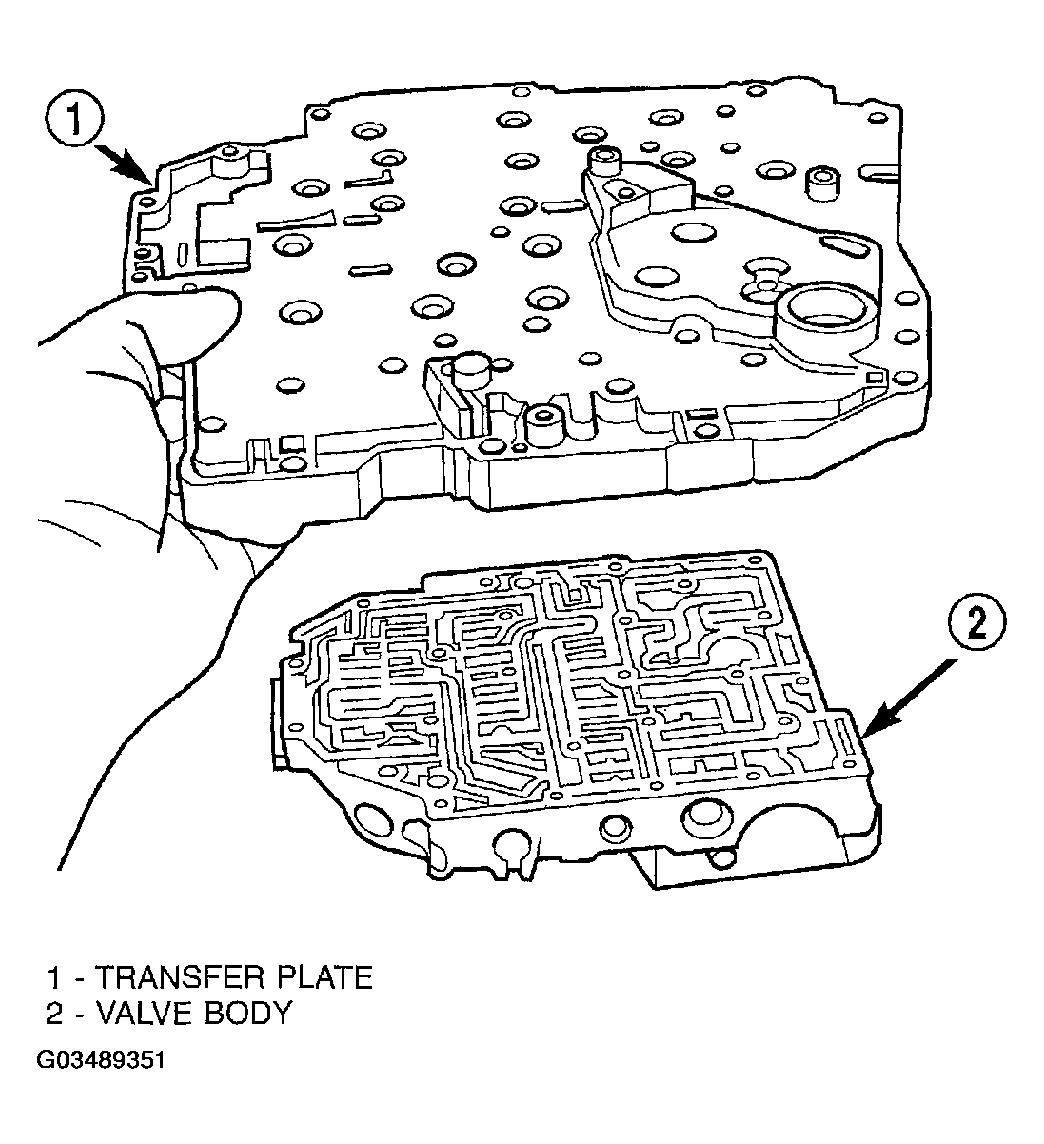

Invert valve body assembly and remove transfer plate-to-valve body screws ( Fig 5).

Fig 5: Removing Transfer Plate-To-Valve Body Screws
Courtesy of DAIMLERCHRYSLER CORP.
Remove transfer/separator plate from valve body ( Fig 6)

Fig 6: Removing Transfer/Separator Plate From Valve Body
Courtesy of DAIMLERCHRYSLER CORP.
Remove separator plate-to-transfer plate screws ( Fig 7).

Fig 7: Fig. 289 Remove Separator Plate-to-Transfer Plate Screws
Courtesy of DAIMLERCHRYSLER CORP.

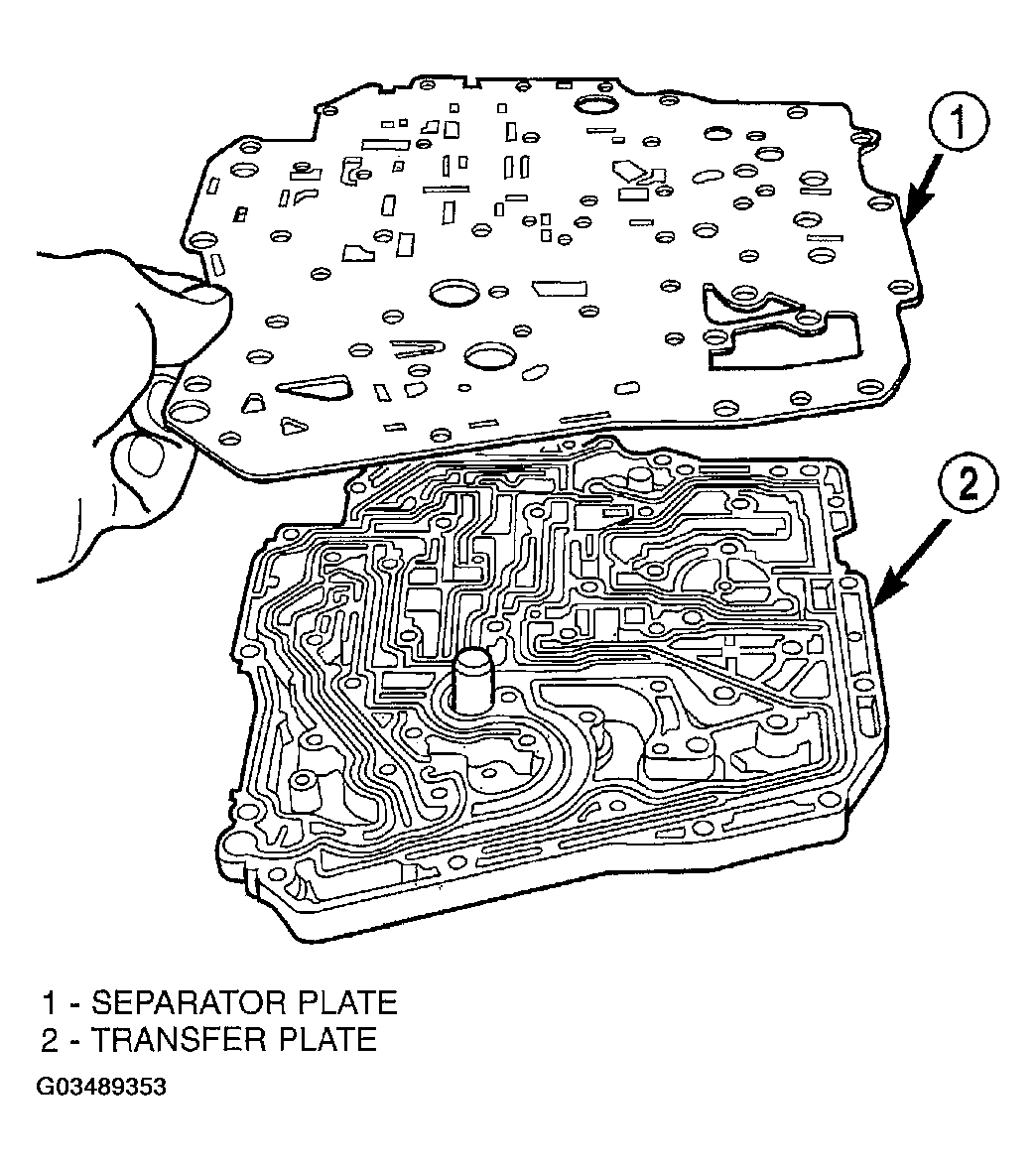

Remove separator plate from transfer plate ( Fig 8).

Fig 8: Removing Separator Plate From Transfer Plate
Courtesy of DAIMLERCHRYSLER CORP.

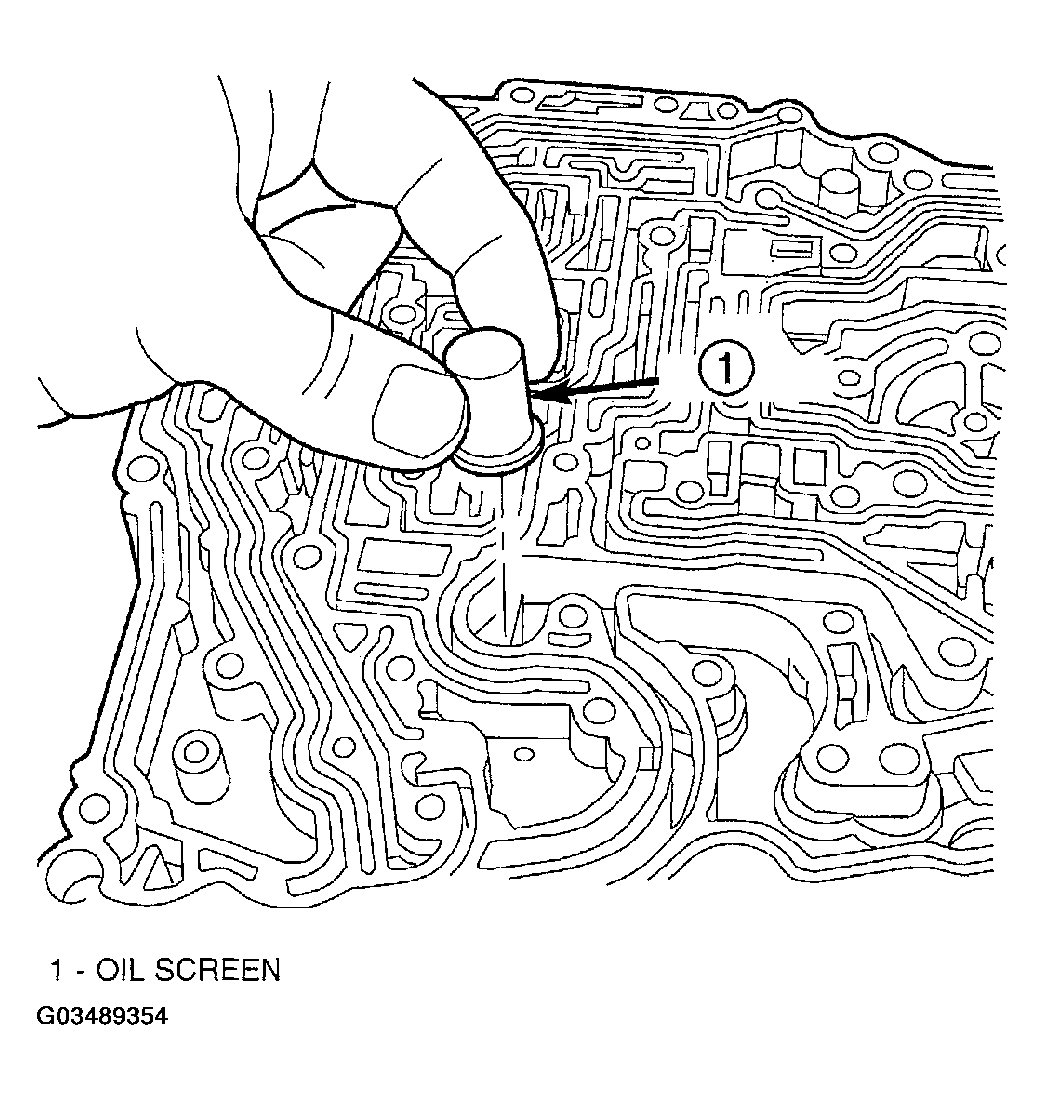

Remove the oil screen from the transfer plate ( Fig 9).
Remove thermal valve ( Fig 10) from transfer plate.

Fig 9: Removing Oil Screen To Transfer Plate
Courtesy of DAIMLERCHRYSLER CORP.

Fig 10: Removing Thermal Valve To Transfer Plate
Courtesy of DAIMLERCHRYSLER CORP.
Remove valve body check balls. Note their location for assembly ease ( Fig 11).

Fig 11: Identifying Ball Check Location
Courtesy of DAIMLERCHRYSLER CORP.
Remove 2/4 accumulator assembly as shown in ( Fig 12).

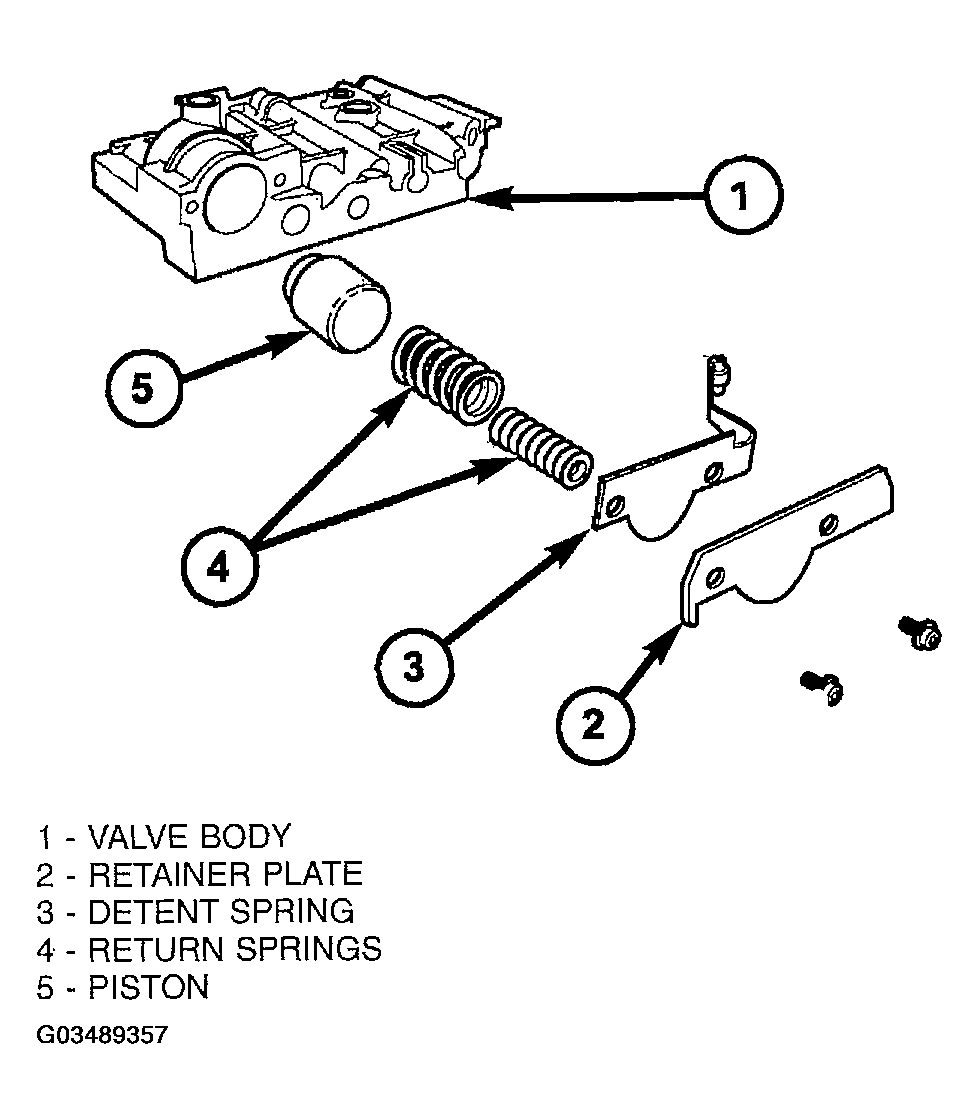

Fig 12: Identifying Components Accumulator Assembly
Courtesy of DAIMLERCHRYSLER CORP.
Remove dual retainer plate from valve body. Use special tool 6301 to remove plate ( Fig 13).

Fig 13: Removing Dual Retainer Plate Using Tool 6301
Courtesy of DAIMLERCHRYSLER CORP.

Fig 14: Removing Regulator Valve Spring Retainer Using Tool 6302
Courtesy of DAIMLERCHRYSLER CORP.
Remove regulator valve spring retainer ( Fig 14).

Fig 15: Identifying Valve Retainer Location
Courtesy of DAIMLERCHRYSLER CORP.
Remove remaining retainers as shown in ( Fig 15).

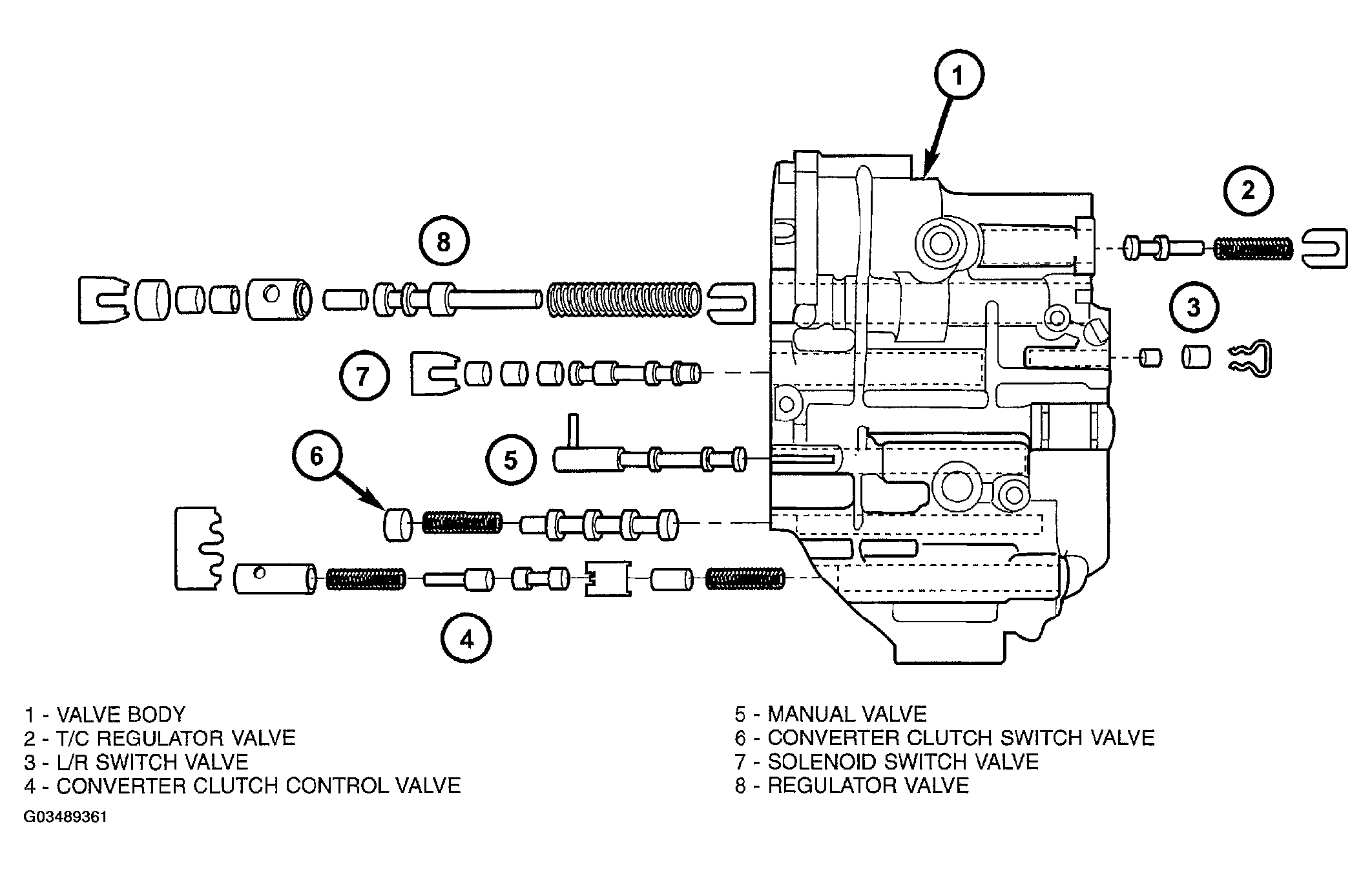

Remove valves and springs as shown in ( Fig 16).

Fig 16: Exploded View Of Valve Body Assembly
Courtesy of DAIMLERCHRYSLER CORP.
Cleanliness through entire disassembly and assembly of the valve body cannot be overemphasized. When disassembling, each part should be washed in a suitable solvent, then dried by compressed air. Do not wipe parts with shop towels. All mating surfaces in the valve body are accurately machined; therefore, careful handling of all parts must be exercised to avoid nicks or burrs.
