Valve Body: Assembly

WARNING: This page is about a different car, the 2004 Dodge Dakota. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: If the valve body assembly is being reconditioned or replaced, it is necessary to perform the Quick Learn Procedure using the DRBIII® Scan Tool. Refer to STANDARD PROCEDURE--DRIVE LEARN .
  1. Install valves and springs as shown in ( Fig 1).
    Fig 1: Installing Regulator Valve Spring Retainer
    G03489362Courtesy of DAIMLERCHRYSLER CORP.
  2. Install regulator valve spring retainer ( Fig 2).
    Fig 2: Installing Regulator Valve Spring Retainer Using Tool 6302
    G03489363Courtesy of DAIMLERCHRYSLER CORP.
  3. Install dual retainer plate using Tool 6301 ( Fig 3).

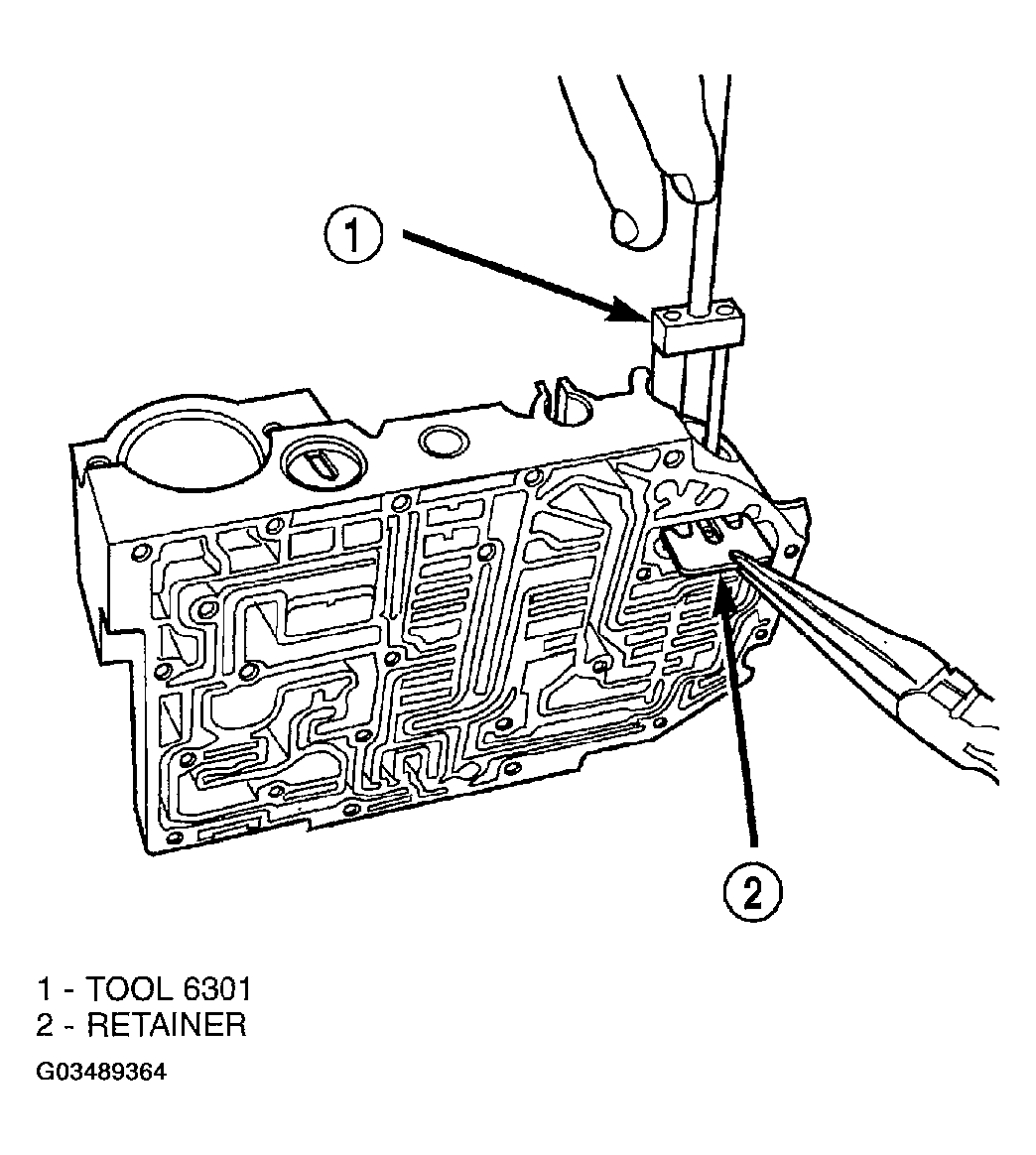

    Fig 3: Installing Dual Retainer Plate Using Tool 6301
    G03489364Courtesy of DAIMLERCHRYSLER CORP.
  4. Verify that all retainers are installed as shown in ( Fig 4). Retainers should be flush or below valve body surface.
    Fig 4: Identifying Valve Retainer Location
    G03489365Courtesy of DAIMLERCHRYSLER CORP.
  5. Install 2/4 Accumulator components as shown in ( Fig 5). Torque 2/4 Accumulator retainer plate to 5 N.m (45 in. lbs.)
    Fig 5: Exploded View Of Accumulator Assembly
    G03489366Courtesy of DAIMLERCHRYSLER CORP.
  6. Install check balls into position as shown in ( Fig 6). If necessary, secure them with petrolatum or transmission assembly gel for assembly ease.
    Fig 6: Identifying Ball Check Location
    G03489367Courtesy of DAIMLERCHRYSLER CORP.
  7. Install thermal valve to the transfer plate ( Fig 7).
    Fig 7: Installing Thermal Valve To Transfer Plate
    G03489368Courtesy of DAIMLERCHRYSLER CORP.
  8. Install the oil screen to the transfer plate ( Fig 8).
    Fig 8: Installing Oil Screen To Transfer Plate
    G03489369Courtesy of DAIMLERCHRYSLER CORP.
  9. Install separator plate to transfer plate ( Fig 9).
    Fig 9: Installing Separator Plate To Transfer Plate
    G03489370Courtesy of DAIMLERCHRYSLER CORP.
  10. Install the two separator plate-to-transfer plate screws ( Fig 10).
    Fig 10: Installing Separator Plate-To-Transfer Plate Screws
    G03489371Courtesy of DAIMLERCHRYSLER CORP.
  11. Install the transfer plate to the valve body ( Fig 11).
    Fig 11: Installing Transfer Plate To Valve Body
    G03489372Courtesy of DAIMLERCHRYSLER CORP.
  12. Install the transfer plate-to-valve body screws ( Fig 12) and torque to 5 N.m (45 in. lbs.).

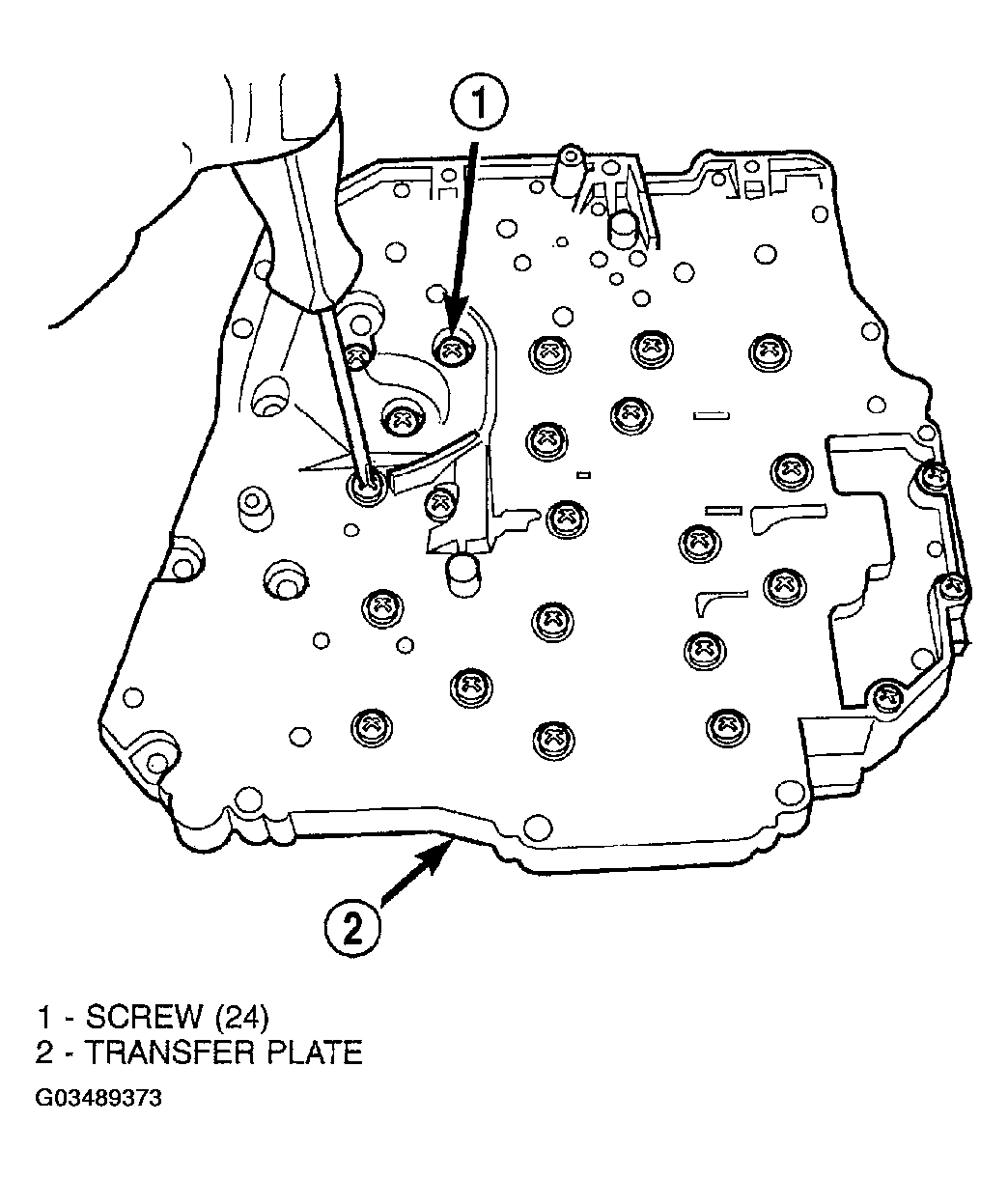

    Fig 12: Installing Transfer Plate-To-Valve Body Screws
    G03489373Courtesy of DAIMLERCHRYSLER CORP.
  13. Install the stiffener plate ( Fig 13).

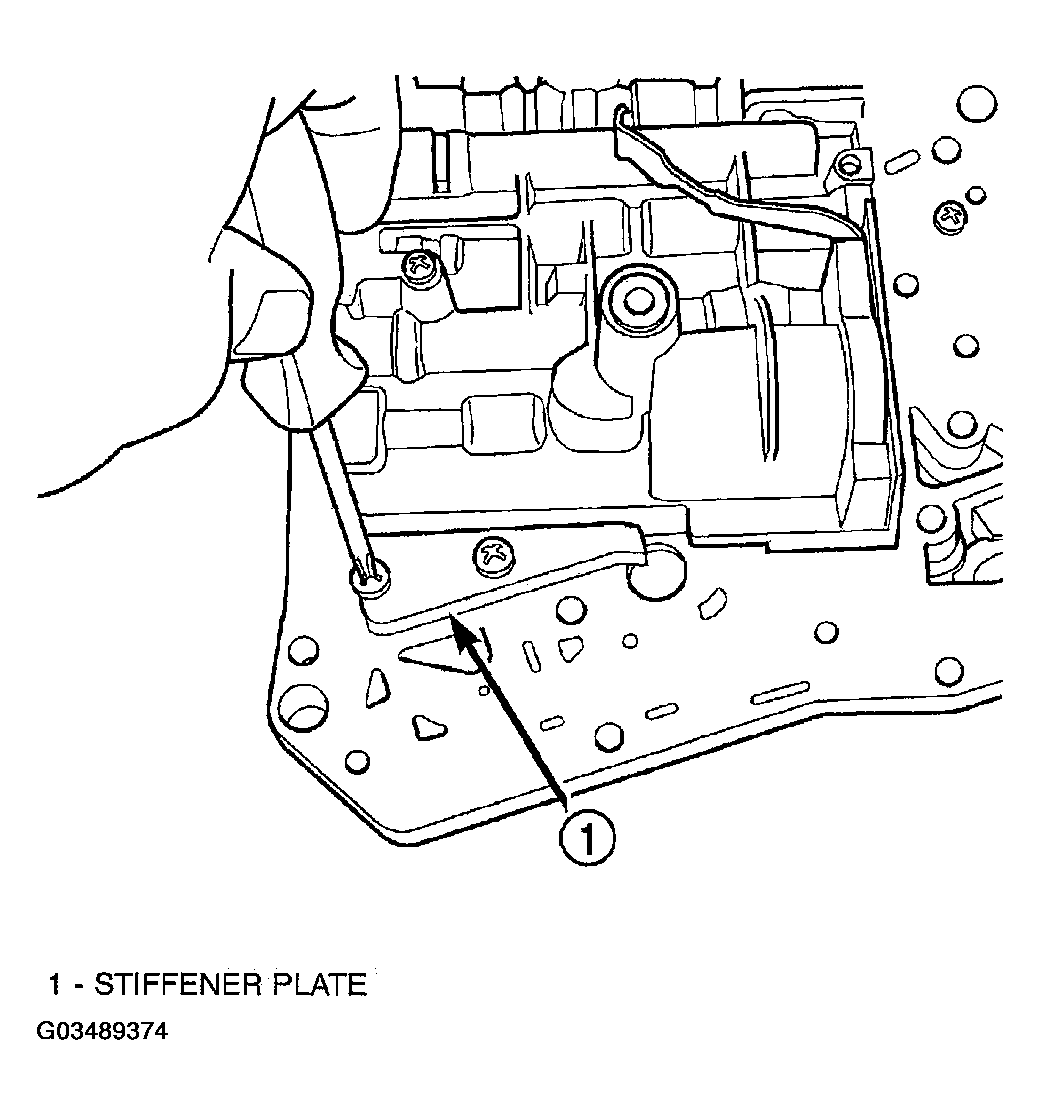

    Fig 13: Installing Stiffener Plate
    G03489374Courtesy of DAIMLERCHRYSLER CORP.
  14. Install the solenoid/pressure switch assembly and to the transfer plate ( Fig 14) and torque to 5.5 N.m (50 in. lbs.).
    Fig 14: Installing Solenoid/Pressure Switch Assembly
    G03489375Courtesy of DAIMLERCHRYSLER CORP.
  15. Install the manual shaft/rooster comb and transmission range sensor to the valve body ( Fig 15).
    Fig 15: Installing Manual Shaft/Rooster Comb And Transmission Range Sensor
    G03489376Courtesy of DAIMLERCHRYSLER CORP.
  16. Install the TRS/manual shaft retaining screw ( Fig 16) and torque to 5 N.m (45 in. lbs.).

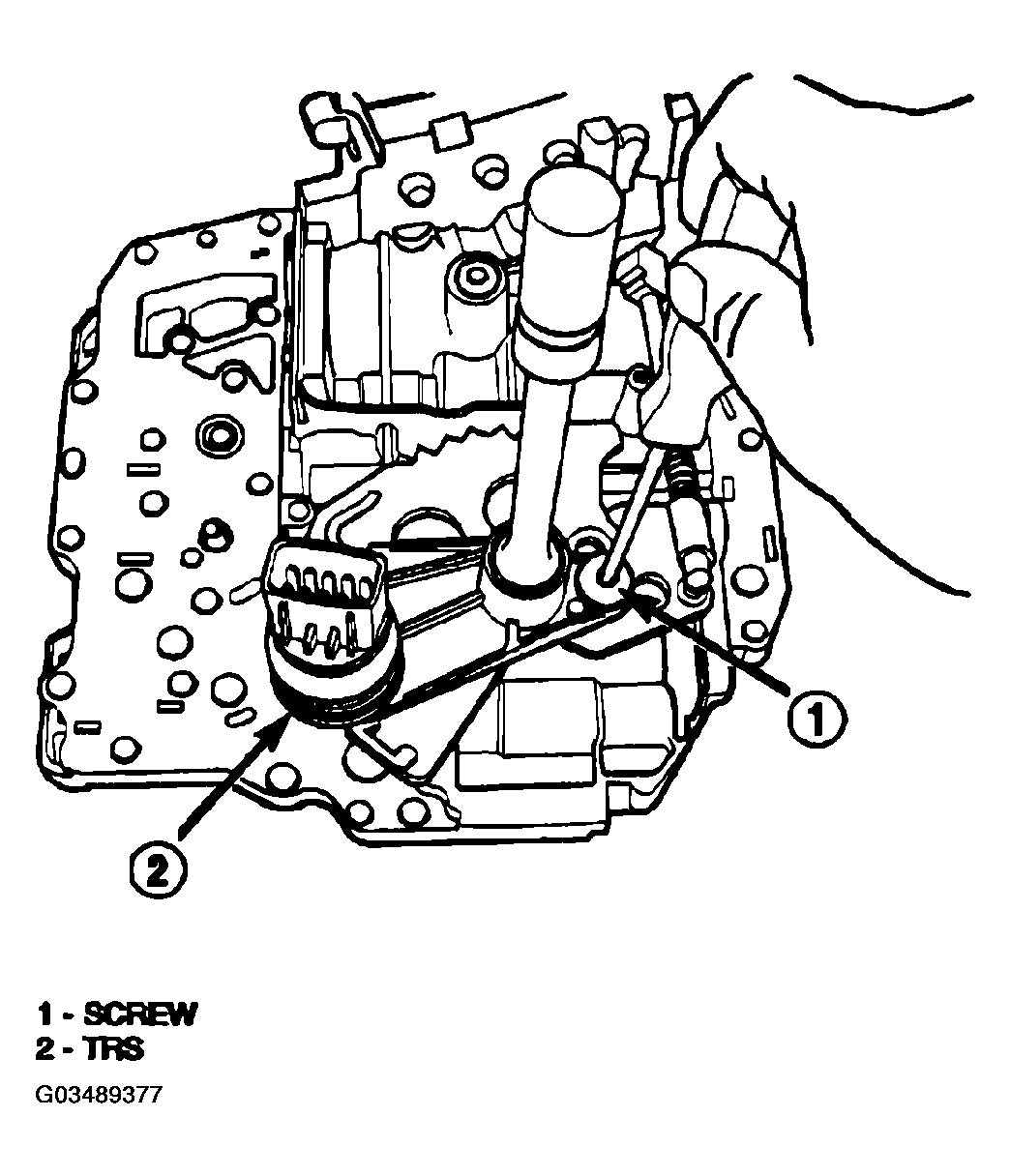

    Fig 16: Installing Manual Shaft Retaining Screw
    G03489377Courtesy of DAIMLERCHRYSLER CORP.
  17. Install manual shaft seal.
