Input Clutch Assembly: Disassembly
WARNING: This page is about a different car, the 2004 Dodge Dakota. However, it is still accessible from the selected car via links, so may be relevant.
- Mount input clutch assembly to Input Clutch Pressure Fixture (Tool 8391).

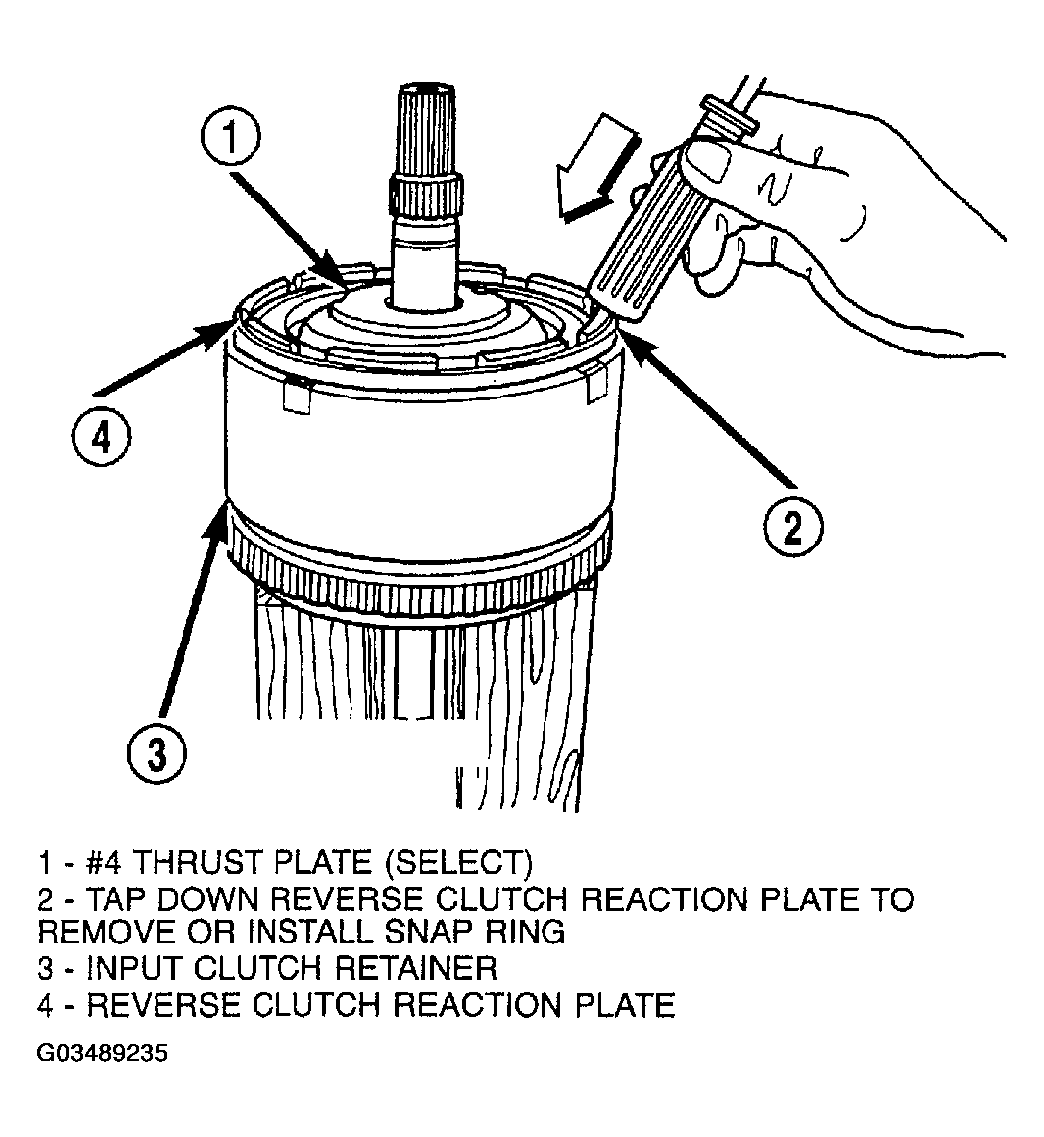

- Tap down reverse clutch reaction plate to release pressure from snap ring ( Fig 1).
- Remove reverse clutch snap ring ( Fig 2).
- Pry up and remove reverse clutch reaction plate ( Fig 3) ( Fig 4).

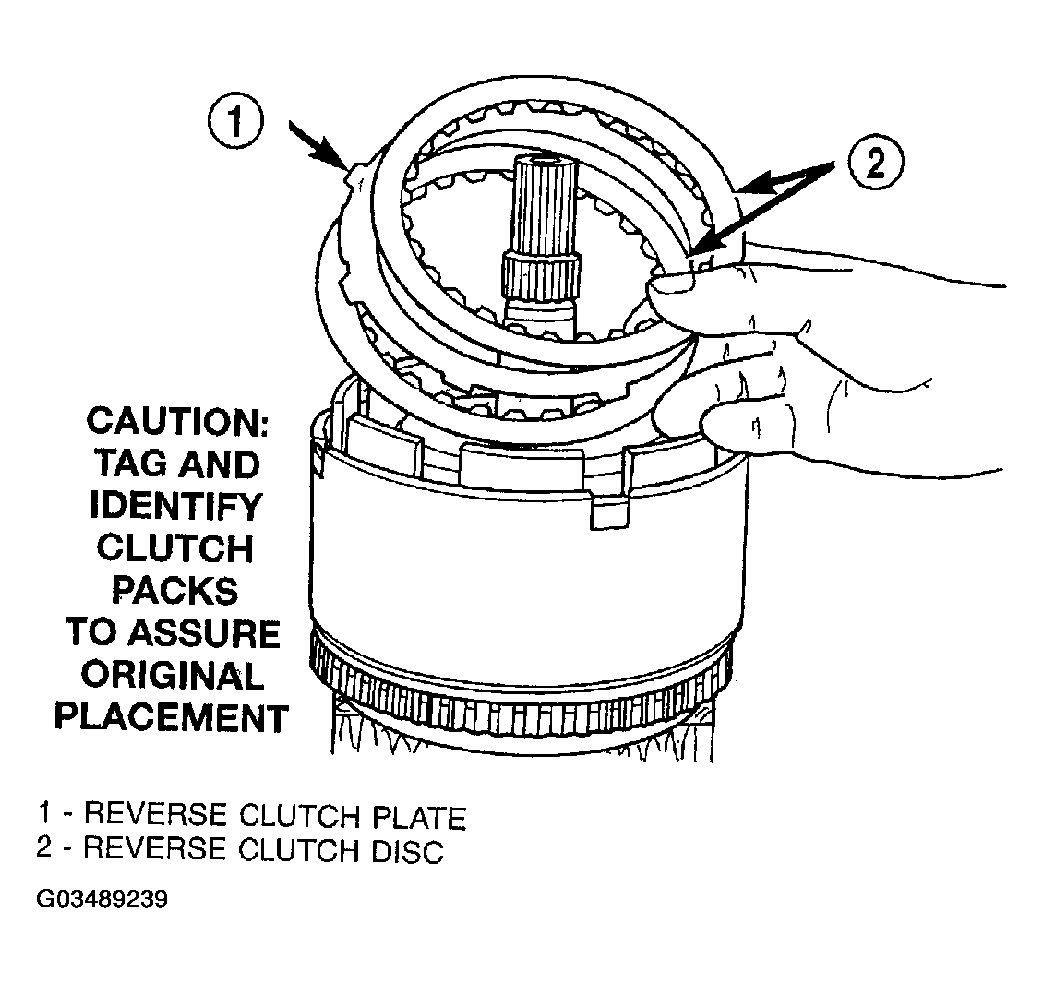

- Remove the reverse clutch pack (two fibers/one steel) ( Fig 5).NOTE: Tag reverse clutch pack for reassembly identification.

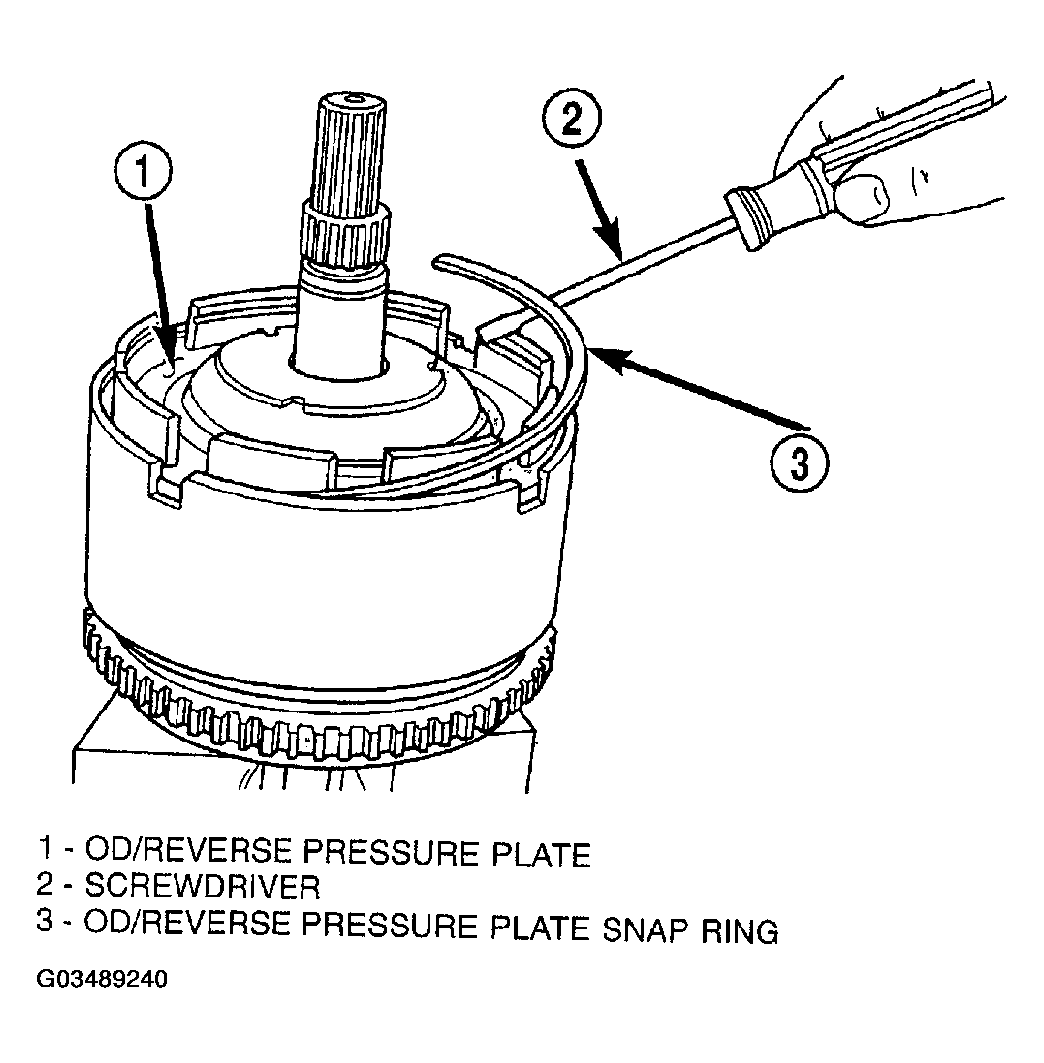

- Remove the OD/Reverse reaction plate snap ring ( Fig 6).
- Remove OD/Reverse pressure plate ( Fig 7).

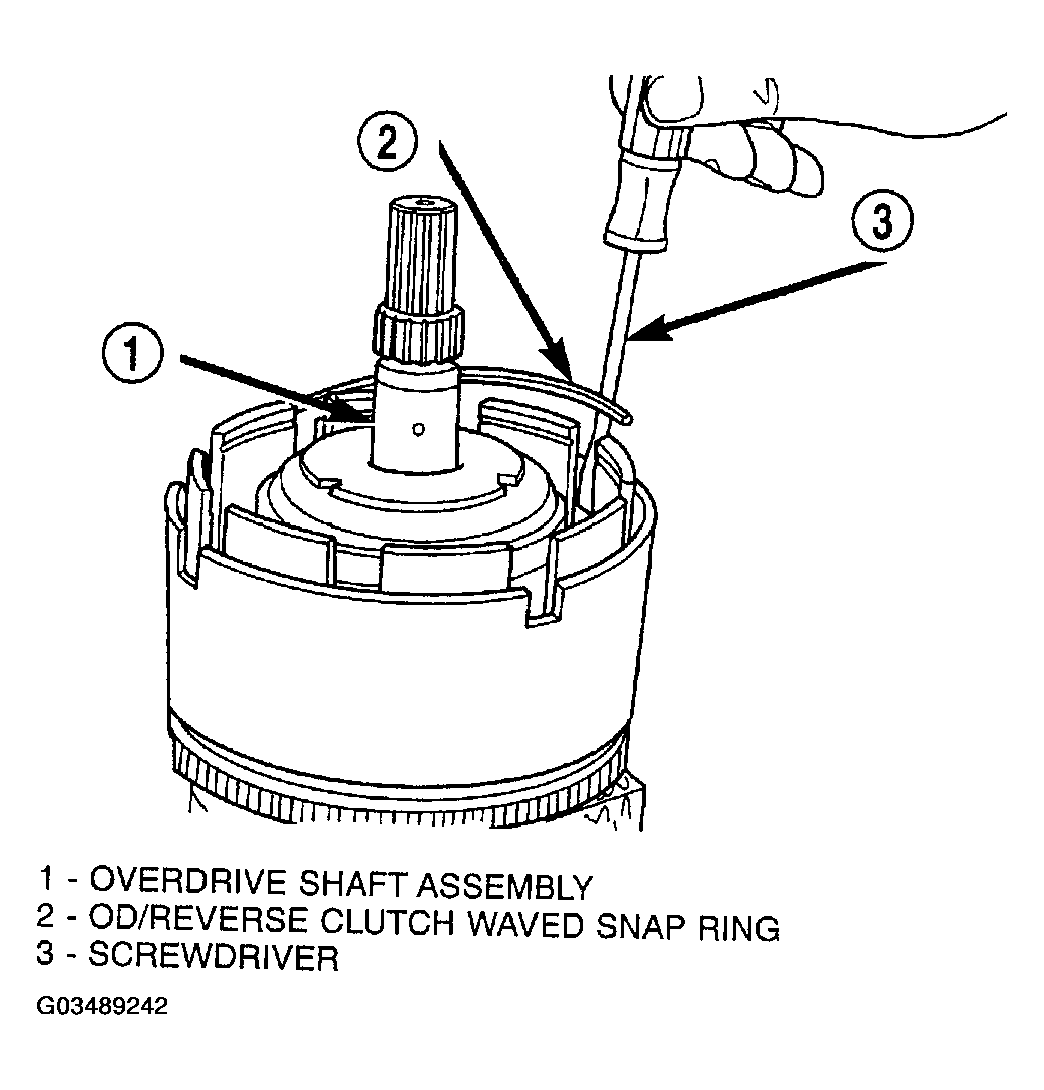

- Remove OD/Reverse reaction plate wave snap ring ( Fig 8).
- Remove OD shaft/hub and OD clutch pack ( Fig 9), ( Fig 10).NOTE: Tag overdrive clutch pack for reassembly identification.
- Remove and inspect #3 & #4 thrust washers ( Fig 11).
- Remove the underdrive shaft assembly ( Fig 12).
- Remove the #2 needle bearing ( Fig 13).
- Remove the OD/UD reaction plate tapered snap ring ( Fig 14).
NOTE: The OD/UD clutch reaction plate has a step on both sides. The OD/UD clutches reaction plate goes tapered step side up.
- Remove the OD/UD reaction plate ( Fig 15).

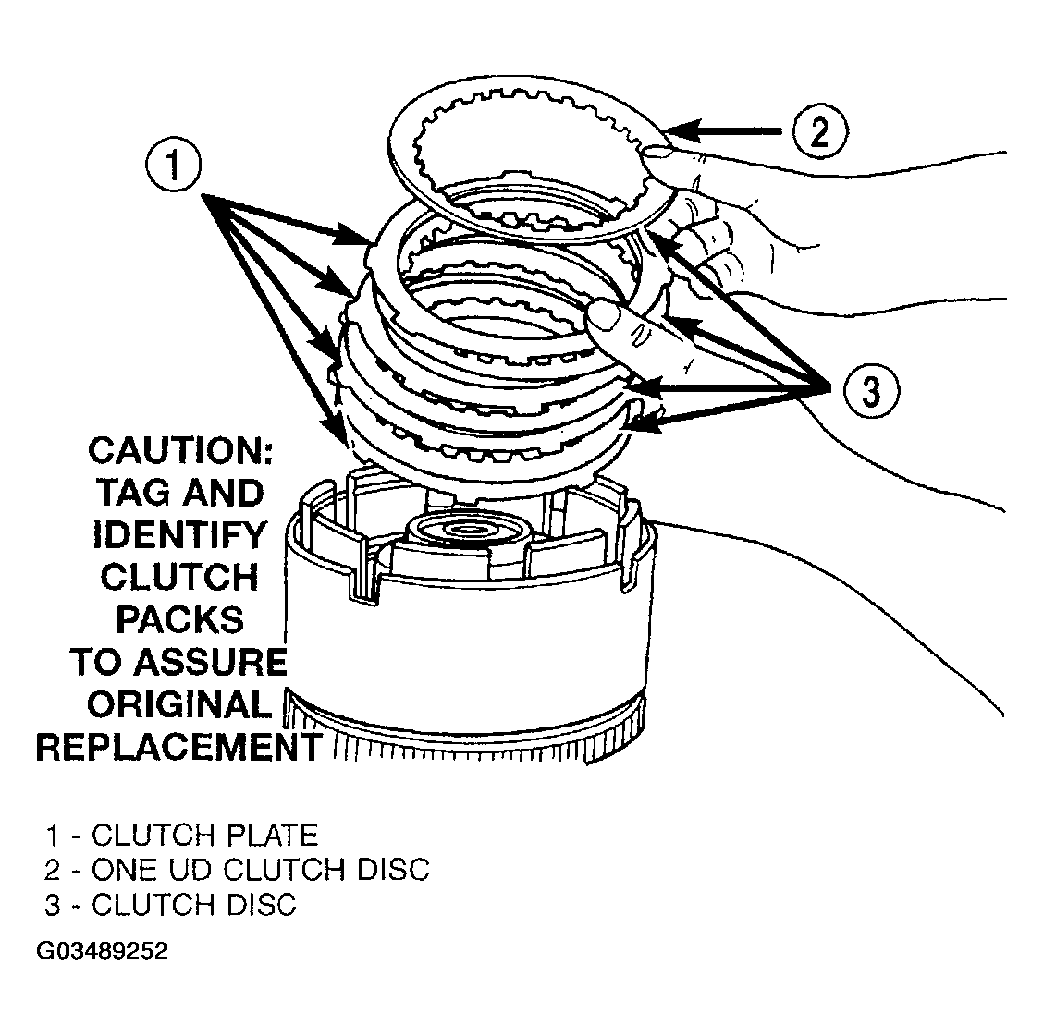

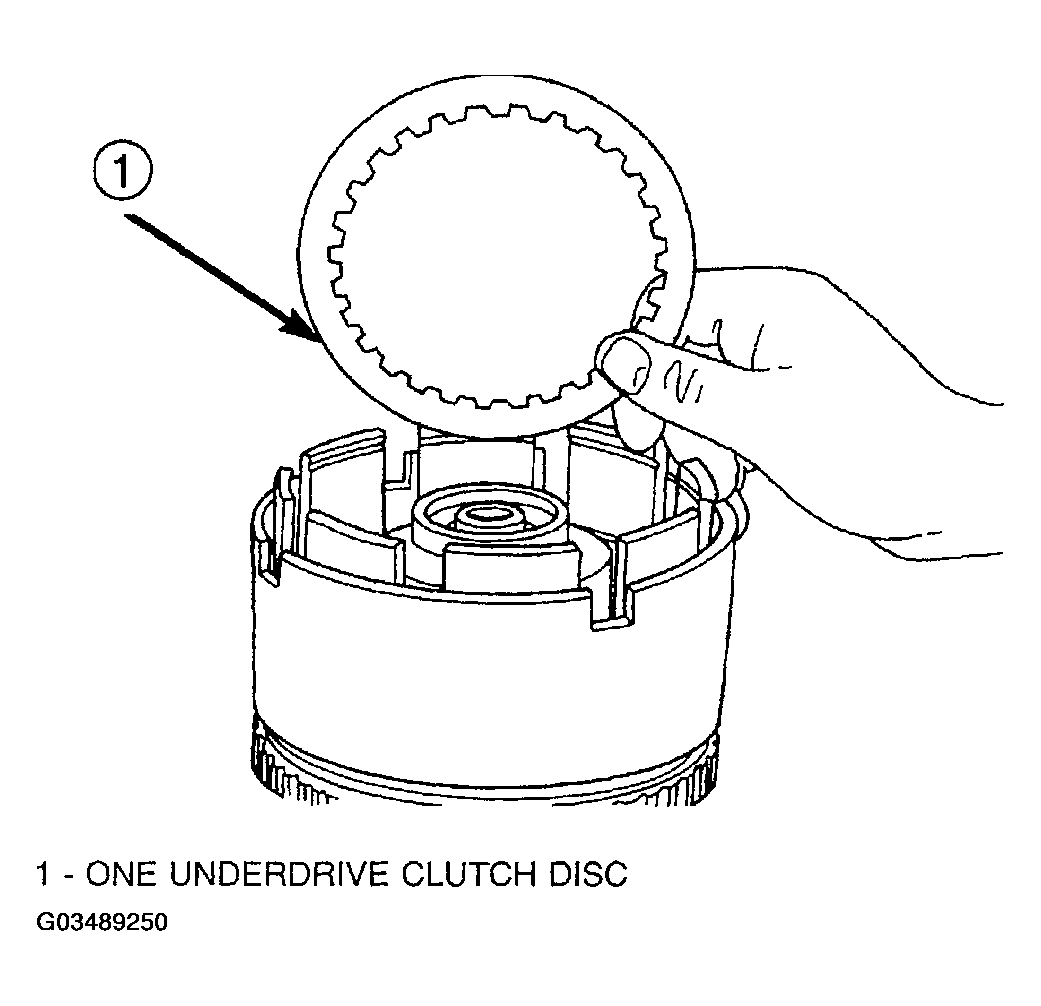

- Remove the first UD clutch disc ( Fig 16).

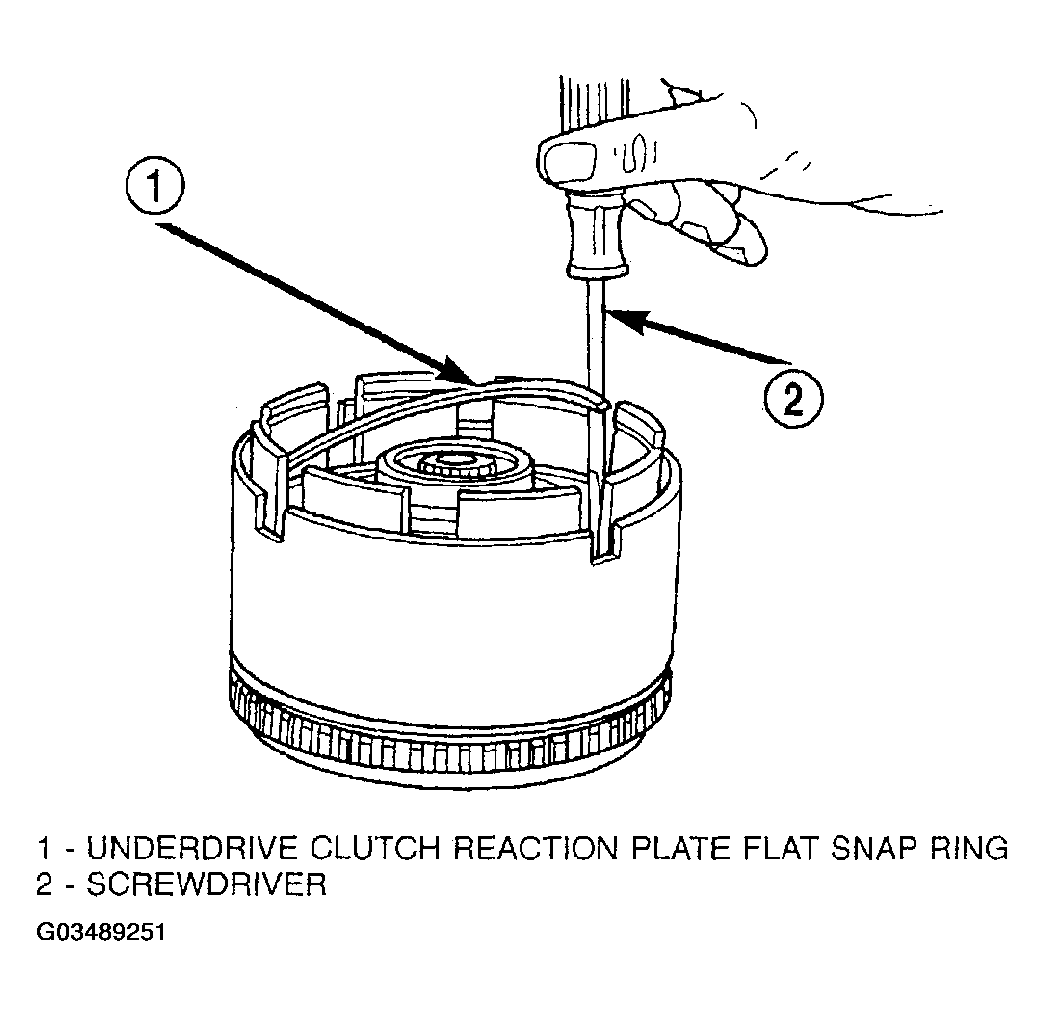

- Remove the UD clutch flat snap ring ( Fig 17).NOTE: Tag underdrive clutch pack for reassembly identification.
- Remove the UD clutch pack ( Fig 18).
CAUTION: Compress return spring just enough to remove or install snap ring.

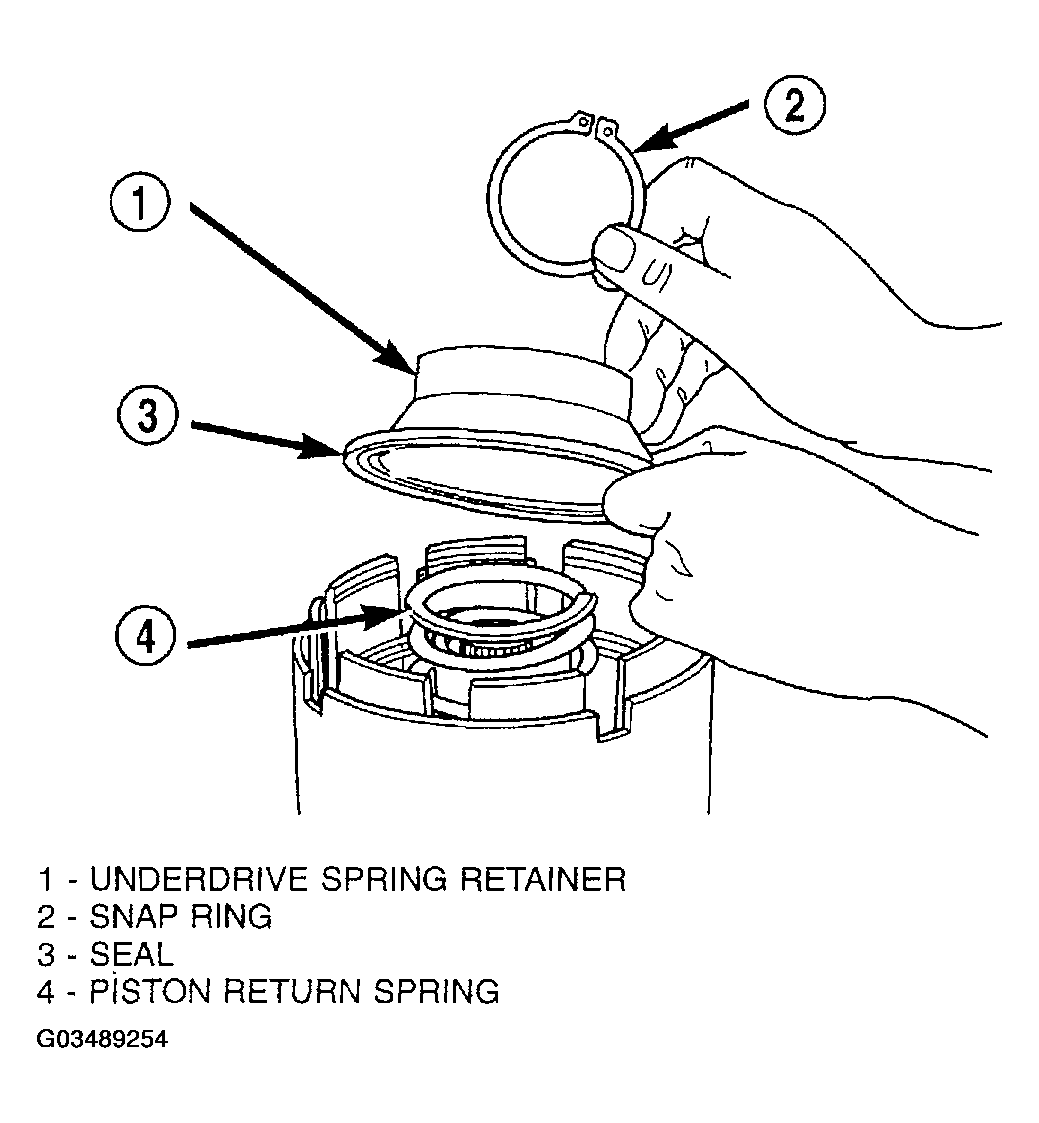

- Using Tool 5059A and an arbor press, compress UD clutch piston enough to remove snap ring ( Fig 19), ( Fig 20).
- Remove spring retainer ( Fig 20).

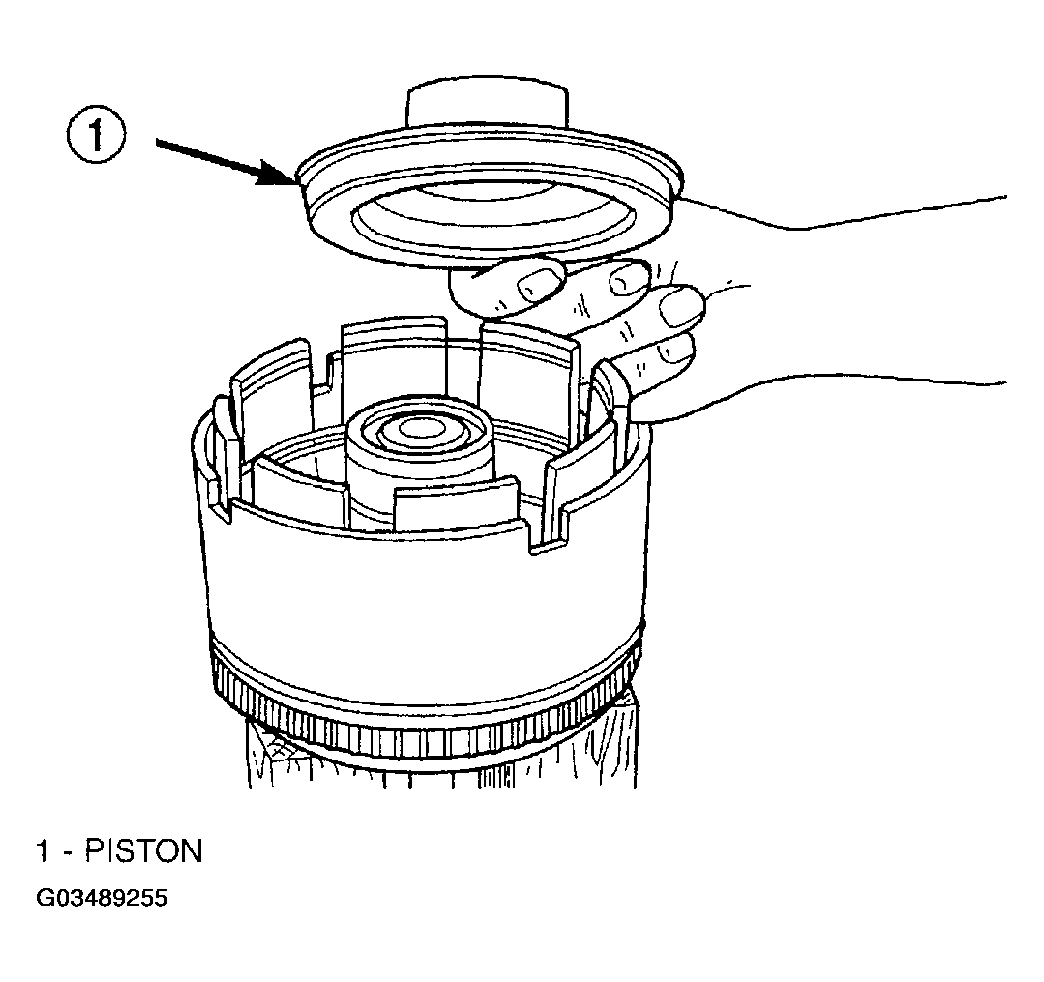

- Remove UD clutch piston ( Fig 21).

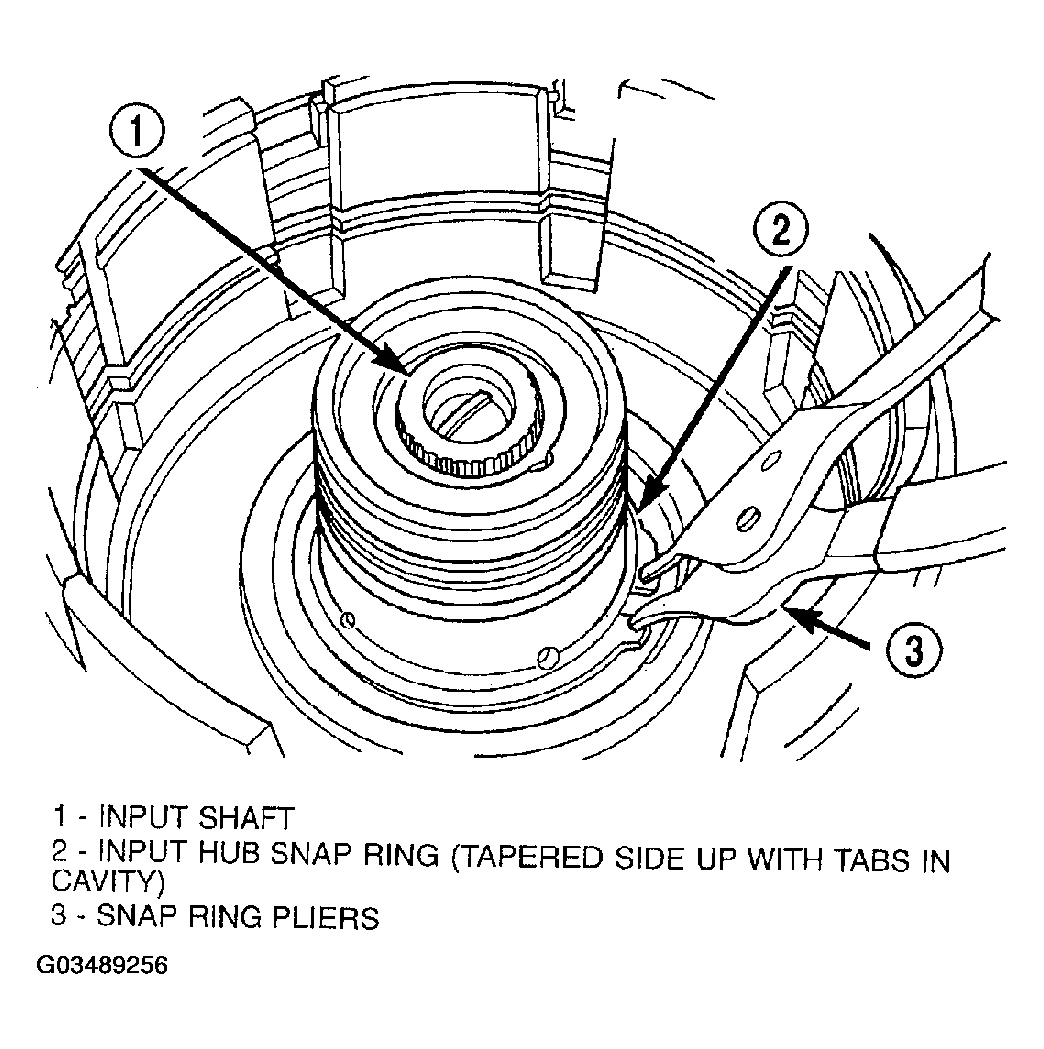

- Remove input hub tapered snap ring ( Fig 22).

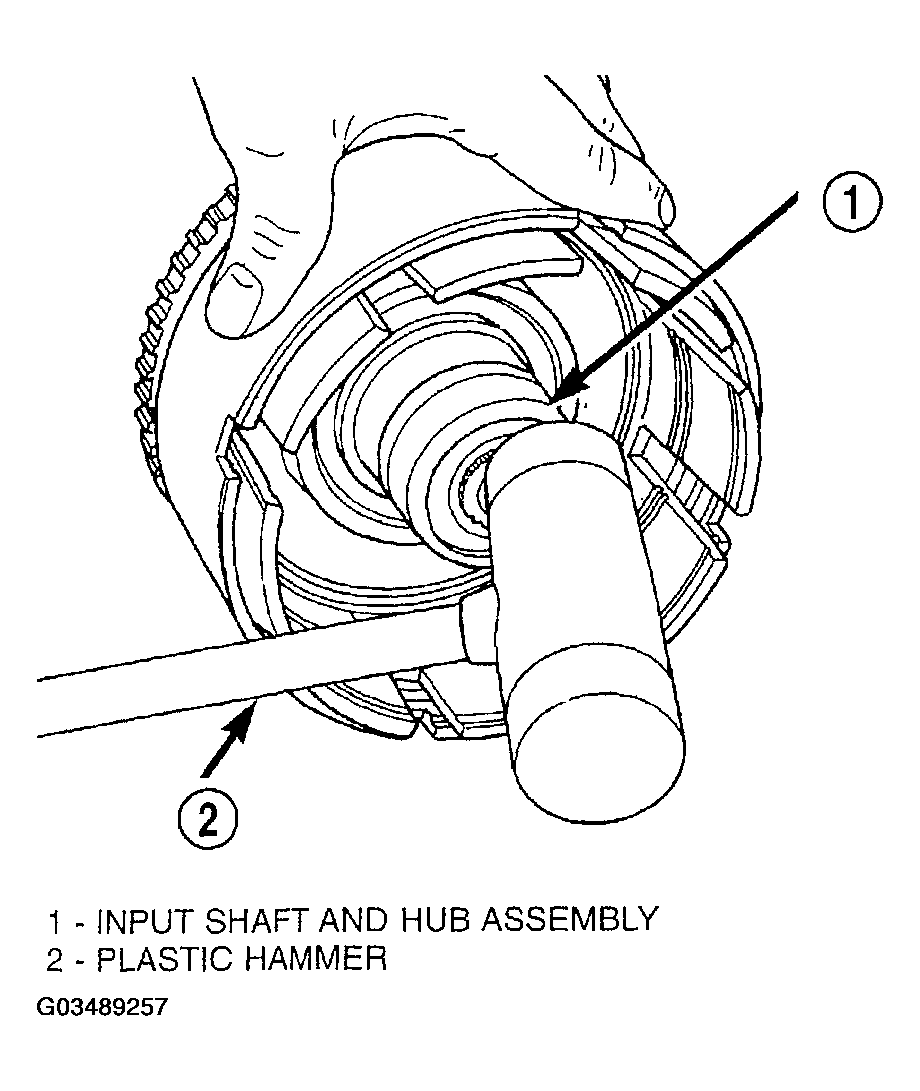

- Tap on input hub with soft faced hammer and separate input hub from OD/Reverse piston and clutch retainer ( Fig 23), ( Fig 24).
- Separate clutch retainer from OD/Reverse piston ( Fig 25).
- Using Tool 6057 and an arbor press, compress return OD/Reverse piston return spring just enough to remove snap ring ( Fig 26), ( Fig 27).
- Remove input shaft to input clutch hub snap ring ( Fig 28).
- Using a suitably sized socket and an arbor press, remove input shaft from input shaft hub ( Fig 29).
