Gearshift Adjustment Procedure

WARNING: This page is about a different car, the 2004 Dodge Dakota. However, it is still accessible from the selected car via links, so may be relevant.
  1. Shift transmission into PARK.
  2. Release cable adjuster lock tab (underneath the steering column) ( Fig 1) to unlock cable.

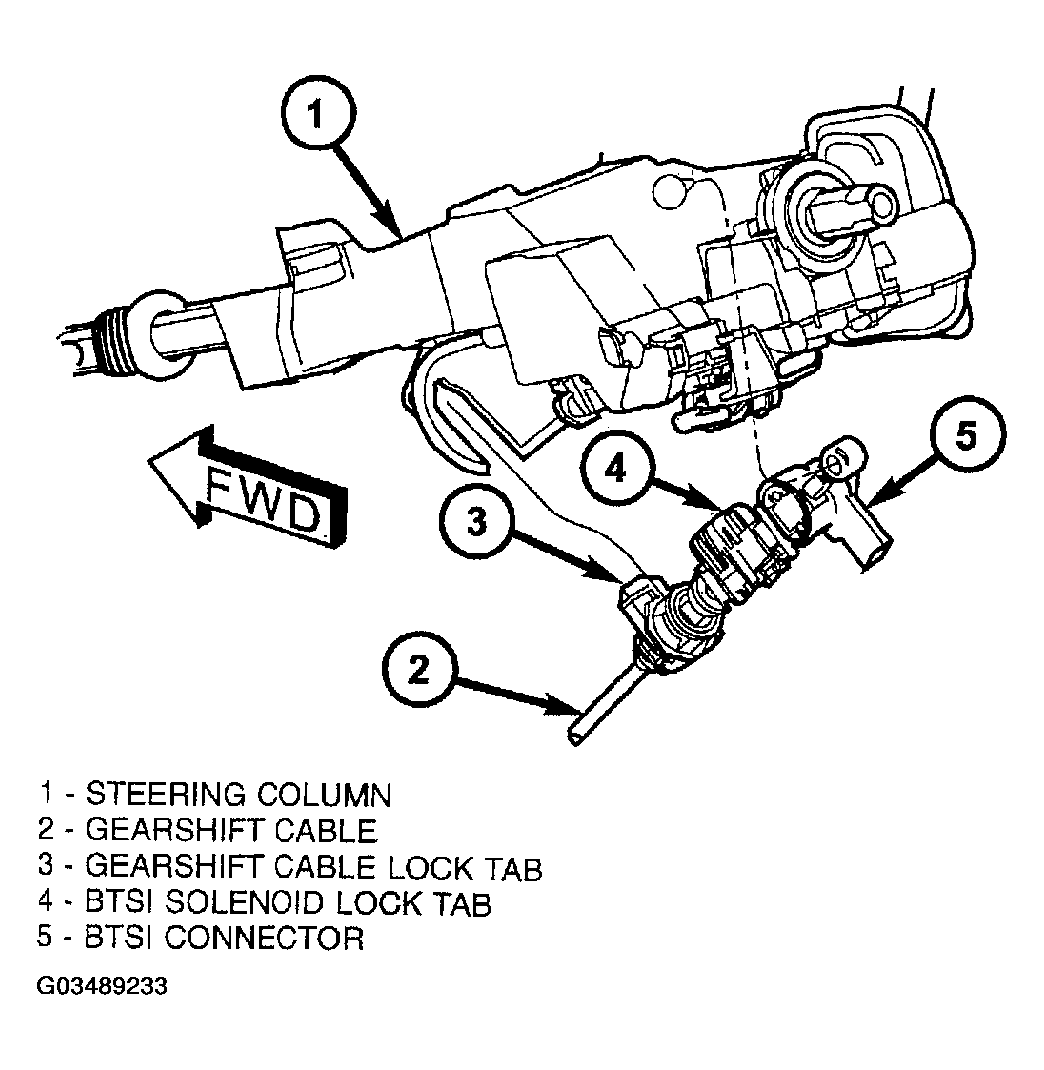

    Fig 1: Removing Gearshift Cable At Steering Column
    G03489233Courtesy of DAIMLERCHRYSLER CORP.
  3. Raise vehicle.
  4. Disengage the cable eyelet from the transmission manual shift lever.
  5. Verify transmission shift lever is in PARK detent by moving lever fully rearward. Last rearward detent is PARK position.
  6. Verify positive engagement of transmission park lock by attempting to rotate propeller shaft. Shaft will not rotate when park lock is engaged.
  7. Snap the cable eyelet onto the transmission manual shift lever.
  8. Lower vehicle.
  9. Lock shift cable by pressing cable adjuster lock tab downward until it snaps into place.
  10. Check engine starting. Engine should start only in PARK and NEUTRAL
