Removal - Power Steering Pump

WARNING: This page is about a different car, the 2004 Dodge Dakota. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the serpentine drive belt, (Refer to ACCESSORY DRIVE ).
  2. Remove return hose from the pump reservoir and drain the pump.
  3. Remove the pressure line from the bottom of the pump.
  4. Remove the oil cooler mounting bolt from the pump bracket if equipped.
  5. Remove 3 pump mounting bolts ( Fig 1 ) through pulley access holes.
  6. Remove the pump from the left cylinder head.

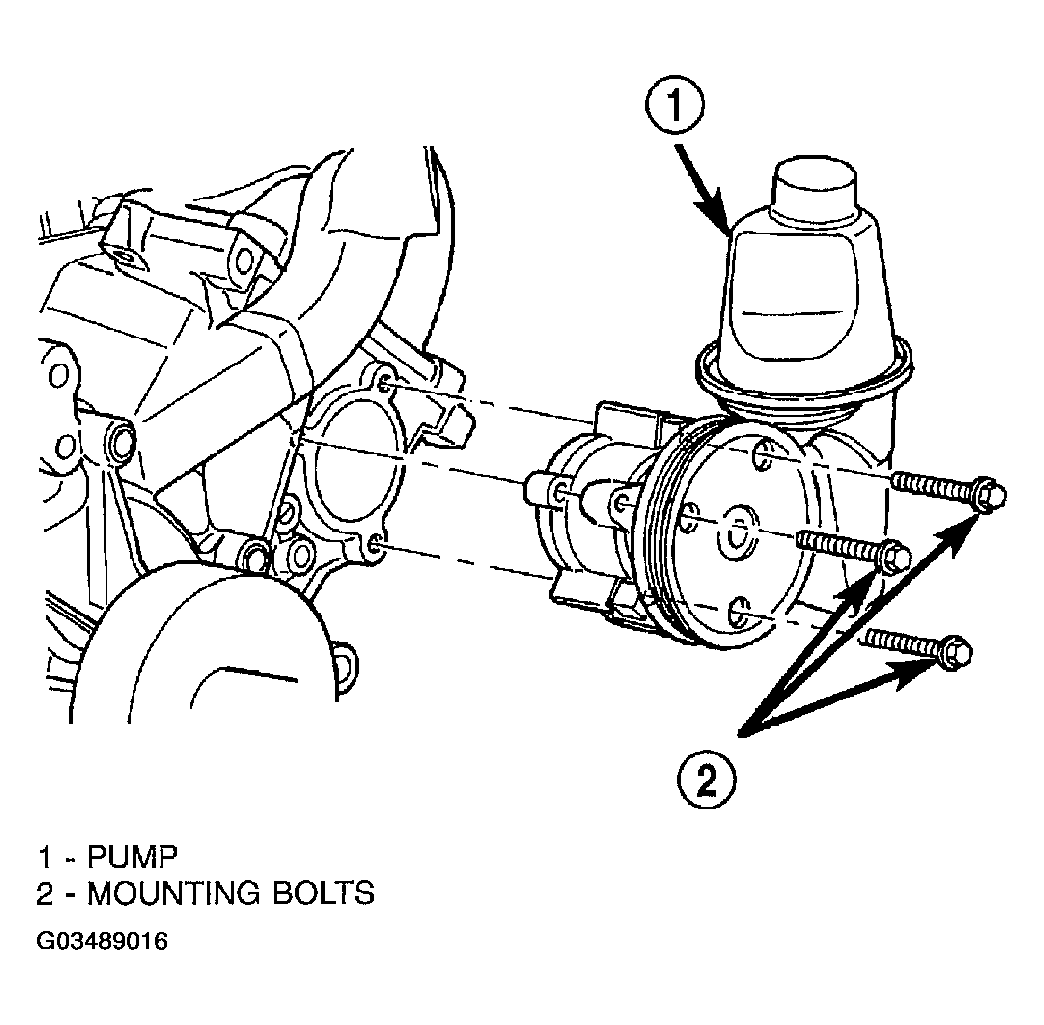

    Fig 1: Removing Power Steering Pump - 4.7L
    G03489016Courtesy of DAIMLERCHRYSLER CORP.
