Section 94 (Power Steering Pump): Pulley: Removal

WARNING: This page is about a different car, the 2004 Dodge Dakota. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION: On vehicles equipped with the 4.7L, Do not reuse the old power steering pump pulley it is not intended for reuse. A new pulley must be installed if removed.
  1. Remove pump assembly, (Refer to REMOVAL  ).
  2. Remove pulley from pump with Puller C-4333 ( Fig 1 ).

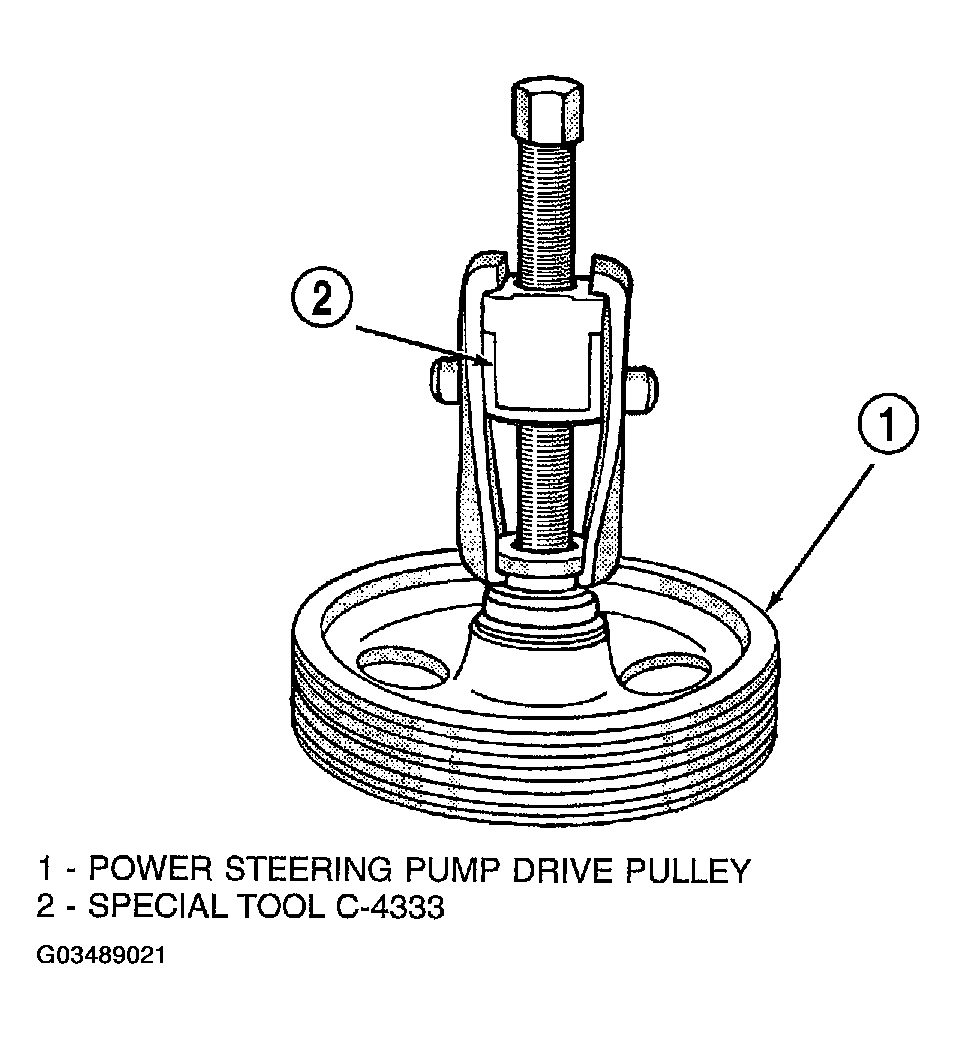

    Fig 1: Removing Pulley Removal
    G03489021Courtesy of DAIMLERCHRYSLER CORP.
