Counter Balance Shaft Timing: Notes

WARNING: This page is about a different car, the 2004 Dodge Dakota. However, it is still accessible from the selected car via links, so may be relevant.

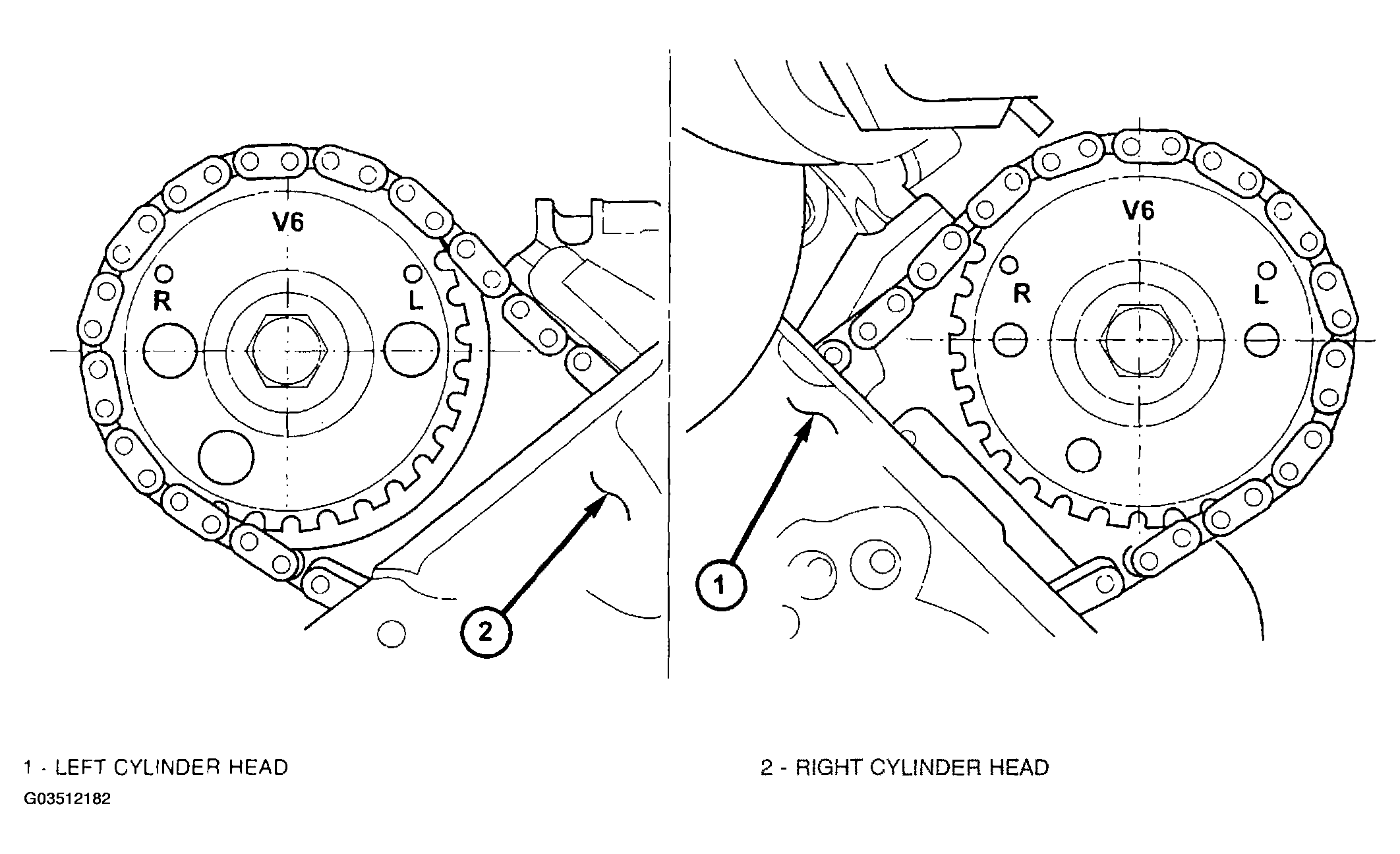

  1. Ensure that the engine is at TDC with both camshaft sprocket V6 marks in the 12 o'clock position. (Figure )

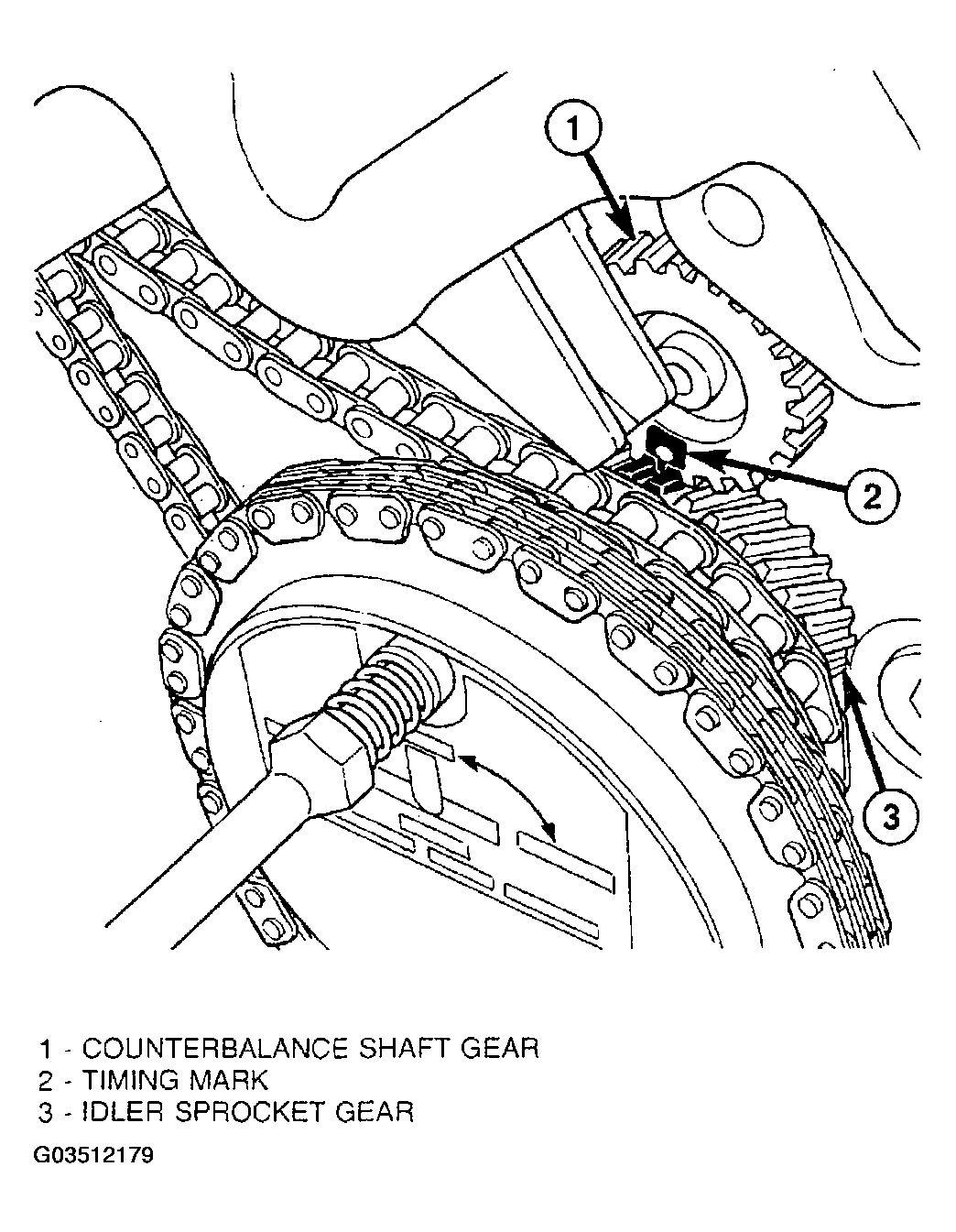

  2. Look down the left cylinder head chain cavity. The timing dot on the counter balance shaft drive gear should be in the 6 o'clock position (Fig 1 ).
    Fig 1: Identifying Counterbalance Shaft Alignment Marks
    G03512179Courtesy of DAIMLERCHRYSLER CORP.
