Rear Mount: Removal

WARNING: This page is about a different car, the 2004 Dodge Dakota. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise the vehicle on a hoist.
  2. Using a suitable jack, support transmission.
  3. Remove the nuts from the transmission mount (Fig 1 ).

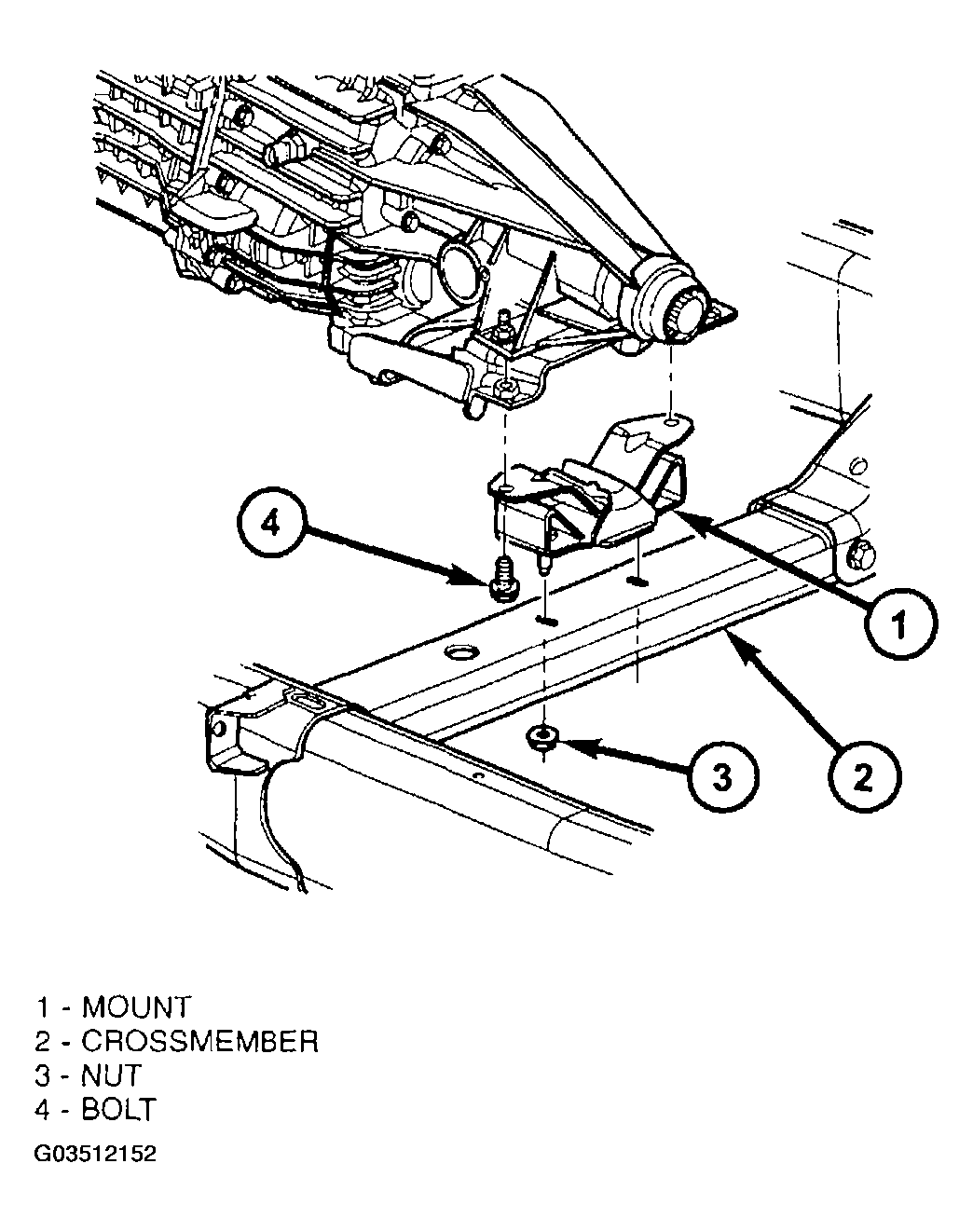

    Fig 1: Identifying Transmission Mount
    G03512152Courtesy of DAIMLERCHRYSLER CORP.
  4. Remove the two bolts that attach the transmission mount to the engine bracket.
  5. Raise the transmission enough to remove the mount from the crossmember.
  6. Remove the mount.
