Standard Procedure - Piston Ring Fitting

WARNING: This page is about a different car, the 2004 Dodge Dakota. However, it is still accessible from the selected car via links, so may be relevant.

Before reinstalling used rings or installing new rings, the ring clearances must be checked.

  1. Wipe the cylinder bore clean.
  2. Insert the ring in the cylinder bore.
    NOTE: The ring gap measurement must be made with the ring positioned at least 12mm (0.50 inch.) from bottom of cylinder bore.
  3. Using a piston, to ensure that the ring is squared in the cylinder bore, slide the ring downward into the cylinder.
  4. Using a feeler gauge check the ring end gap (Fig 1 ). Replace any rings not within specification.

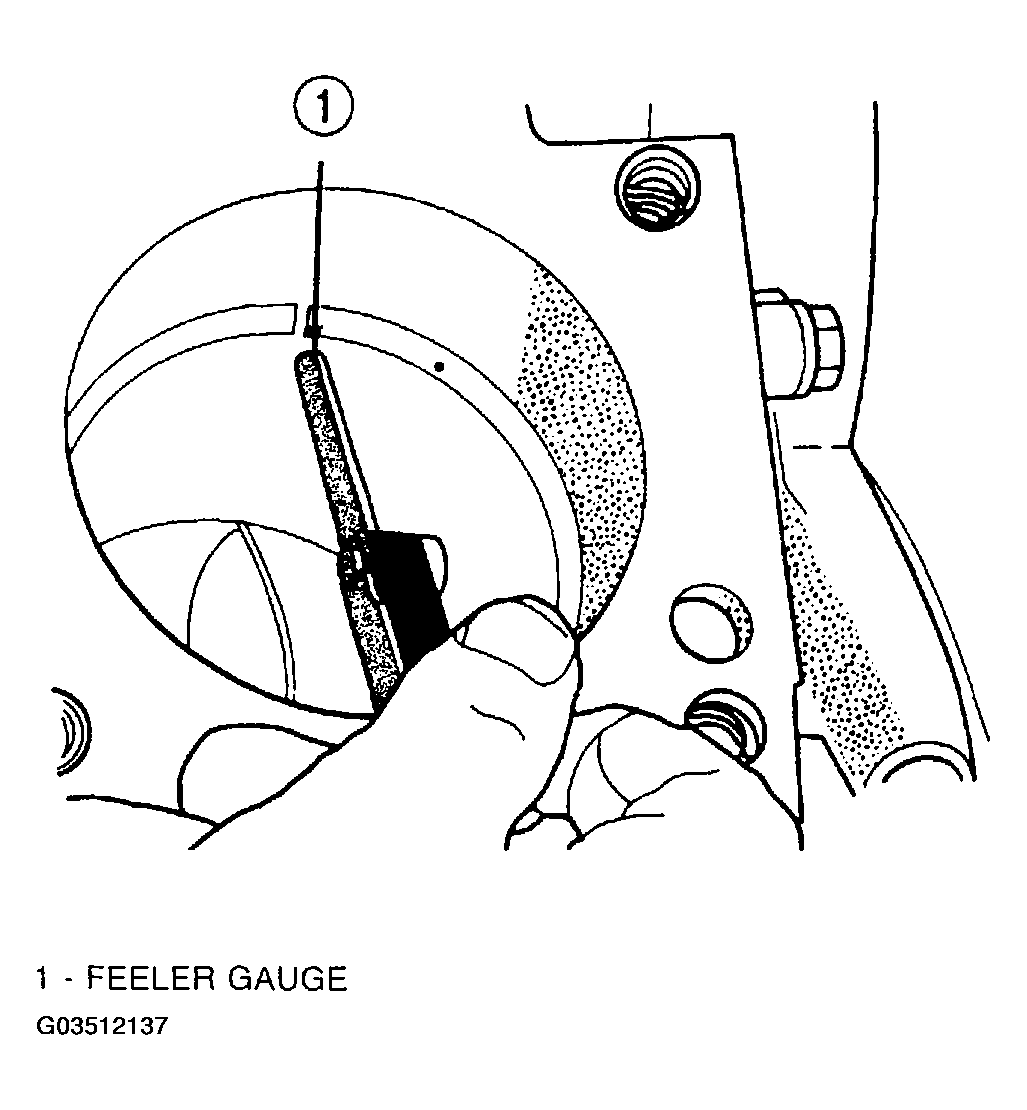

    Fig 1: Identifying Ring
    G03512137Courtesy of DAIMLERCHRYSLER CORP.

    PISTON RING SIDE CLEARANCE

    NOTE: Make sure the piston ring grooves are clean and free of nicks and burrs.
  5. Measure the ring side clearance as shown (Fig 2 ) make sure the feeler gauge fits snugly between the ring land and the ring. Replace any ring not within specification.
  6. Rotate the ring around the piston, the ring must rotate in the groove with out binding.

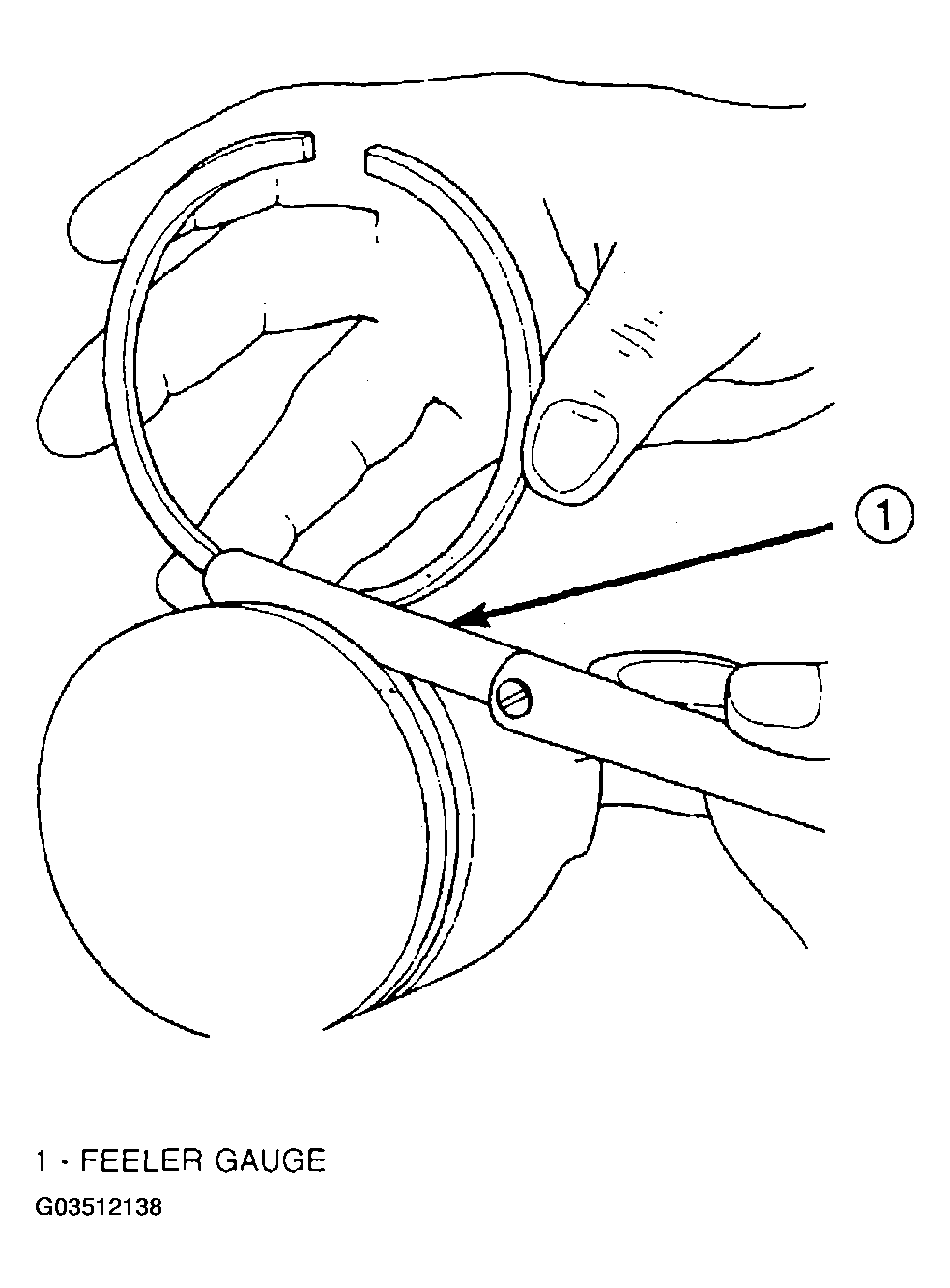

    Fig 2: Measuring Piston Ring Side Clearance
    G03512138Courtesy of DAIMLERCHRYSLER CORP.
    PISTON RING SPECIFICATION CHART

    Ring Position Groove Clearance Maximum Clearance
    Upper Ring 051-.094 mm (0.0020-.0037 1 in.) 0.11 mm (0.004 in.)
    Intermediate Ring 0.04-0.08 mm (0.0016-0.0031 in.) 0.10 mm (0.004 in.)
    Oil Control Ring (Steel Rails) .019-.229 mm (.0007-.0090 in.) .25 mm (0.010 in.)
    Ring Position  Ring Gap  Wear Limit
    Upper Ring 0.20-0.36 mm (0.0079-0.0.142 in.) 0.43 mm (0.0017 in.)
    Intermediate Ring 0.37-0.63 mm (0.0146-0.0249 in.) 0.74 mm. (0.029 in.)
    Oil Control Ring (Steel Rail) 0.025-0.76 mm (0.0099-0.03 in.) 1.55 mm (0.061 in.)
  7. The No. 1 and No. 2 piston rings have a different cross section. Ensure No. 2 ring is installed with manufacturers I.D. mark (Dot) facing up, towards top of the piston.
    NOTE: Piston rings are installed in the following order:
    • Oil ring expander.
    • Upper oil ring side rail.
    • Lower oil ring side rail.
    • No. 2 Intermediate piston ring.
    • No. 1 Upper piston ring.
  8. Install the oil ring expander.
  9. Install upper side rail (Fig 3 ) by placing one end between the piston ring groove and the expander ring. Hold end firmly and press down the portion to be installed until side rail is in position. Repeat this step for the lower side rail.
  10. Install No. 2 intermediate piston ring using a piston ring installer (Fig 4 ).
  11. Install No. 1 upper piston ring using a piston ring installer (Fig 4 ).
  12. Position piston ring end gaps as shown in (Fig 5 ). It is important that expander ring gap is at least 45° from the side rail gaps, but not on the piston pin center or on the thrust direction.

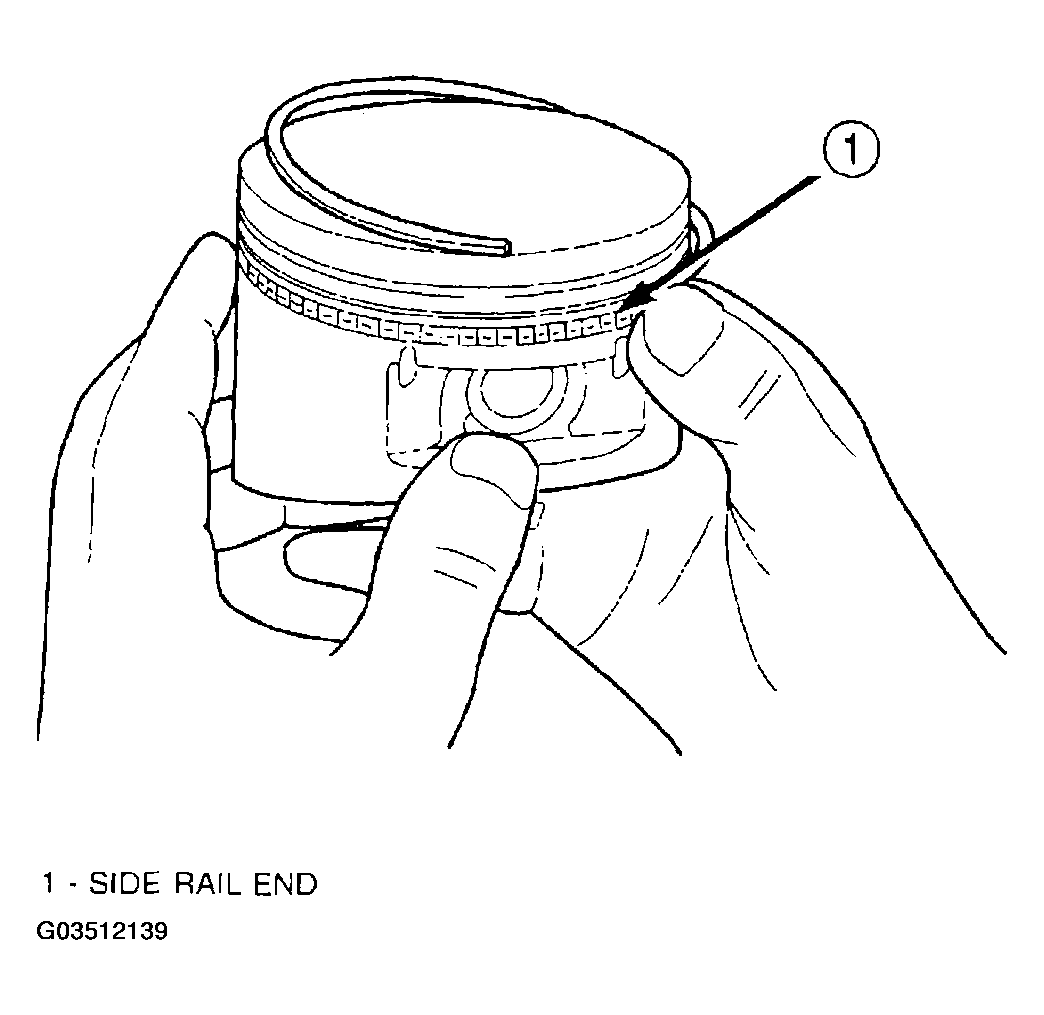

    Fig 3: Installing Side Rail
    G03512139Courtesy of DAIMLERCHRYSLER CORP.

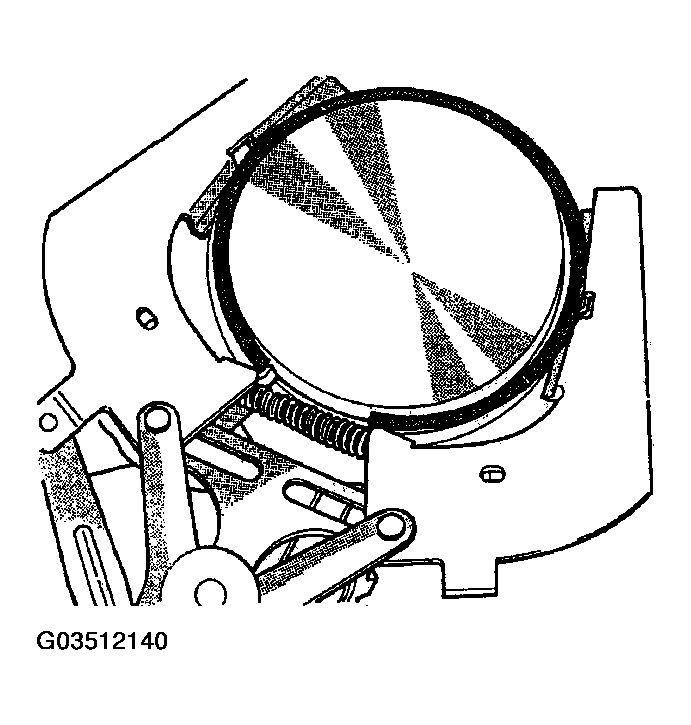

Fig 4: Identifying Upper And Intermediate Rings
G03512140Courtesy of DAIMLERCHRYSLER CORP.

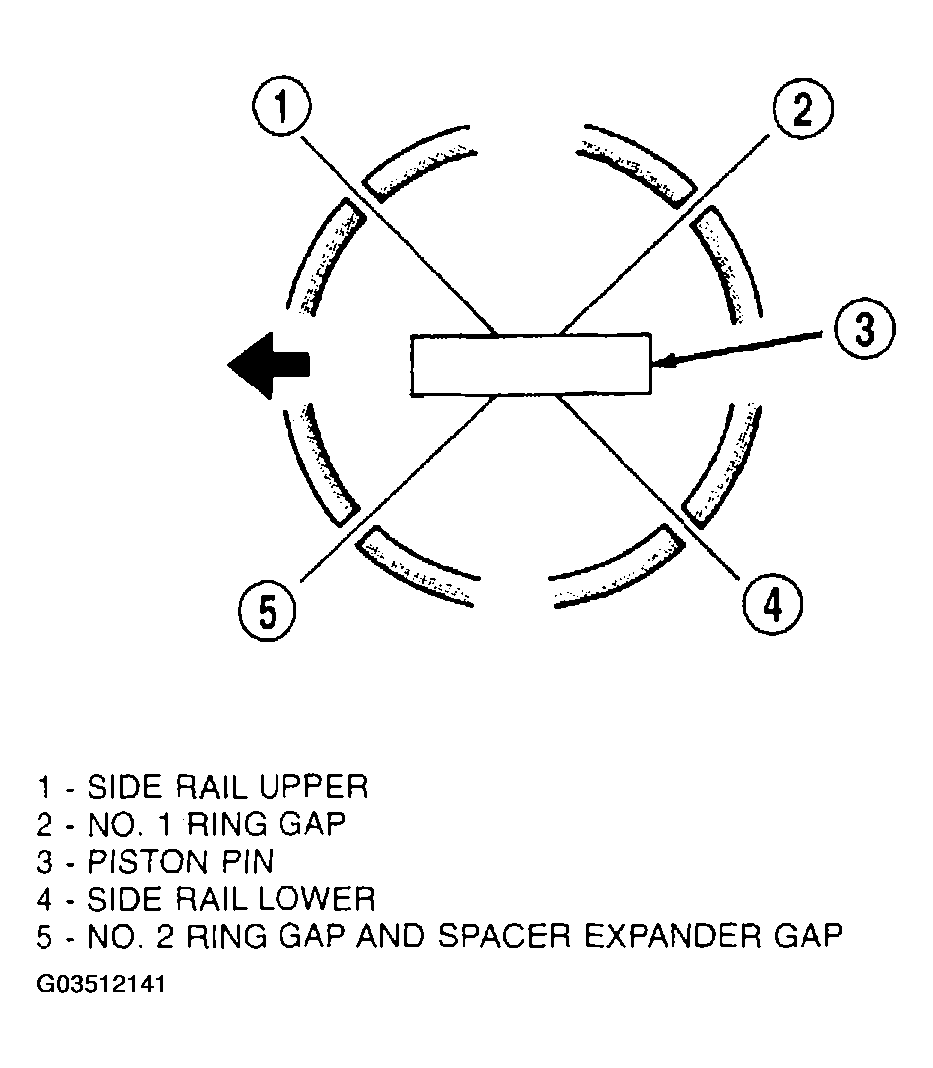

Fig 5: Piston Ring End Gap Position
G03512141Courtesy of DAIMLERCHRYSLER CORP.
