Piston & Connecting Rod: Description
WARNING: This page is about a different car, the 2004 Dodge Dakota. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION:
Do not use a metal stamp to mark connecting rods as damage may result, instead use ink or a scratch awl.

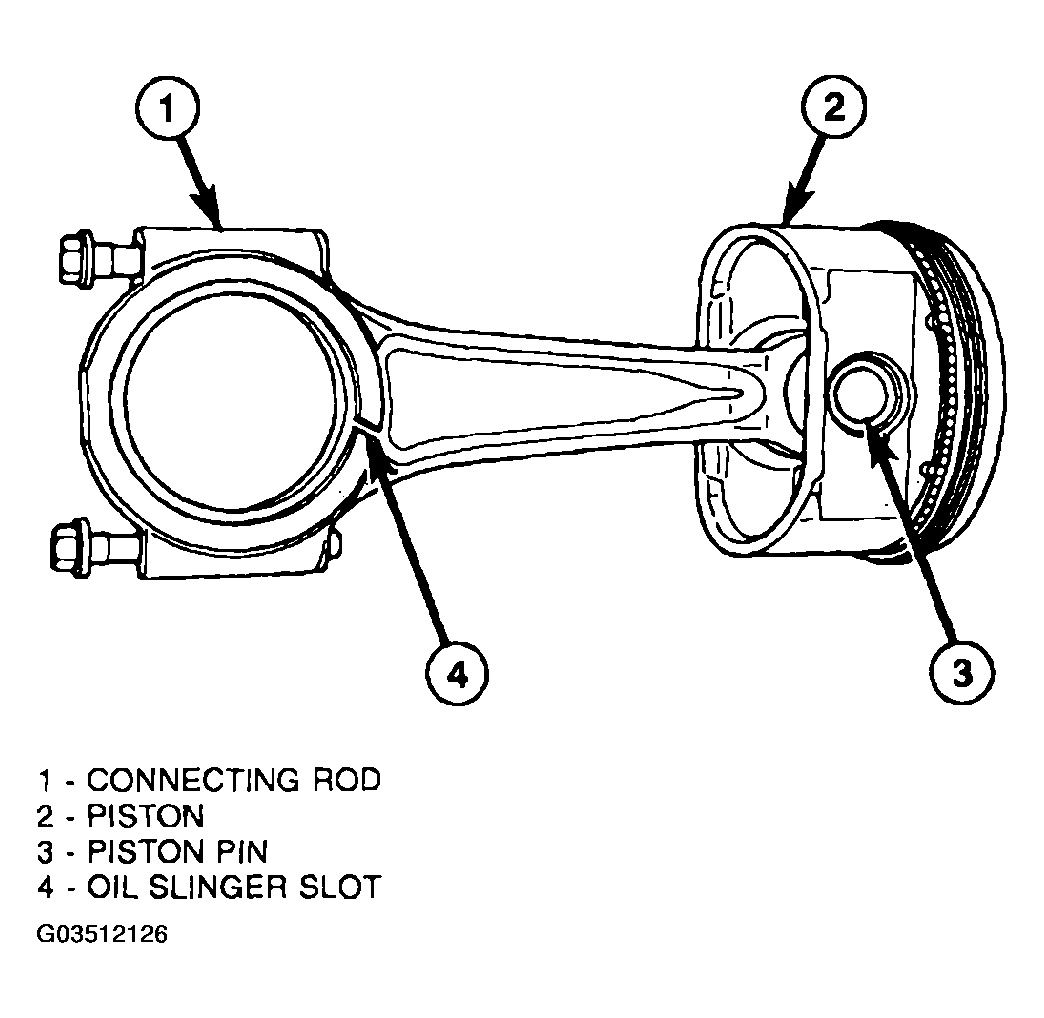

The pistons are made of a high strength aluminum alloy. The connecting rods are made of forged powdered metal, with a "fractured cap" design. A full floating piston pin is used to attach the piston to the connecting rod (Fig 1 ).
