Oil Pan: Removal

WARNING: This page is about a different car, the 2004 Dodge Dakota. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery cable.
  2. Install engine support fixture special tool 8534.

    Do not raise engine at this time.

  3. Loosen both left and right side engine mount through bolts. Do not remove bolts.
  4. Remove the structural dust cover, if equipped.
  5. Drain engine oil.
  6. Remove the front crossmember (Refer to FRAME & BUMPERS ).
    CAUTION: Only raise the engine enough to provide clearance for oil pan removal. Check for proper clearance at fan shroud to fan and cowl to intake manifold.
  7. Raise engine using special tool 8534 to provid clearance to remove oil pan.
    NOTE: Do not pry on oil pan or oil pan gasket. Gasket is integral to engine windage tray and does not come out with oil pan.
  8. Remove the oil pan mounting bolts and oil pan.
  9. Unbolt oil pump pickup tube and remove tube.
  10. Inspect the integral windage tray (Fig 1 ) and gasket and replace as needed.

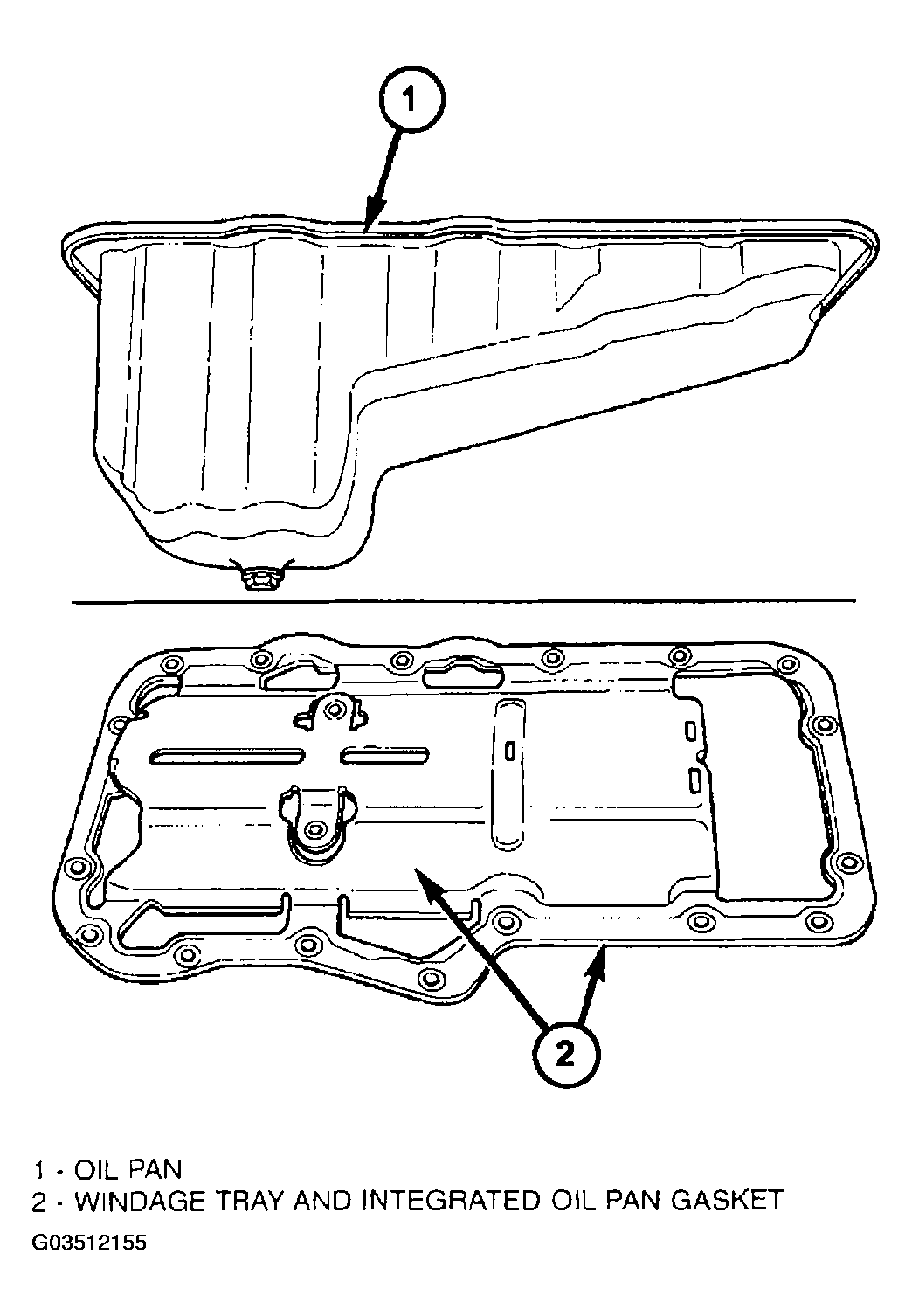

    Fig 1: Identifying Oil Pan And Gasket
    G03512155Courtesy of DAIMLERCHRYSLER CORP.
