Intake/Exhaust Valves & Seats: Removal: Notes

WARNING: This page is about a different car, the 2004 Dodge Dakota. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: The cylinder heads must be removed in order to perform this procedure.
  1. Remove rocker arms and lash adjusters (Refer to REMOVAL  ). (Fig 2 ).

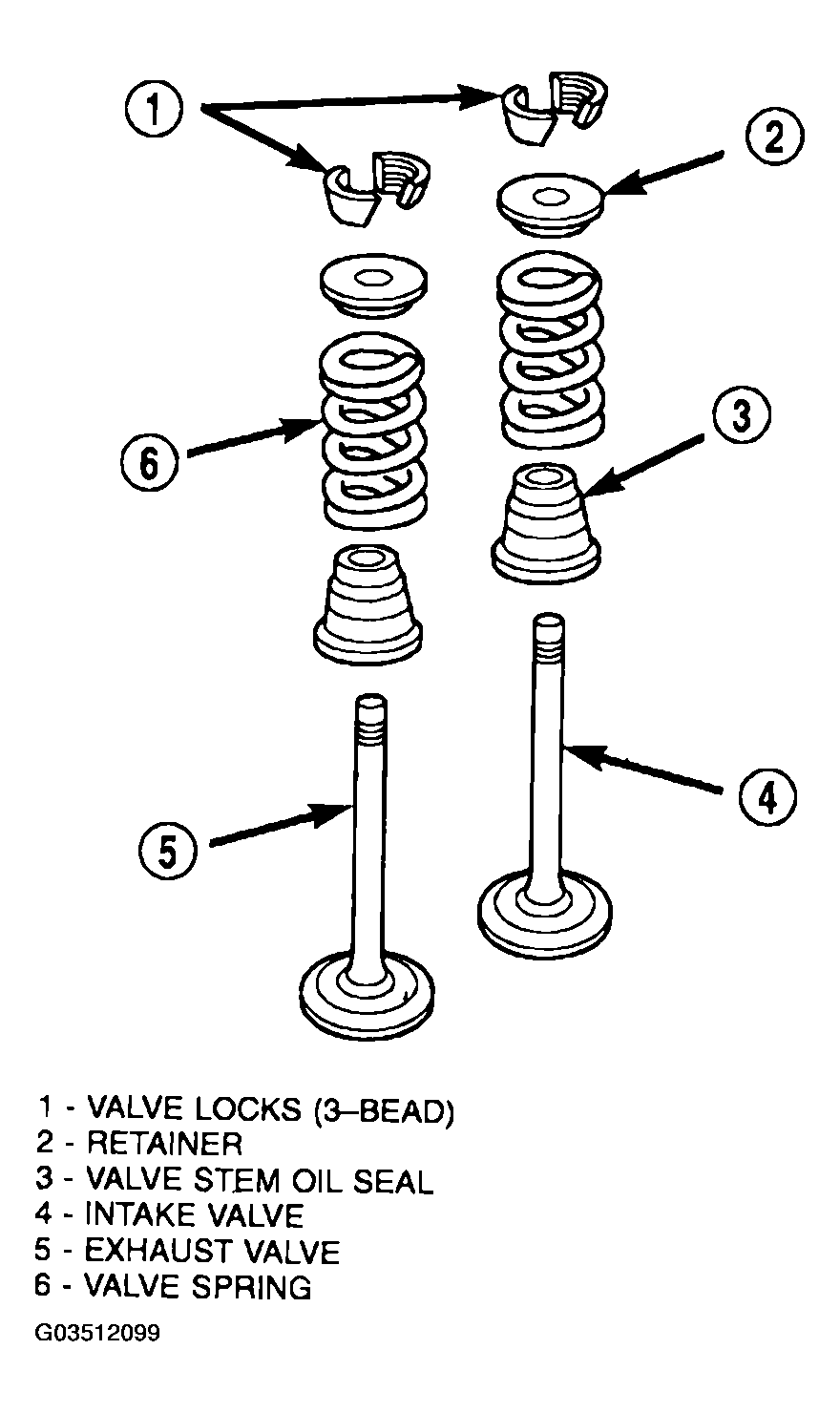

    Fig 1: Identifying Valve Assembly Configuration
    G03512099Courtesy of DAIMLERCHRYSLER CORP.

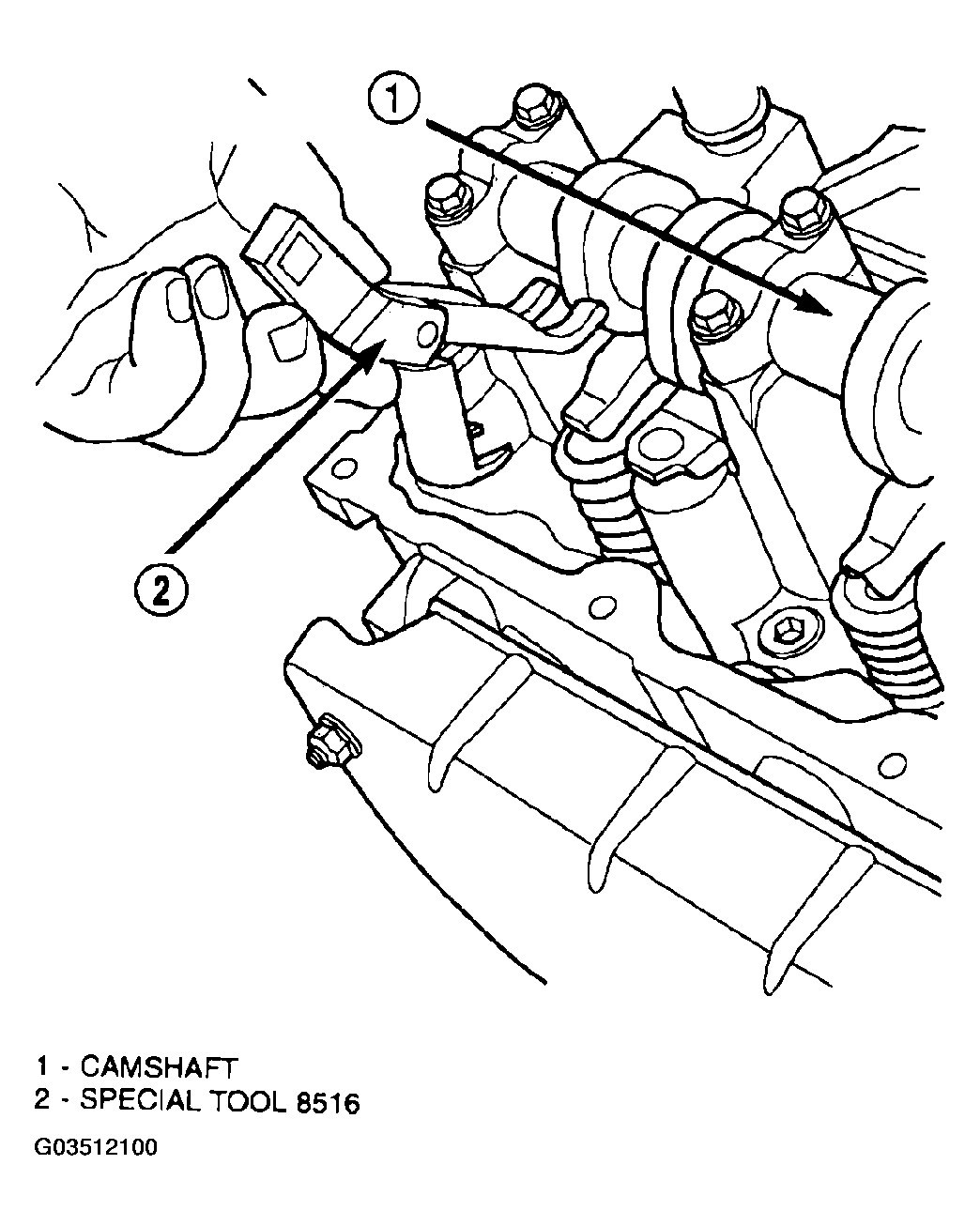

    Fig 2: Identifying Rocker Arm-Removal
    G03512100Courtesy of DAIMLERCHRYSLER CORP.
  2. Remove the camshaft bearing caps and the camshaft.
    NOTE: All six valve springs and valves are removed in the same manner; this procedure only covers one valve and valve spring.
  3. Using Special Tool C-3422-B or C-3422-C Valve Spring Compressor and Special tool 8519 Adapter, compress the valve spring.
    NOTE: It may be necessary to tap the top of the valve spring to loosen the spring retainers locks enough to be removed.
  4. Remove the two spring retainer lock halves.
    NOTE: the valve spring is under tension use care when releasing the valve spring compressor.
  5. Remove the valve spring compressor.
  6. Remove the spring retainer, and the spring.
    NOTE: Check for sharp edges on the keeper grooves. Remove any burrs from the valve stem before removing the valve from the cylinder head.
  7. Remove the valve from the cylinder head.
    NOTE: The valve stem seals are common between intake and exhaust.
  8. Remove the valve stem seal. Mark the valve for proper installation.
