Right Exhaust Manifold

WARNING: This page is about a different car, the 2004 Dodge Dakota. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative cable from the battery.
  2. Raise and support the vehicle.
  3. Remove the bolts and nuts attaching the exhaust pipe to the engine exhaust manifold.
  4. Lower the vehicle.
  5. Remove the exhaust heat shield (Fig 1 ).
  6. Remove bolts, nuts and washers attaching manifold to cylinder head.
  7. Remove manifold and gasket from the cylinder head.

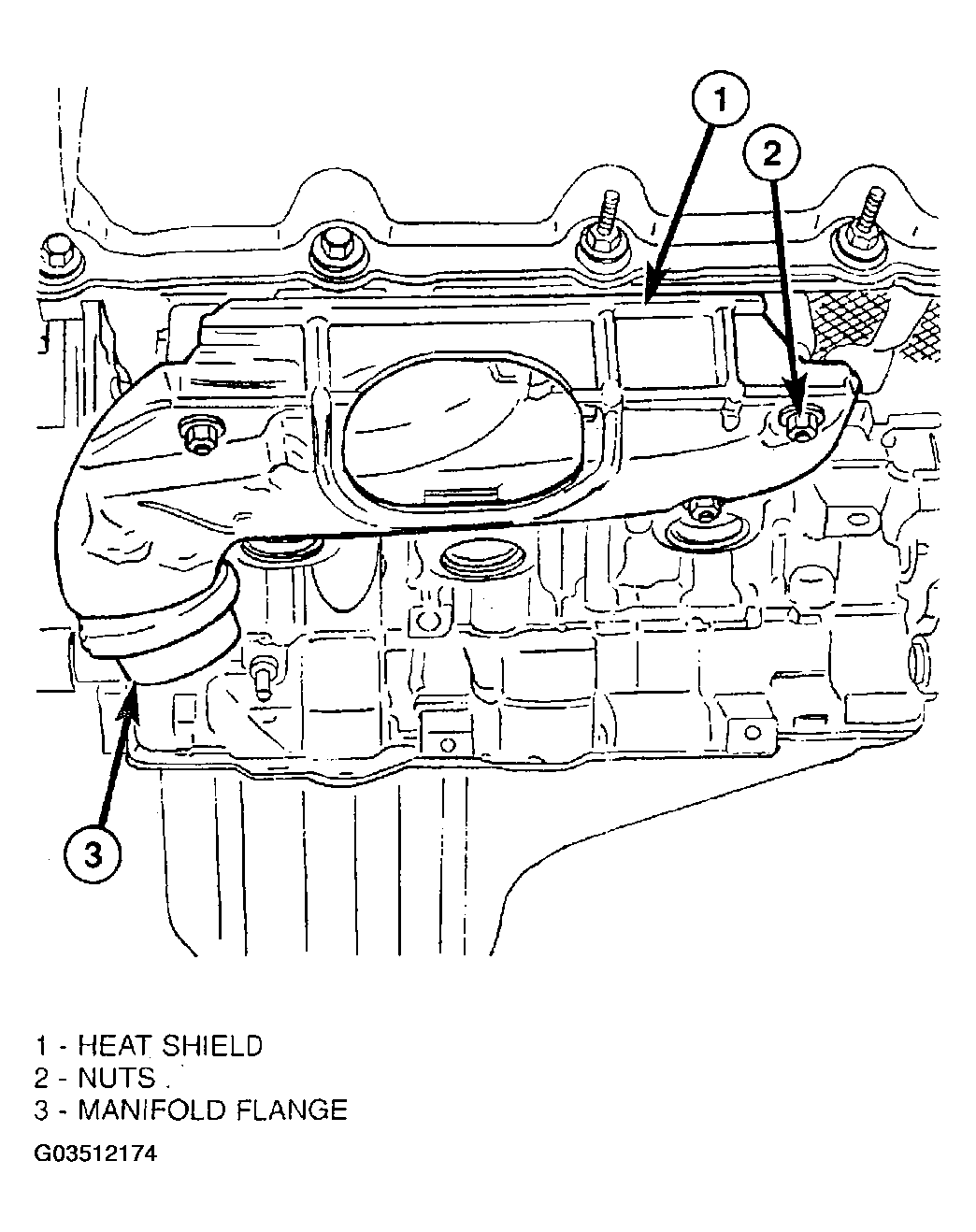

    Fig 1: Identifying Exhaust Manifold - Right
    G03512174Courtesy of DAIMLERCHRYSLER CORP.
