Cylinder Head Cover(S): Removal

WARNING: This page is about a different car, the 2004 Dodge Dakota. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect negative cable from battery.
  2. Remove the resonator assemble and air inlet hose.
  3. Disconnect injector connectors and un-clip the injector harness.
  4. Route injector harness in front of cylinder head cover.
  5. Disconnect the left side breather tube and remove the breather tube.
  6. Remove the cylinder head cover mounting bolts (Fig 1 ).
  7. Remove cylinder head cover and gasket.
    NOTE: The gasket may be used again, providing no cuts, tears, or deformation has occurred.

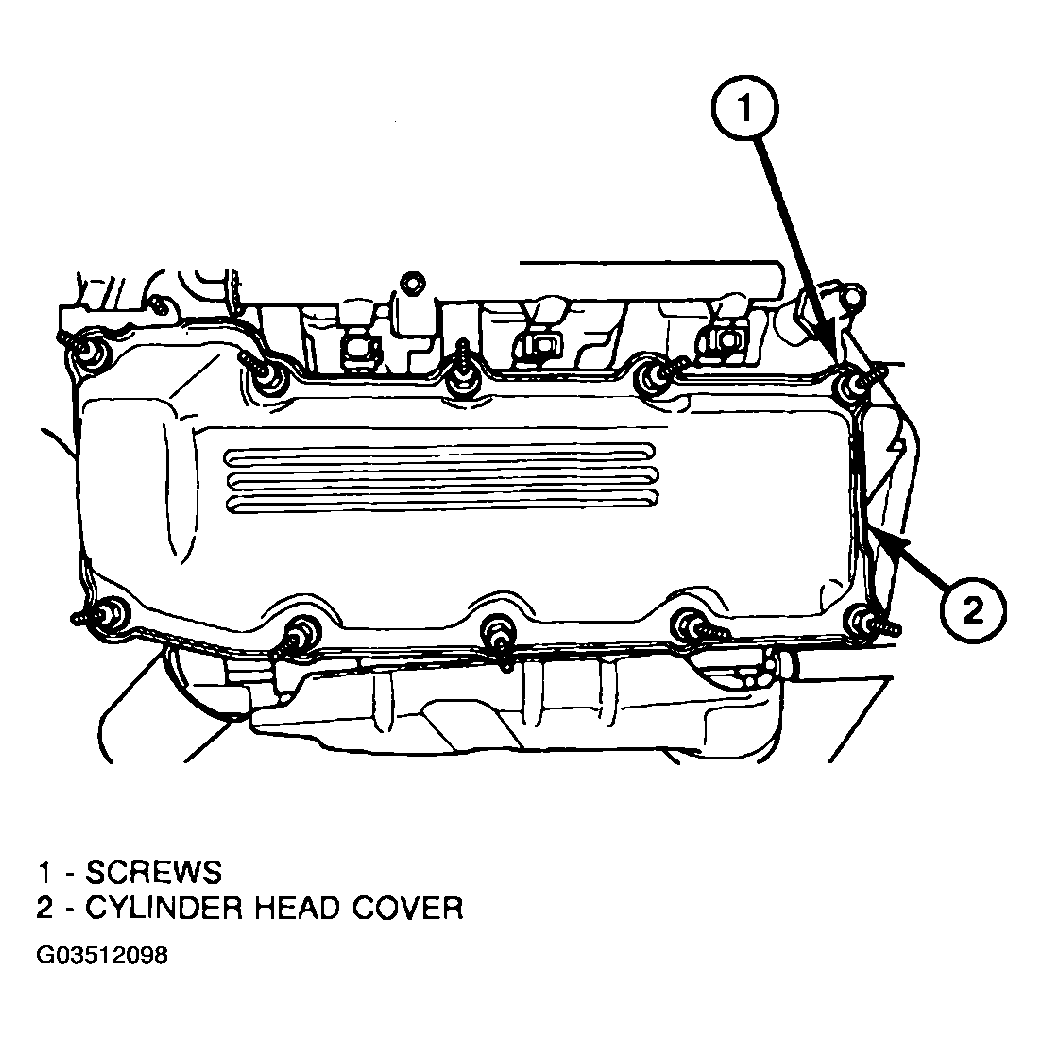

    Fig 1: Identifying Cylinder Head Cover - Typical
    G03512098Courtesy of DAIMLERCHRYSLER CORP.


  1. Disconnect battery negative cable.
  2. Remove air cleaner assembly, resonator assembly and air inlet hose.
  3. Drain cooling system, below the level of the heater hoses (Refer to STANDARD PROCEDURE - DRAINING COOLING SYSTEM ).
  4. Remove accessory drive belt (Refer to ACCESSORY DRIVE ).
  5. Remove air conditioning compressor retaining bolts and move compressor to the left.
  6. Remove heater hoses.
  7. Disconnect injector and ignition coil connectors.
  8. Disconnect and remove positive crankcase ventilation (PCV) hose.
  9. Remove oil fill tube.
  10. Un-clip injector and ignition coil harness and move away from cylinder head cover.
  11. Remove right rear breather tube and filter assembly.
  12. Remove cylinder head cover retaining bolts.
  13. Remove cylinder head cover.
