Balance Shaft: Removal

WARNING: This page is about a different car, the 2004 Dodge Dakota. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the primary and secondary timing chains. Refer to TIMING BELT/CHAIN AND SPROCKETS  .
    NOTE: The balance shaft and gear are serviced as an assembly. Do not attempt to remove the gear from the balance shaft. Remove the retaining bolt from the counterbalance shaft thrust plate (Fig 1 ).

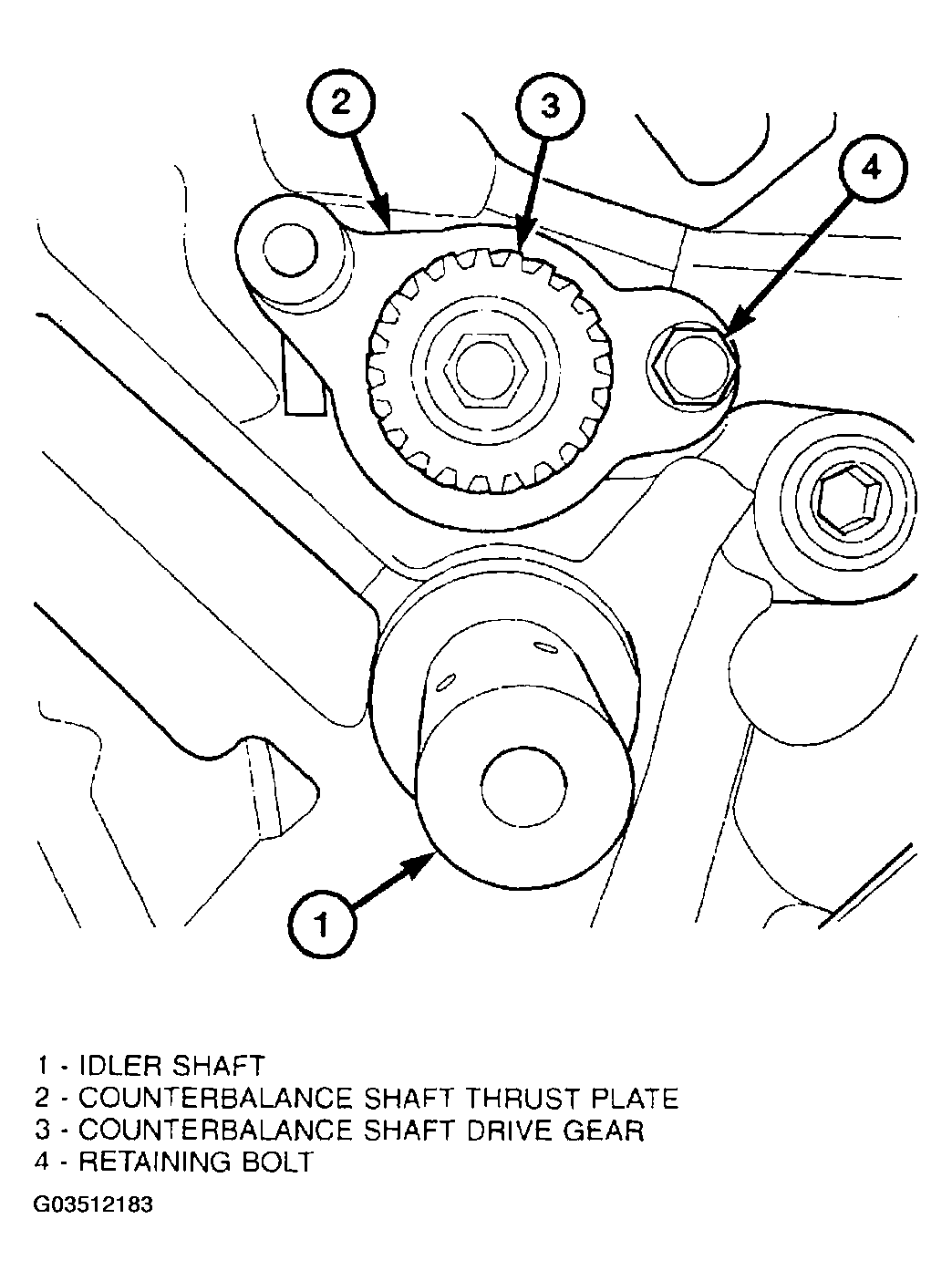

    Fig 1: Identifying Counterbalance Shaft Retaining Bolt
    G03512183Courtesy of DAIMLERCHRYSLER CORP.
  2. Using Special Tool 8641 Counterbalance shaft remover/installer tool, remove the counterbalance shaft from the engine (Fig 2 ).

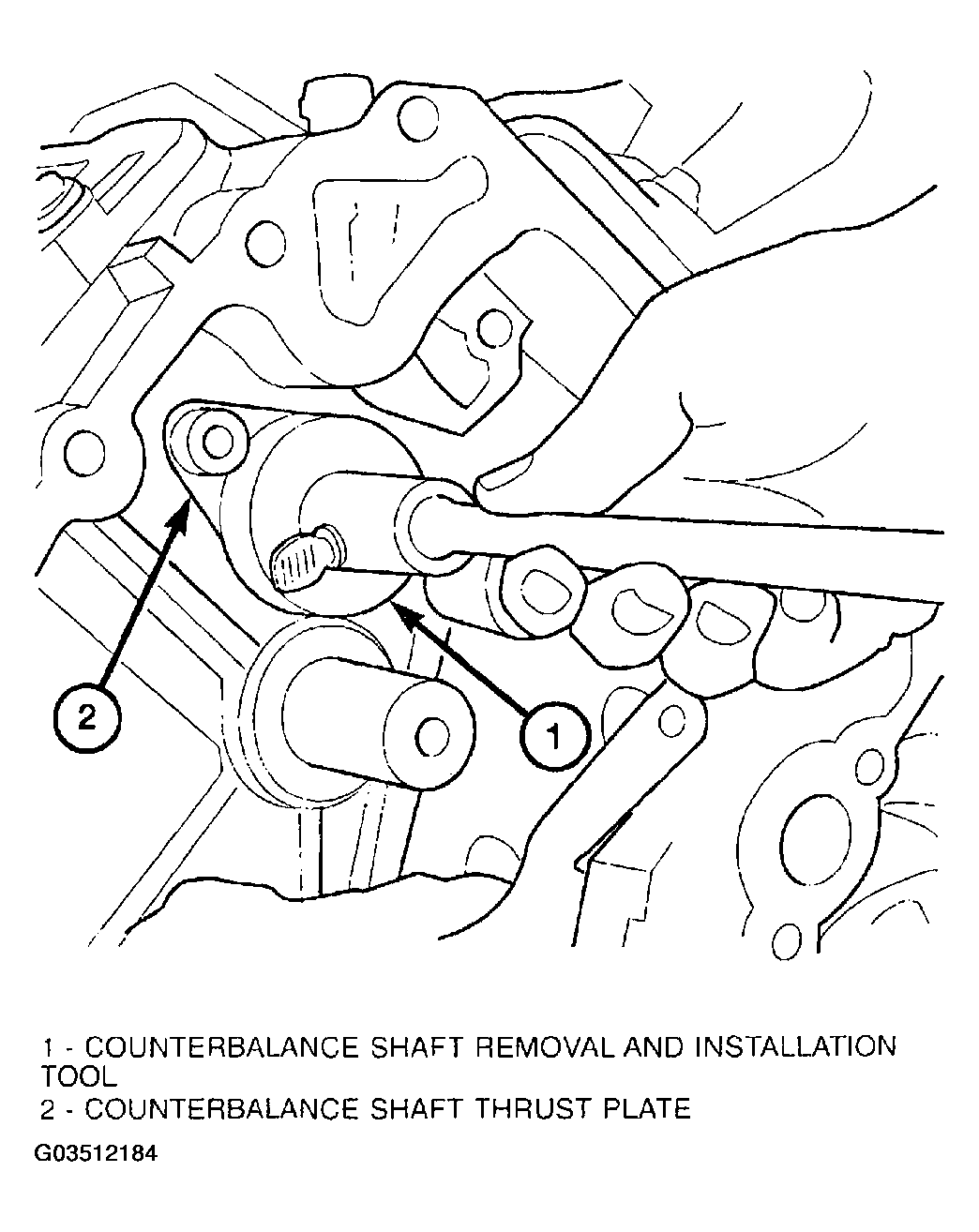

    Fig 2: Identifying Counterbalance Shaft Removal/Installation Tool
    G03512184Courtesy of DAIMLERCHRYSLER CORP.
