Air Cleaner Element: Installation

WARNING: This page is about a different car, the 2004 Dodge Dakota. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install filter element into housing.
  2. Position housing cover into housing locating tabs (Fig 1 ).

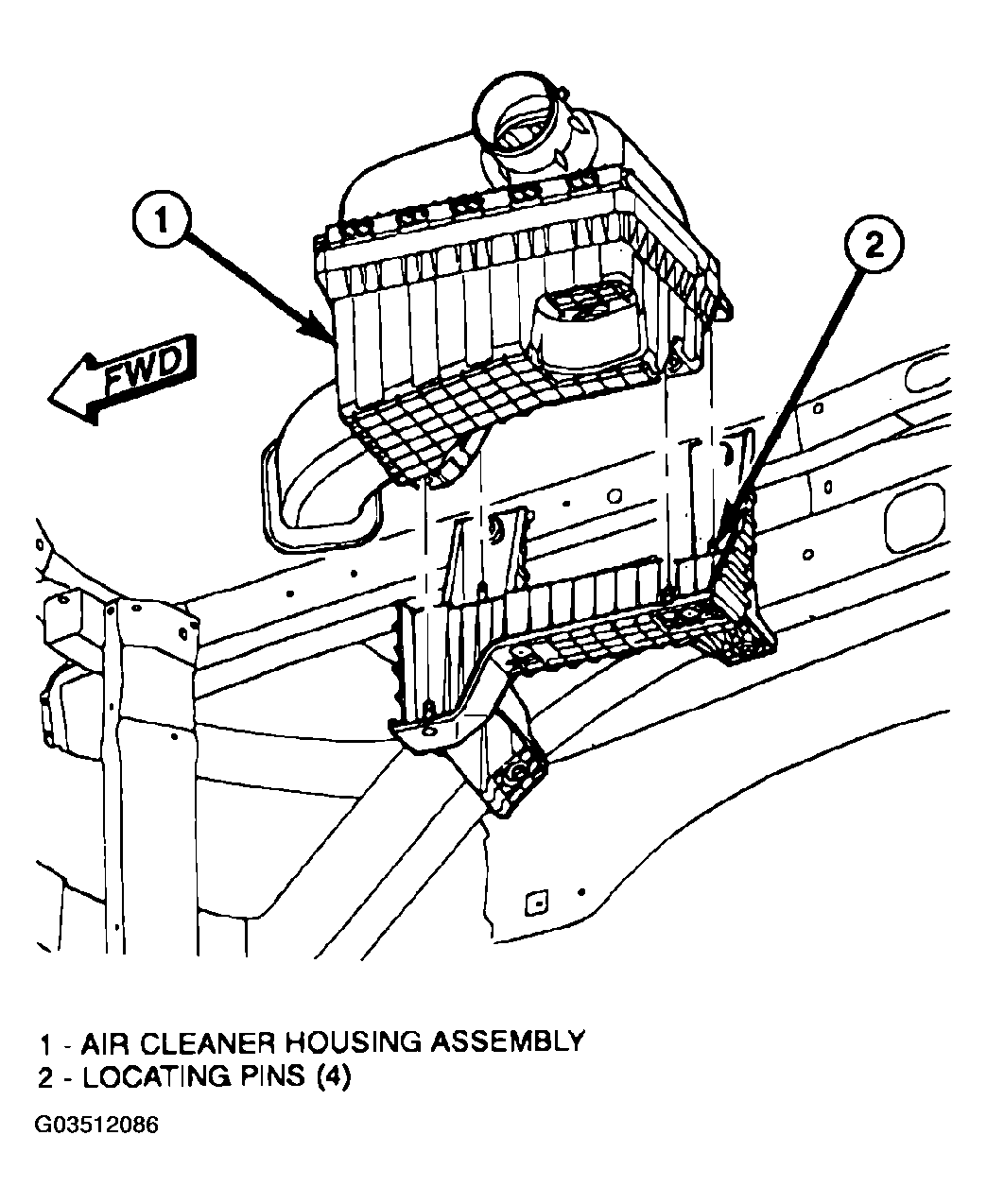

    Fig 1: Identifying Air Cleaner Housing
    G03512086Courtesy of DAIMLERCHRYSLER CORP.
  3. Pry up 4 spring clips (Figure ) and lock cover to housing.
  4. Install air duct to air cleaner cover and tighten hose clamp to 3 N.m (30 in. lbs.) torque.
  5. If any other hose clamps were removed from air intake system, tighten them to 3.4 N.m (30 in. lbs.) torque.
  6. If any bolts were removed from air resonator housing or air intake tubing, tighten them to 4.5 N.m (40 in. lbs.) torque.
