Section 88 (Speed Control): Switch: Removal

WARNING: This page is about a different car, the 2004 Dodge Dakota. However, it is still accessible from the selected car via links, so may be relevant.
WARNING: BEFORE BEGINNING ANY AIRBAG SYSTEM COMPONENT REMOVAL OR INSTALLATION, REMOVE AND ISOLATE THE NEGATIVE (-) CABLE FROM THE BATTERY. THIS IS THE ONLY SURE WAY TO DISABLE THE AIRBAG SYSTEM. THEN WAIT TWO MINUTES FOR SYSTEM CAPACITOR TO DISCHARGE BEFORE FURTHER SYSTEM SERVICE. FAILURE TO DO THIS COULD RESULT IN ACCIDENTAL AIRBAG DEPLOYMENT AND POSSIBLE INJURY.
  1. Disconnect and isolate negative battery cable.
  2. Remove airbag module. Refer to AIR BAG RESTRAINT SYSTEMS .
  3. Remove switch-to-steering wheel mounting screws ( Fig 1 ).
  4. Remove switch.
  5. Remove electrical connector at switch.

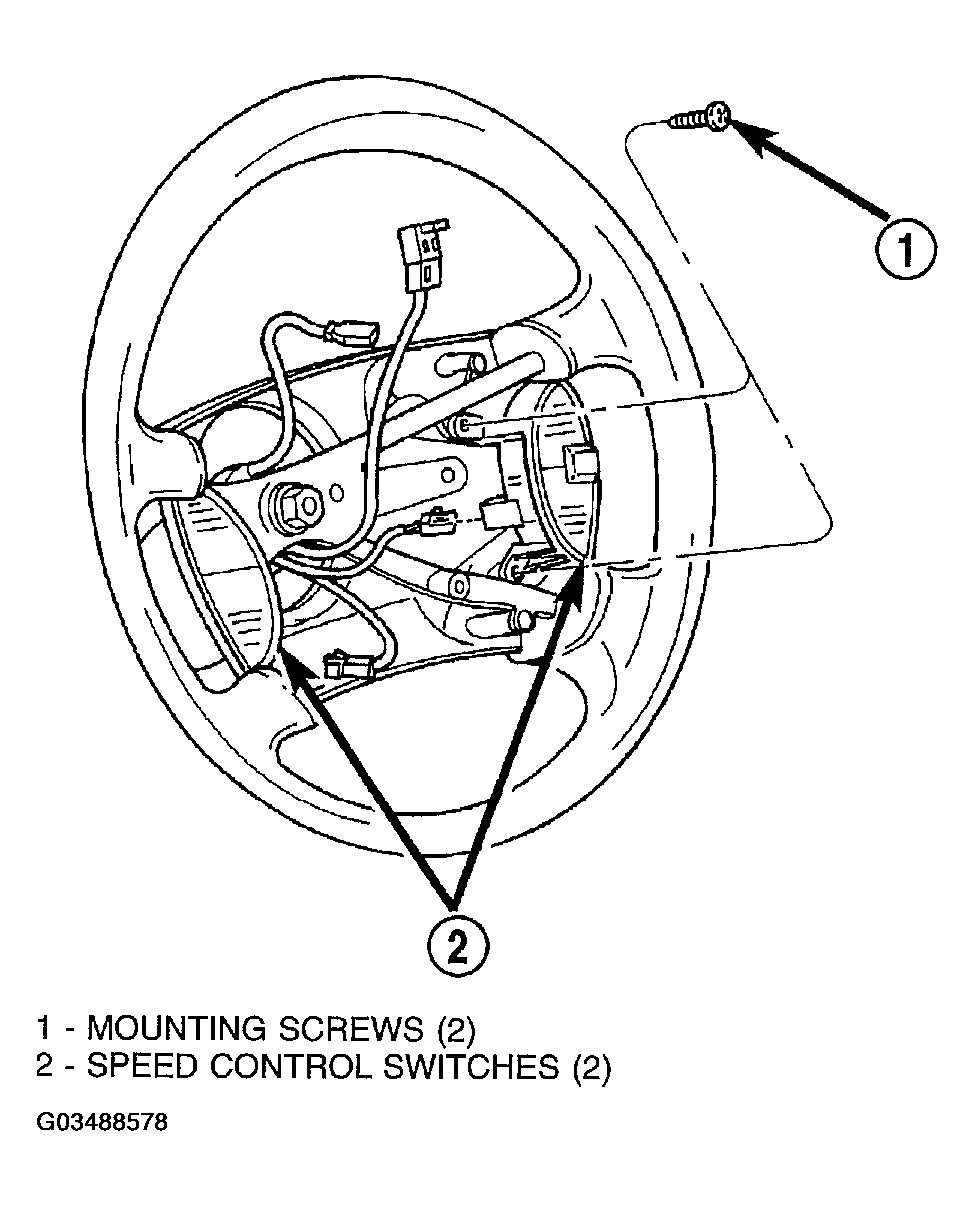

    Fig 1: Identifying Speed Control Switches
    G03488578Courtesy of DAIMLERCHRYSLER CORP.
