Section 88 (Speed Control): Servo: Removal

WARNING: This page is about a different car, the 2004 Dodge Dakota. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect negative battery cable at battery.
  2. Disconnect vacuum hose (line) at servo ( Fig 1 ).
  3. Disconnect electrical connector at servo.
  4. Disconnect servo cable at throttle body. Refer to CABLE  .
  5. Remove 2 mounting nuts holding servo cable sleeve to bracket ( Fig 1 ) or ( Fig 2 ).
    Fig 1: Identifying Speed Control Servo Location
    G03488576Courtesy of DAIMLERCHRYSLER CORP.
  6. Pull speed control cable sleeve and servo away from servo mounting bracket to expose cable retaining clip ( Fig 2 ) and remove clip. Note: The servo mounting bracket displayed in ( Fig 2 ) is a typical bracket and may/may not be applicable to this model vehicle.

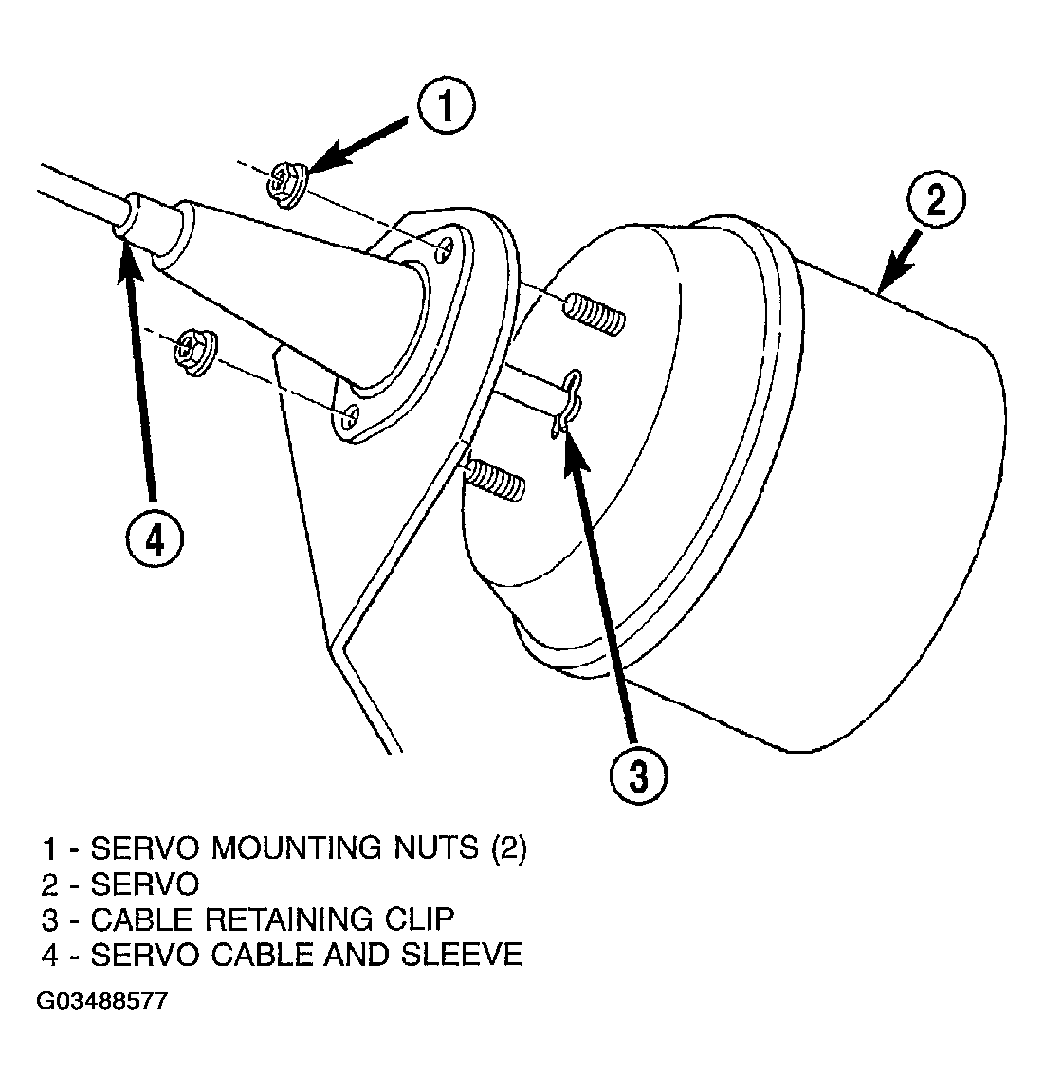

    Fig 2: Identifying Servo Cable Clip Remove/Install - Typical
    G03488577Courtesy of DAIMLERCHRYSLER CORP.
  7. Remove servo from mounting bracket. While removing, note orientation of servo to bracket.
